Product Description

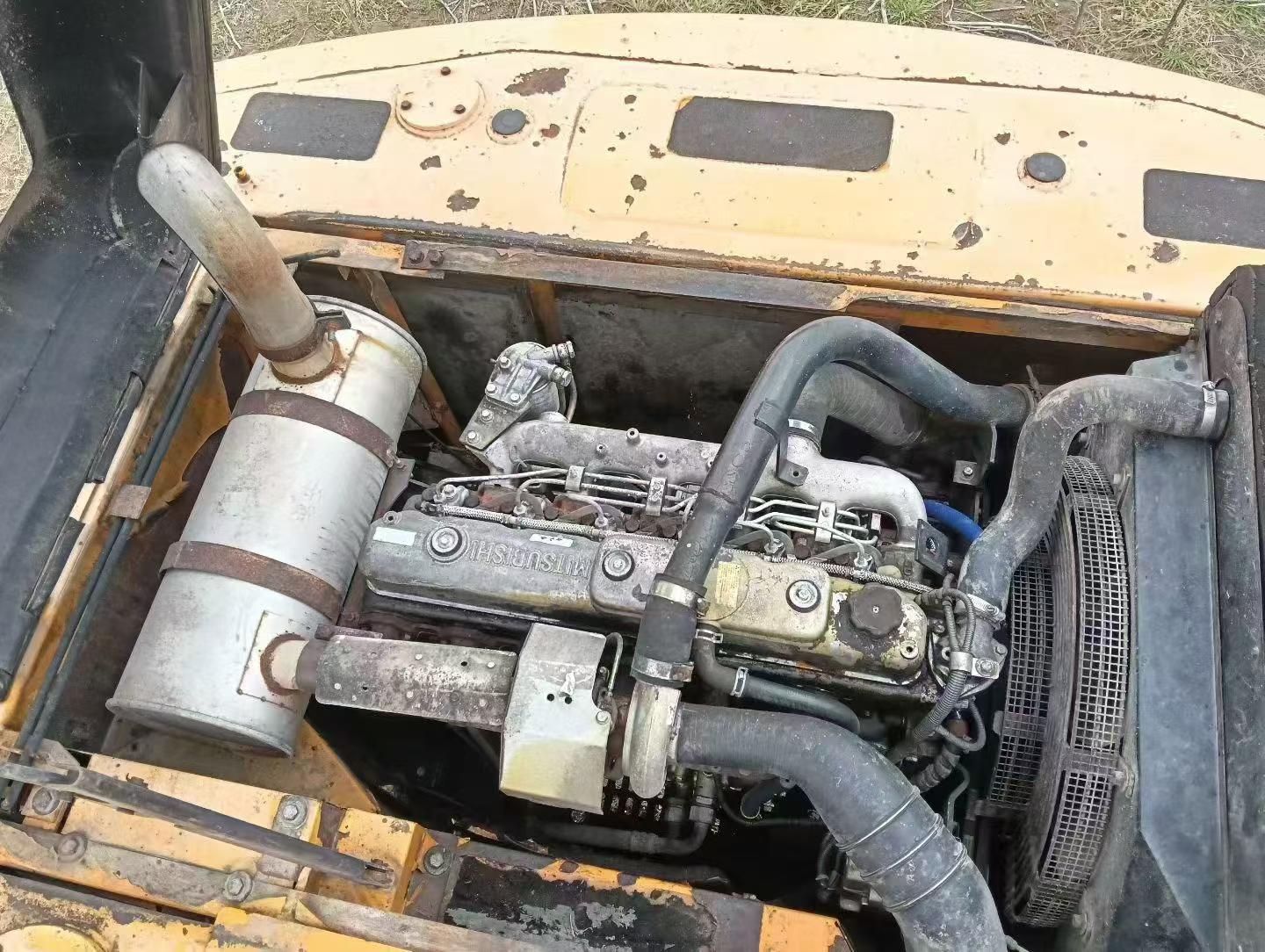

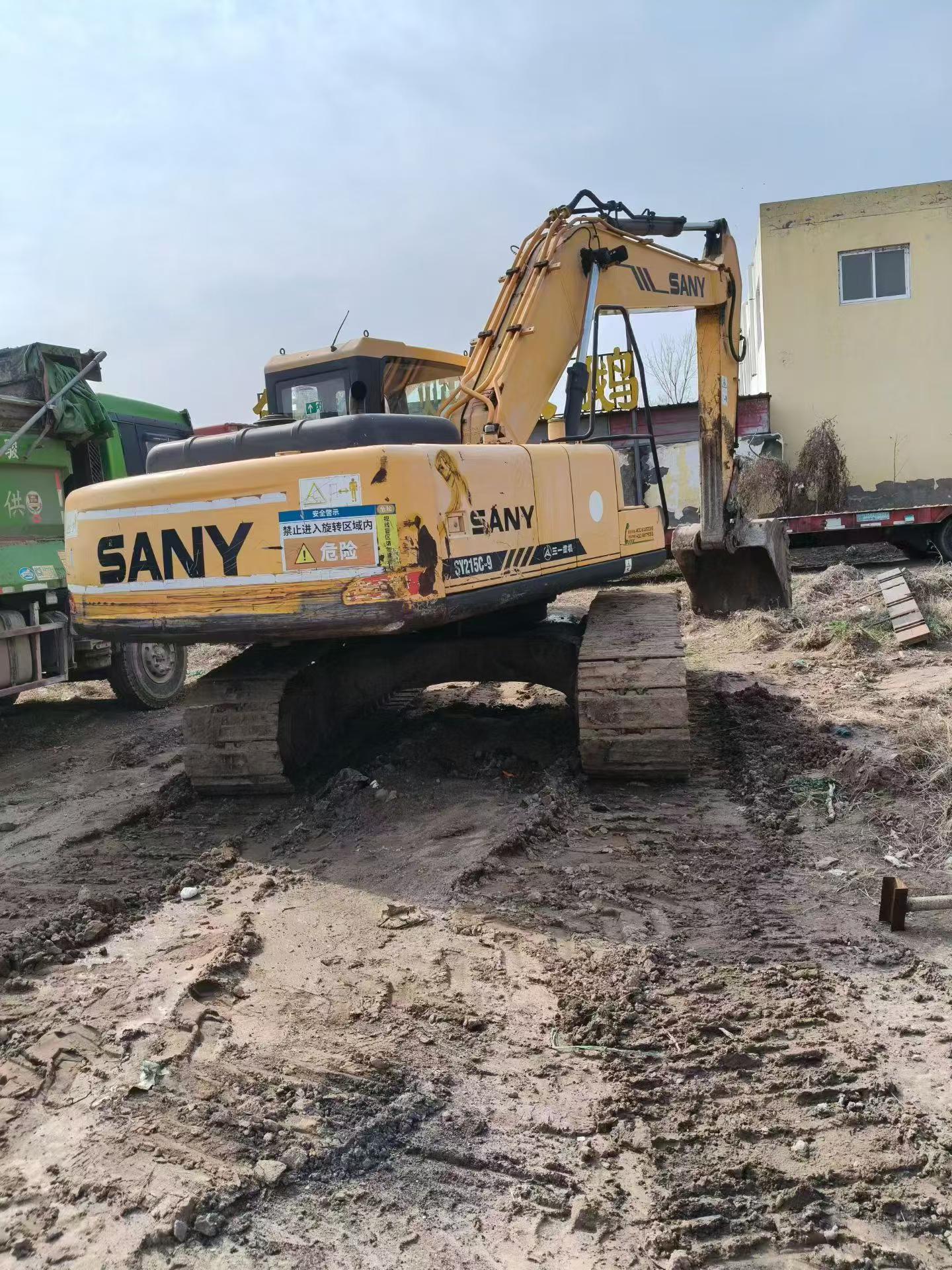

Proven performance meets exceptional durability in this 2013 Sany SY215C excavator, currently located in Tai'an, Shandong. Operating at 21 tons with a working weight of 21,900 kg, this workhorse has demonstrated remarkable reliability through years of demanding service. Powered by a robust Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm, this machine combines traditional power architecture with proven engineering excellence from China's leading manufacturer.
Built to withstand rigorous job site conditions, the SY215C features impressive capabilities including a maximum digging depth of 6,600 mm and a reach extending to 10,280 mm. The water-cooled engine generates 580 N.m of torque, while bucket digging force reaches 138 kN. With a 0.8-1.2 m³ bucket capacity range and 70% climbing ability, this excavator tackles challenging terrain with confidence.
- Reliable Mitsubishi 4M50 4-cylinder engine (4.9L displacement)
- Substantial fuel capacity: 390L tank for extended operations
- Compact transport dimensions: 9,680 mm × 2,980 mm × 3,440 mm
- Dual-speed travel: 5.4/3.3 km/h for versatile mobility
- Time-tested construction quality backed by years of field performance
| Specifications | Value |
|---|---|
| No. | 1027598 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
