2013 Sany SY215C

1/9

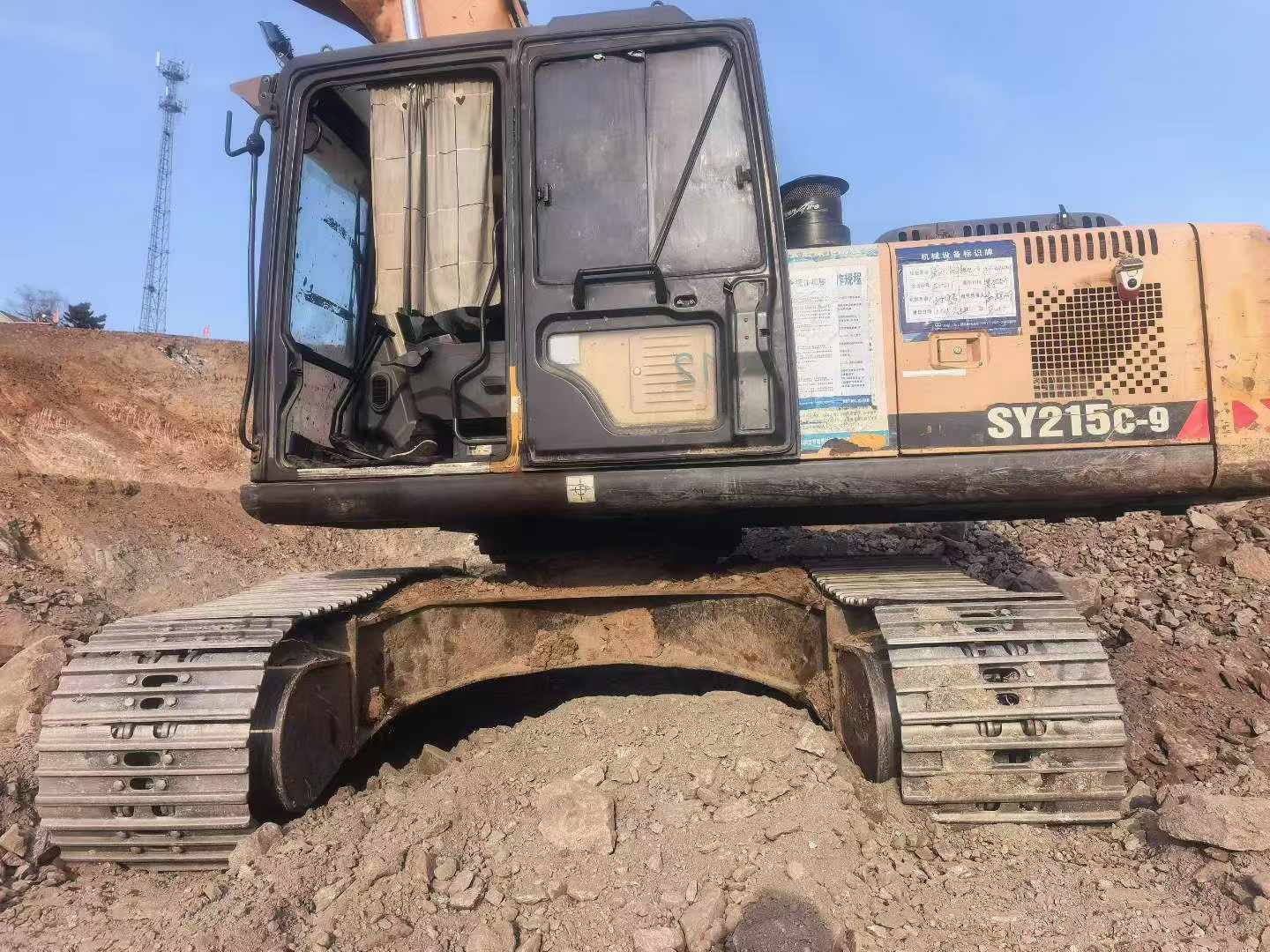

Buy Sany SY215C Used Excavator / 1
Buy Sany SY215C Used Excavator / 2

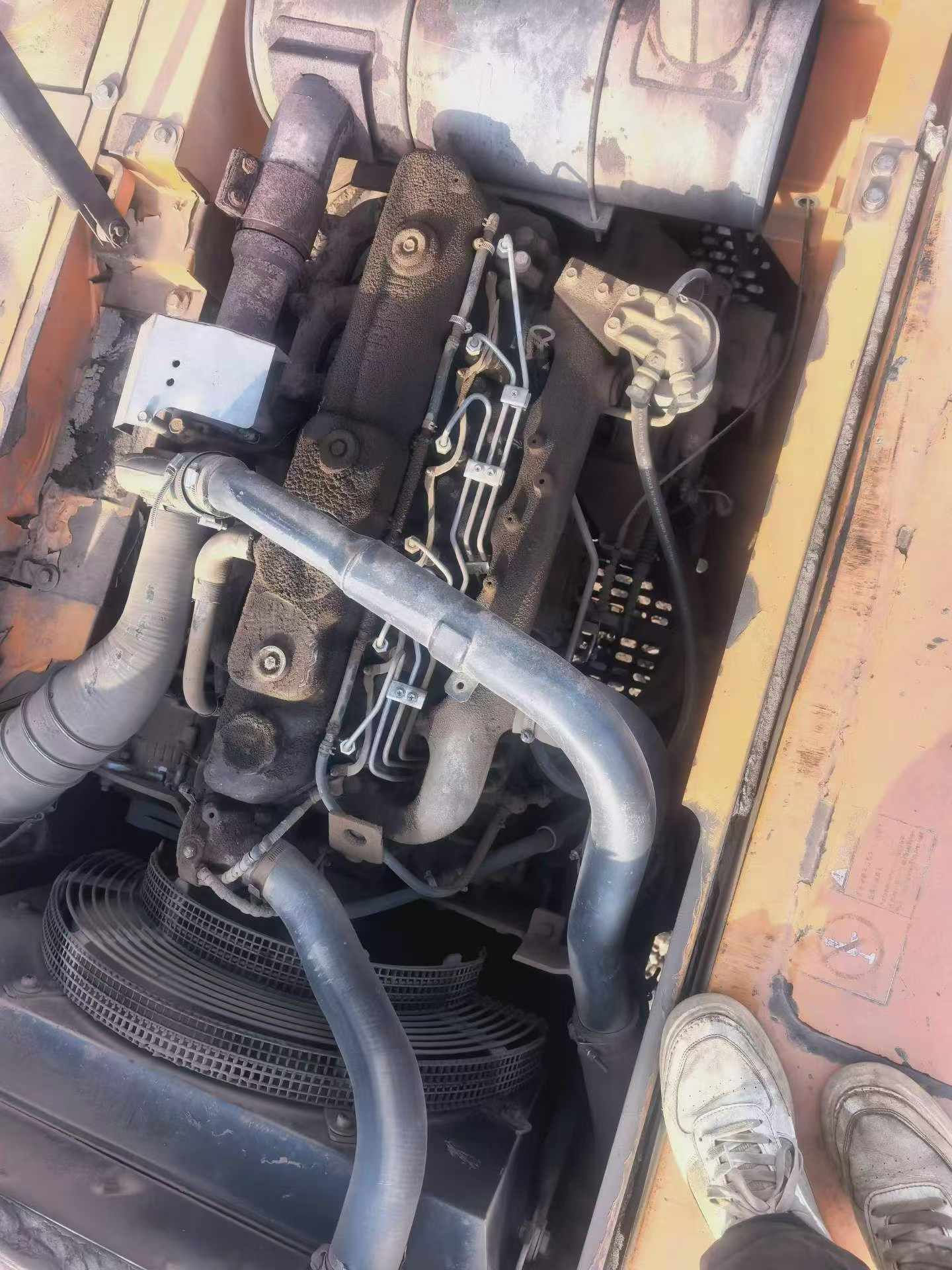

Buy Sany SY215C Used Excavator / 3

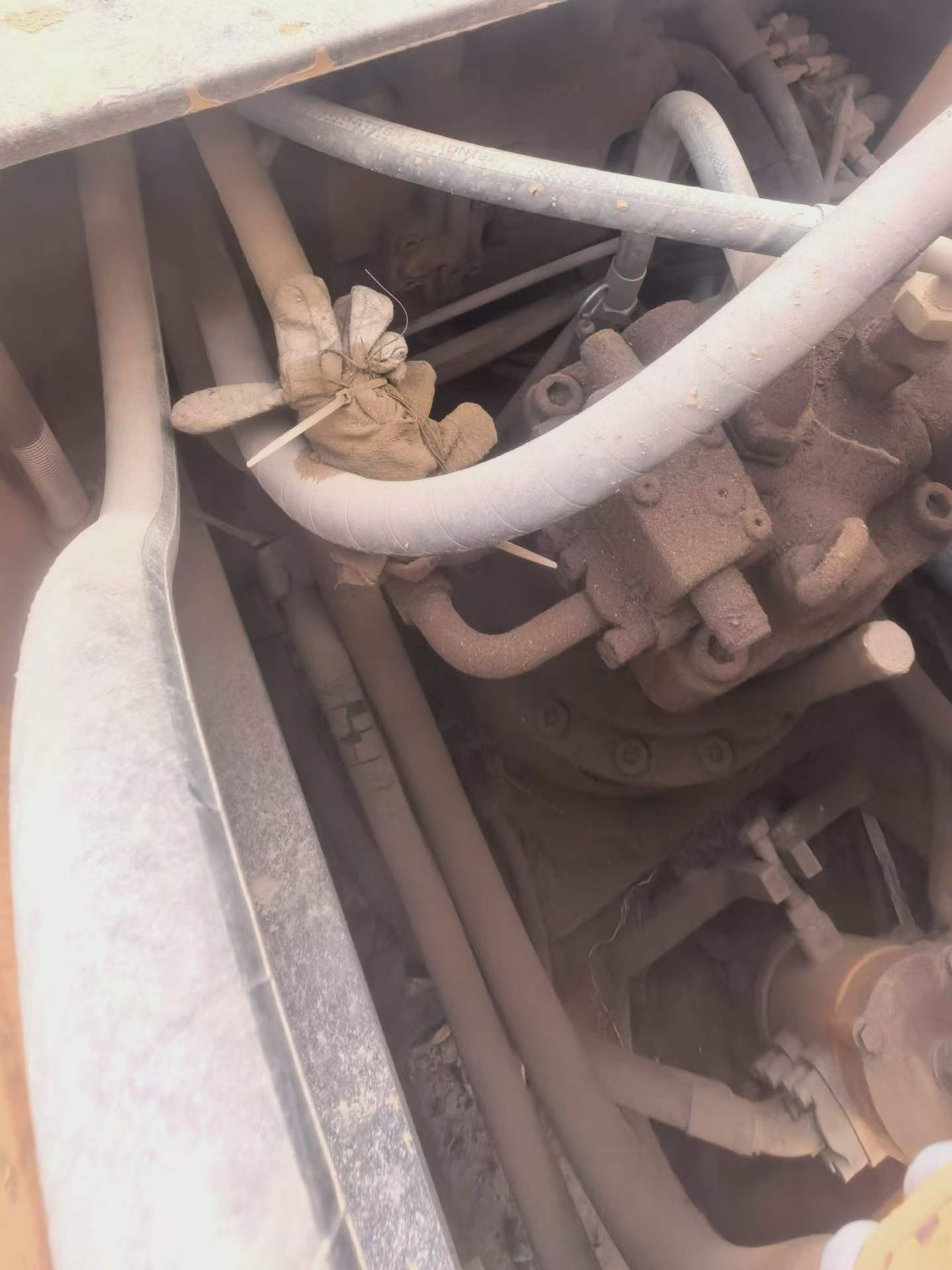

Buy Sany SY215C Used Excavator / 4

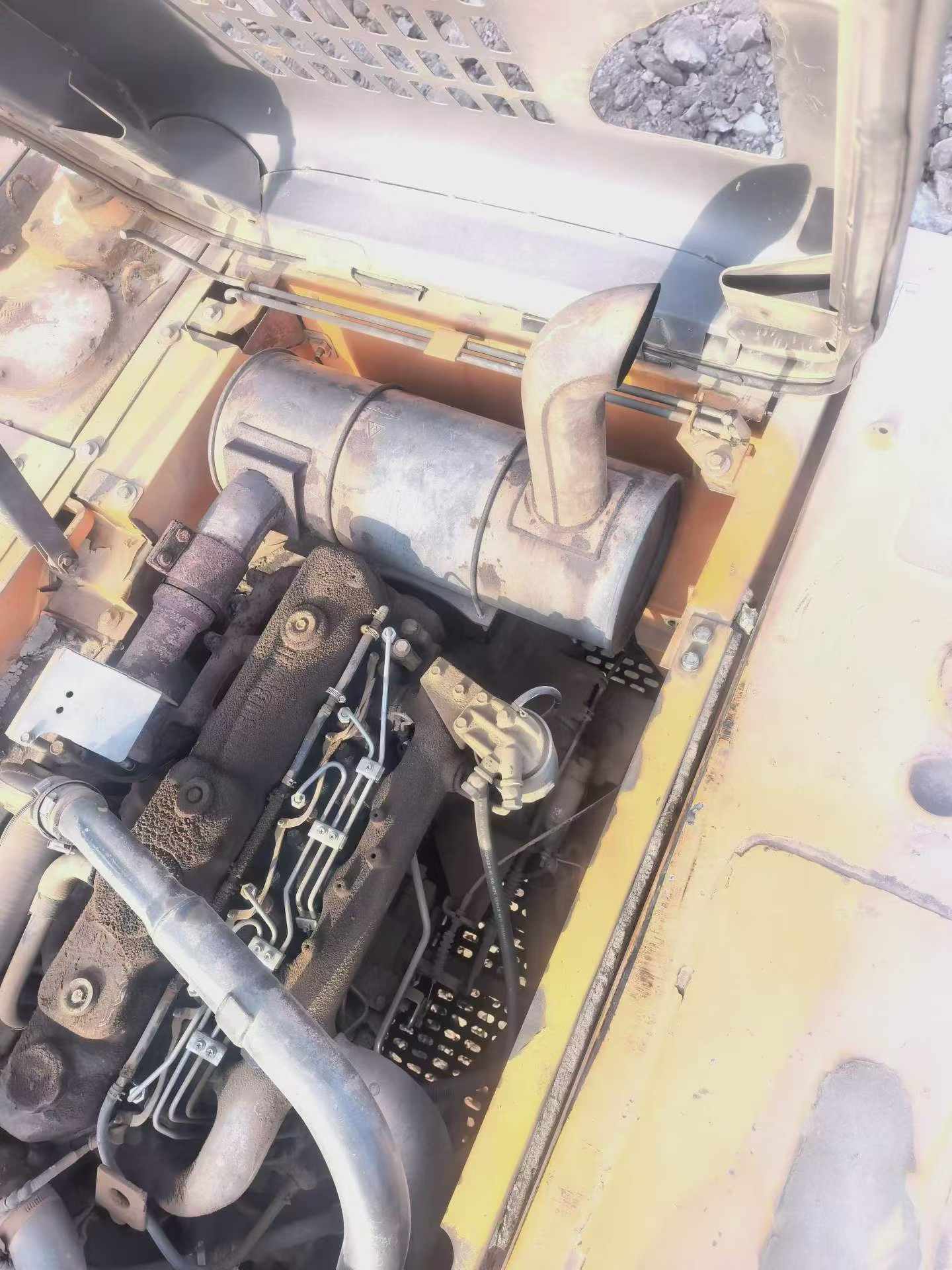

Buy Sany SY215C Used Excavator / 5

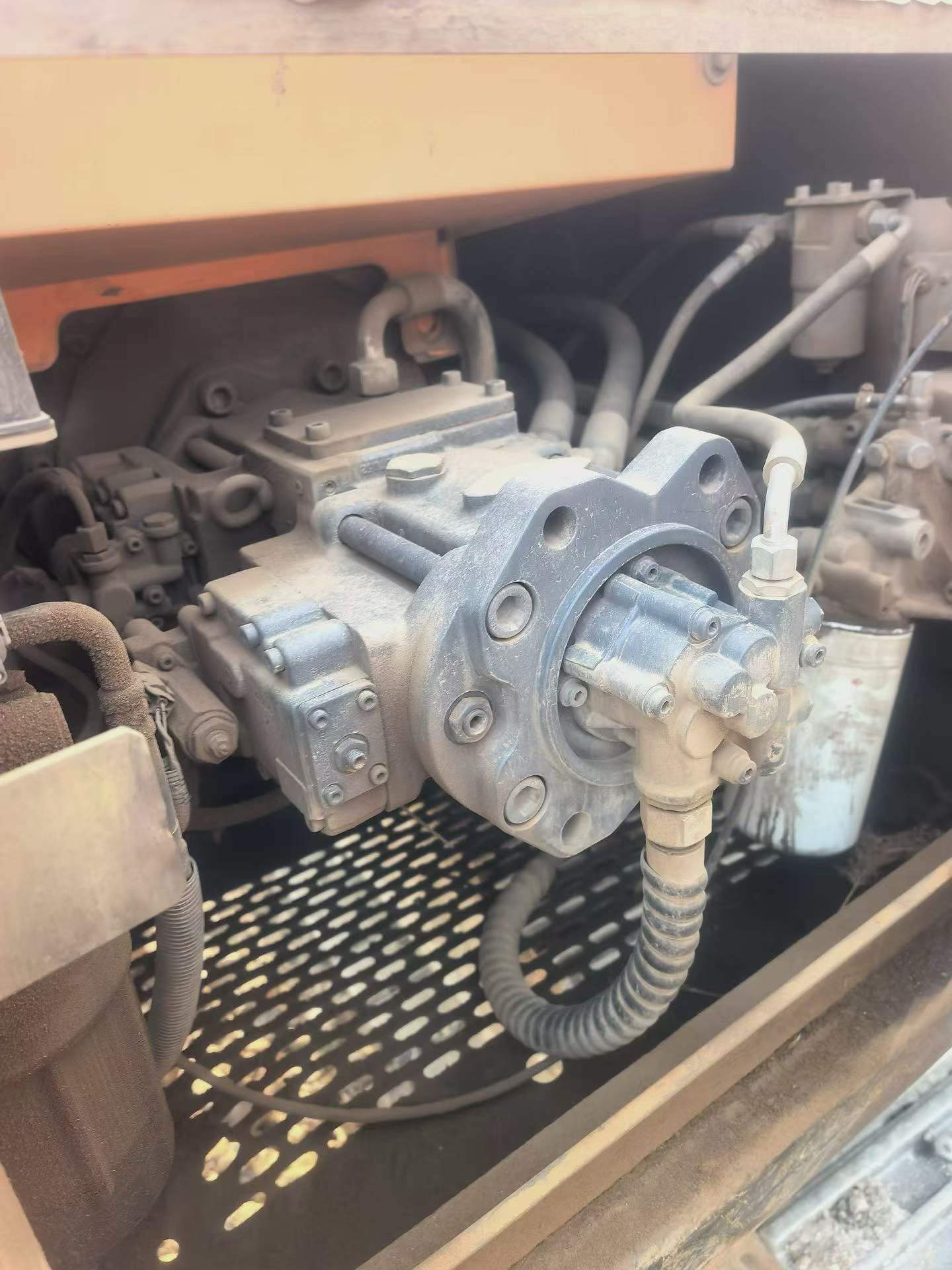

Buy Sany SY215C Used Excavator / 6

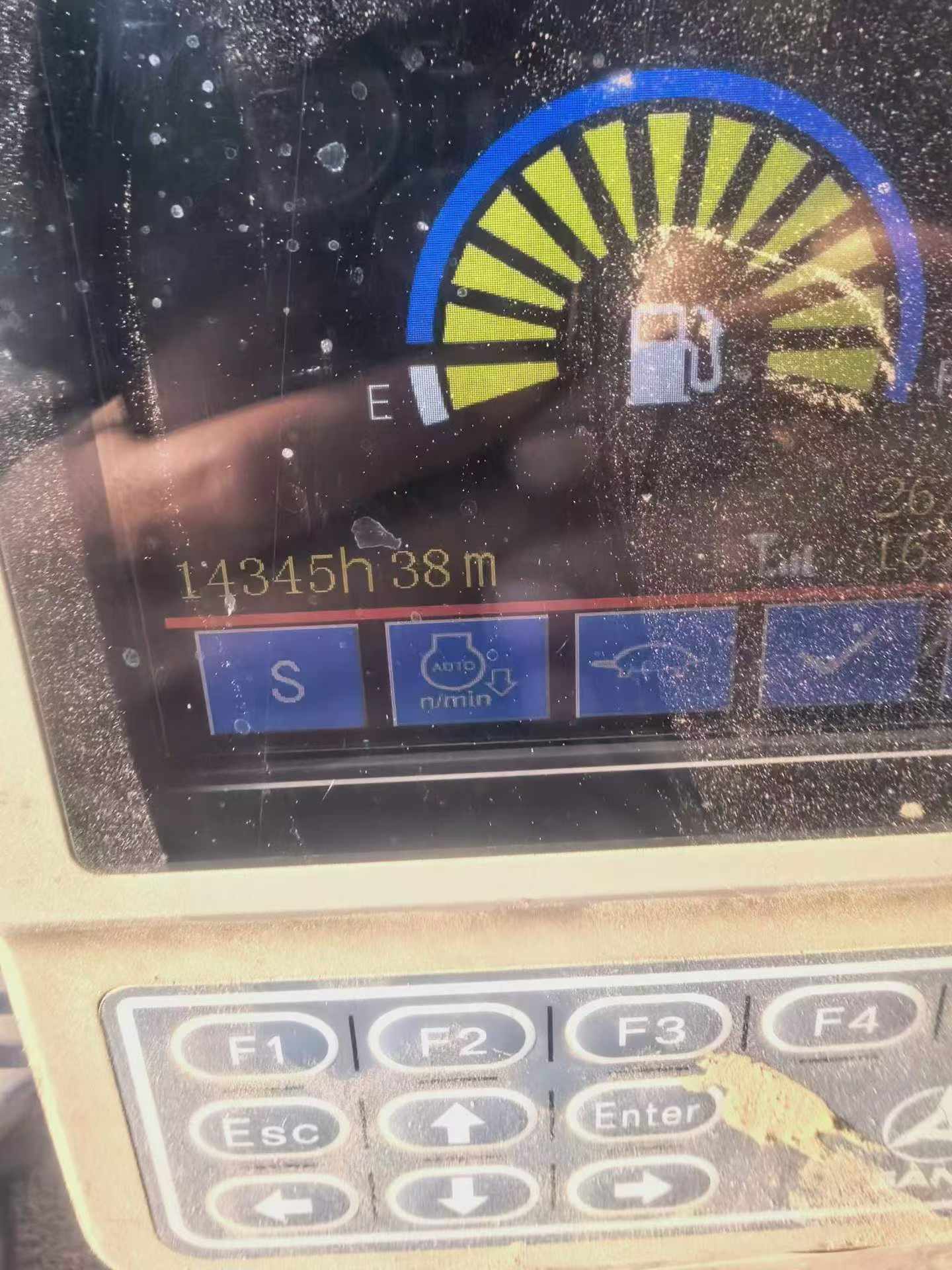

Buy Sany SY215C Used Excavator / 7

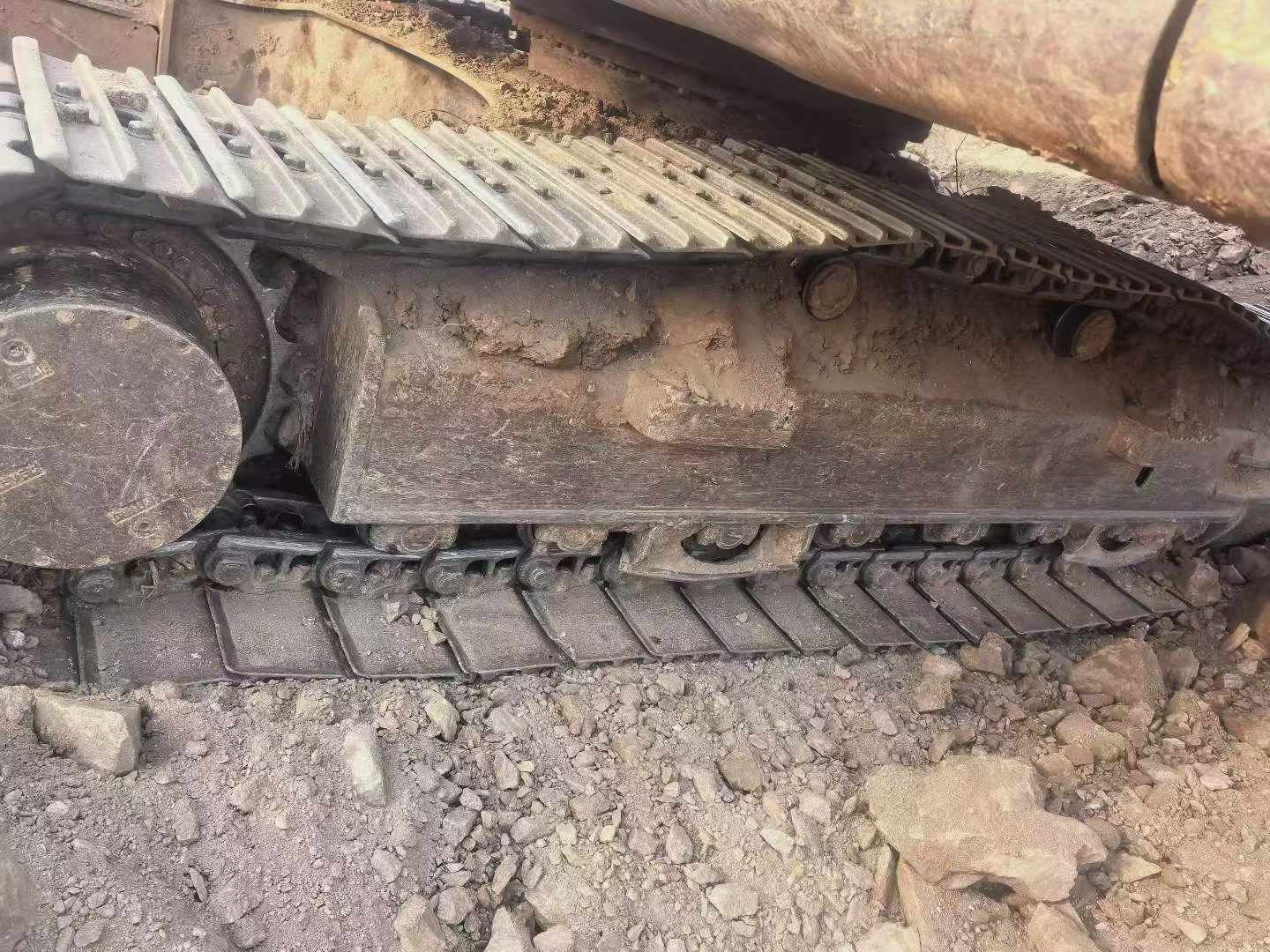

Buy Sany SY215C Used Excavator / 8

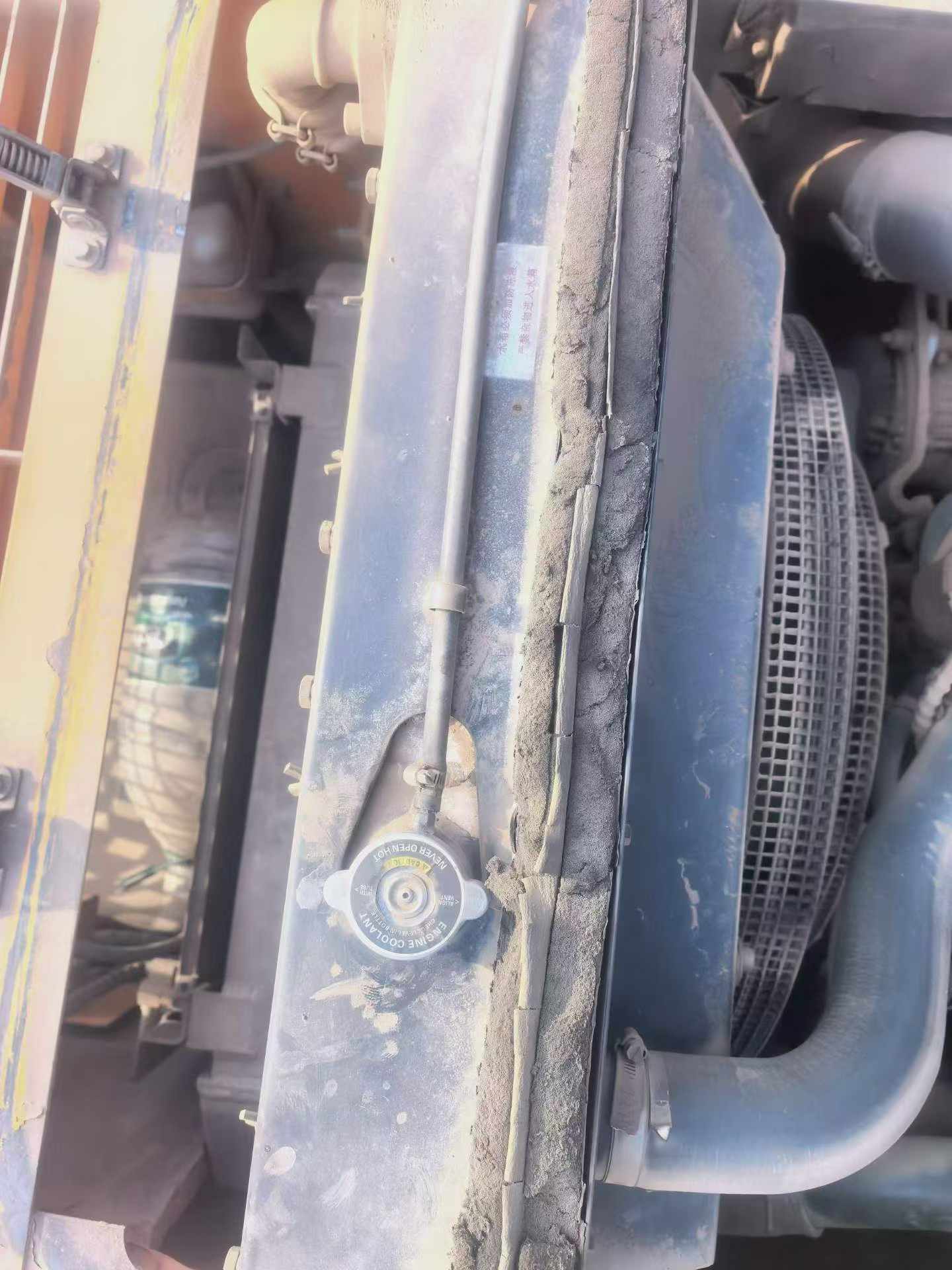

Buy Sany SY215C Used Excavator / 9

Product Description

Powered by a proven Mitsubishi 4M50 engine delivering 118kW at 2000rpm, this 2013 Sany SY215C excavator combines reliable performance with practical operating economics. Operating at 21 tons with a 1.1m³ bucket capacity, this machine offers robust digging force of 138kN and a maximum reach of 10,280mm, making it suitable for medium to heavy-duty excavation work.

Sany has established itself as a dependable choice in the used equipment market, backed by widespread parts availability and strong resale retention. This SY215C benefits from that reputation—components are readily accessible through established dealer networks, and service documentation is comprehensive. Currently located in Shandong Linyi, this water-cooled unit features a 390L fuel tank for extended operation and maintains a ground clearance of 440mm for varied terrain capability.

  • 21-ton operating weight with proven Mitsubishi power
  • Maximum digging depth: 6,600mm
  • Excellent parts support through Sany's global network
  • Strong resale value retention in secondary markets
  • 600mm track plates for stability
SpecificationsValue
No.1043638
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1043638

Brand Name:

Sany

Model Number:

SY215C

Year:

2013

Location:

Shandong China

Pub Date
