2013 Sany SY215C

1/8
Buy Sany SY215C Used Excavator / 1
Buy Sany SY215C Used Excavator / 2
Buy Sany SY215C Used Excavator / 3
Buy Sany SY215C Used Excavator / 4
Buy Sany SY215C Used Excavator / 5
Buy Sany SY215C Used Excavator / 6
Buy Sany SY215C Used Excavator / 7
Buy Sany SY215C Used Excavator / 8

Product Description

This 2013 Sany SY215C crawler excavator represents a reliable mid-size earthmoving solution from one of China's leading heavy equipment manufacturers. The SY215C is part of Sany's proven C-series lineup, designed for versatility across construction, mining, and infrastructure projects. Currently located in Jiangxi, China, this machine offers an economical entry point for contractors seeking dependable excavation performance.

Key features of the Sany SY215C include:

  • 21-ton operating class suitable for medium-duty applications
  • Fuel-efficient engine designed for extended operation cycles
  • Robust undercarriage engineered for varied terrain conditions
  • Hydraulic system optimized for digging and lifting tasks
  • Spacious operator cabin with ergonomic controls

With over a decade of service life remaining when properly maintained, this Sany SY215C offers competitive value for businesses expanding their fleet or entering new markets.

SpecificationsValue
No.1079949
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe

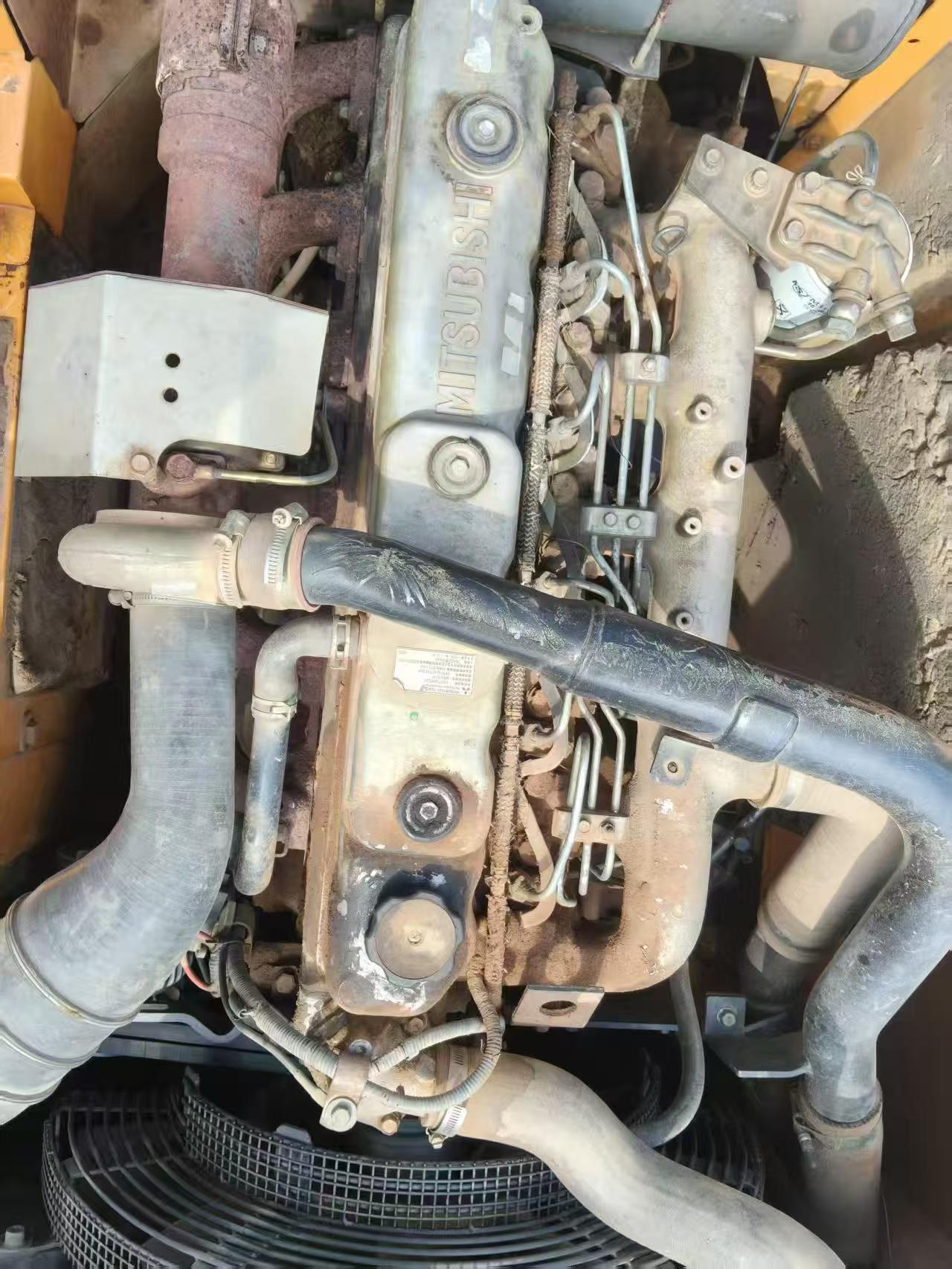

Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1079949

Brand Name:

Sany

Model Number:

SY215C

Year:

2013

Location:

Jiangxi China

Pub Date
