Product Description
Built in 2014, this Sany SY215C excavator delivers proven performance with the backing of one of China's most reliable heavy equipment manufacturers. Operating at 21 tons with a Mitsubishi 4M50 engine producing 118kW, this machine combines dependable power with practical efficiency for mid-sized excavation projects. The 1.1m³ bucket capacity and 10,280mm maximum digging radius provide versatile capability across construction, demolition, and earthmoving applications.
Sany's widespread global presence ensures parts availability and service support remain accessible long after purchase. With a maximum digging depth of 6,600mm and bucket digging force of 138kN, this SY215C handles demanding workloads while maintaining fuel efficiency through its 390L tank capacity. Currently located in Shaoxing, Zhejiang, the machine features water-cooled operation and robust hydraulics designed for extended service life.
Key Specifications:

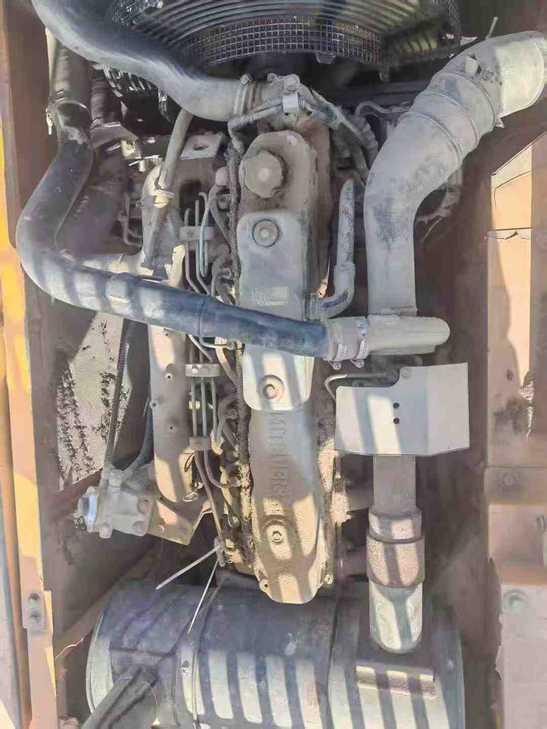

- Mitsubishi 4M50 engine: 118kW at 2000rpm
- Operating weight: 21,900kg with superior stability
- Maximum digging reach: 10,280mm
- Proven Sany engineering with strong resale retention
| Specifications | Value |
|---|---|
| No. | 1022326 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
