Product Description

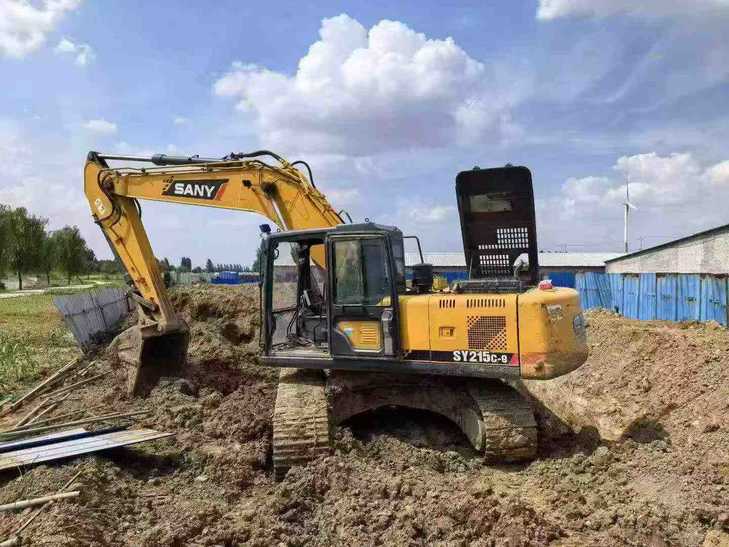

This 2014 Sany SY215C excavator represents a solid mid-size solution for contractors seeking proven hydraulic performance at competitive value. Manufactured during Sany's quality expansion period, this unit delivers reliable 21-ton class operation with established component durability.
Currently located in Zhejiang, China, this machine comes with comprehensive documentation including detailed photographs and operational video, allowing thorough remote inspection before purchase.
- Year of Manufacture: 2014
- Model: SY215C (21-ton class)
- Brand: Sany Heavy Industry
- Location: Zhejiang Province, China
- Documentation: Detailed images and video available
The SY215C is well-suited for general earthmoving, site development, and utility installation. This unit offers an opportunity to acquire established Sany engineering at used equipment pricing. Contact us for complete specifications, service records, and shipping logistics to your location.
| Specifications | Value |
|---|---|
| No. | 1086005 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
