Product Description

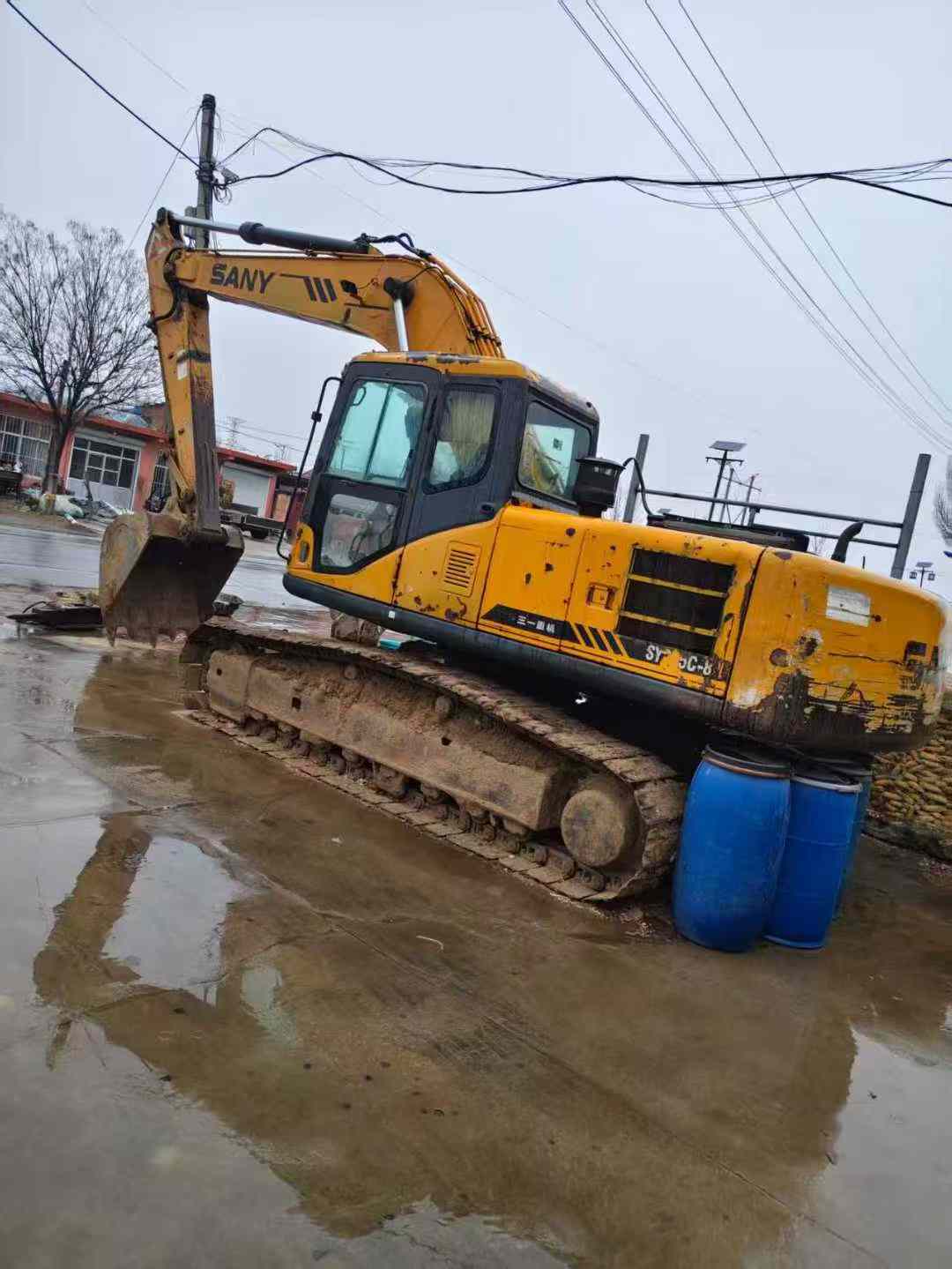

With a robust 21-ton working weight and powered by a reliable Mitsubishi 4M50 engine, this 2016 Sany SY215C excavator stands as a proven workhorse in the industry. Built to last, it features a maximum torque of 580 N.m at 1600 rpm, ensuring consistent performance under demanding conditions. Its 1.1 m³ bucket capacity and 138 kN bucket digging force make it ideal for a wide range of excavation tasks.
- Engine: Mitsubishi 4M50, 118 kW at 2000 rpm
- Bucket capacity: 1.1 m³ (range 0.8~1.2 m³)
- Travel speed: 5.4/3.3 km/h
- Fuel tank: 390 L
- Hydraulic tank: 239 L
- Ground specific pressure: 47.4 Kpa
- Maximum digging depth: 6600 mm
Located in 山东青岛, this excavator is ready to tackle your next project with durability and efficiency. Trust in its proven record and robust construction to deliver on your heavy-duty needs.
| Specifications | Value |
|---|---|
| No. | 1020665 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
