Product Description

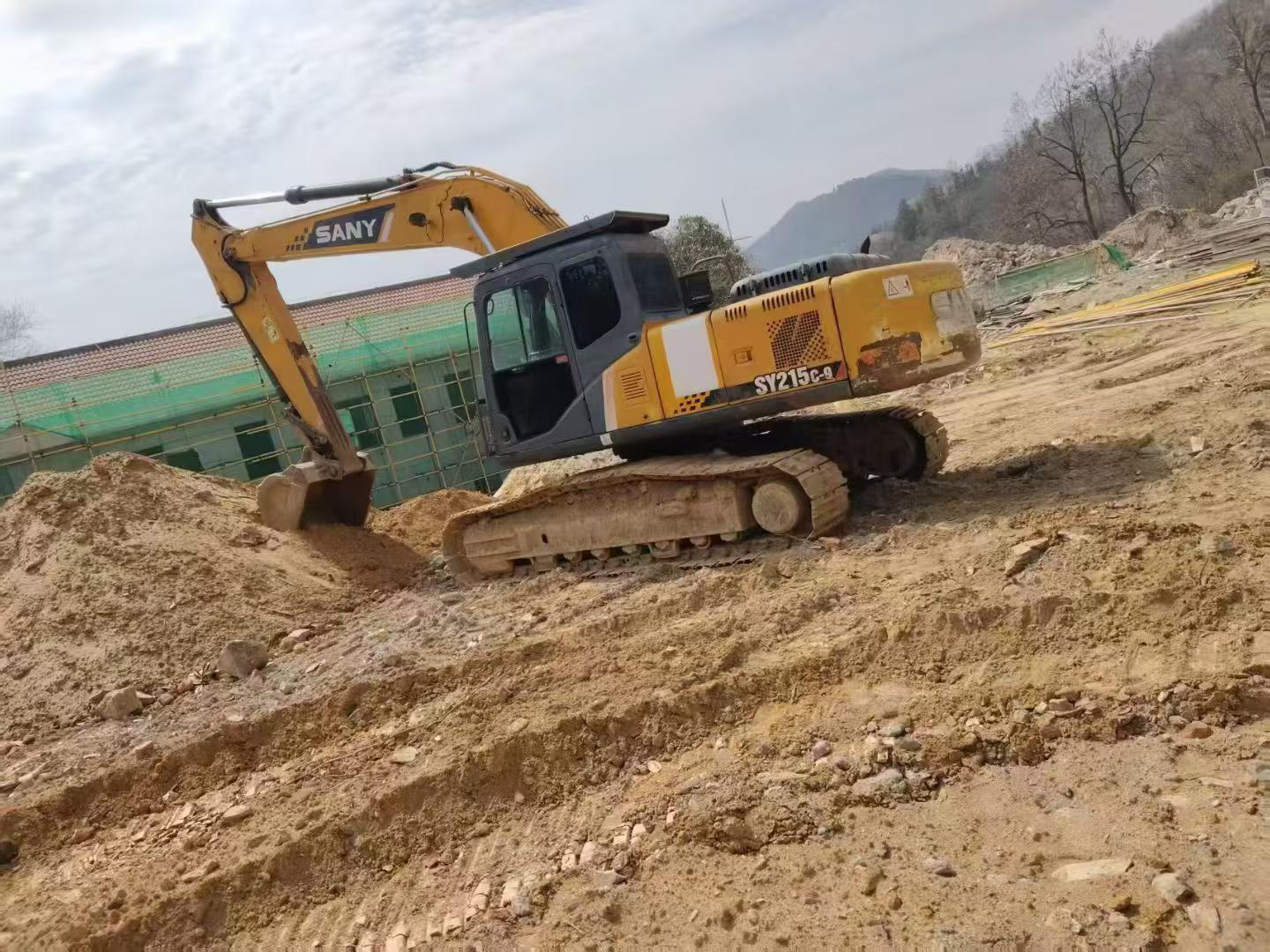

Proven over years of demanding operation, this 2016 Sany SY215C excavator demonstrates exceptional build quality that stands the test of time. Operating at 21 tons with a robust Mitsubishi 4M50 engine delivering 118kW of rated power, this workhorse combines reliability with impressive performance metrics. Designed for durability, it features a substantial 1.1m³ bucket capacity and generates 138kN of bucket digging force, handling tough excavation tasks with consistent efficiency.

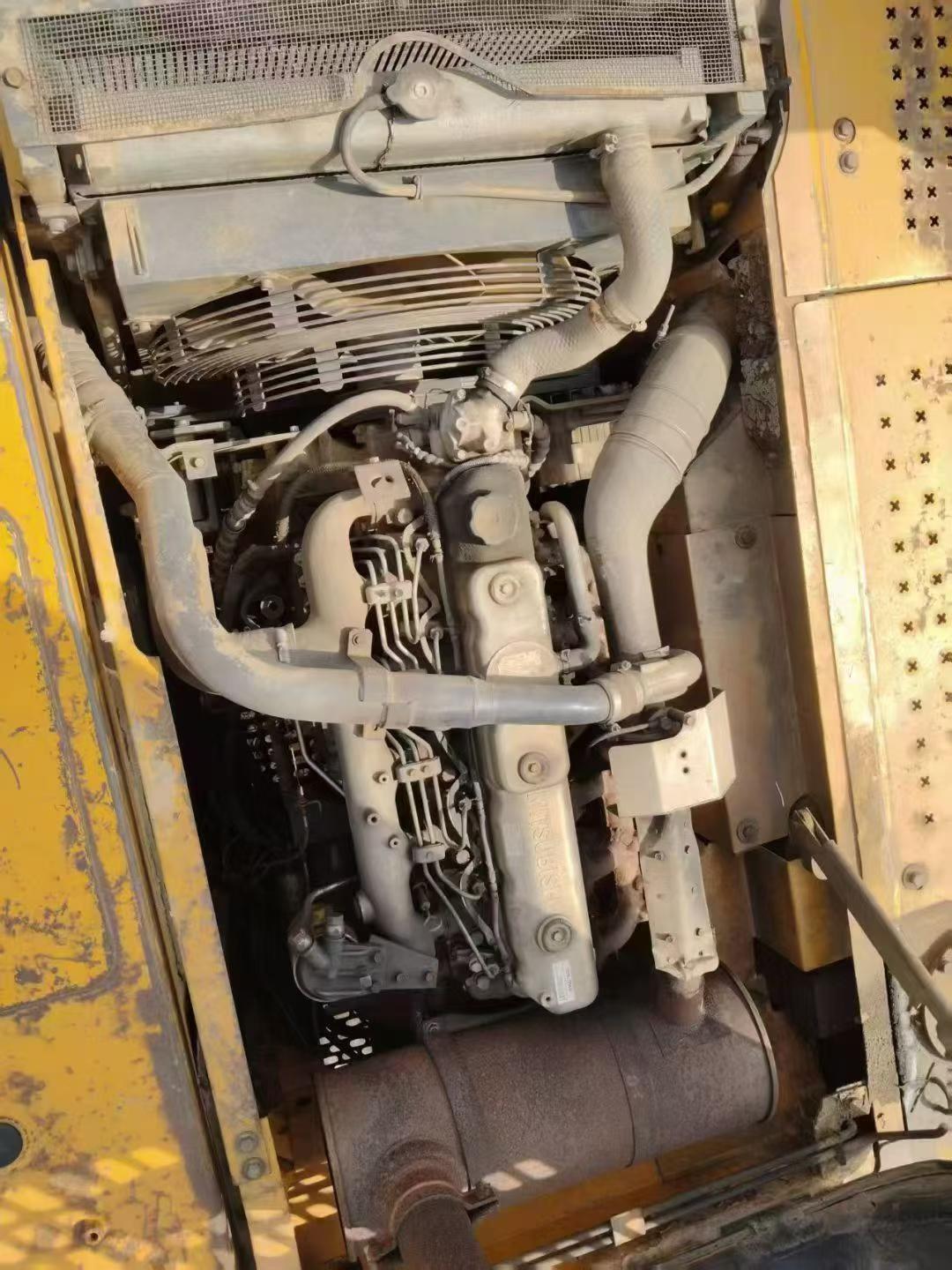

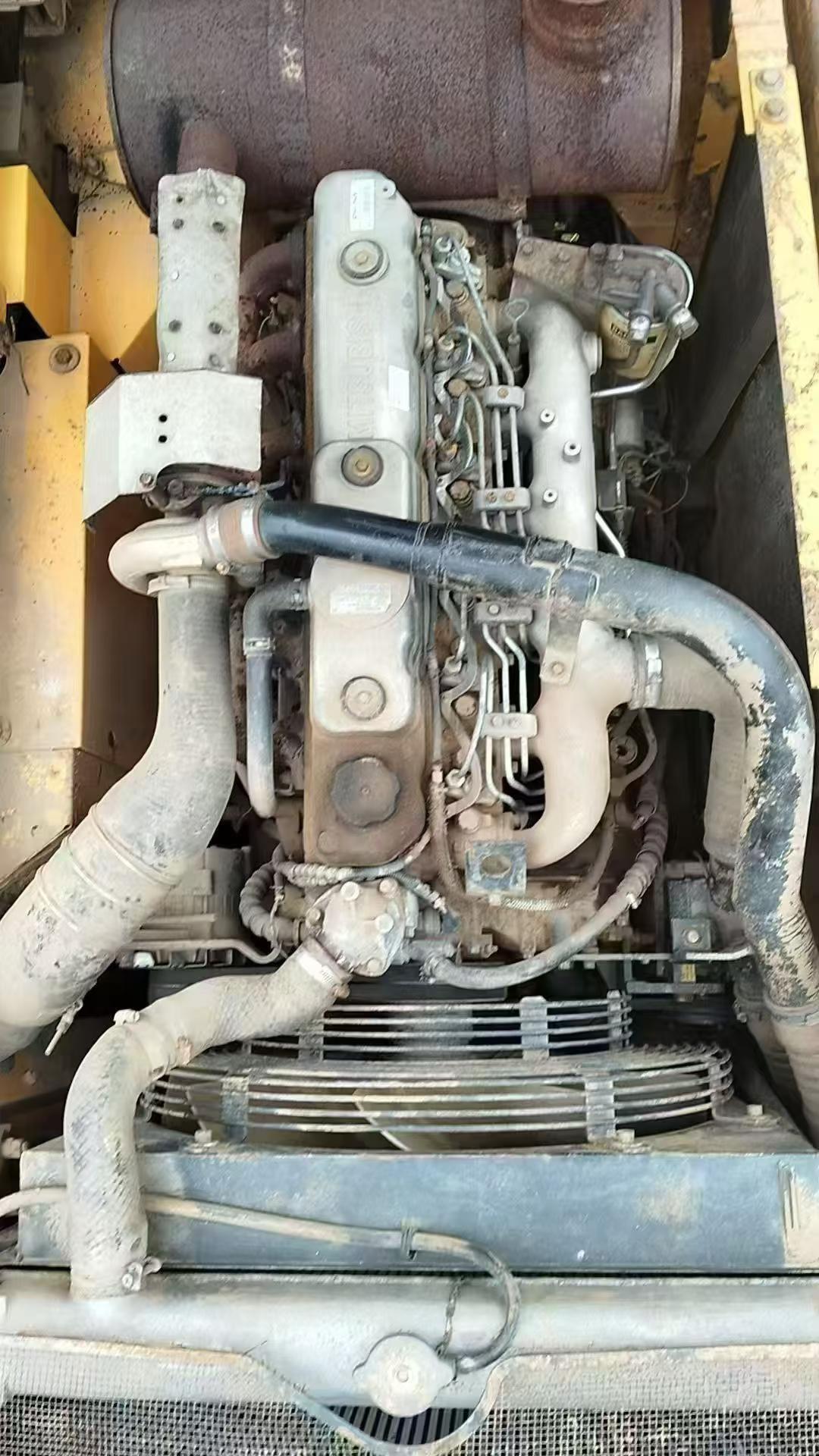

- Mitsubishi 4M50 water-cooled engine with proven longevity
- Maximum digging depth of 6,600mm and reach of 10,280mm

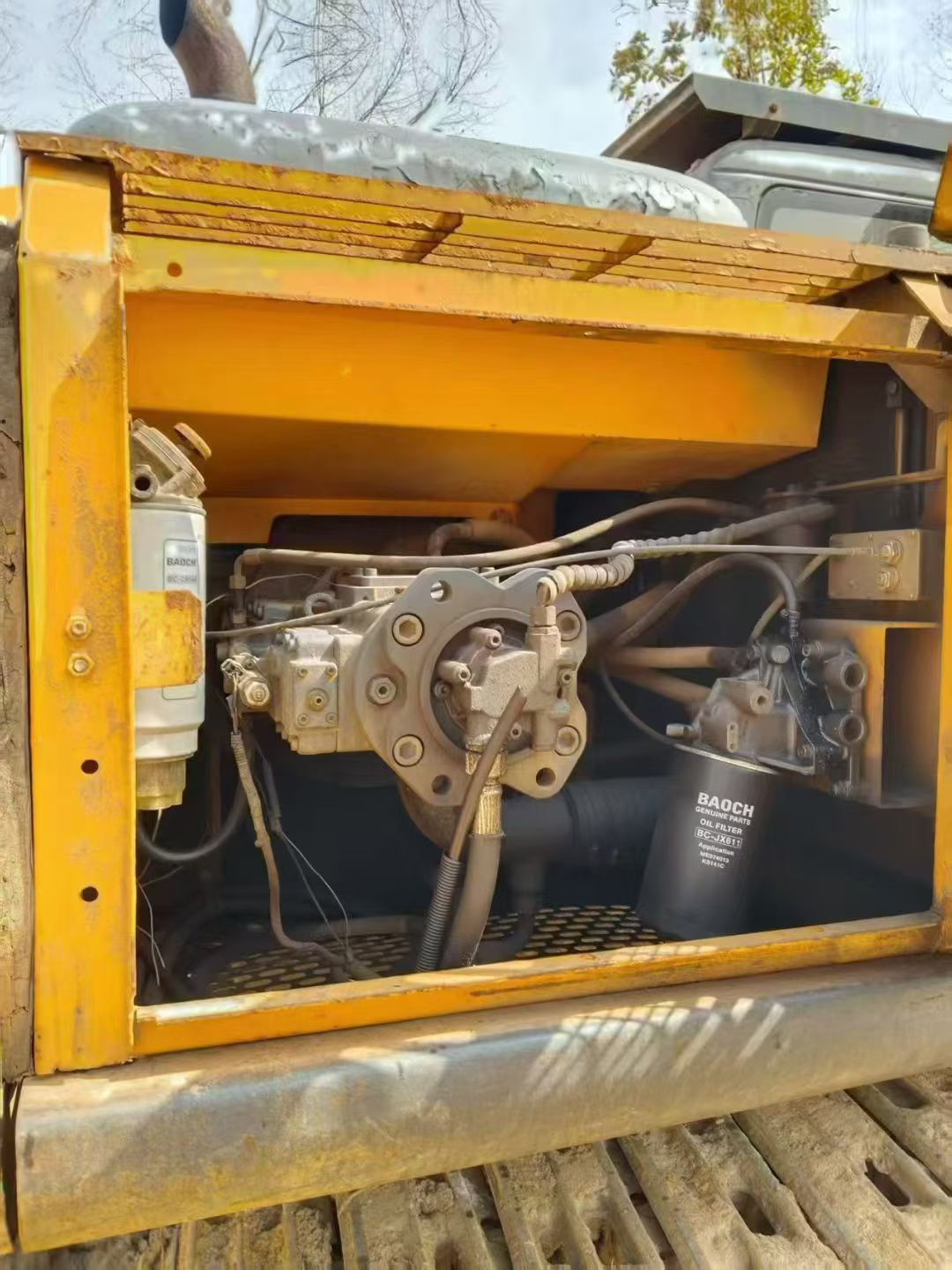

- Robust hydraulic system: 138kN bucket force, 103kN arm force
- Generous fuel capacity (390L) for extended operation
- 70% climbing ability for challenging terrain
- Currently located in Hunan, China
Built to withstand rigorous job site conditions, this SY215C represents the kind of machinery that continues performing when others falter. Its established track record makes it a dependable choice for contractors seeking value without compromising capability.
| Specifications | Value |
|---|---|
| No. | 1031958 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
