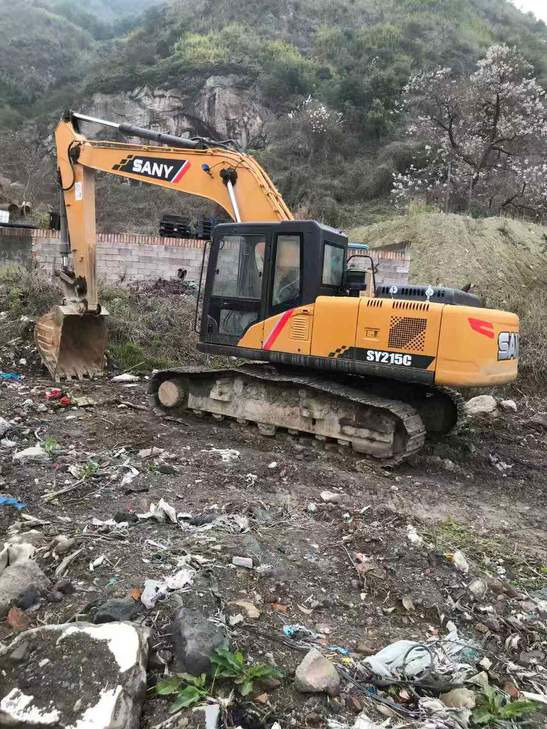

Proven performance meets exceptional value in this 2016 Sany SY215C excavator, a 21-ton workhorse built for demanding jobsites worldwide. Powered by a reliable Mitsubishi 4M50 engine delivering 118kW at 2000rpm, this machine combines robust digging force (138kN bucket, 103kN arm) with impressive reach—10,280mm maximum digging radius and 6,600mm depth capability. Sany's reputation for accessible parts networks and strong resale values makes this unit a smart investment for contractors seeking dependable used equipment without premium brand pricing.
- Operating Weight: 21,900kg with 1.1m³ bucket capacity
- Engine: Mitsubishi 4M50, 4.9L displacement, water-cooled
- Performance: 580N.m torque, 70% gradeability, 5.4km/h travel speed
- Dimensions: 9,680mm transport length, 2,980mm width, 600mm track plates
- Fuel Capacity: 390L tank for extended operation
- Location: Wenzhou, Zhejiang, China—ready for global export
Sany's expanding dealer network ensures parts availability across Asia, Africa, and beyond, protecting your investment long-term. Contact Fair Trade Machinery for de
| Specifications | Value |
|---|---|
| No. | 1041069 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
