Product Description

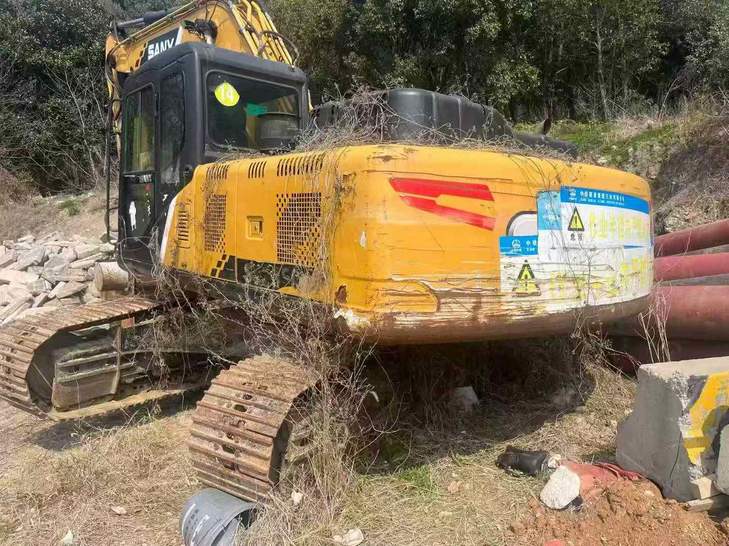

Engineered with a Mitsubishi 4M50 four-cylinder engine delivering 118 kW at 2000 rpm and 580 N·m maximum torque, this 2017 Sany SY215C excavator demonstrates reliable power output for demanding excavation tasks. Operating at 21 tons with a working weight of 21,900 kg, this machine combines substantial bucket digging force (138 kN) and rod digging force (103 kN) to handle tough jobsite conditions across various soil types and applications.
Hydraulic performance stands out with a 1.1 m³ bucket capacity (adjustable 0.8–1.2 m³), maximum digging depth of 6,600 mm, and maximum reach extending to 10,280 mm. Water-cooled efficiency and a 390L fuel tank support extended operation cycles. The undercarriage features robust construction with 47 track plates per side, 600 mm track width, and 3,445 mm ground contact length, delivering 47.4 kPa ground pressure for stability on soft terrain.
Key Technical Specifications:

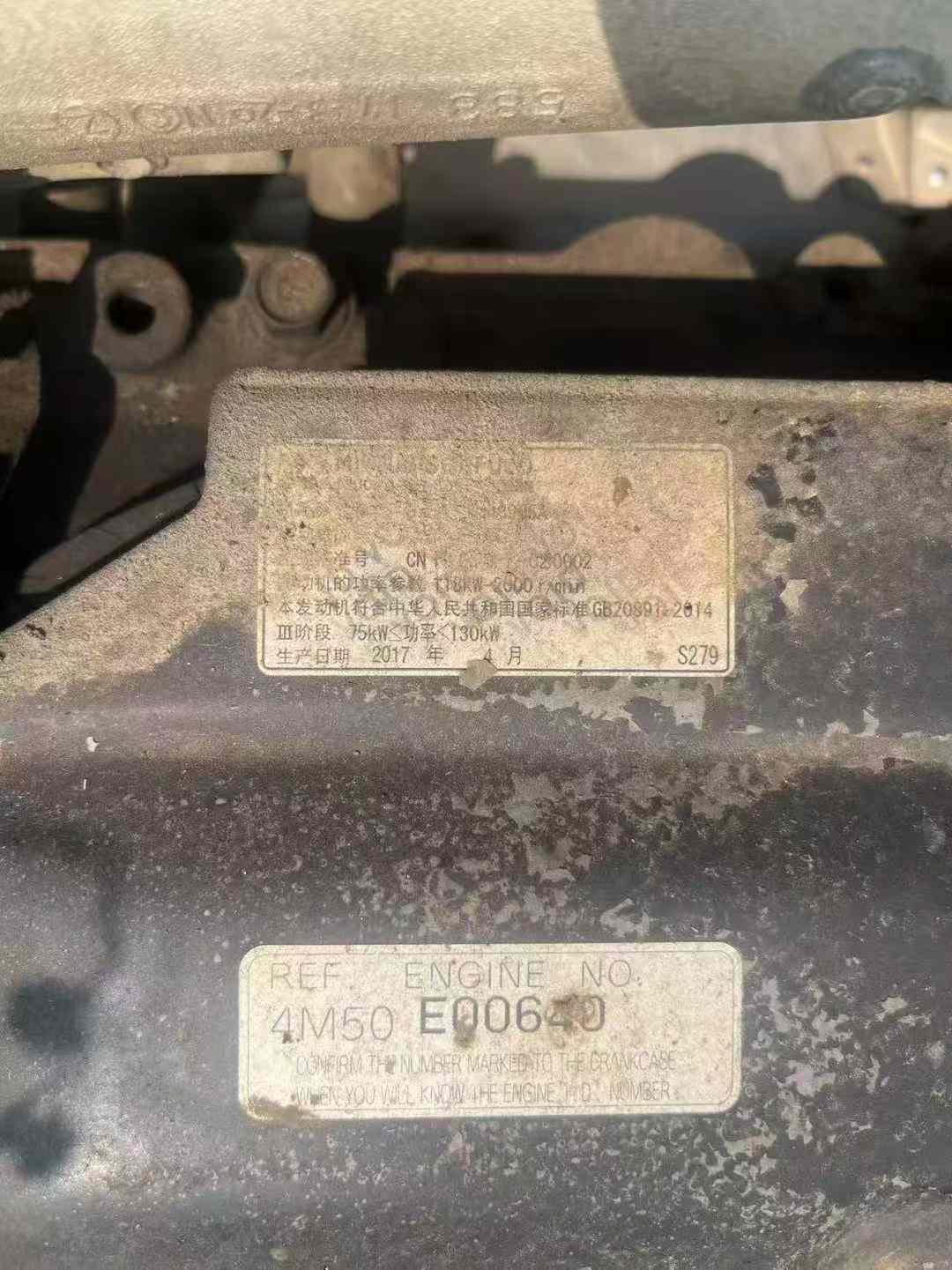

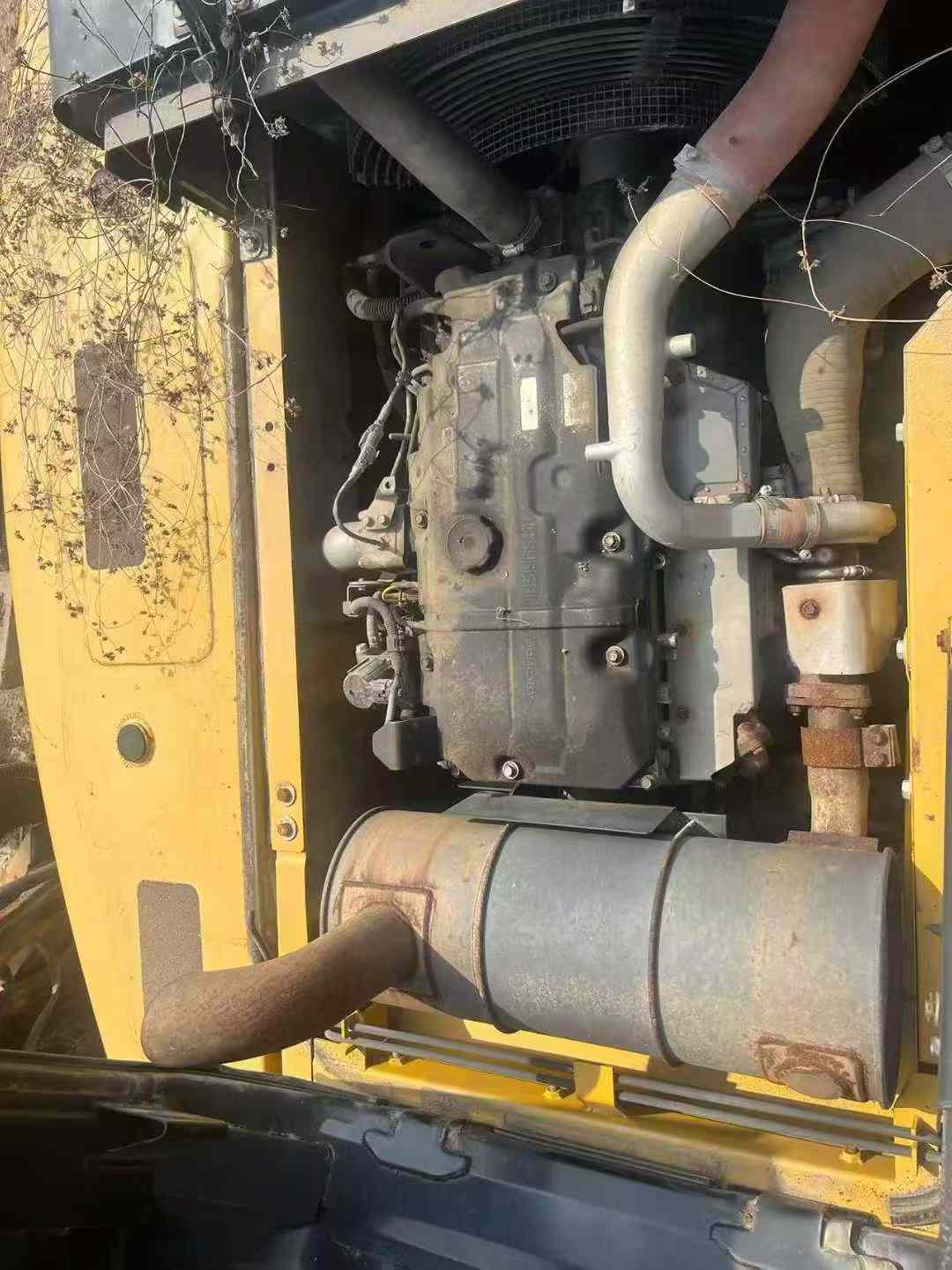

- Mitsubishi 4M50 engine: 118 kW rated power, 4.9L displacement
- Maximum digging height: 9,600 mm; unloading height: 6,730 mm
- Rotation speed: 11 rpm with 70% (35°) climbing capability
- Currently located in Lishui, Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1028760 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
