Product Description
Available now from our Zhejiang facility, this 2017 Sany SY215C excavator delivers immediate deployment without factory wait times. Powered by a robust Mitsubishi 4M50 engine producing 118kW at 2000rpm, this 21-ton workhorse combines proven reliability with impressive performance specifications. The machine features a 1.1m³ backhoe bucket capacity (adjustable 0.8-1.2m³), 138kN bucket digging force, and a maximum digging reach of 10,280mm—ideal for medium to heavy-duty excavation projects.
- Operating weight: 21,900kg with 390L fuel capacity for extended shifts

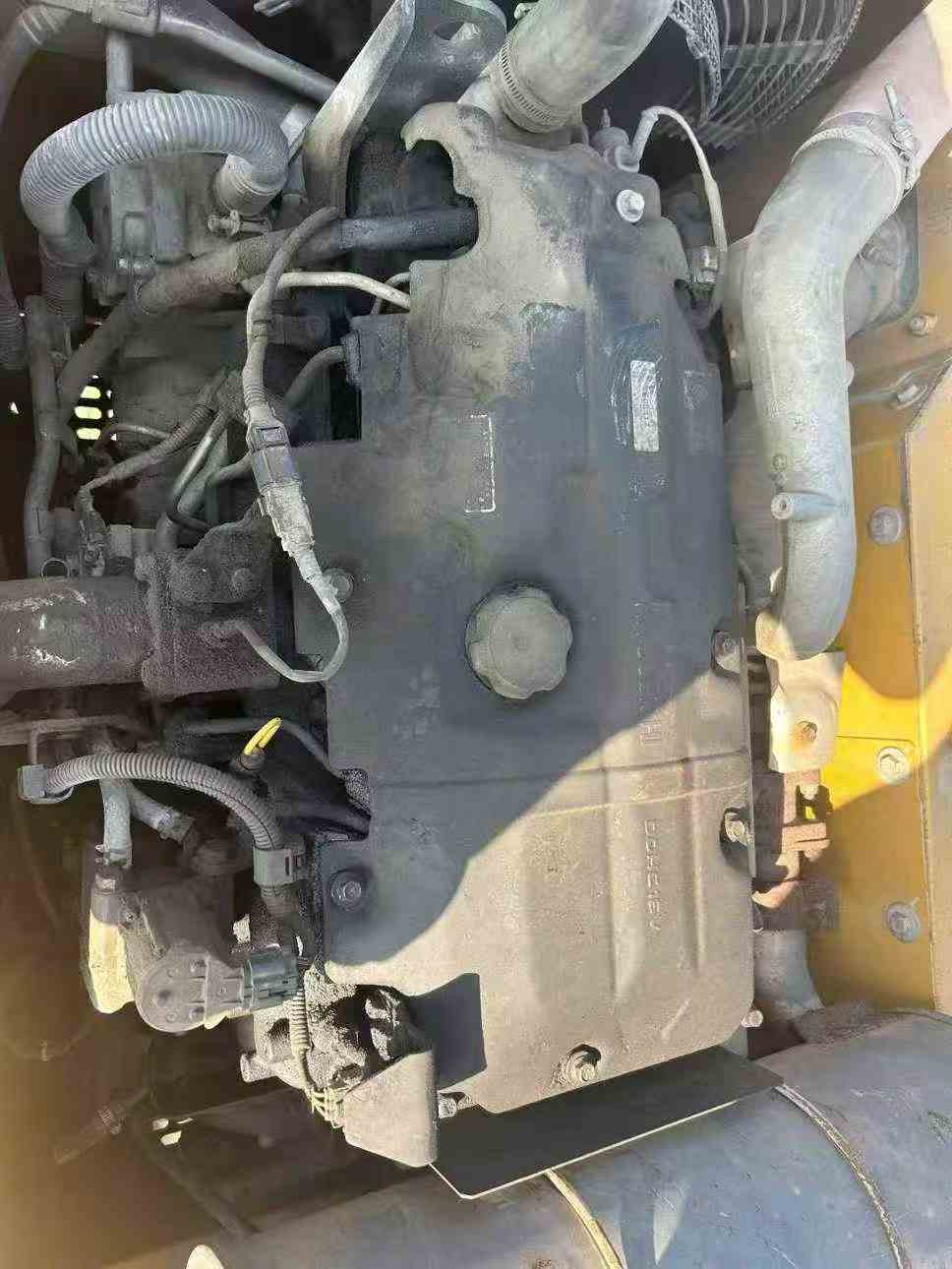

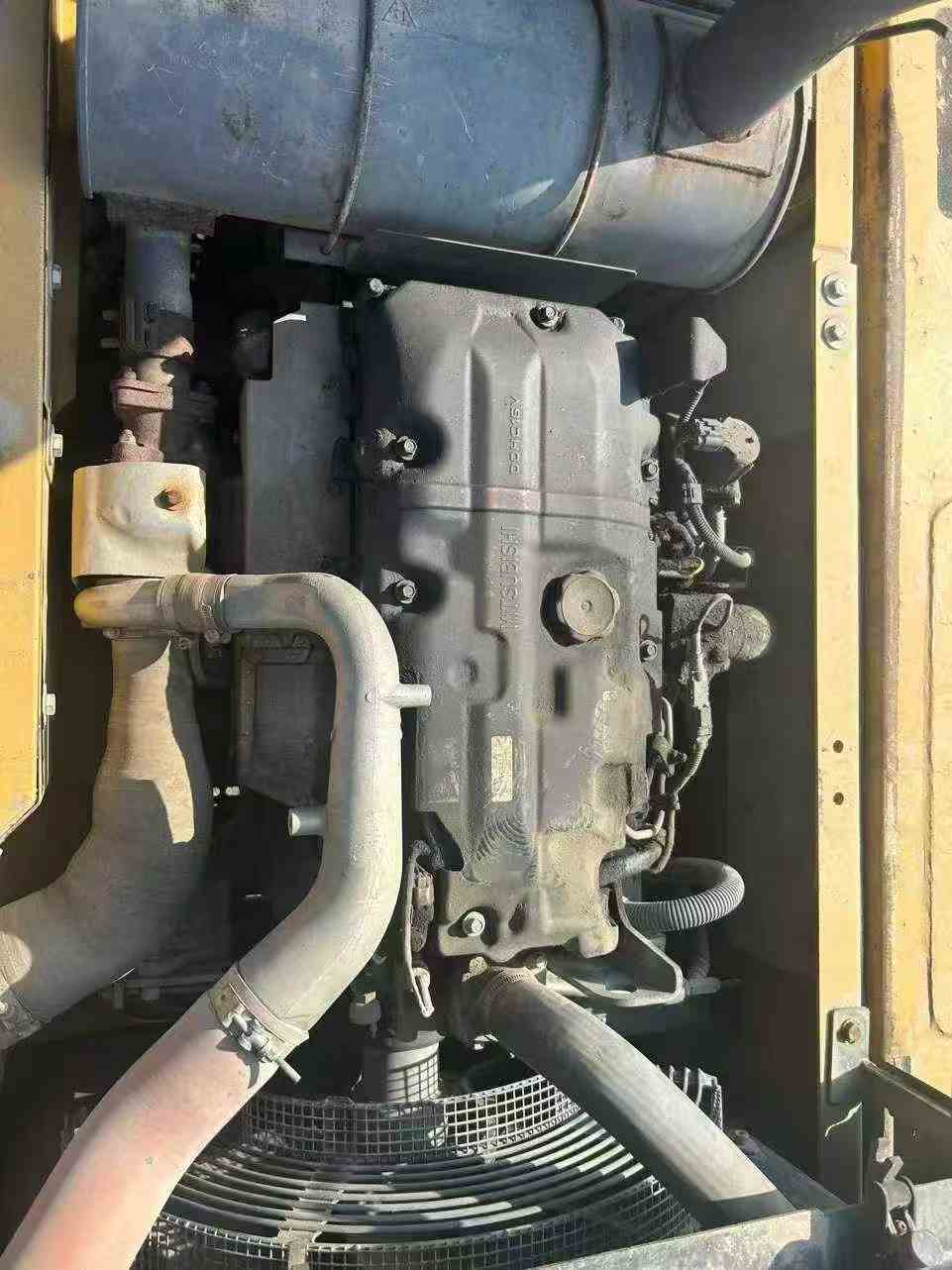

- Water-cooled 4.9L displacement engine delivering 580N.m maximum torque
- 10,280mm maximum digging radius and 6,600mm digging depth
- Fast deployment: Skip months-long lead times with immediate availability
- Strategic Zhejiang location enables rapid logistics throughout Asia-Pacific

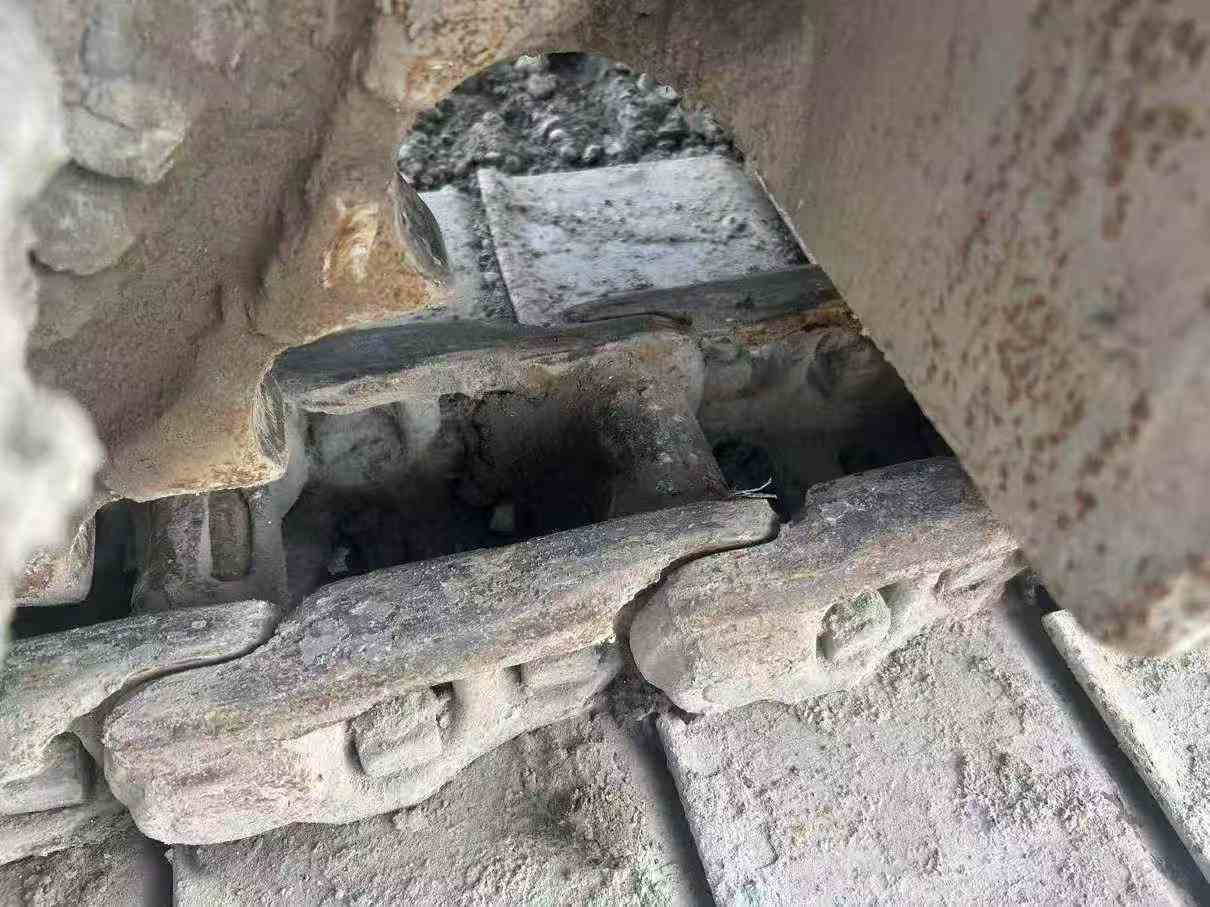

- 600mm track plates and 70% gradeability for challenging terrain
Ready for inspection and immediate shipment. Contact Fair Trade Machinery today to secure this turnkey excavator and accelerate your project timeline.
| Specifications | Value |
|---|---|
| No. | 1029215 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
