Product Description
Engineered with precision, this 2017 Sany SY215C delivers robust performance through its Mitsubishi 4M50 engine, generating 118kW at 2000rpm with a commanding 580N.m maximum torque. Built on proven hydraulic architecture, the machine produces 138kN bucket digging force and 103kN arm digging force, ensuring consistent productivity across demanding excavation tasks. Operating at 21 tons with a 1.1m³ bucket capacity, this mid-size excavator combines power density with operational efficiency.

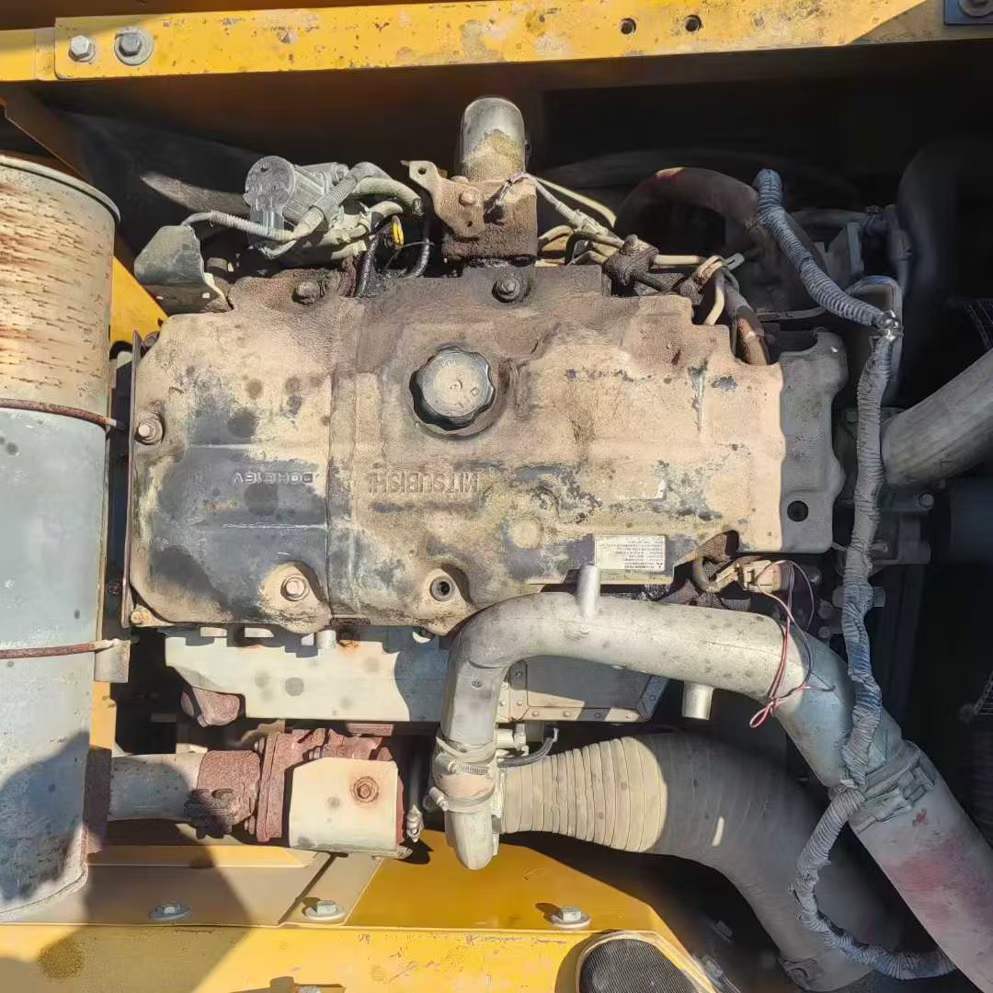

- Mitsubishi 4M50 water-cooled diesel engine with 4.9L displacement
- Maximum digging reach of 10,280mm and depth capability to 6,600mm
- Superior climbing ability at 70% grade (35°) with 47.4kPa ground pressure
- 390L fuel tank and 239L hydraulic reservoir for extended operation
- Compact transport dimensions: 9,680mm length, 2,980mm width
- 600mm track plates on 3,445mm ground contact length for stability
- Currently located in Hunan, China—ready for global export
SY215C series represents Sany's commitment to durable construction through reinforced components and field-tested hydraulic systems. This unit offers reliable performance for contractors requiring proven mid-range exca
| Specifications | Value |
|---|---|
| No. | 1030501 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
