Product Description

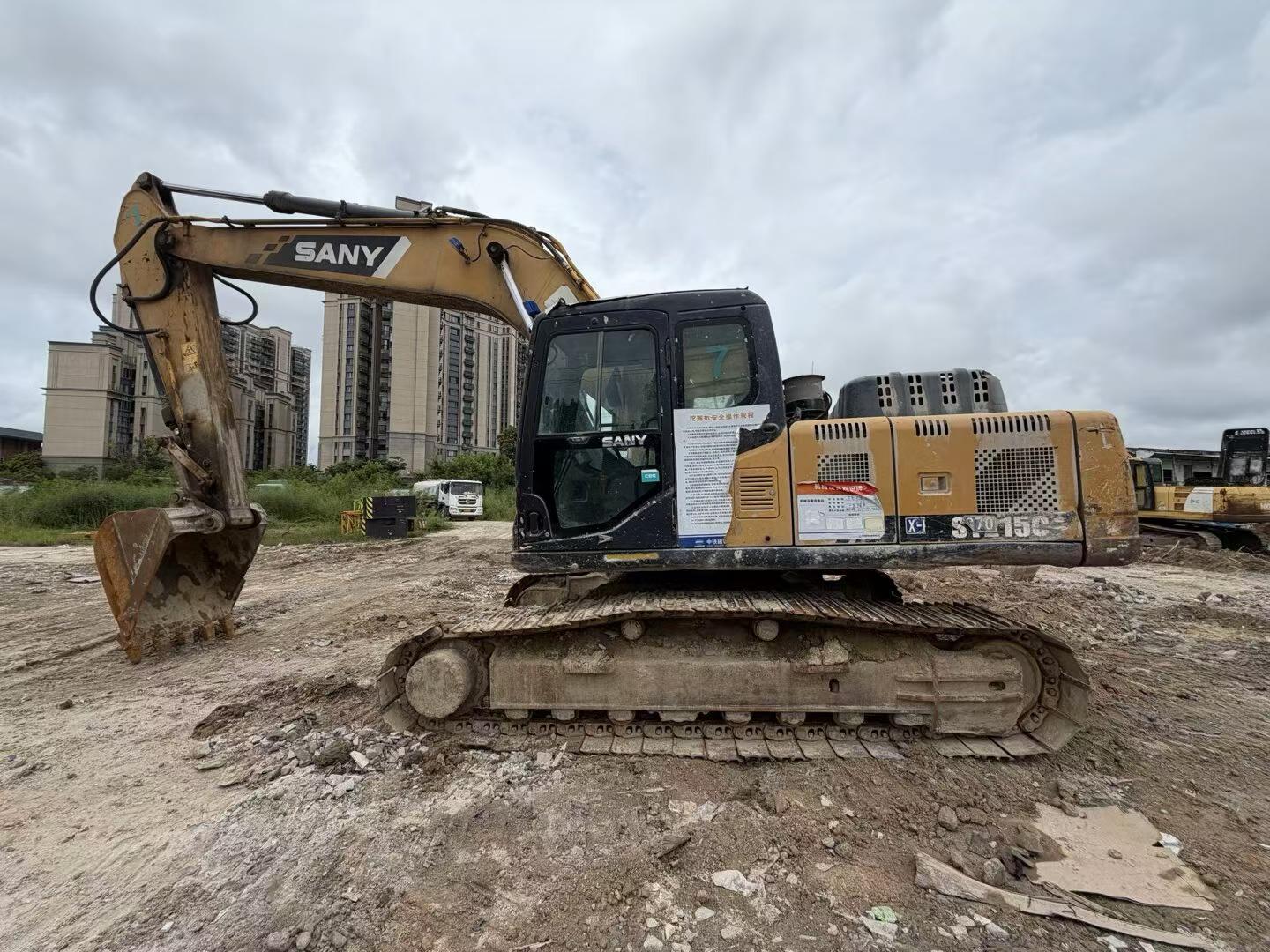

This 2017 Sany SY215C excavator represents a solid mid-size option for contractors seeking reliable performance in earthmoving operations. Currently located in Yunnan, China, this machine comes with complete documentation, ensuring transparency and peace of mind for international buyers.

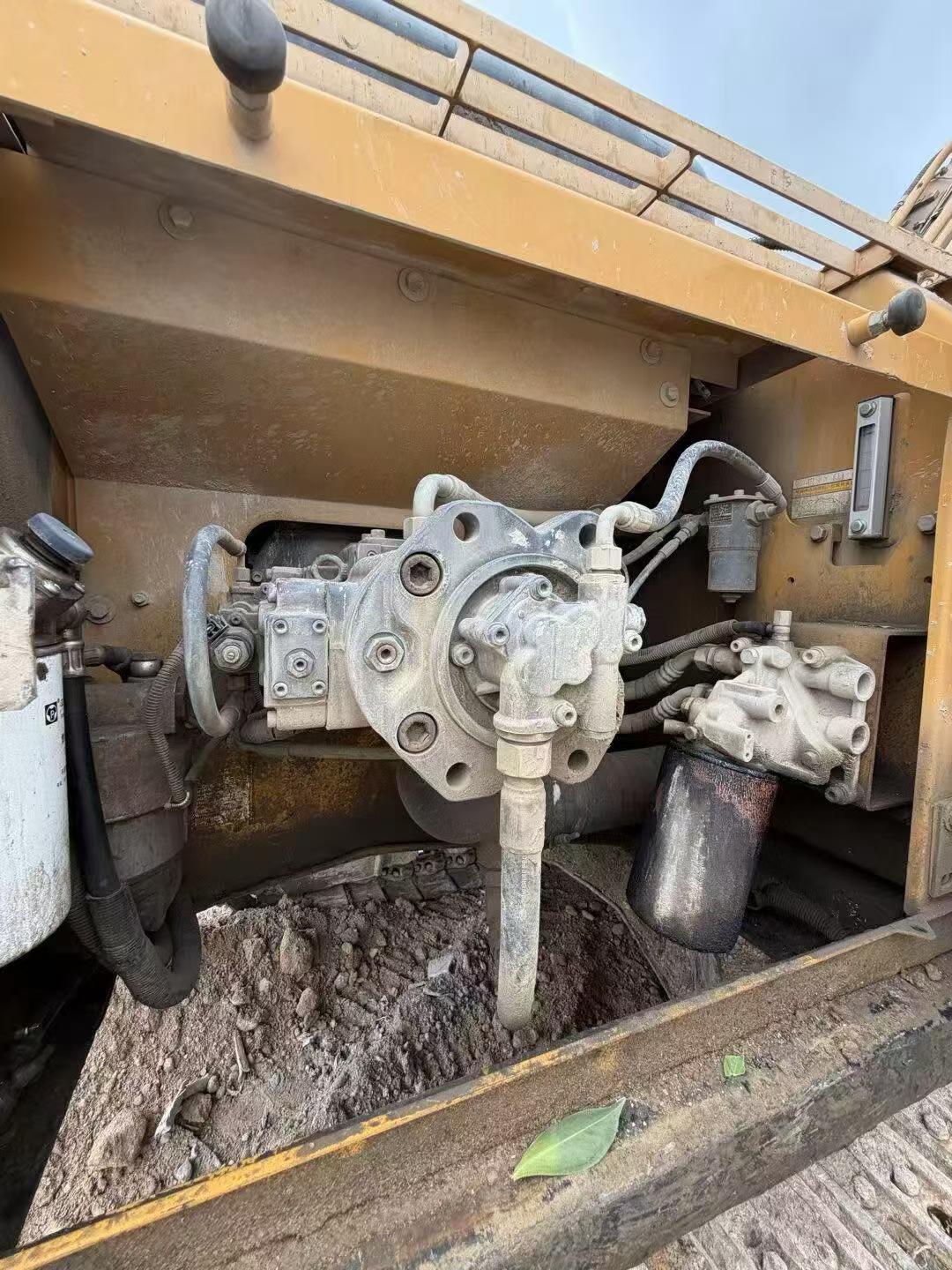

The SY215C is known for its robust hydraulic system and fuel efficiency, making it suitable for a wide range of applications including excavation, trenching, and material handling. With operating hours in the low hundred-thousand range, this unit has been properly maintained and offers substantial service life remaining.
- Year of Manufacture: 2017
- Model: Sany SY215C
- Location: Yunnan Province, China
- Documentation: Complete records available
- Condition: Well-maintained with moderate hours
Ideal for construction companies, mining operations, and civil engineering projects requiring dependable 21-ton class excavation equipment.
| Specifications | Value |
|---|---|
| No. | 1120337 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

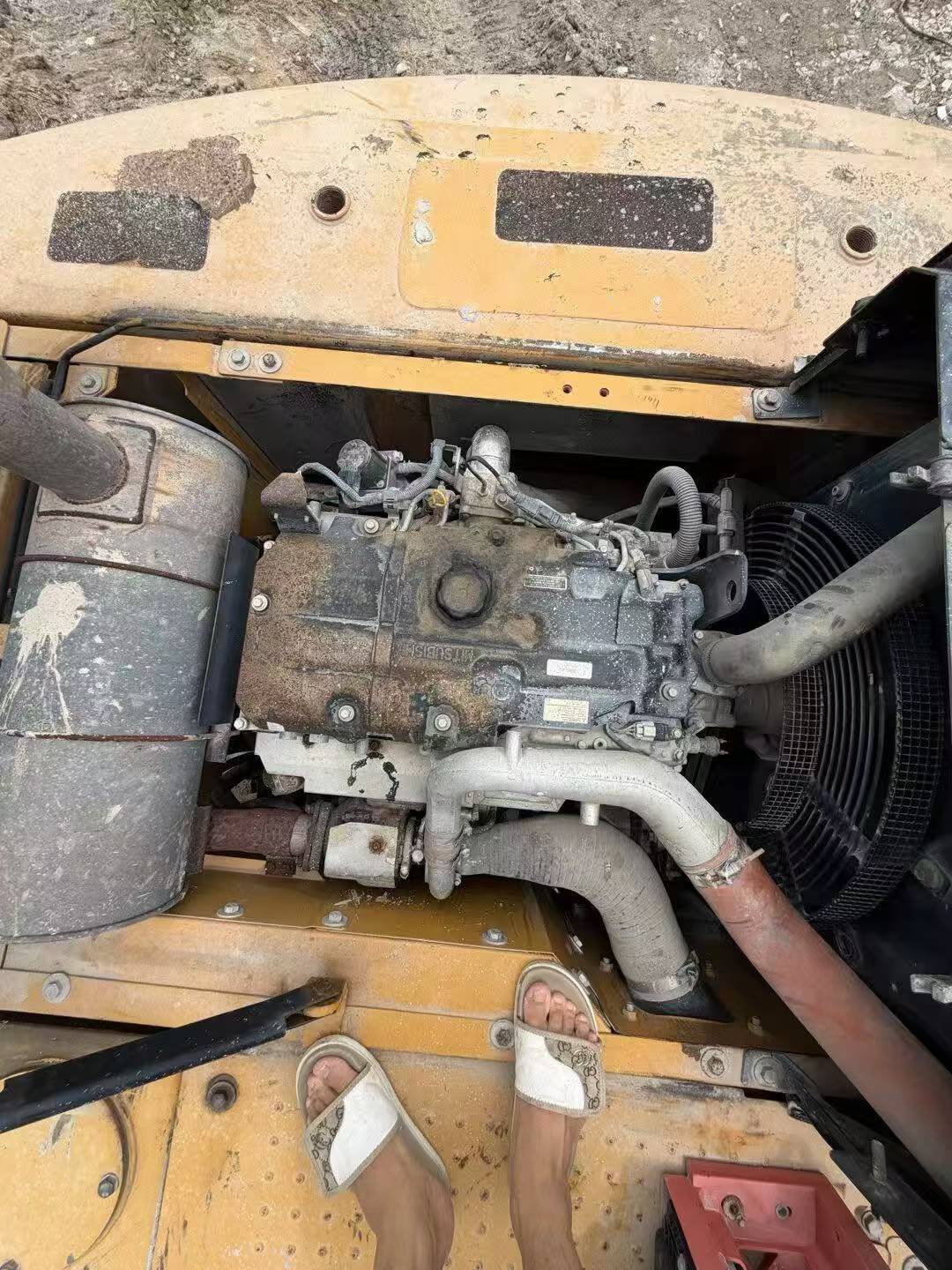

| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
