Product Description

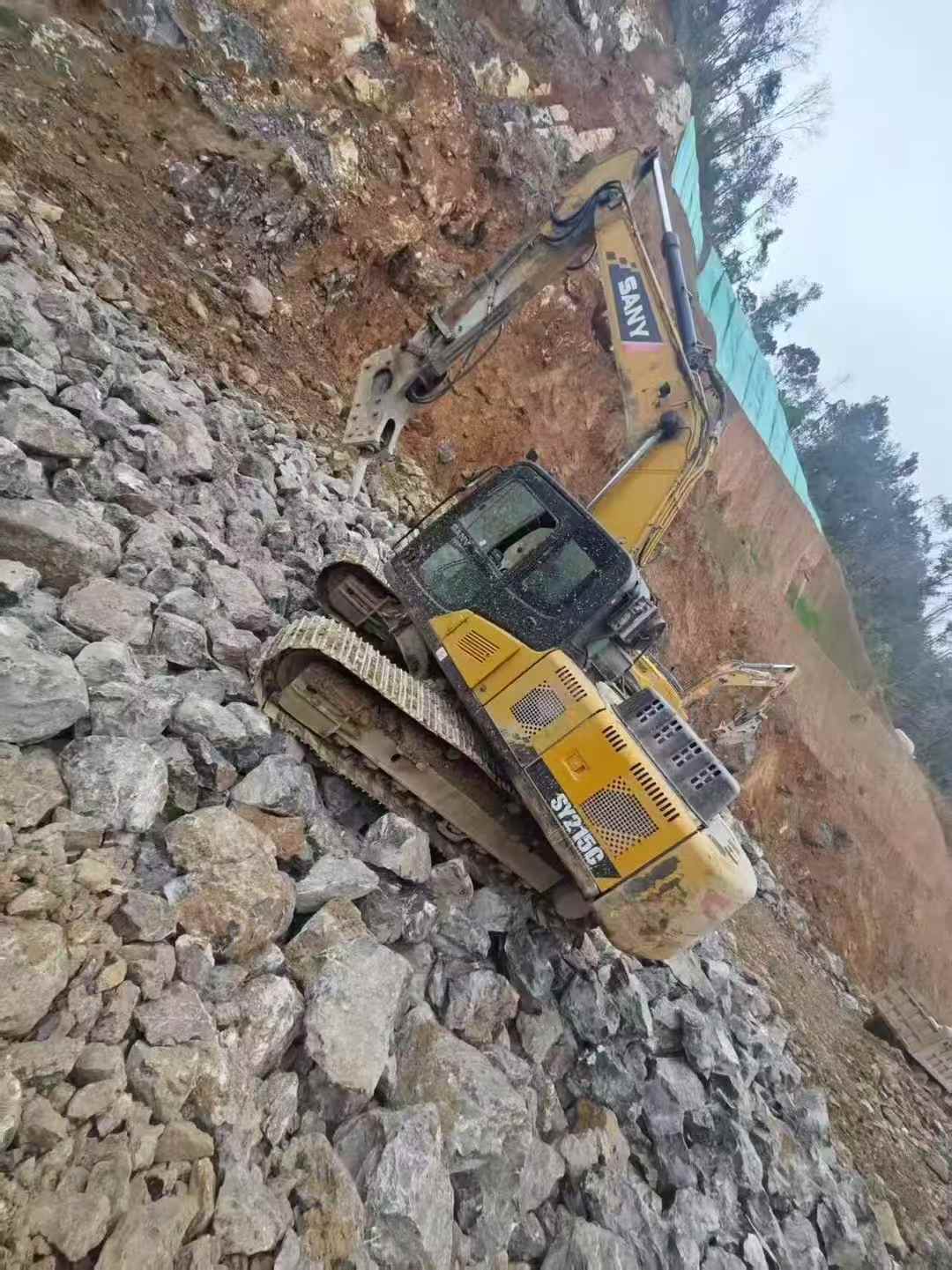

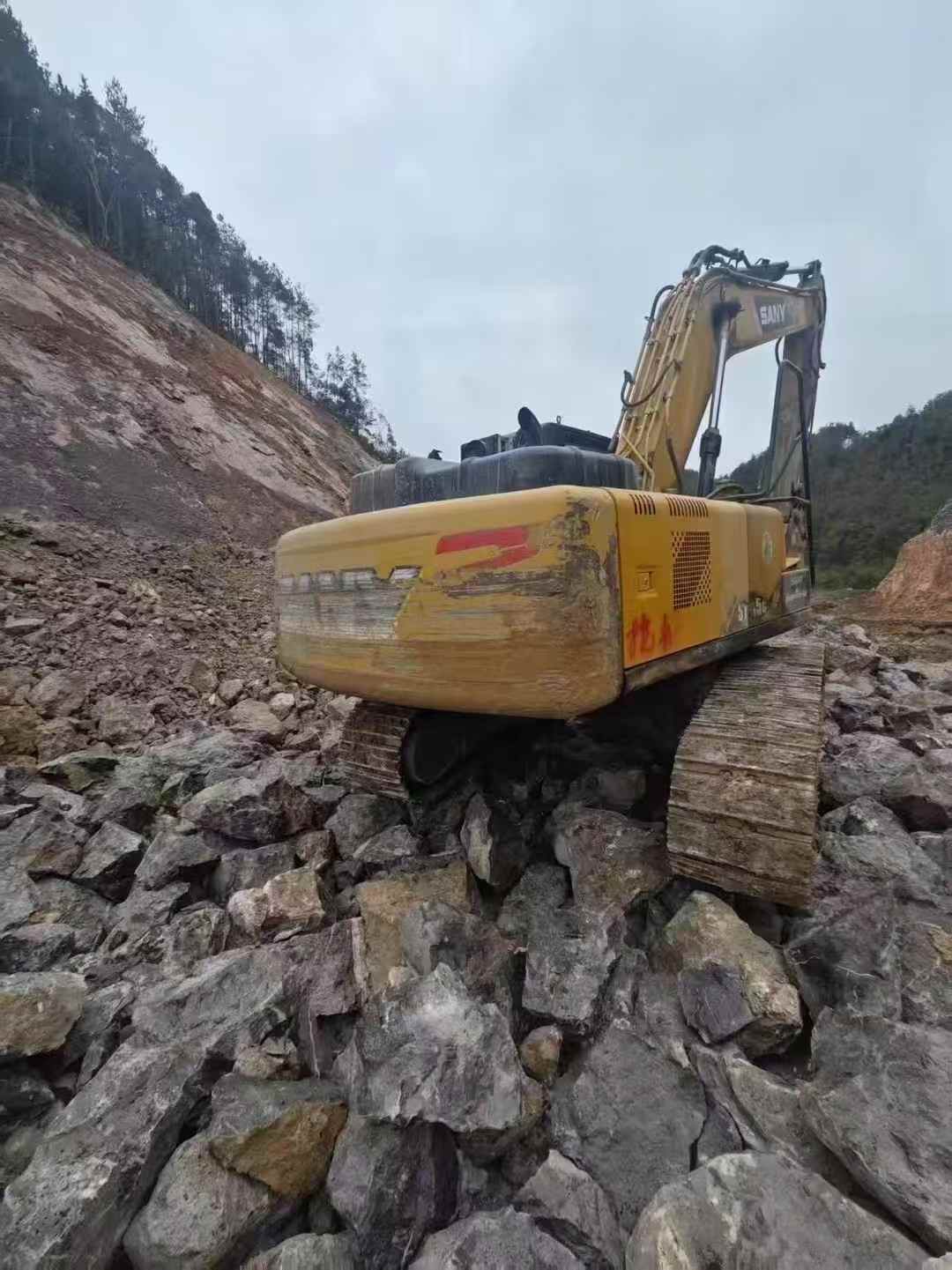

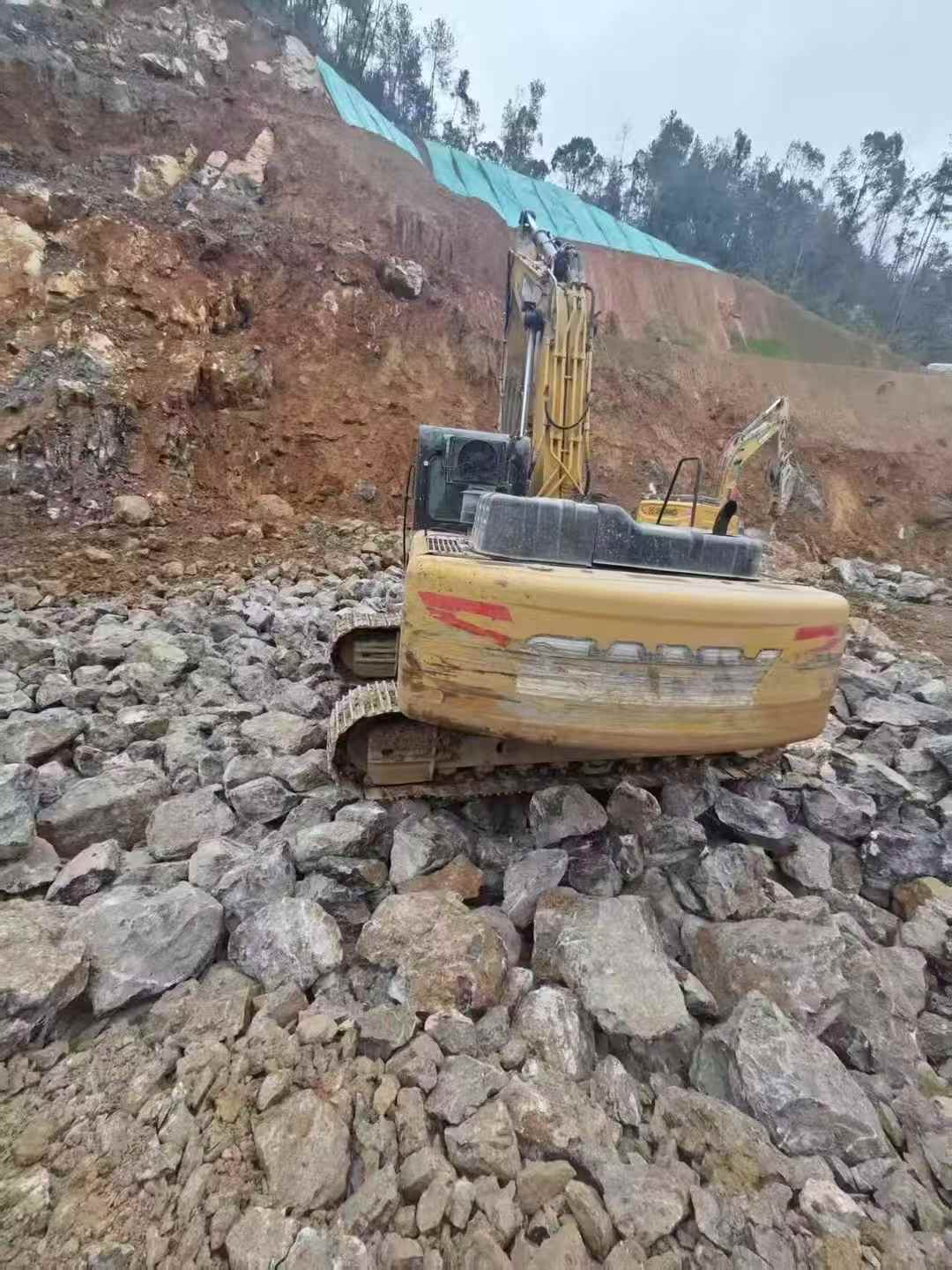

Available now in Guizhou, this 2018 Sany SY215C excavator eliminates factory lead times and gets your project moving immediately. Powered by a reliable Mitsubishi 4M50 engine delivering 118kW at 2000rpm, this 21-ton workhorse combines proven performance with rapid deployment. Skip the months-long wait for new equipment—this machine is inspection-ready and can be on your site within days.
- Operating weight: 21,900kg with 1.1m³ bucket capacity
- Maximum digging reach: 10,280mm, depth to 6,600mm
- Powerful digging forces: 138kN bucket, 103kN arm

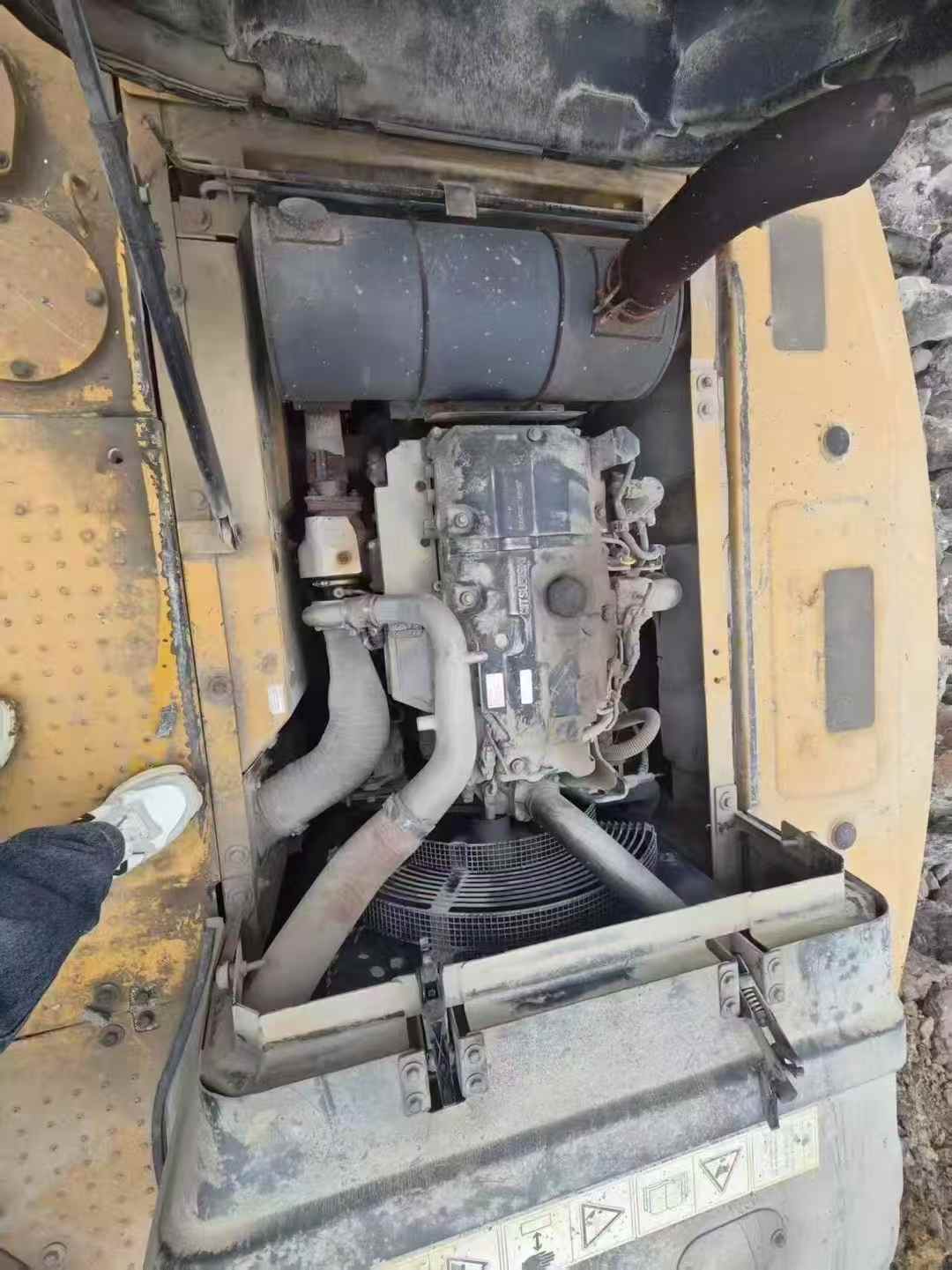

- Water-cooled 4.9L engine with 580N.m maximum torque
- 390L fuel tank for extended operation cycles
- 70% gradeability and 5.4km/h travel speed
- Made in China with Japanese engine technology
Fast-track your logistics with immediate availability from Guizhou. No production delays, no shipping from factory—just inspect, approve, and deploy. Contact Fair Trade Machinery today for quick delivery to your worksite anywhere in China or worldwide.
| Specifications | Value |
|---|---|
| No. | 1024247 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
