HOME>>Sany>>Sany SY215C

2018 Sany SY215C

1/8

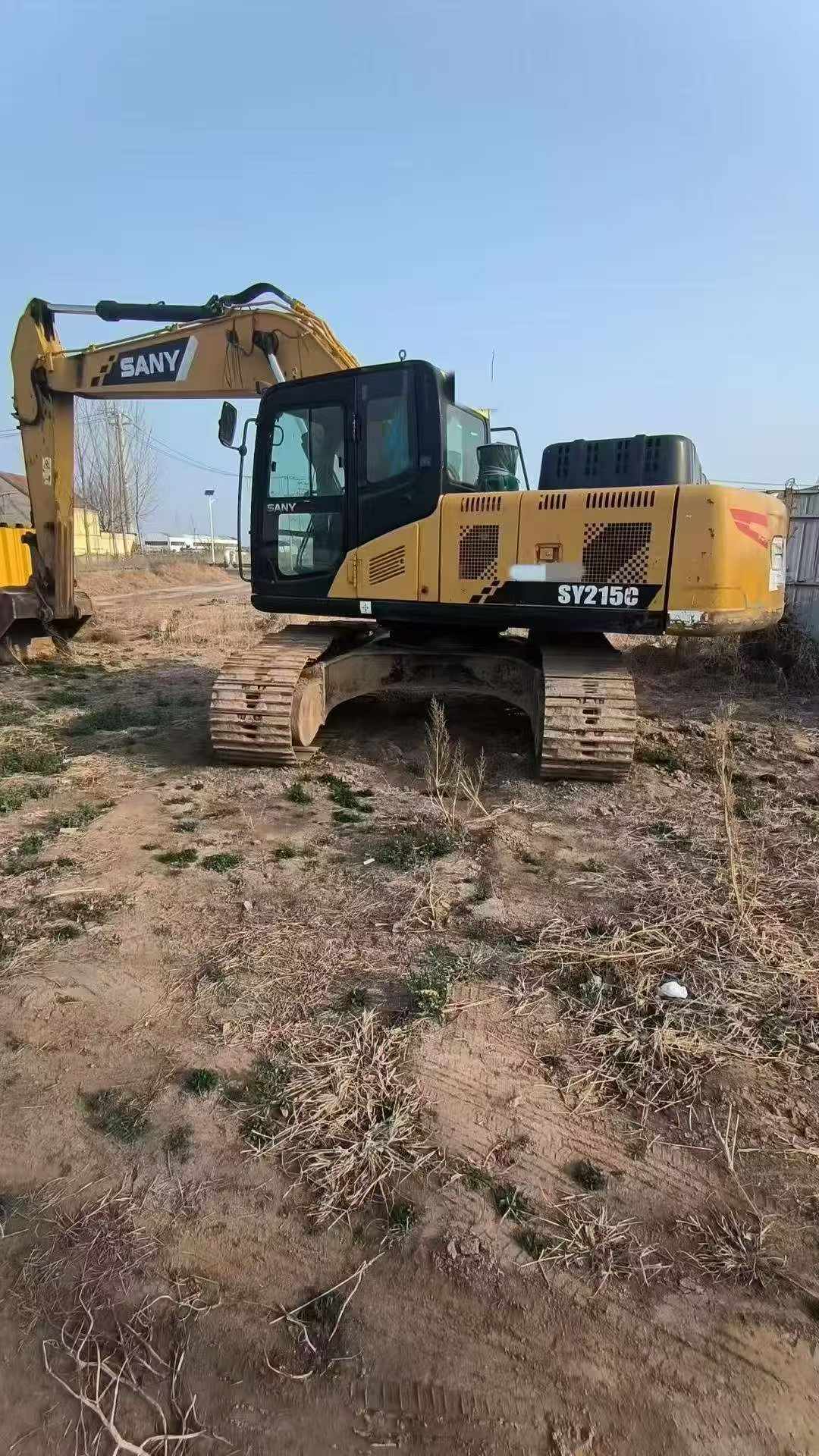

Buy Sany SY215C Used Excavator / 1

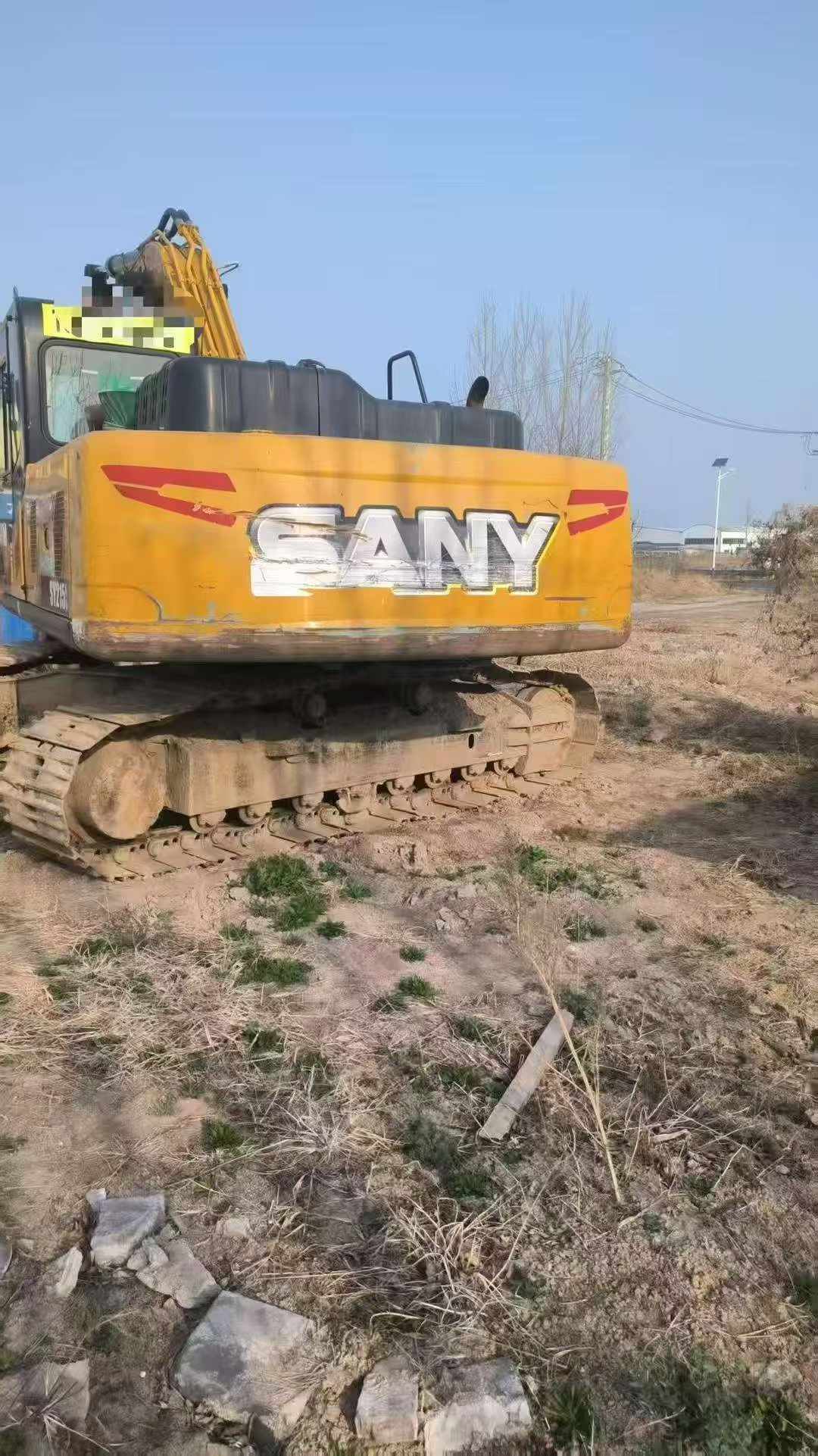

Buy Sany SY215C Used Excavator / 2

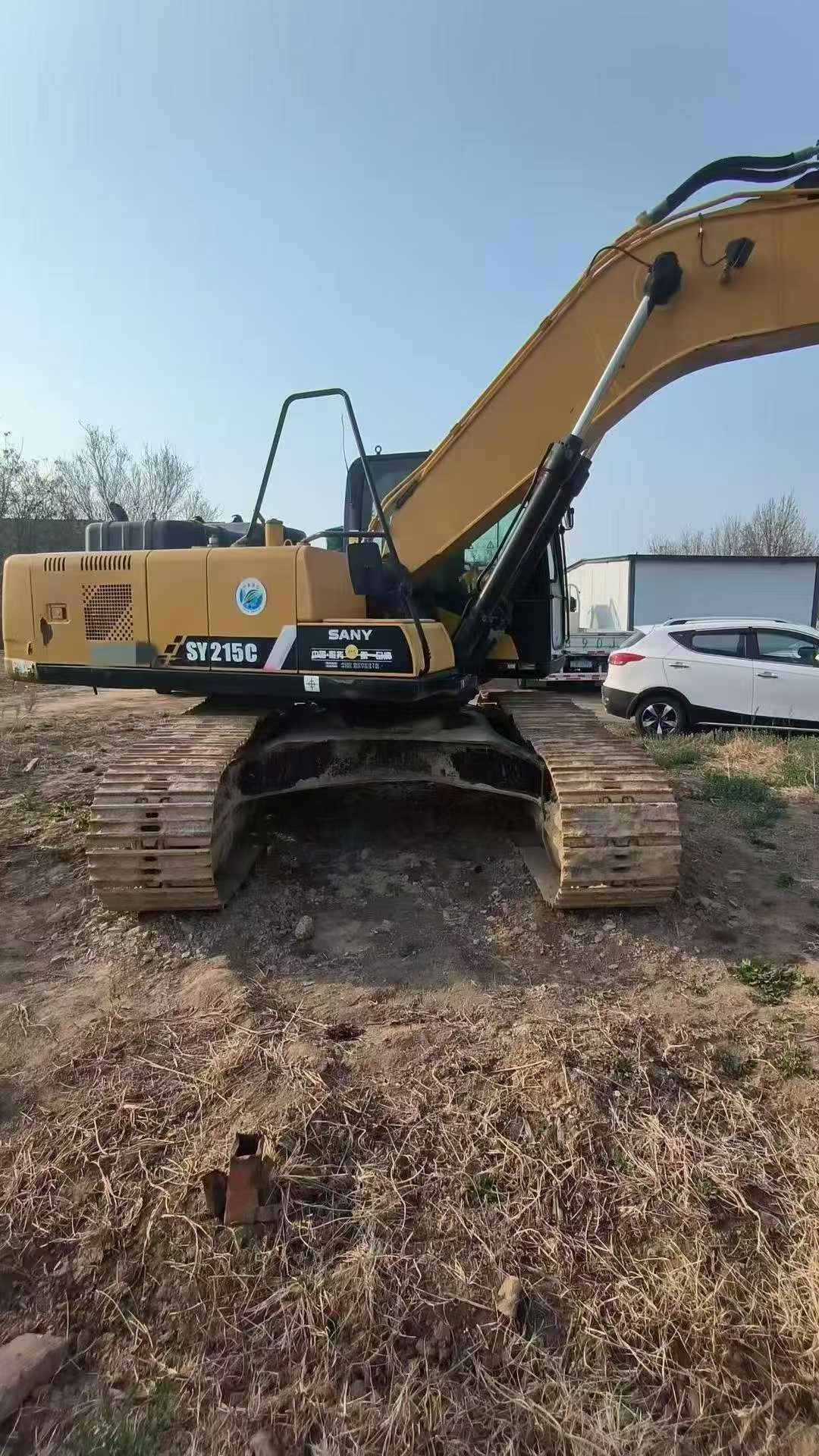

Buy Sany SY215C Used Excavator / 3

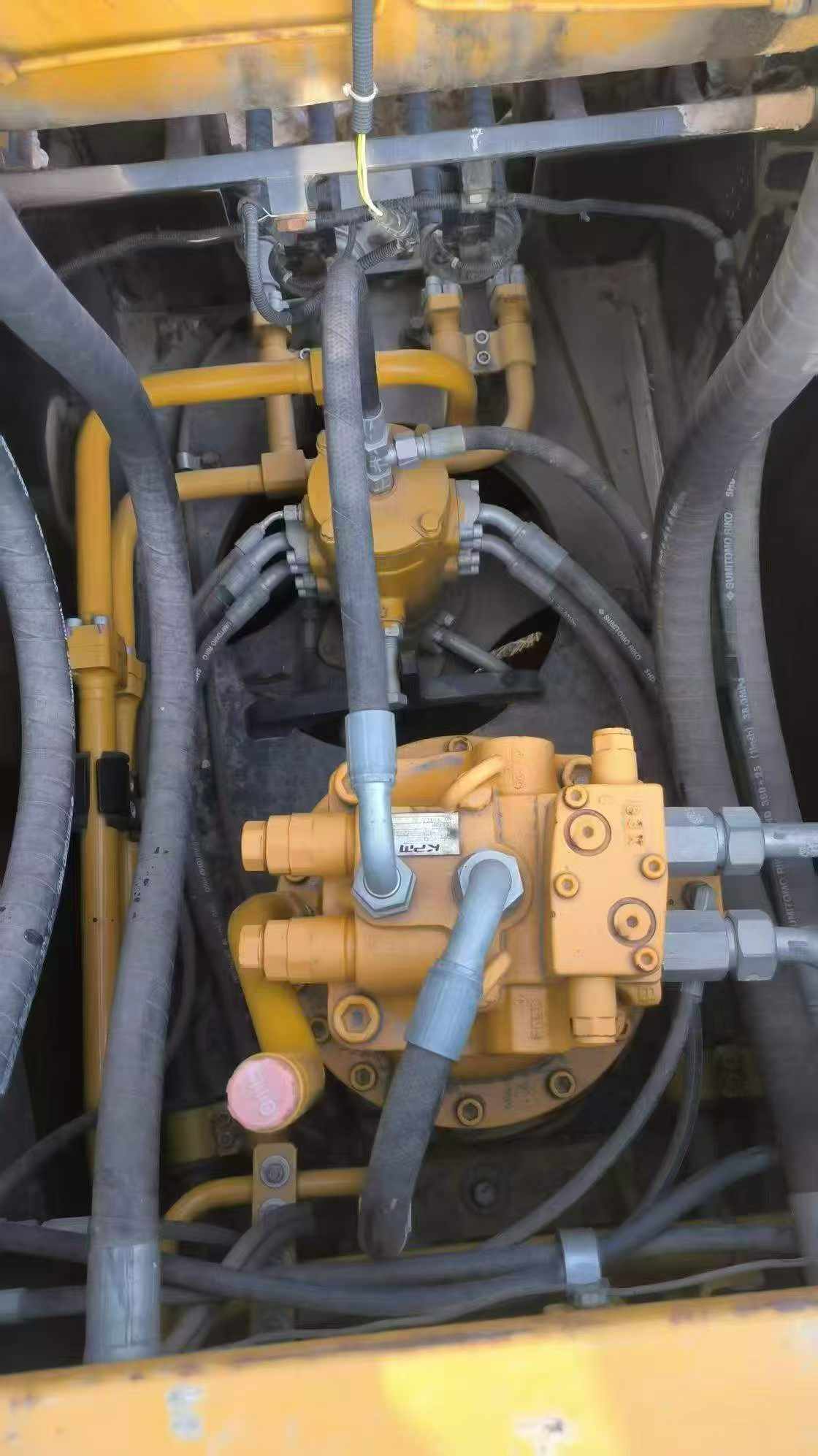

Buy Sany SY215C Used Excavator / 4

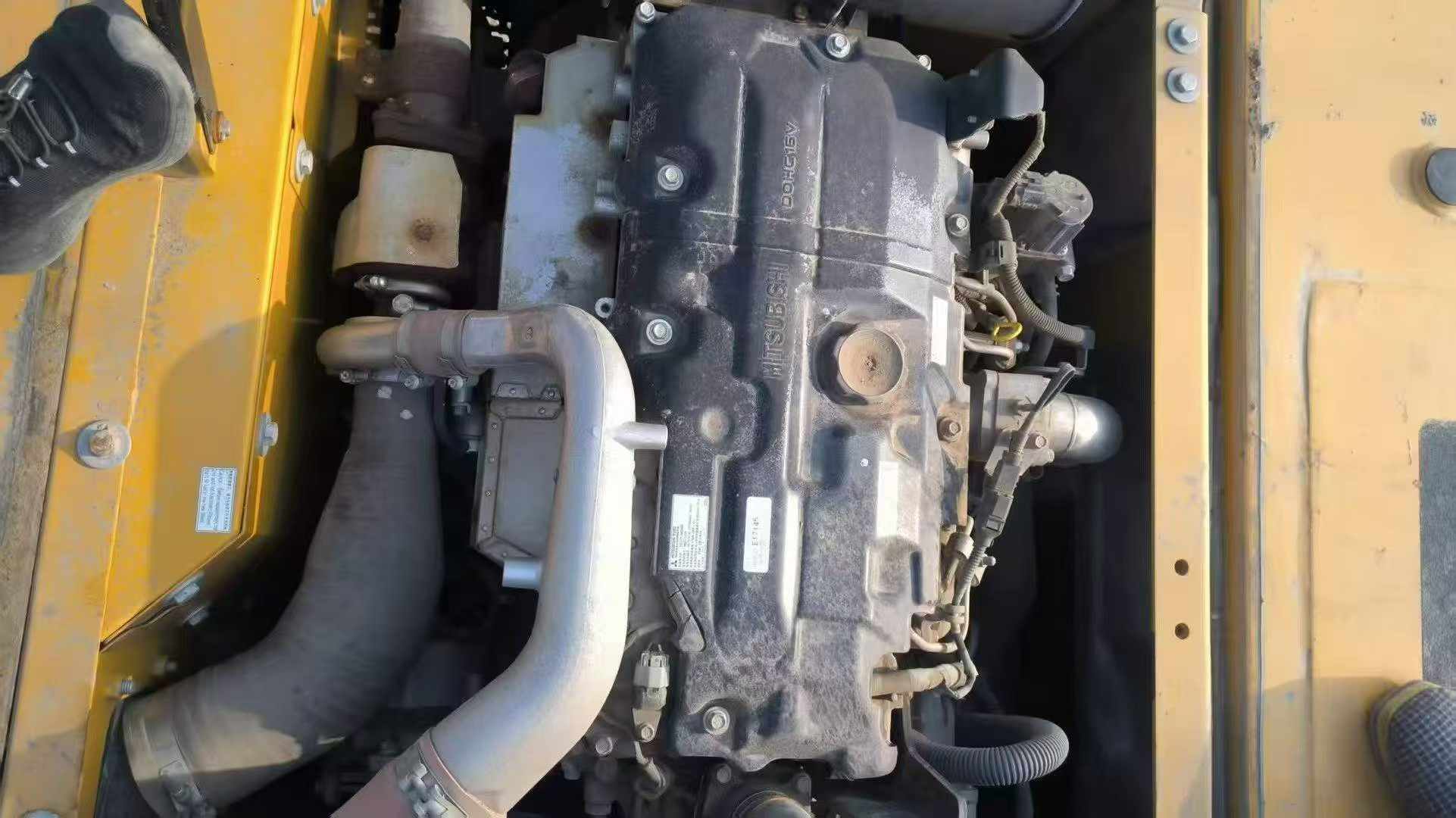

Buy Sany SY215C Used Excavator / 5

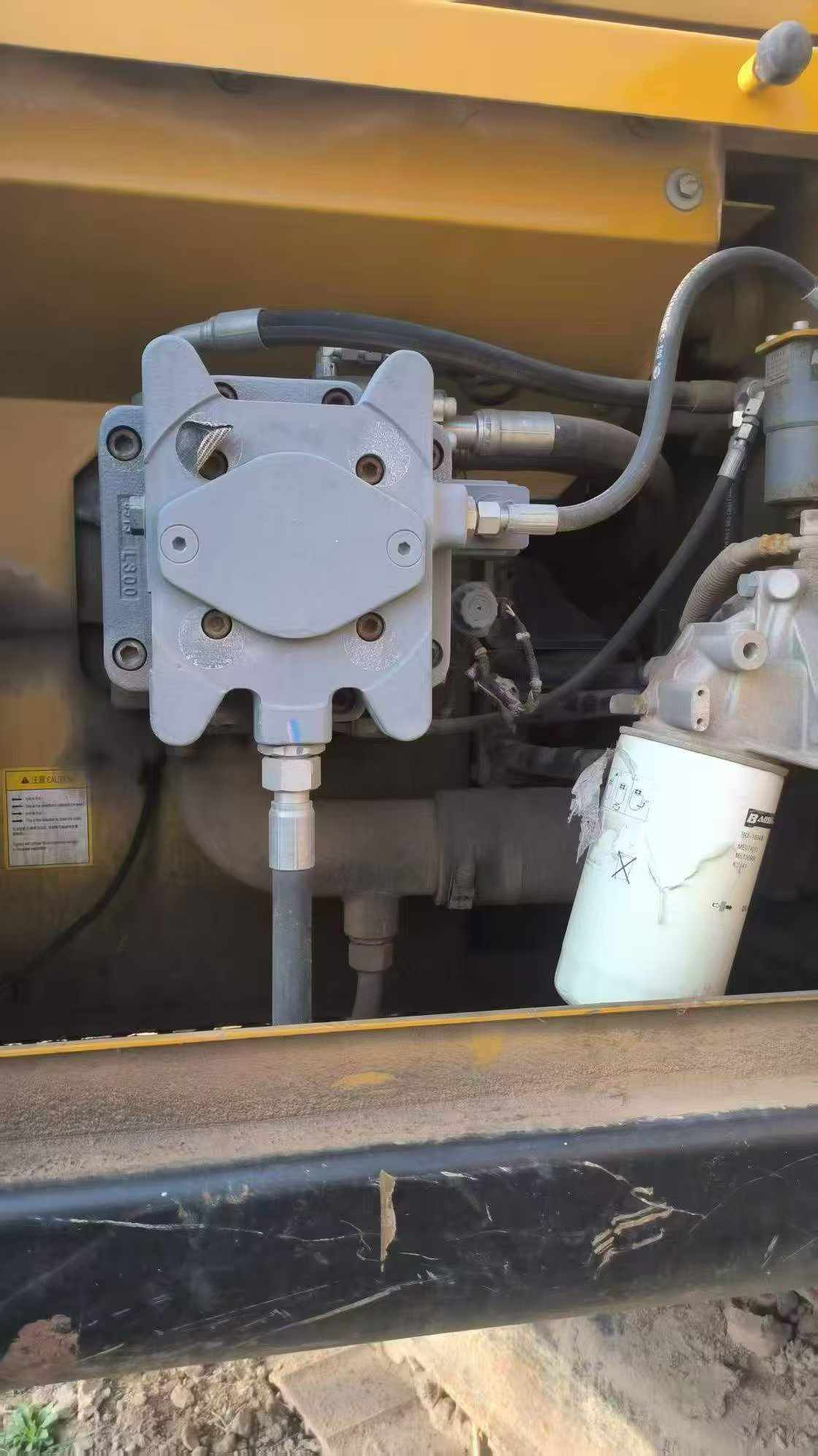

Buy Sany SY215C Used Excavator / 6

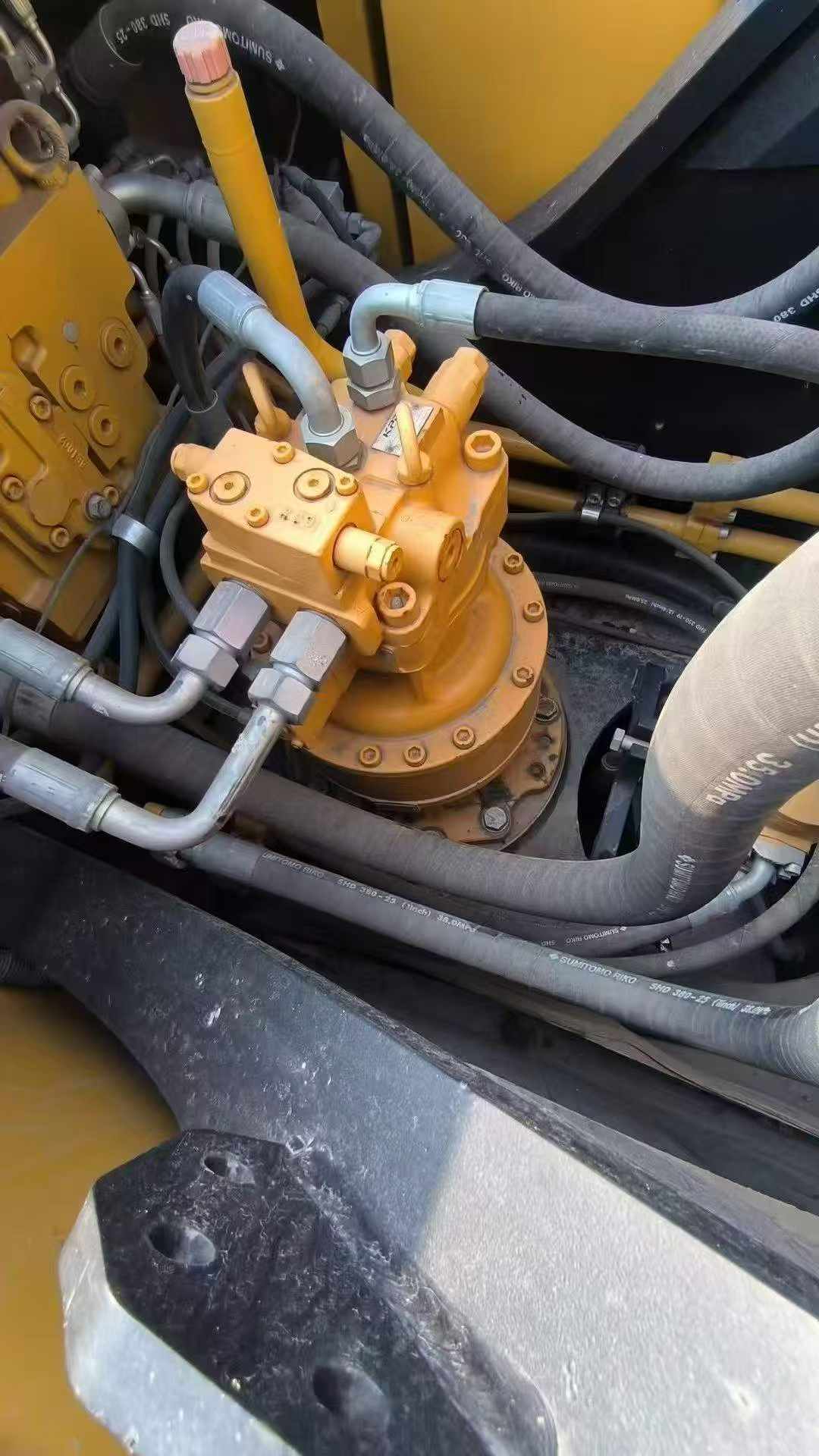

Buy Sany SY215C Used Excavator / 7

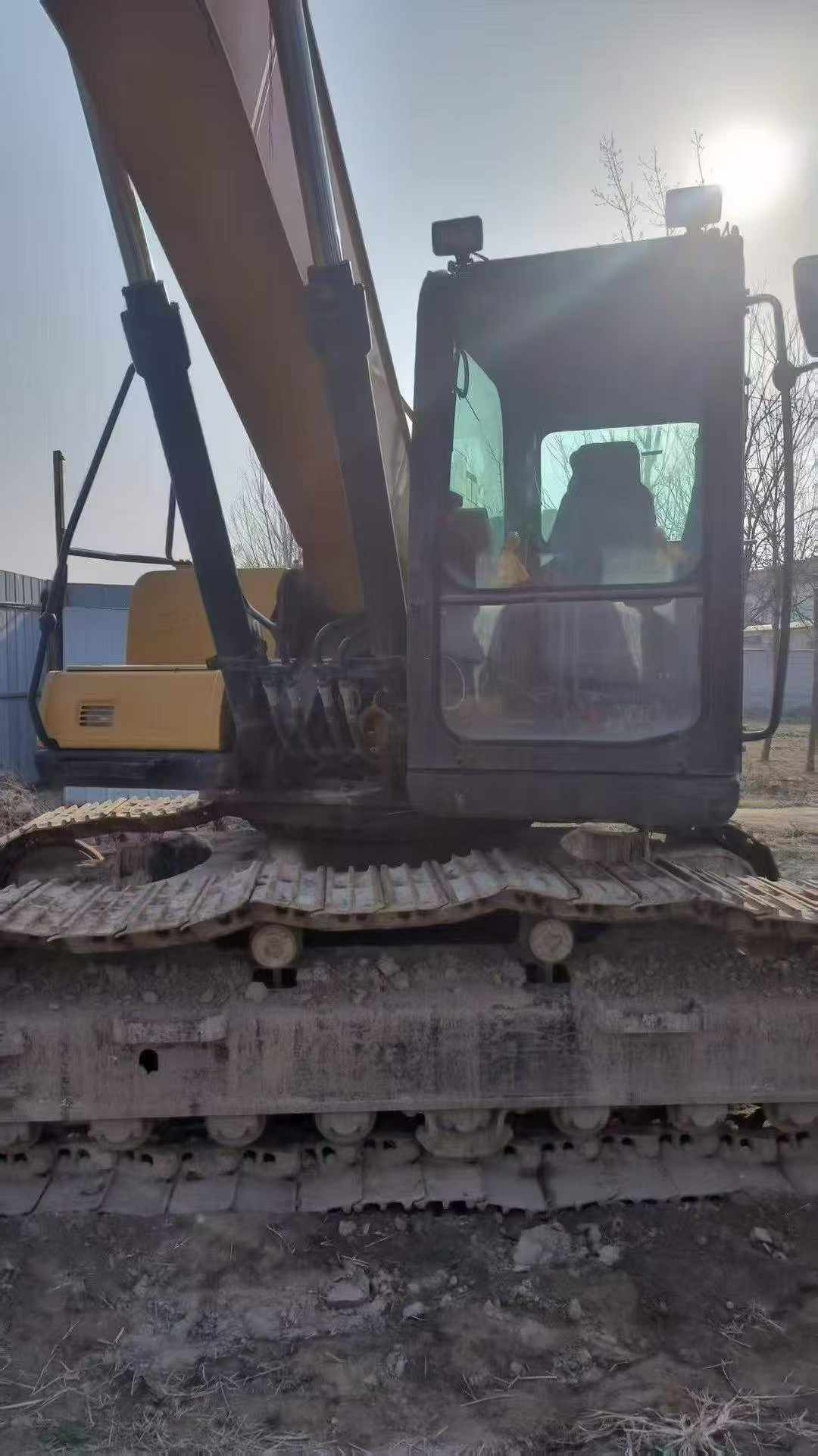

Buy Sany SY215C Used Excavator / 8

Product Description

Built to endure the toughest job sites, this 2018 Sany SY215C excavator demonstrates proven reliability with its robust 21-ton frame and powerful Mitsubishi 4M50 engine. Delivering 118kW at 2000rpm with a maximum torque of 580N.m, this workhorse combines strength with operational efficiency. The water-cooled, 4-cylinder engine ensures consistent performance across demanding applications, while the 1.1m³ backhoe bucket tackles heavy excavation with ease.

  • Operating weight: 21,900kg with exceptional 47.4kPa ground pressure distribution
  • Maximum digging reach: 10,280mm with 6,600mm depth capability
  • Impressive digging forces: 138kN bucket force, 103kN arm force
  • Superior climbing ability: 70% gradient (35°) for challenging terrain
  • Generous fuel capacity: 390L tank for extended operation
  • Compact transport dimensions: 9,680mm length, 2,980mm width

Currently located in Jiangsu, China, this machine represents Sany's commitment to engineering excellence. With proven track record since 2018, it continues to deliver reliable performance for contractors requiring dependable excavation equipment backed by quality manufacturing standards.

SpecificationsValue
No.1045804
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1045804

Brand Name:

Sany

Model Number:

SY215C

Year:

2018

Location:

Jiangsu China

Pub Date
