Product Description

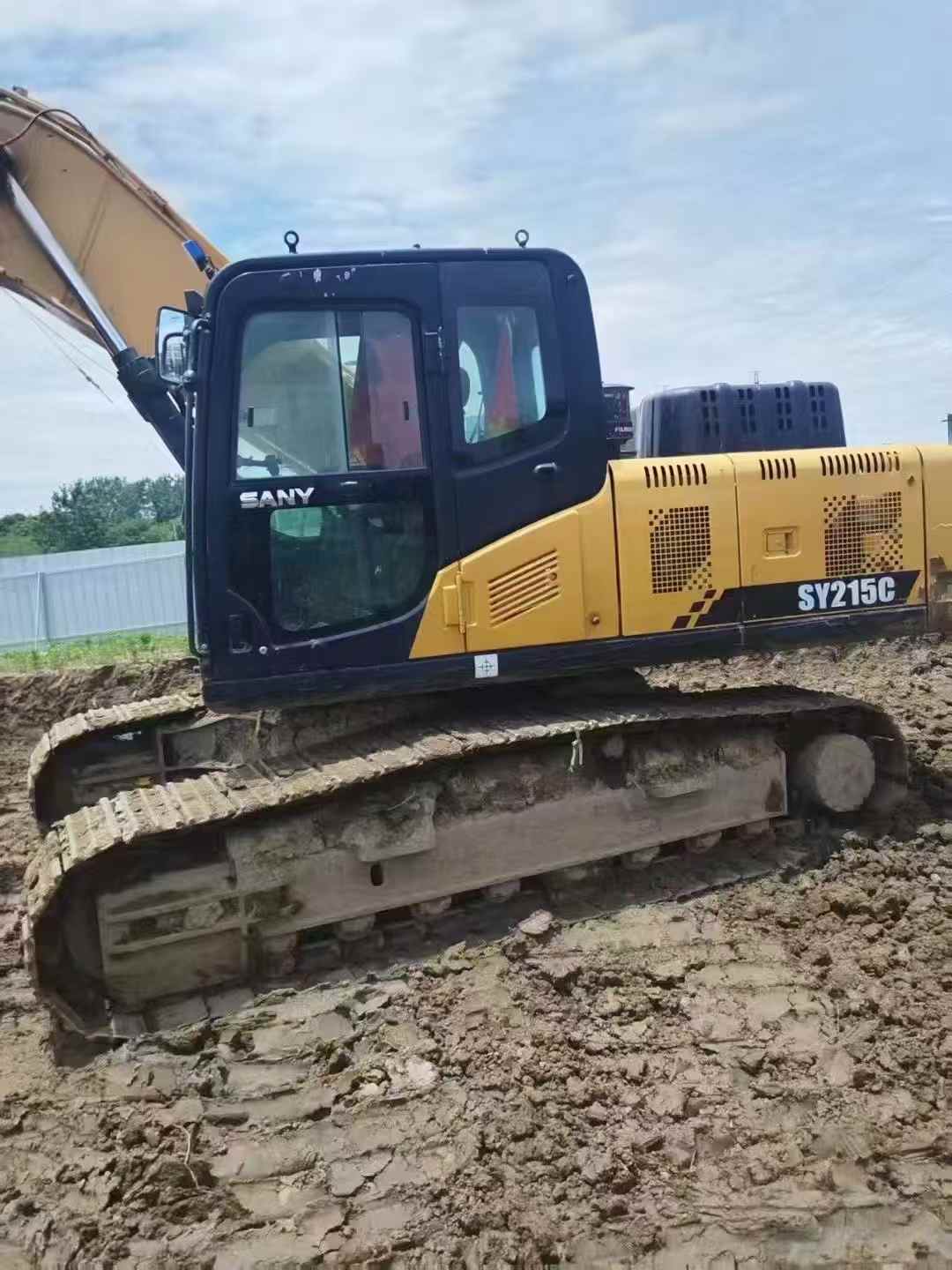

Expand your operational capacity with this 2019 Sany SY215C excavator, a proven 21-ton workhorse engineered for contractors managing multiple jobsites. Powered by a reliable Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm, this machine integrates seamlessly into existing fleets requiring consistent performance without downtime. Currently located in Changzhou, Jiangsu, this unit offers immediate availability for projects demanding dependable backup equipment.
- Bucket digging force of 138 kN handles demanding excavation tasks efficiently
- 10,280 mm maximum digging radius provides versatile reach for utility and foundation work
- 1.1 m³ bucket capacity (adjustable 0.8–1.2 m³) adapts to varying material handling requirements
- 390 L fuel tank extends operational hours between refueling stops
- Water-cooled system ensures stable performance during extended shifts
- Compact 2,900 mm rear turning radius enables work in confined urban environments
Built in China to rigorous manufacturing standards, this SY215C delivers the redundancy busy contractors need when primary equipment is committed elsewhere. Ready for immediate deployment across construction, demoliti
| Specifications | Value |
|---|---|
| No. | 1026375 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

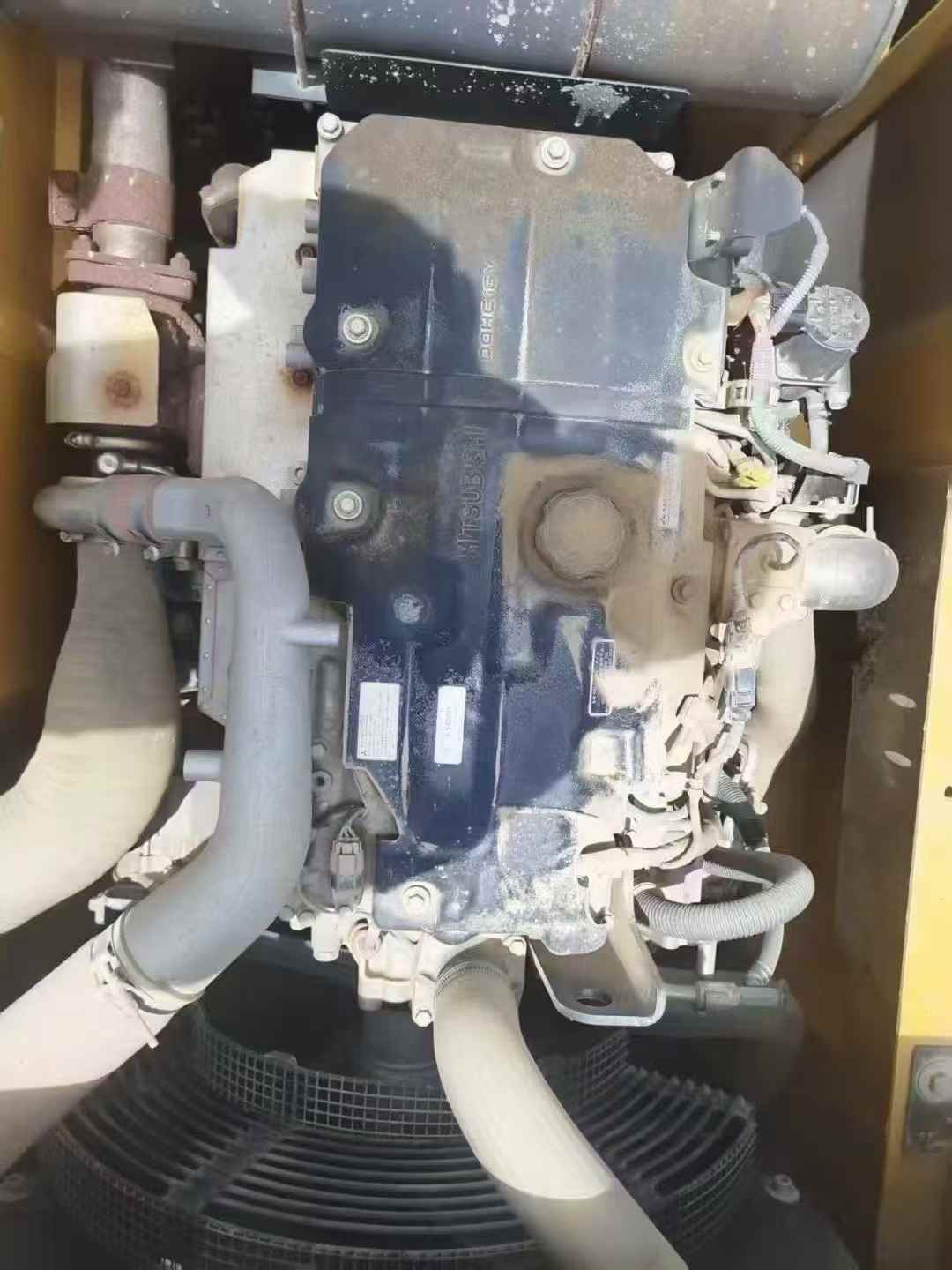

| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
