2019 Sany SY215C

1/7
Buy Sany SY215C Used Excavator / 1
Buy Sany SY215C Used Excavator / 2
Buy Sany SY215C Used Excavator / 3
Buy Sany SY215C Used Excavator / 4
Buy Sany SY215C Used Excavator / 5
Buy Sany SY215C Used Excavator / 6
Buy Sany SY215C Used Excavator / 7

Product Description

Proven performance meets exceptional durability in this 2019 Sany SY215C excavator, currently located in Shandong. With a robust 21-ton operating weight and powerful Mitsubishi 4M50 engine delivering 118kW at 2000rpm, this machine demonstrates why Sany equipment has earned its reputation as a reliable workhorse on job sites worldwide. The 1.1m³ bucket capacity and impressive 138kN digging force tackle demanding excavation tasks with consistent efficiency.

Built to last through the toughest conditions, this crawler excavator features water-cooled engineering and a substantial 390L fuel tank for extended operation. Its 10,280mm maximum digging radius and 6,600mm maximum digging depth provide versatile reach for diverse applications. At just five years in service, this SY215C represents proven reliability rather than unproven potential—a tested performer ready for your next project.

  • Operating Weight: 21,900 kg with superior stability

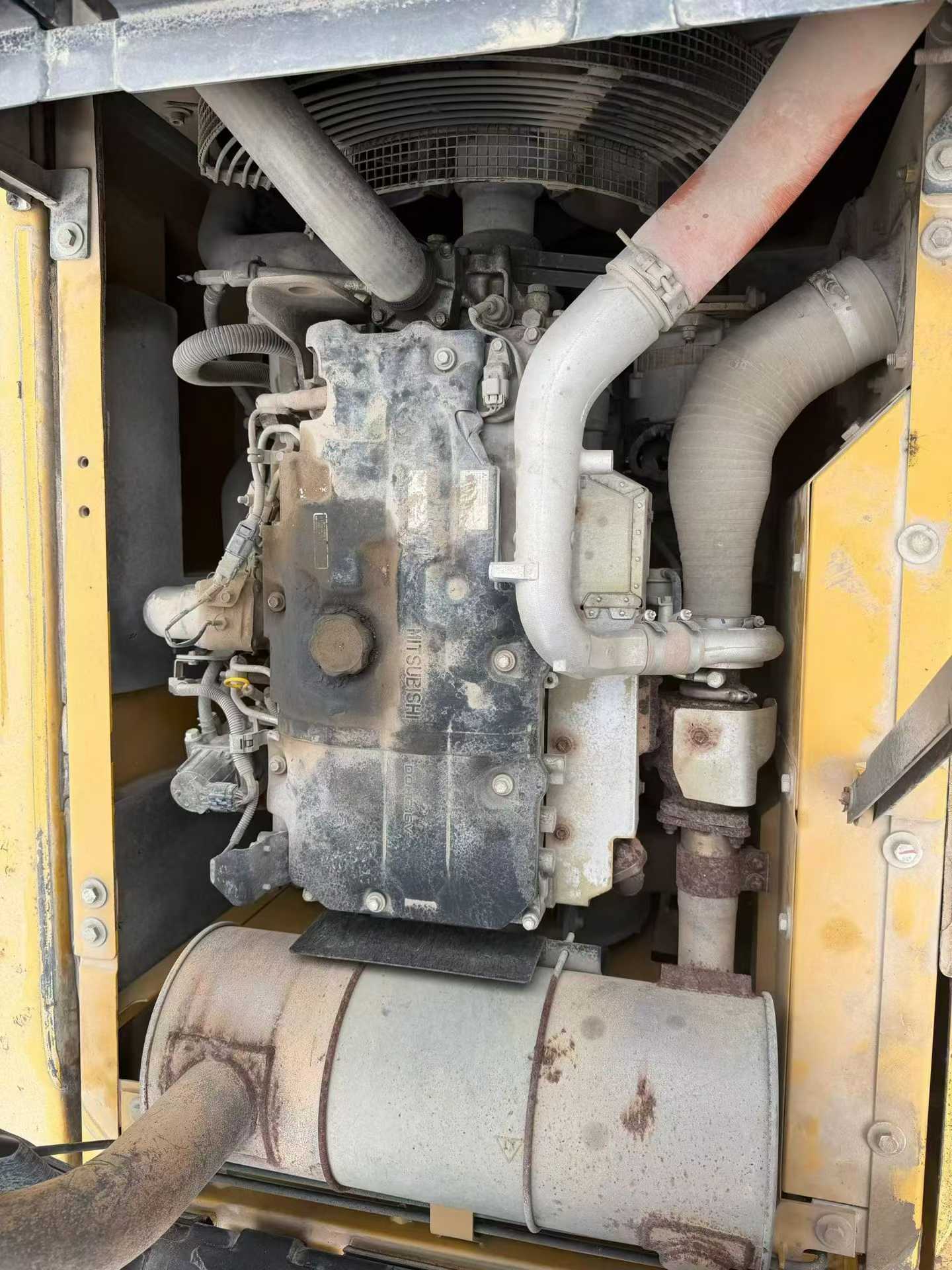

  • Mitsubishi 4M50 engine: 118kW rated power, 580N.m maximum torque
  • Maximum digging reach: 10,280mm
  • Climbing ability: 70% (35°) for challenging terrain
  • Available for immediate global shipment from Shandong
SpecificationsValue
No.1036579
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
