Product Description

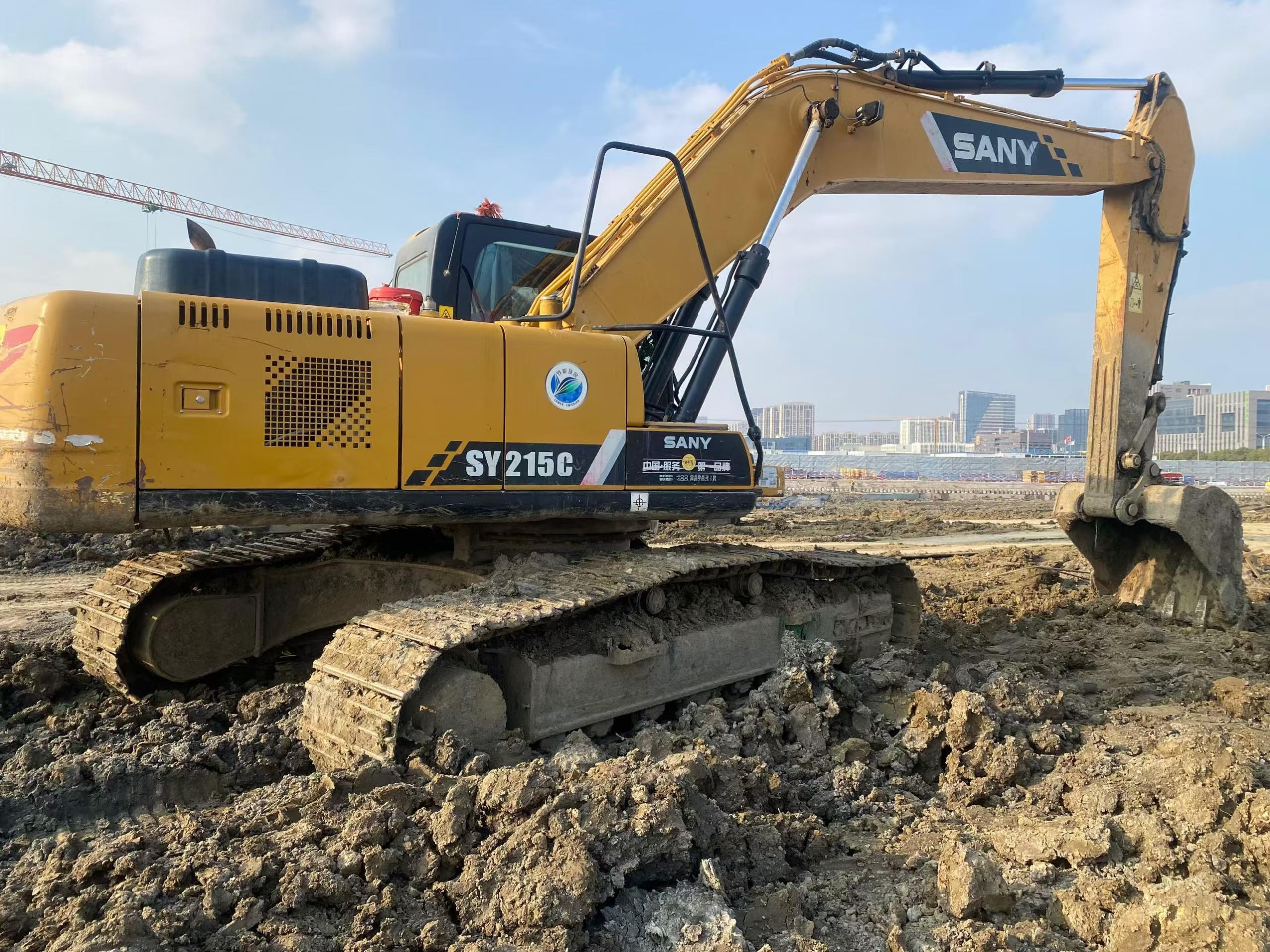

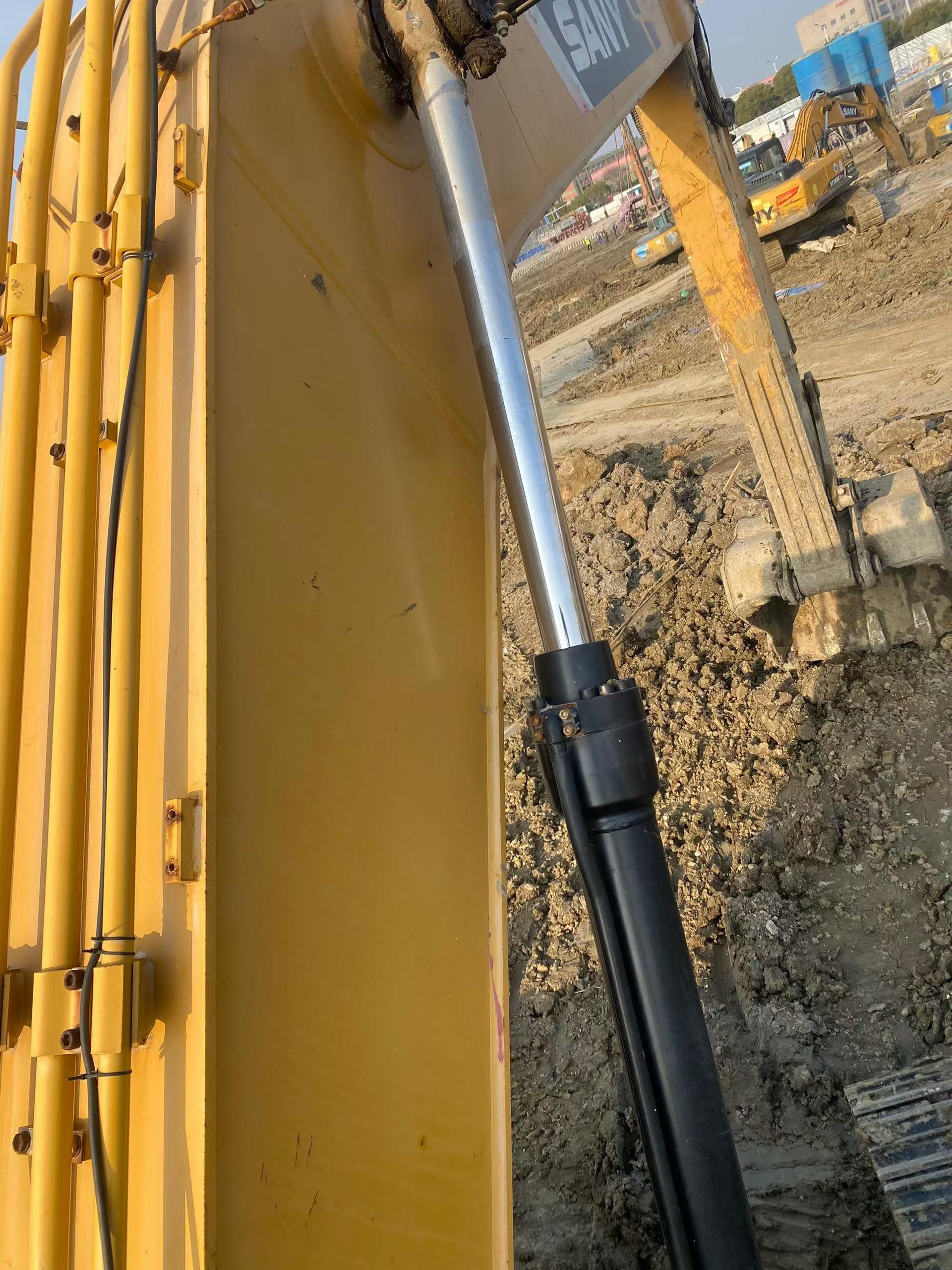

Expand your operational capacity with this 2019 Sany SY215C excavator, a proven 21-ton workhorse engineered for contractors running multiple job sites simultaneously. Powered by a reliable Mitsubishi 4M50 engine delivering 118kW at 2000 rpm, this mid-size machine provides the consistent performance busy fleets demand. Currently positioned in Jiangsu Suqian, this unit offers immediate deployment potential for contractors seeking dependable backup equipment or fleet expansion.
Built for versatility across diverse applications, this machine combines a 1.1m³ bucket capacity with impressive reach specifications—10,280mm maximum digging radius and 6,600mm maximum digging depth. The water-cooled powertrain generates 580 N·m of torque, while hydraulic systems produce 138kN bucket digging force and 103kN arm digging force. With 390L fuel capacity and dual-speed travel (5.4/3.3 km/h), this excavator maintains productivity throughout extended shifts.

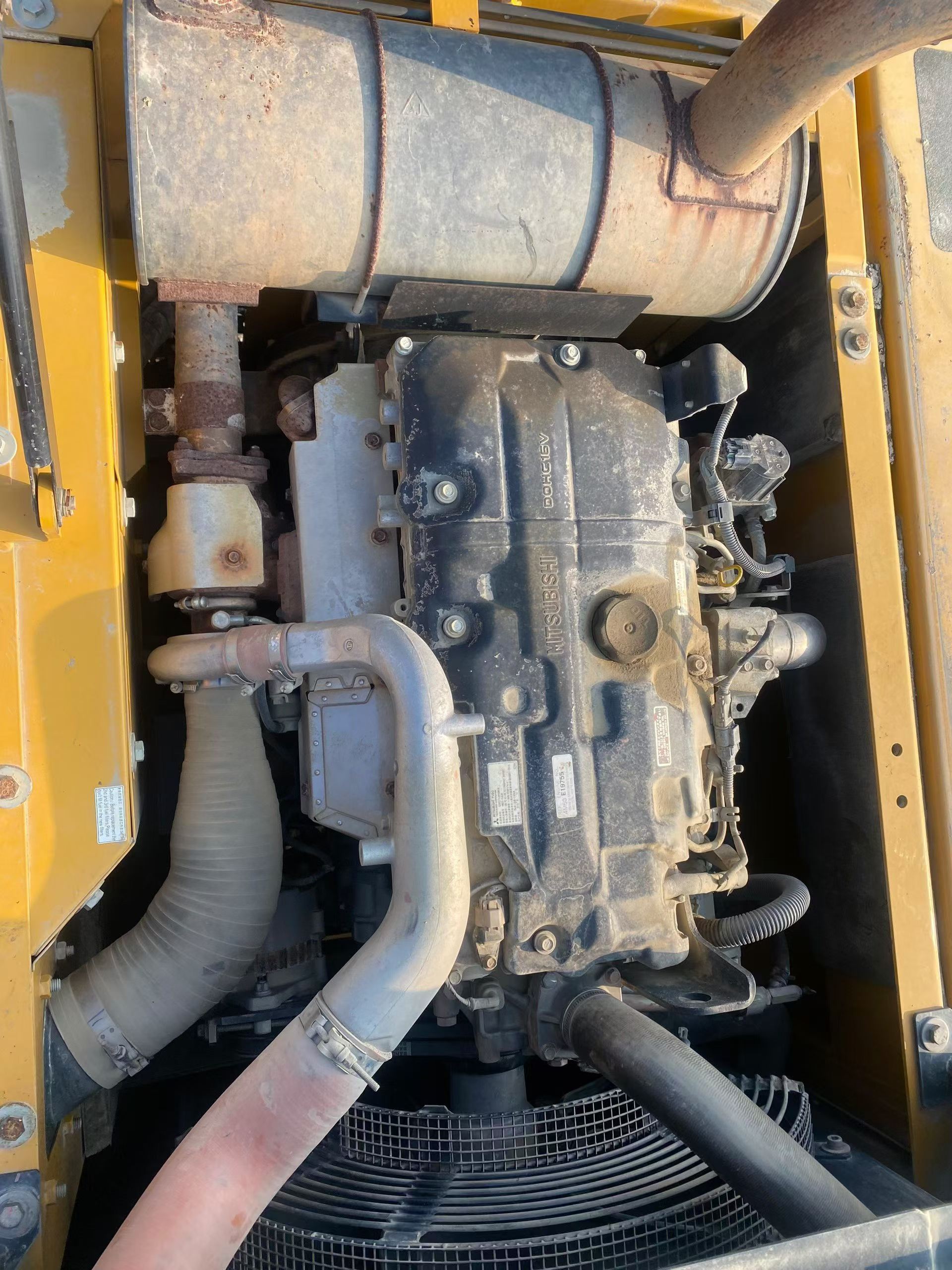

- Mitsubishi 4M50 engine: 118kW rated power, proven reliability
- 21,900kg working weight with 1.1m³ bucket configuration
- 70% gradeability and 440mm ground clearance for challenging terrain
- Compact transport dimensions: 9,680mm × 2,980mm × 3,440mm
| Specifications | Value |
|---|---|
| No. | 1039704 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
