HOME>>Sany>>Sany SY215C

2019 Sany SY215C

1/9
Buy Sany SY215C Used Excavator / 1

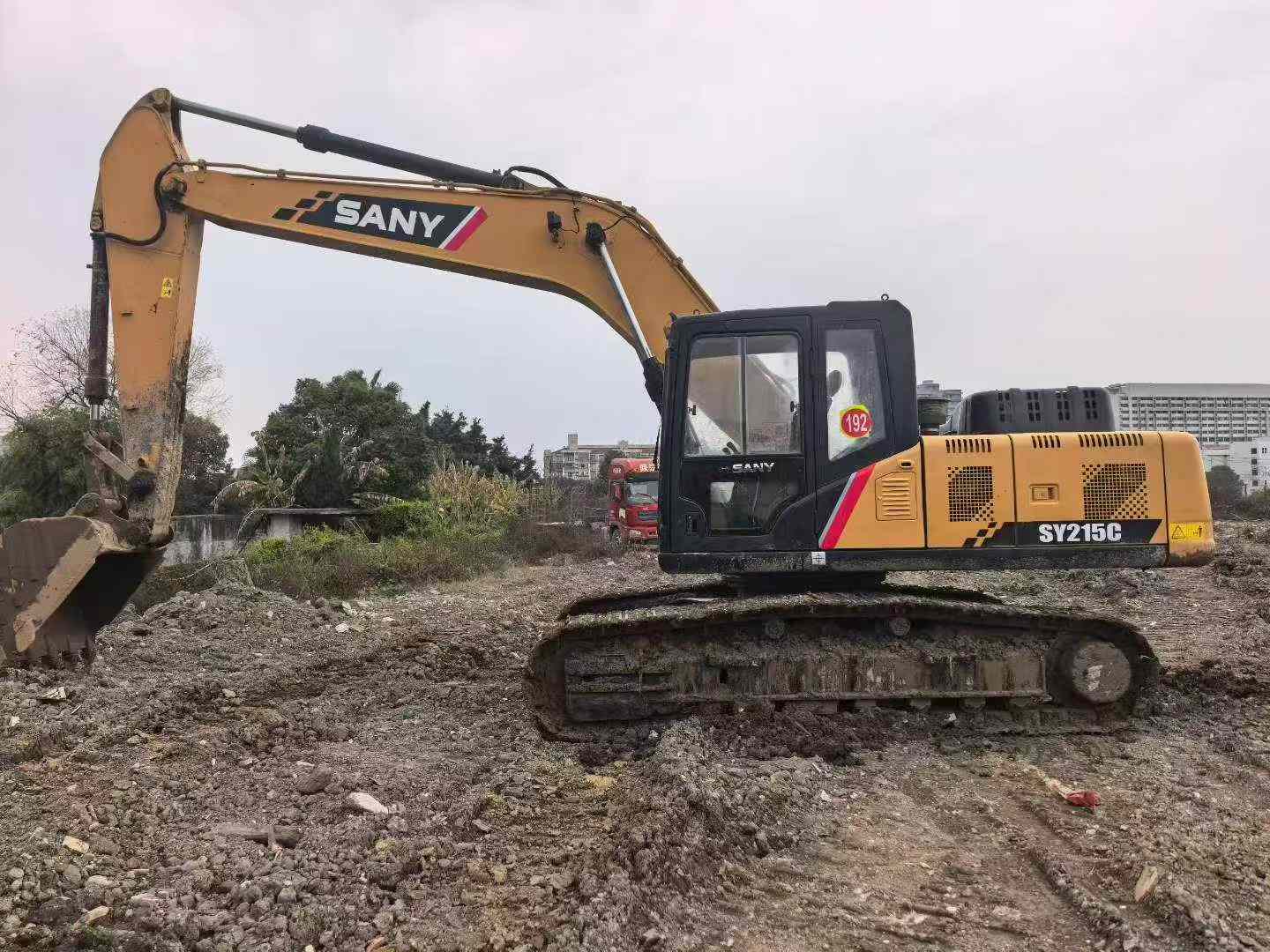

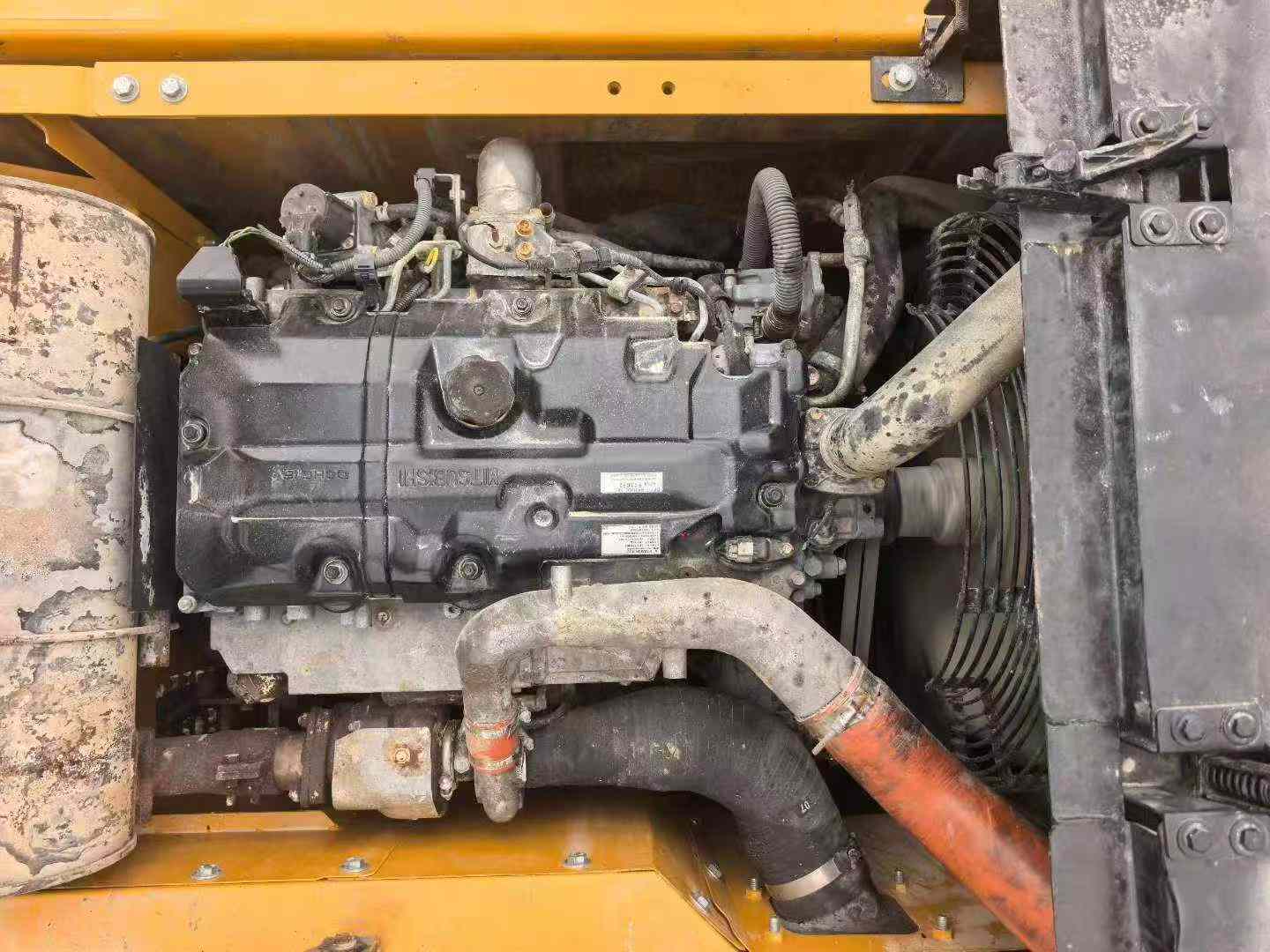

Buy Sany SY215C Used Excavator / 2

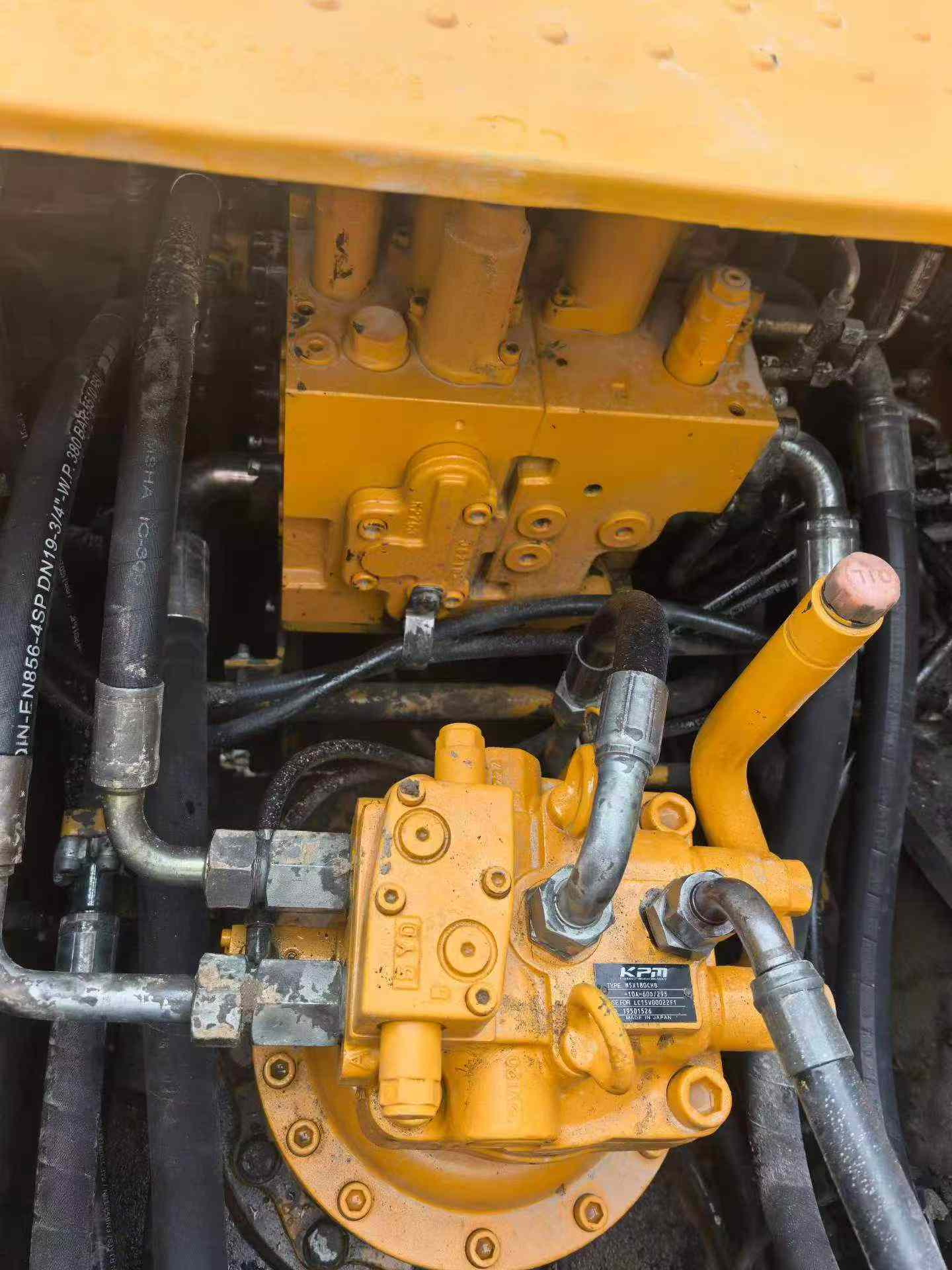

Buy Sany SY215C Used Excavator / 3
Buy Sany SY215C Used Excavator / 4
Buy Sany SY215C Used Excavator / 5

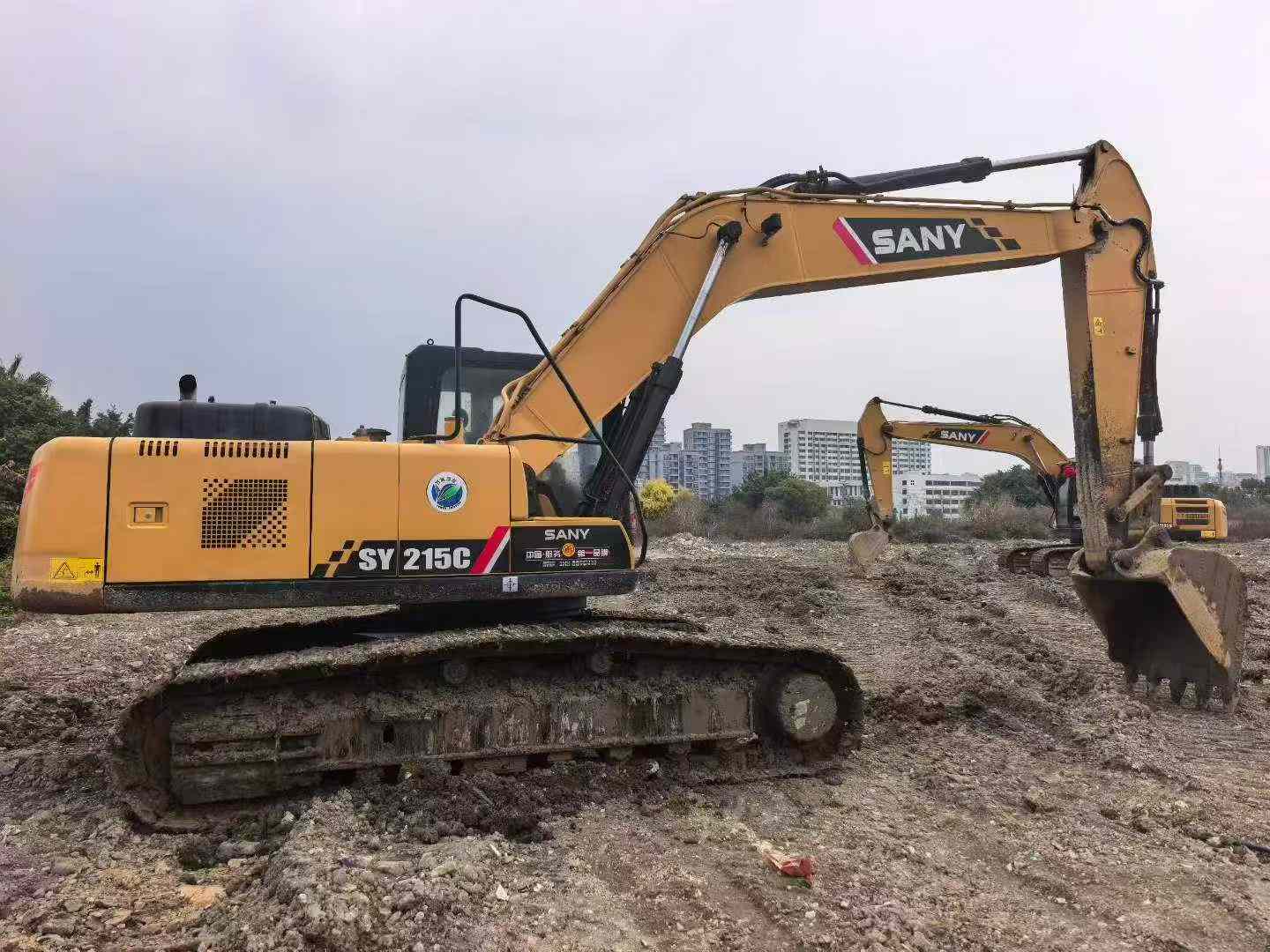

Buy Sany SY215C Used Excavator / 6

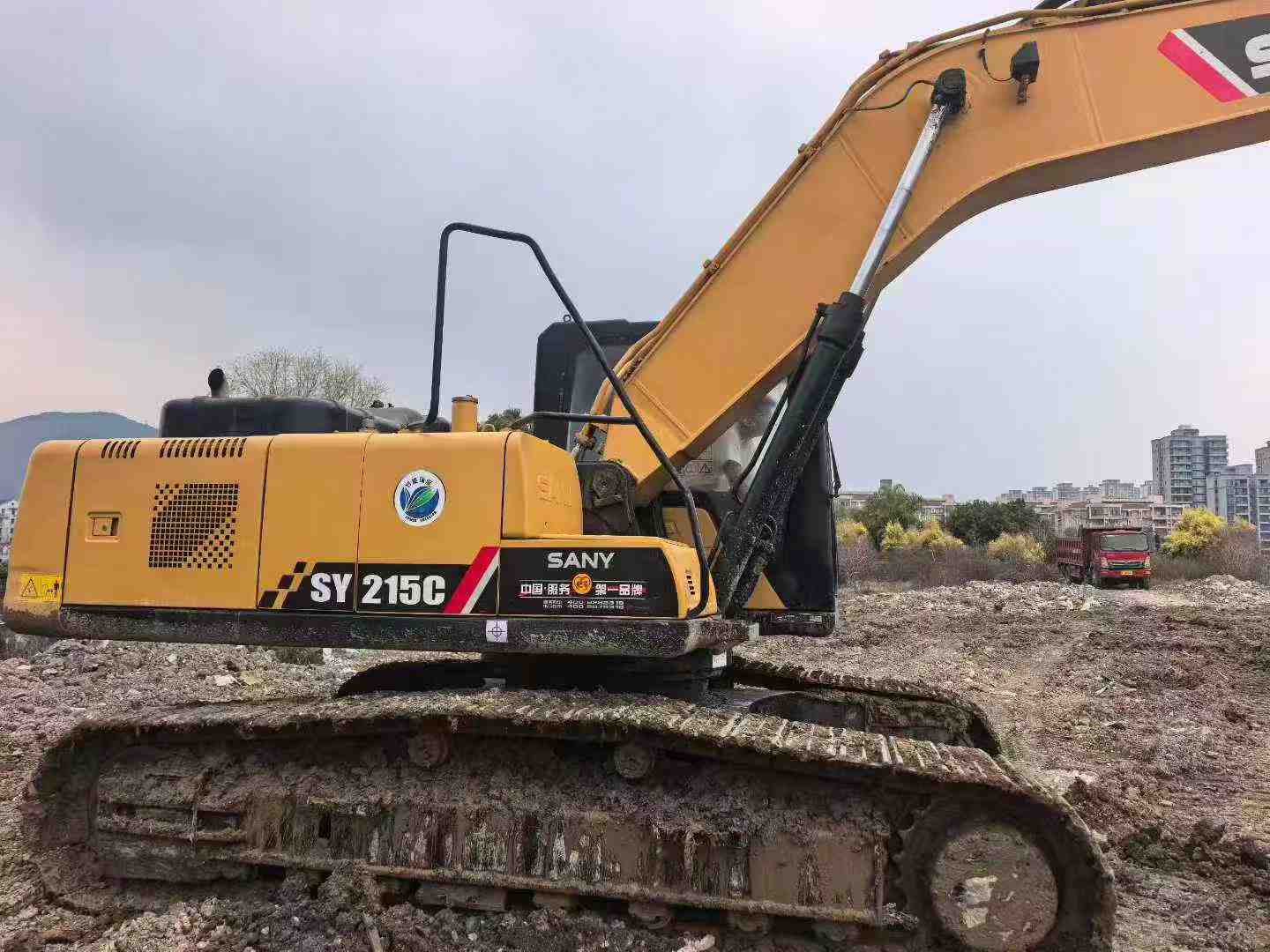

Buy Sany SY215C Used Excavator / 7
Buy Sany SY215C Used Excavator / 8

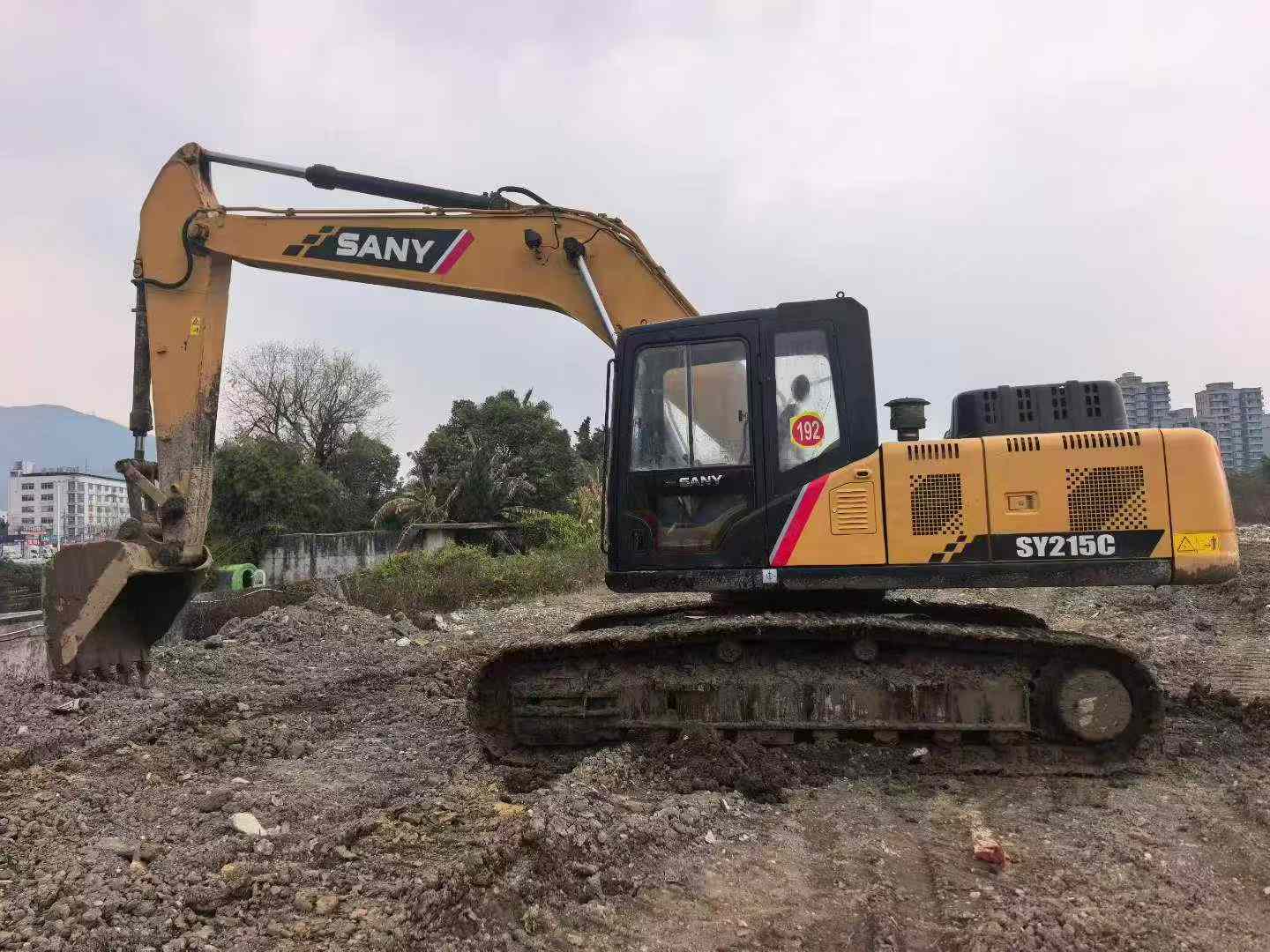

Buy Sany SY215C Used Excavator / 9

Product Description

Built for endurance and engineered to perform, this 2019 Sany SY215C excavator represents proven reliability in the 21-ton class. With a robust Mitsubishi 4M50 engine delivering 118kW at 2000rpm and 580N.m of torque, this machine has demonstrated consistent power output across demanding applications. Operating weight of 21,900kg provides exceptional stability, while the 1.1m³ bucket capacity (adjustable 0.8-1.2m³) ensures versatile material handling.

Durability credentials include:

  • Maximum digging reach of 10,280mm with 6,600mm depth capability
  • Powerful bucket digging force of 138kN and rod force of 103kN
  • Water-cooled 4.9L displacement engine for sustained thermal management
  • Generous 390L fuel tank and 239L hydraulic reservoir for extended operation
  • 70% climbing ability handling steep gradients with confidence
  • Compact 2,900mm rear turning radius for confined job sites

Currently located in Zhejiang, China, this proven workhorse offers dependable performance backed by years of field-tested operation. A practical choice for contractors seeking reliable productivity without compromise.

SpecificationsValue
No.1040113
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1040113

Brand Name:

Sany

Model Number:

SY215C

Year:

2019

Location:

Zhejiang China

Pub Date
