Product Description

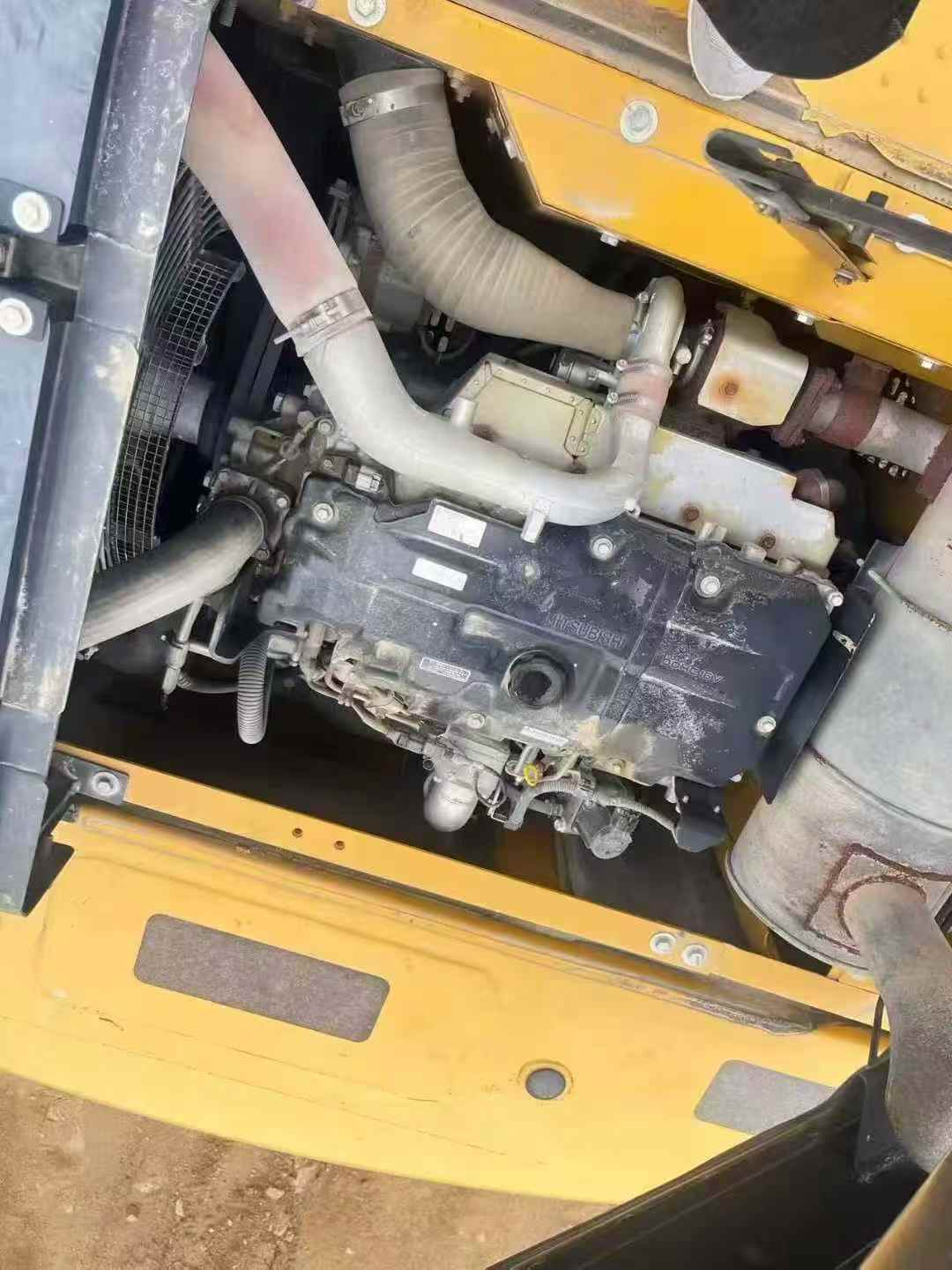

Engineered for demanding excavation projects, this 2020 Sany SY215C combines robust hydraulics with proven powertrain technology. At its core, a Mitsubishi 4M50 engine delivers 118 kW at 2000 rpm with 580 N·m maximum torque, paired with a water-cooled 4.9L displacement system for sustained performance in extended duty cycles. Hydraulic power translates to 138 kN bucket digging force and 103 kN arm digging force, enabling efficient material handling across varied soil conditions.
This 21-ton excavator features a 1.1 m³ bucket capacity with proven backhoe configuration. Operating specifications include a maximum dig depth of 6600 mm, reach of 10,280 mm, and dump height of 6730 mm. The undercarriage utilizes 600 mm track plates across 3445 mm ground contact length, distributing 21,900 kg operating weight to just 47.4 kPa ground pressure. Dual sprockets and 8-roller configuration per side provide stability on grades up to 70%.
Currently located in Jiangsu, China, this machine represents Sany's mid-class excavator engineering with factory-standard components throughout. Fuel capacity of 390L and 239L hydraulic reservoir support full-shift operation requirements.
| Specifications | Value |
|---|---|
| No. | 1032551 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
