Product Description

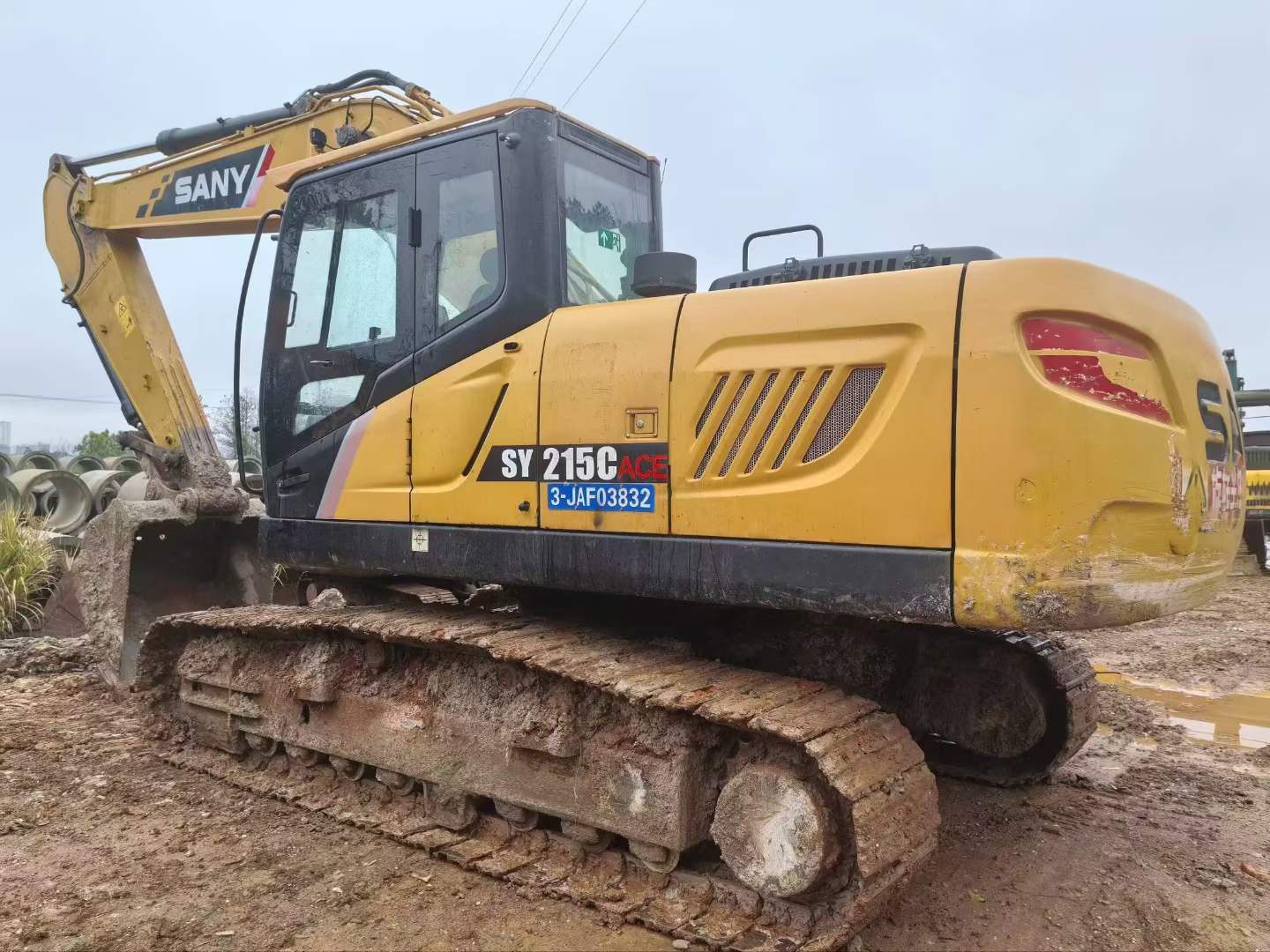

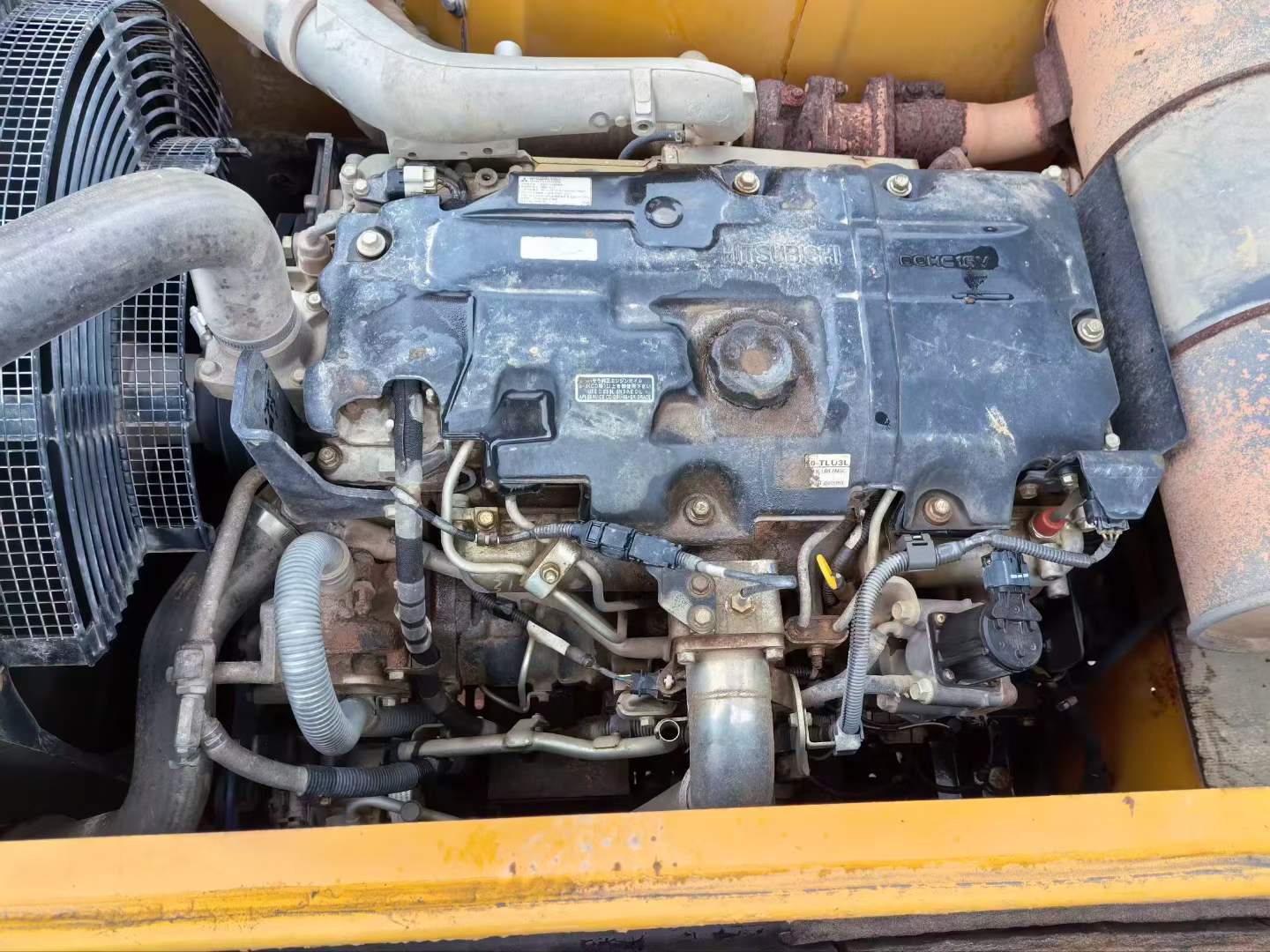

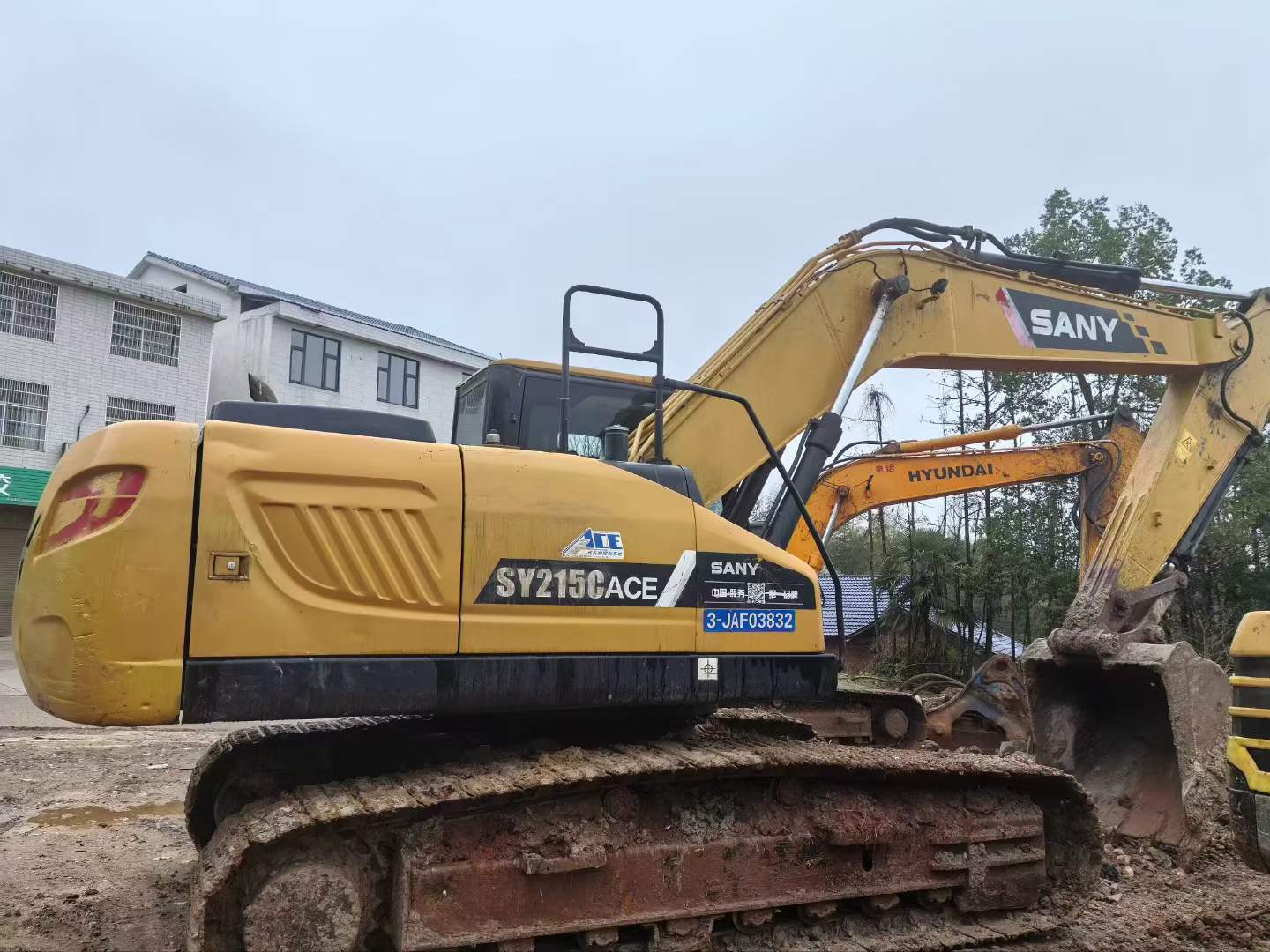

With a powerful Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm, this 2020 Sany SY215C excavator is equipped for immediate site deployment. In 浙江丽水, it stands ready to tackle digging, grading, and demolition tasks with precision and efficiency.
- Boasts a 21-ton working weight and a versatile 1.1 m³ bucket capacity, ideal for various excavation needs.
- Offers robust digging forces: 138 kN for the bucket and 103 kN for the rod, ensuring tough materials are no match.
- Features a 70% climbing ability, making it suitable for challenging terrains and steep inclines.
- Equipped with a 390-liter fuel tank and 239-liter hydraulic tank, minimizing downtime and maximizing productivity.
- Designed with a 2980 mm total transport width and 3440 mm total transport height, facilitating easy transportation to and from sites.
| Specifications | Value |
|---|---|
| No. | 1033353 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
