Product Description

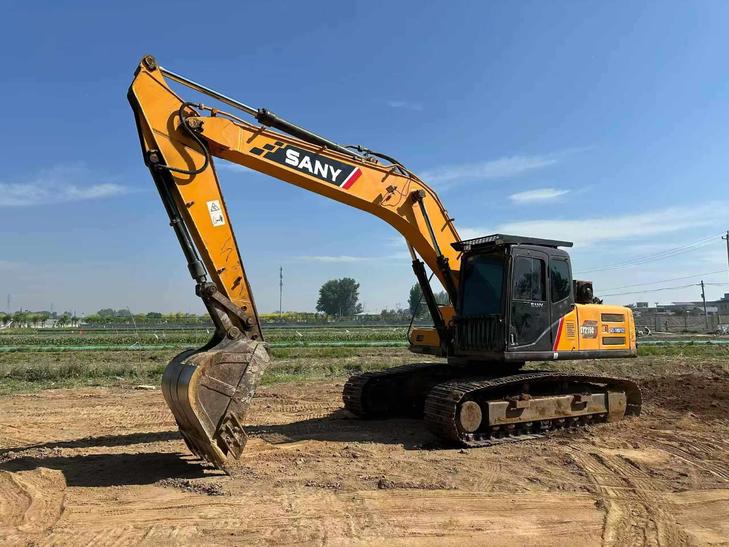

This 2020 Sany SY215C excavator represents a well-maintained mid-size machine ready for immediate deployment. Currently located in Beijing, China, this unit demonstrates the reliability expected from Sany's proven 21-ton class design.
The machine presents in excellent operational condition with no fluid leaks throughout the hydraulic system or engine compartment. The power plant delivers strong, consistent performance with responsive throttle characteristics. Hydraulic functions operate smoothly with proper cycle times and no hesitation between movements.
- Uniform wear patterns across undercarriage components indicate balanced operation
- Clean engine bay with no signs of oil seepage or coolant migration
- Responsive hydraulics with full range of motion on all cylinders
- Documented field service history
This SY215C has been actively utilized on construction sites and shows the honest wear profile of a productive working machine. Suitable for contractors seeking reliable performance in a proven platform.
| Specifications | Value |
|---|---|
| No. | 1084687 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
