Product Description

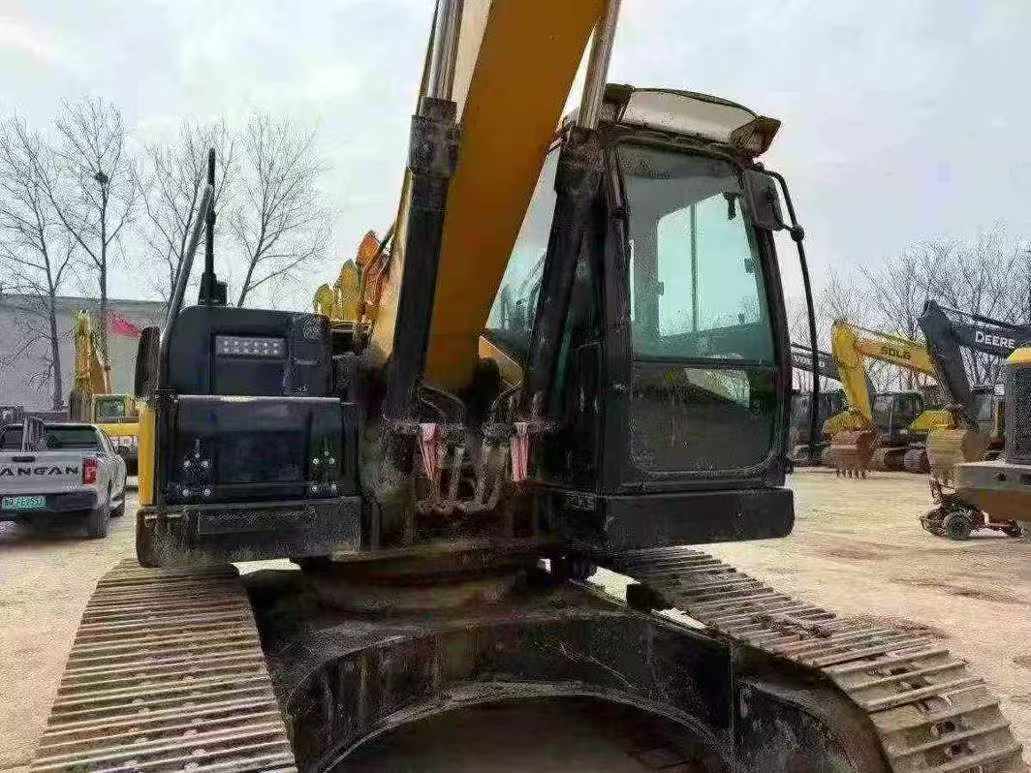

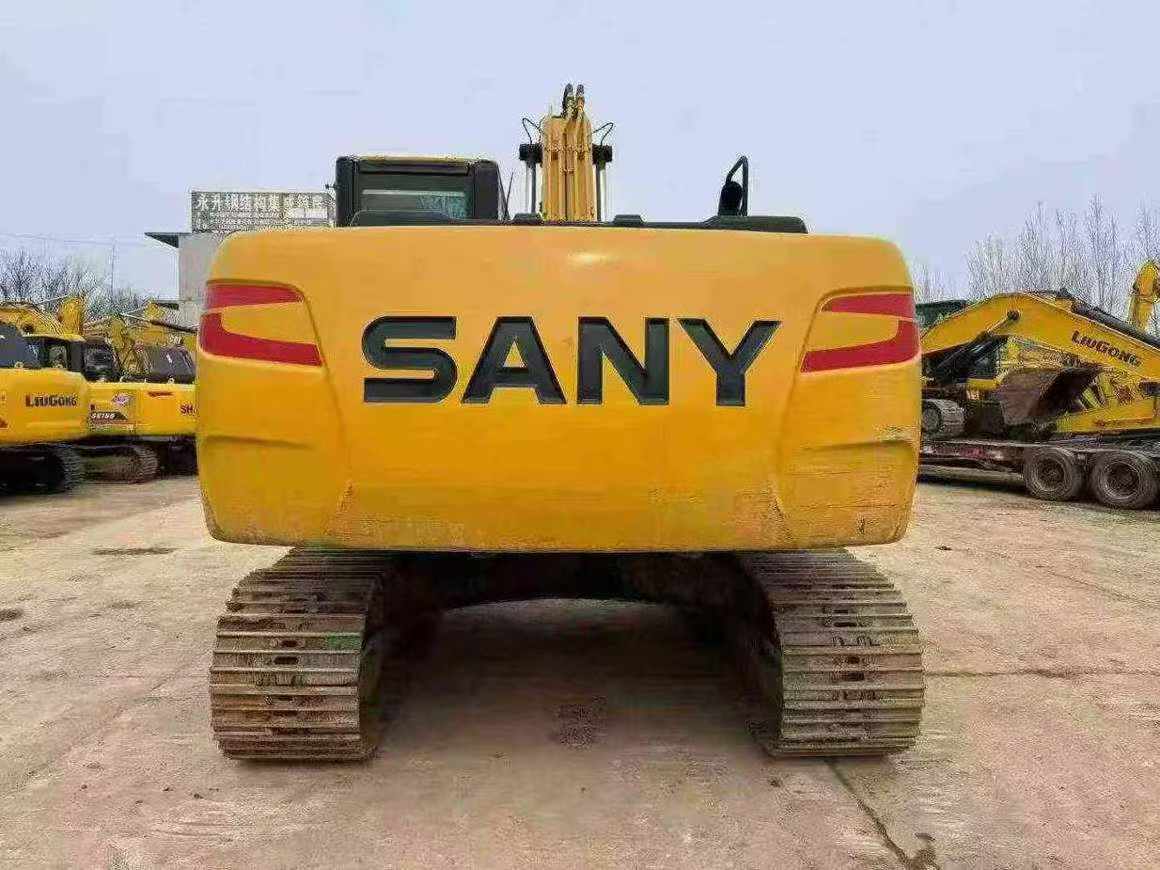

Built for relentless performance, this 2021 Sany SY215C excavator delivers proven reliability across demanding jobsites. Operating at 21 tons with a robust Mitsubishi 4M50 engine producing 118kW of rated power, this workhorse combines exceptional digging force with fuel-efficient operation. The machine features a 1.1m³ bucket capacity, 10,280mm maximum digging radius, and 6,600mm maximum digging depth—engineered to handle high-volume earthmoving with consistent precision.
- Proven Powertrain: Mitsubishi 4M50 water-cooled engine with 580N.m maximum torque
- Superior Digging Performance: 138kN bucket digging force and 103kN arm digging force

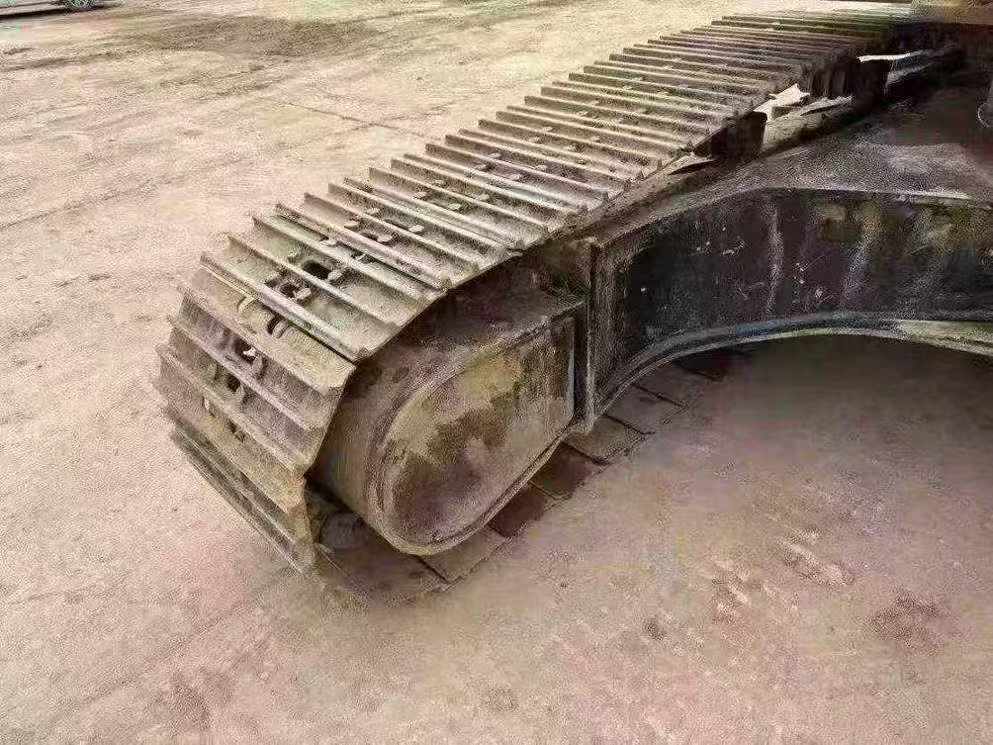

- Durable Construction: 21,900kg working weight with reinforced undercarriage featuring 8 track rollers per side
- Operational Efficiency: 390L fuel tank capacity for extended runtime, 70% climbing ability
- Versatile Reach: 9,600mm maximum excavation height with 6,730mm unloading height
- Location: Currently available in Linyi, Shandong, China
With minimal operational hours since 2021, this SY215C represents exceptional value for contr
| Specifications | Value |
|---|---|
| No. | 1022548 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

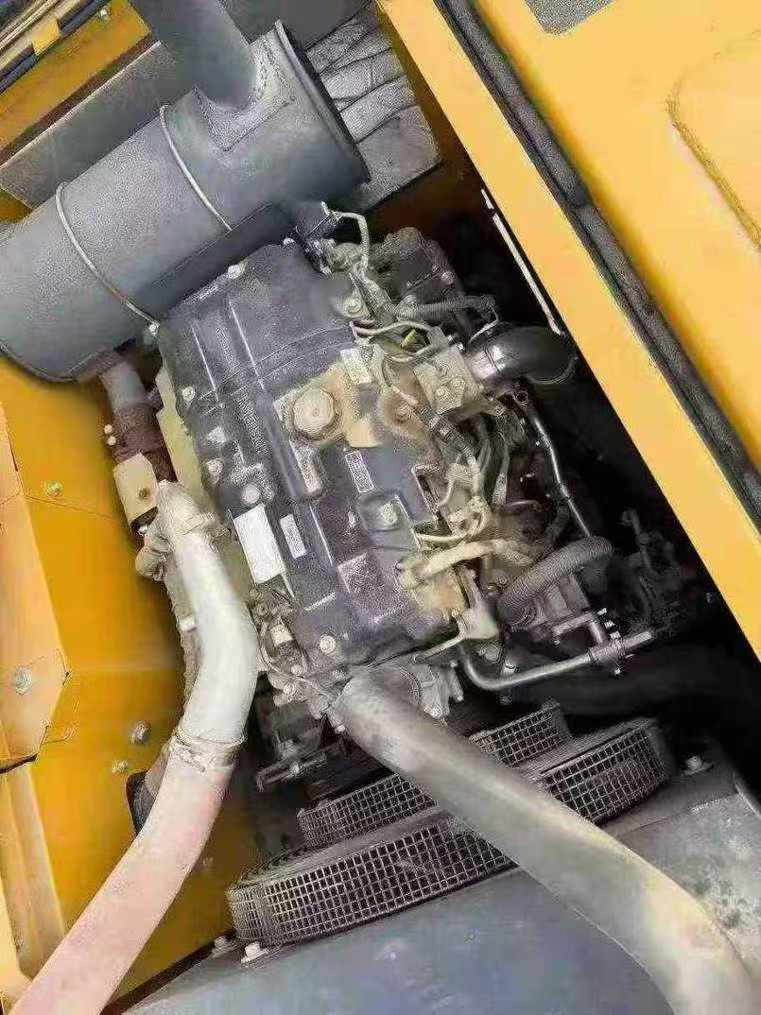

| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
