Product Description
Built for high-output excavation and grading work, this 2021 Sany SY215C delivers 21 tons of operational capability with proven Mitsubishi 4M50 power. Rated at 118 kW and 580 N·m of torque, the water-cooled engine drives consistent performance across demanding jobsites. Bucket digging force reaches 138 kN with a standard 1.1 m³ capacity, handling trenching, loading, and material placement with precision.
- Maximum digging depth: 6,600 mm for deep utility work
- Maximum reach: 10,280 mm covers wide excavation zones
- 390-liter fuel tank supports extended shifts
- 70% gradeability tackles steep terrain
- 11 rpm rotation speed enables efficient load cycles

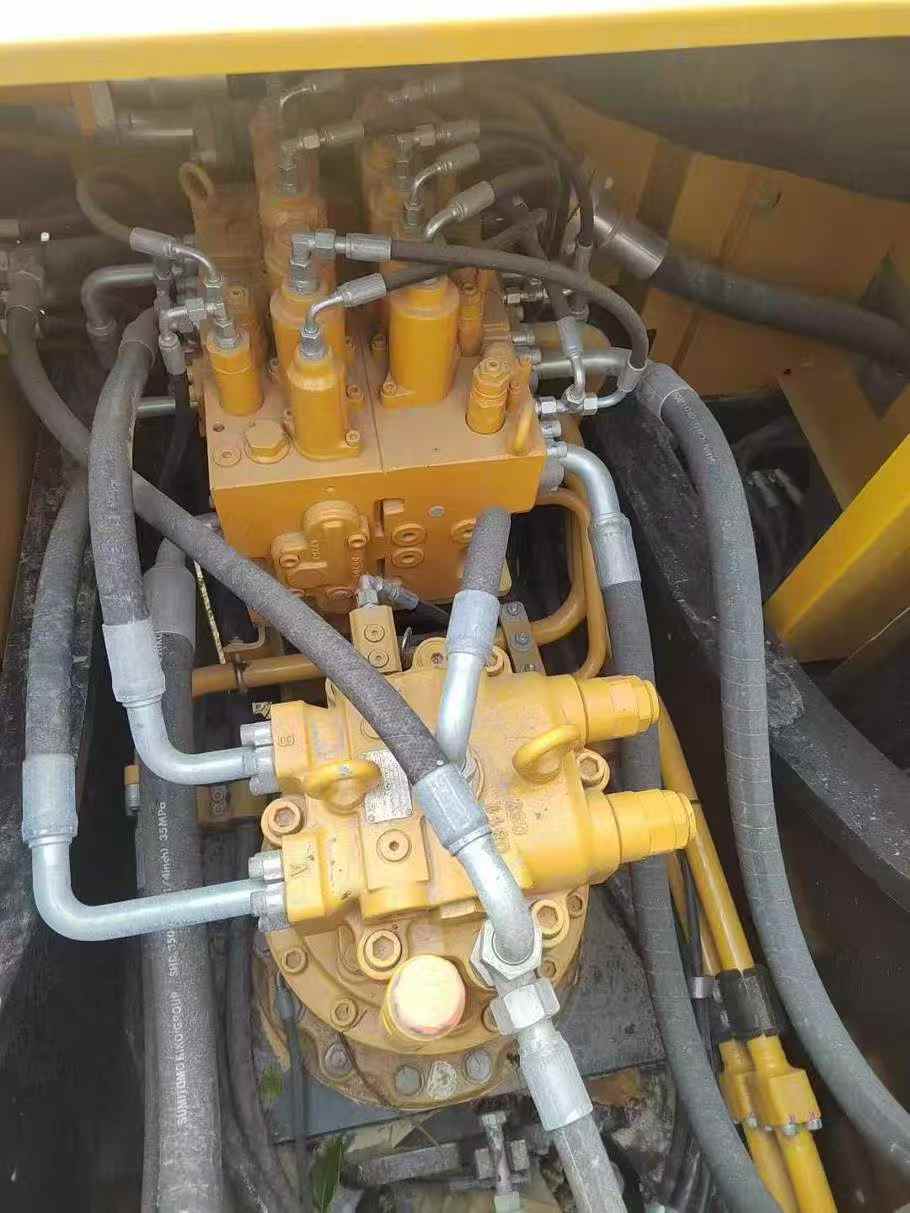

Currently located in Changzhou, Jiangsu, this machine is inspection-ready and available for immediate deployment. Hydraulic systems, undercarriage, and cab have been maintained to operational standards. Suitable for infrastructure projects, site development, and demolition contracts requiring reliable 21-ton class performance.
| Specifications | Value |
|---|---|
| No. | 1027474 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
