2021 Sany SY215C

1/4
Buy Sany SY215C Used Excavator / 1

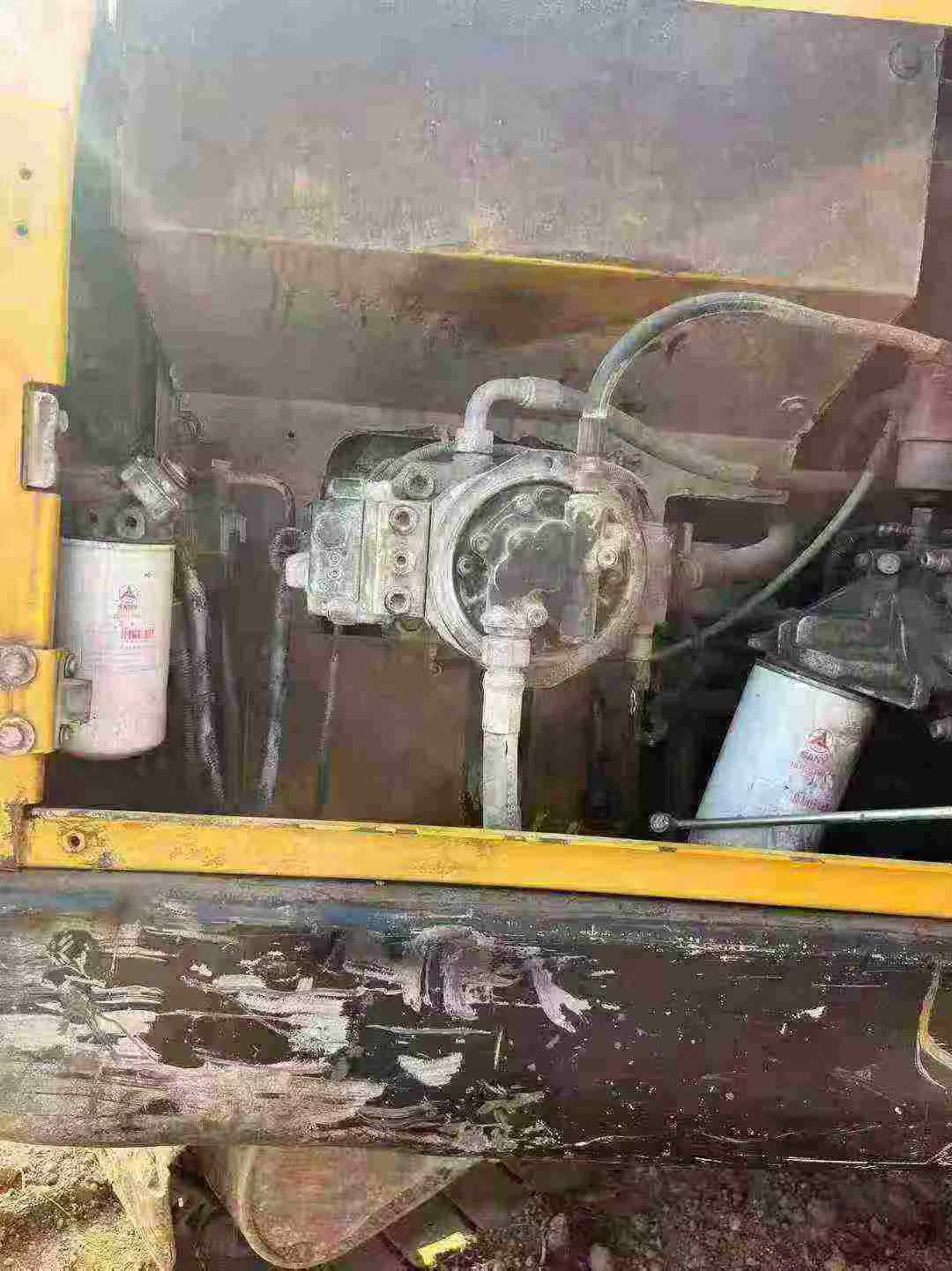

Buy Sany SY215C Used Excavator / 2

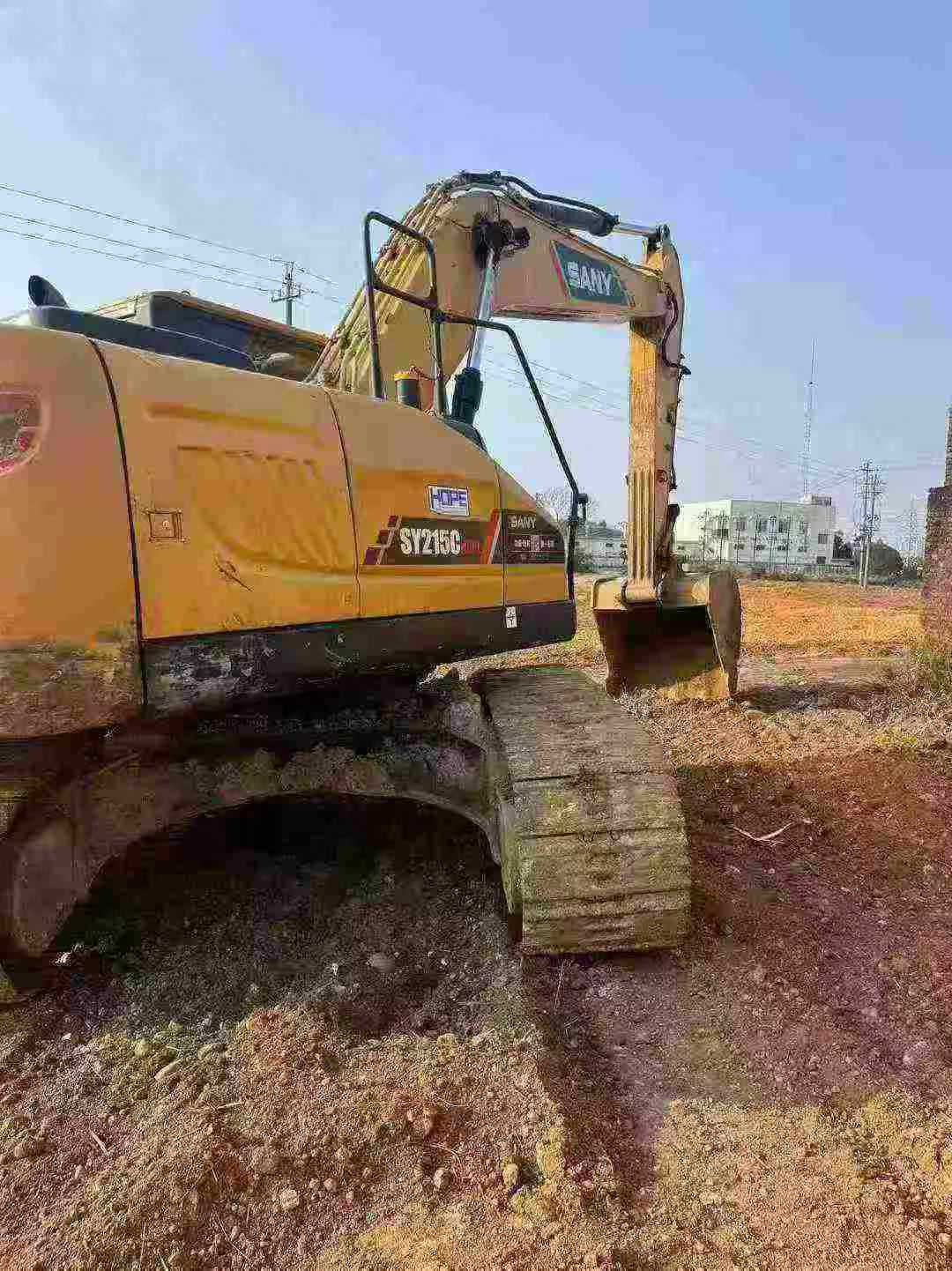

Buy Sany SY215C Used Excavator / 3

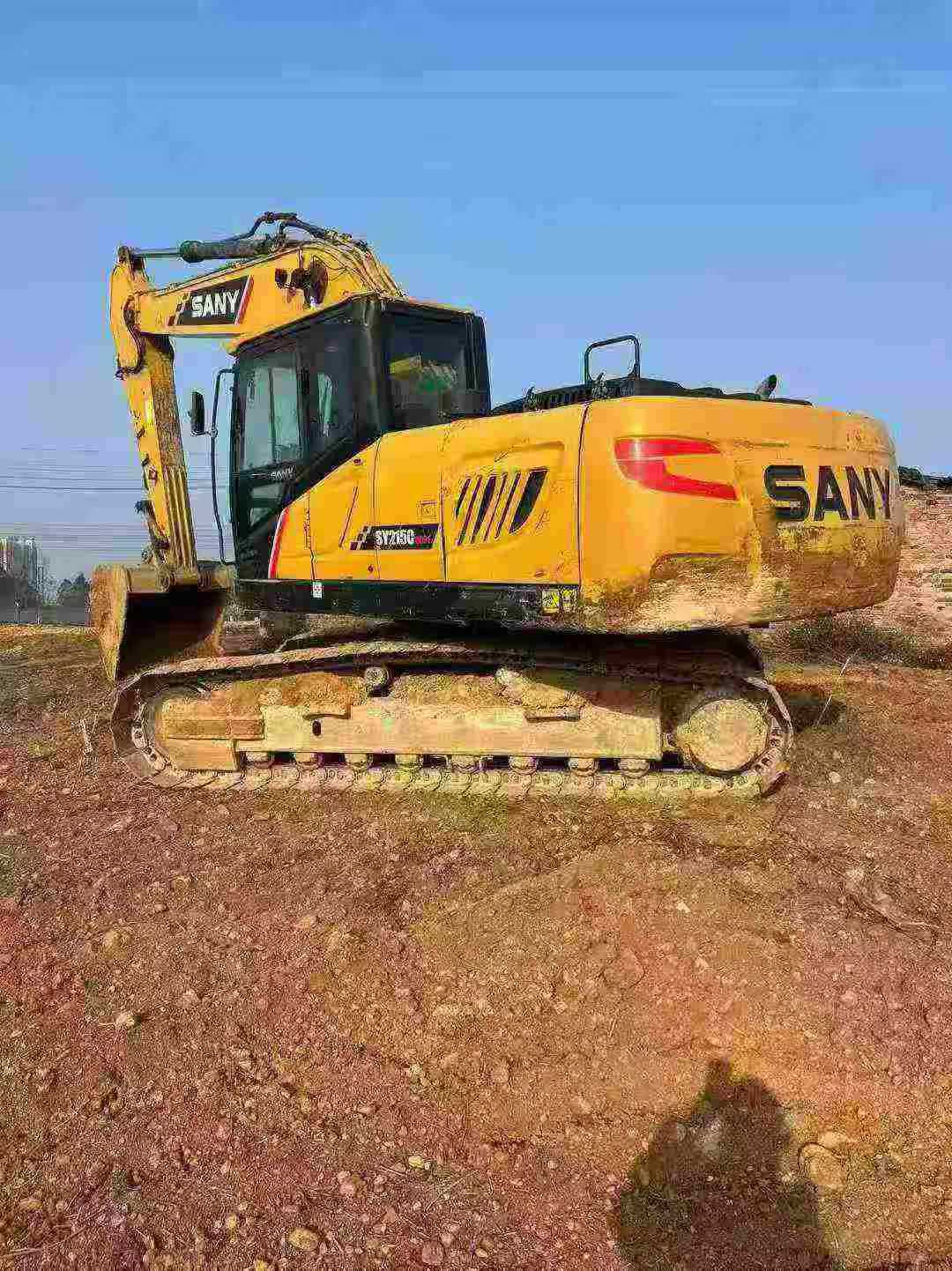

Buy Sany SY215C Used Excavator / 4

Product Description

Expand your fleet capacity with this 2021 Sany SY215C excavator, a proven 21-ton workhorse built for high-volume operations. Powered by a Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm, this machine provides the reliability busy contractors demand when primary units are deployed. With a 1.1 m³ bucket capacity and 138 kN bucket digging force, it handles demanding excavation tasks without compromise.

Designed for versatility, this crawler excavator offers a maximum digging depth of 6,600 mm and a 10,280 mm working radius—ideal for utility work, site preparation, and foundation projects. The water-cooled engine and 390-liter fuel tank ensure extended operating periods, minimizing downtime on multi-shift job sites. Currently located in Guangxi, China, this unit integrates seamlessly into existing Sany fleets or serves as a cost-effective backup for contractors managing multiple projects simultaneously.

  • Operating weight: 21,900 kg
  • Mitsubishi 4M50 engine: 118 kW / 580 N·m torque
  • Maximum digging height: 9,600 mm
  • Hydraulic tank: 239 L
  • Track gauge: 2,380 mm for superior stability
SpecificationsValue
No.1034699
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1034699

Brand Name:

Sany

Model Number:

SY215C

Year:

2021

Location:

Guangxi China
