Product Description

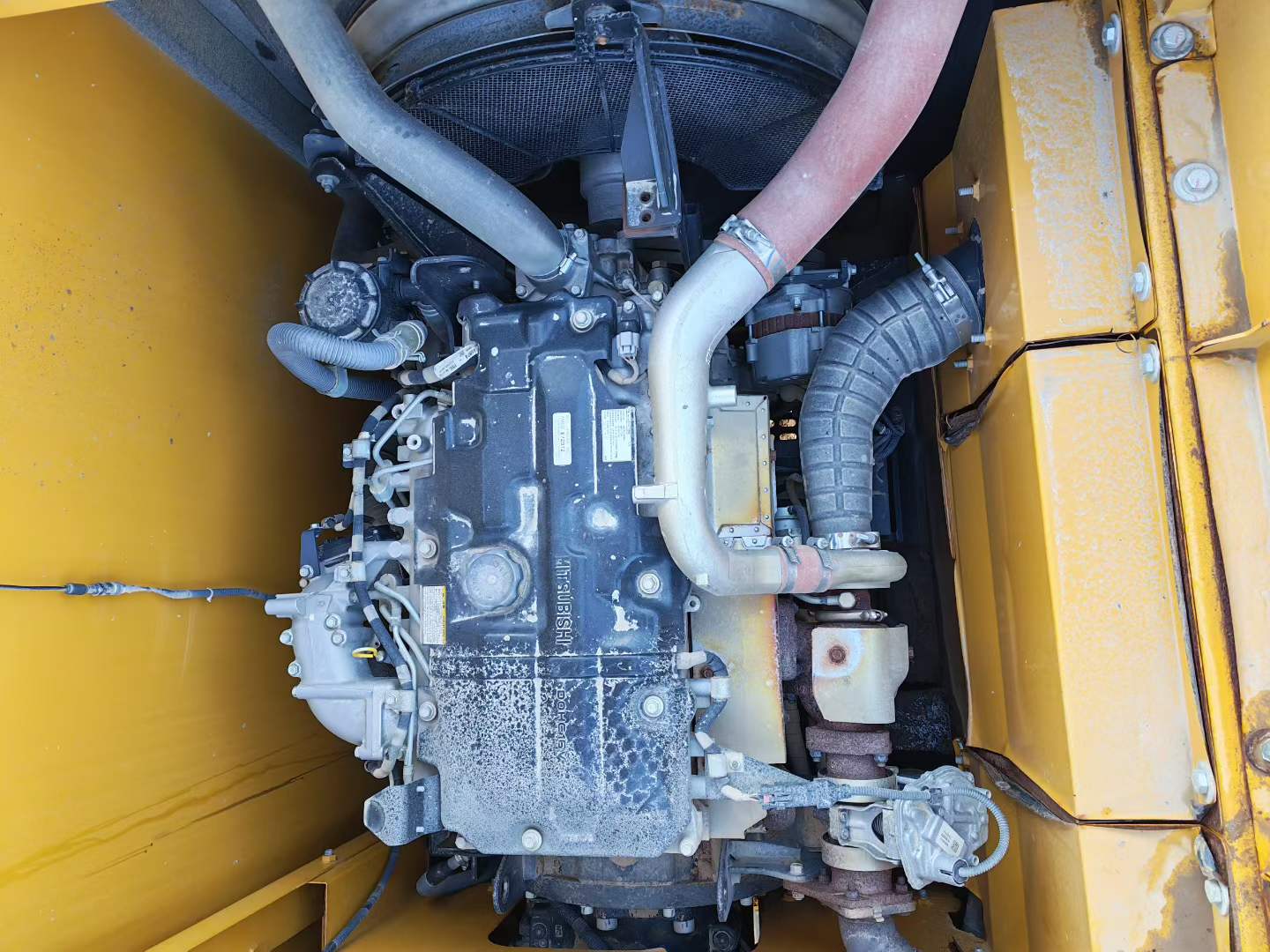

Strengthen your fleet with this 2022 Sany SY215C excavator, a proven 21-ton workhorse built for high-volume operations. Powered by a reliable Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm, this machine provides consistent performance across demanding jobsites. With a maximum digging depth of 6600 mm and digging radius of 10280 mm, it handles trenching, loading, and grading tasks with authority.
Key specifications include:
- Operating weight: 21,900 kg with superior stability
- Bucket capacity: 1.1 m³ (adjustable 0.8–1.2 m³)
- Bucket digging force: 138 kN for tough material handling
- Fuel capacity: 390 L for extended runtime between refills
- Climbing ability: 70% gradient capability

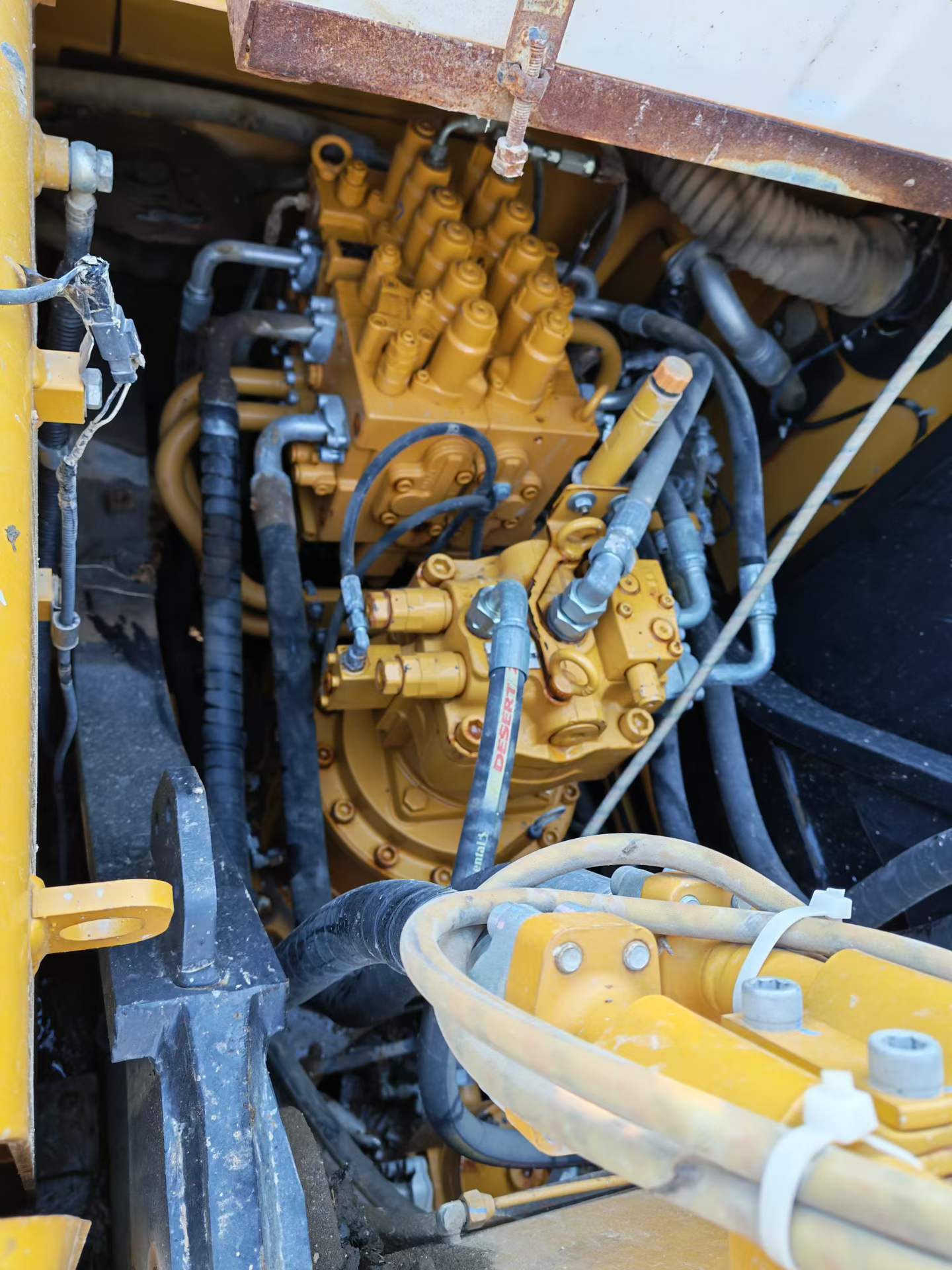

Currently located in Shandong Linyi, this Chinese-manufactured unit integrates seamlessly into existing Sany fleets or serves as dependable backup capacity during peak project periods. Water-cooled hydraulics and dual sprockets per side ensure durability under continuous use. Ready to deploy where reliability matters most.
| Specifications | Value |
|---|---|
| No. | 1024908 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |

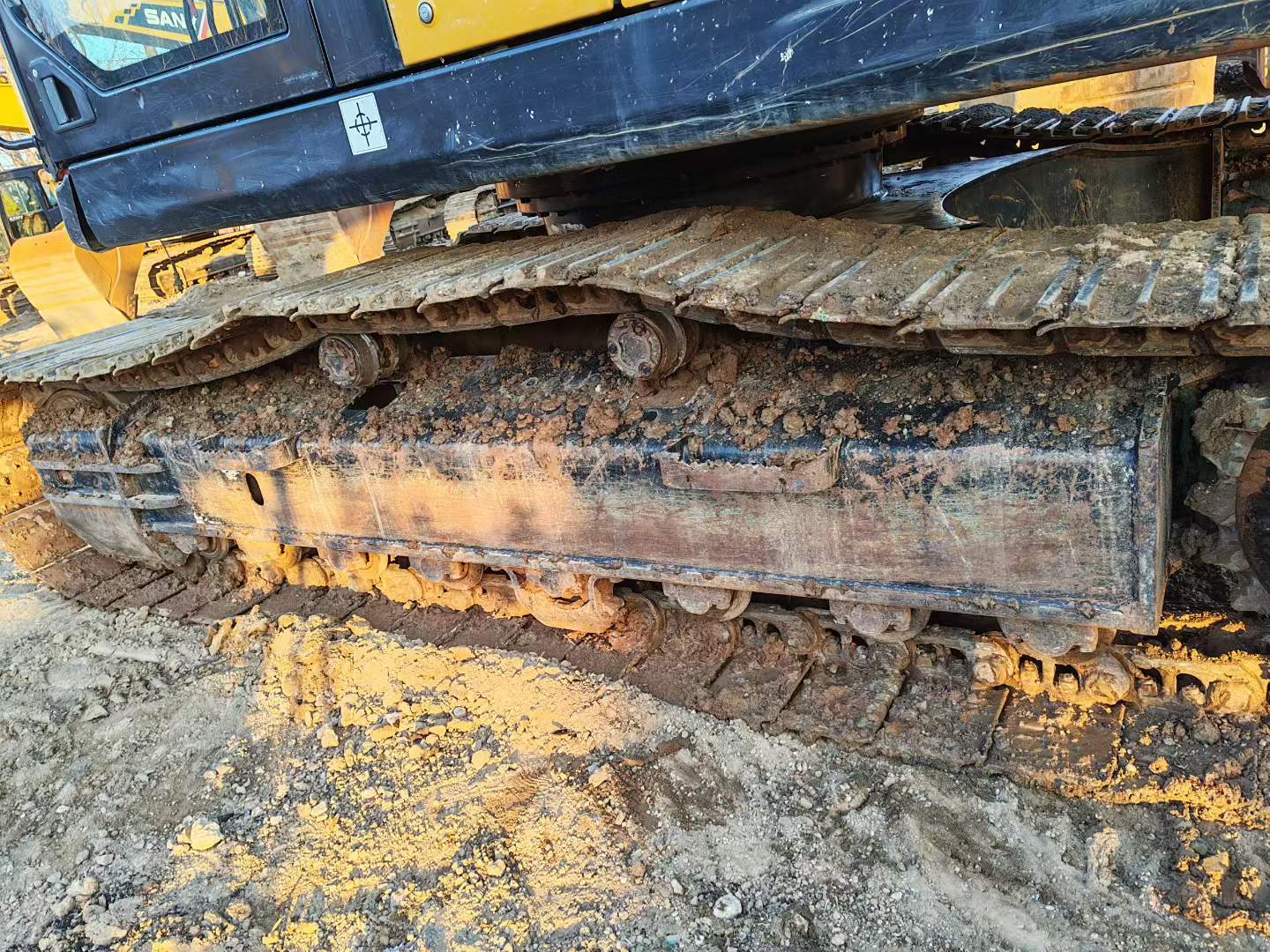

| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
