Product Description
Secure proven performance without the premium price tag. This 2022 Sany SY215C excavator delivers professional-grade capability at a fraction of new equipment cost, making it an intelligent acquisition for contractors seeking maximum ROI. Operating at 21 tons with a robust Mitsubishi 4M50 engine producing 118kW, this machine handles demanding excavation work with authority.
Built for productivity, it offers impressive working parameters including 10,280mm maximum digging radius, 6,600mm digging depth, and 138kN bucket digging force. With minimal hours since manufacture and comprehensive specifications including 1.1m³ bucket capacity, water-cooled engine system, and 390L fuel tank for extended operation, you gain late-model reliability without new equipment depreciation.

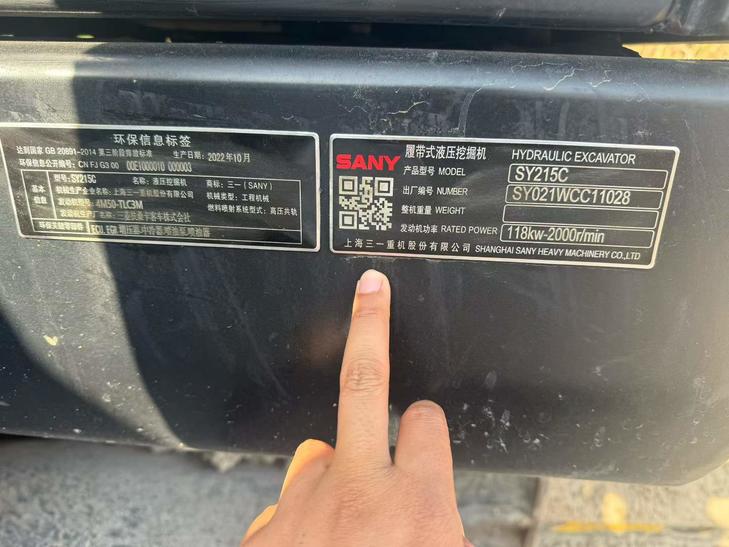

- Year: 2022 | Brand: Sany | Model: SY215C
- Operating Weight: 21,900kg | Rated Power: 118kW@2000rpm
- Engine: Mitsubishi 4M50 (4.9L, 4-cylinder, water-cooled)
- Performance: 10,280mm reach, 6,600mm dig depth, 70% gradeability
- Current Location: Wenzhou, Zhejiang, China
Invest strategically in equipment that protects your bottom line while maintaining jobsite performance standards.
| Specifications | Value |
|---|---|
| No. | 1028741 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
