Product Description

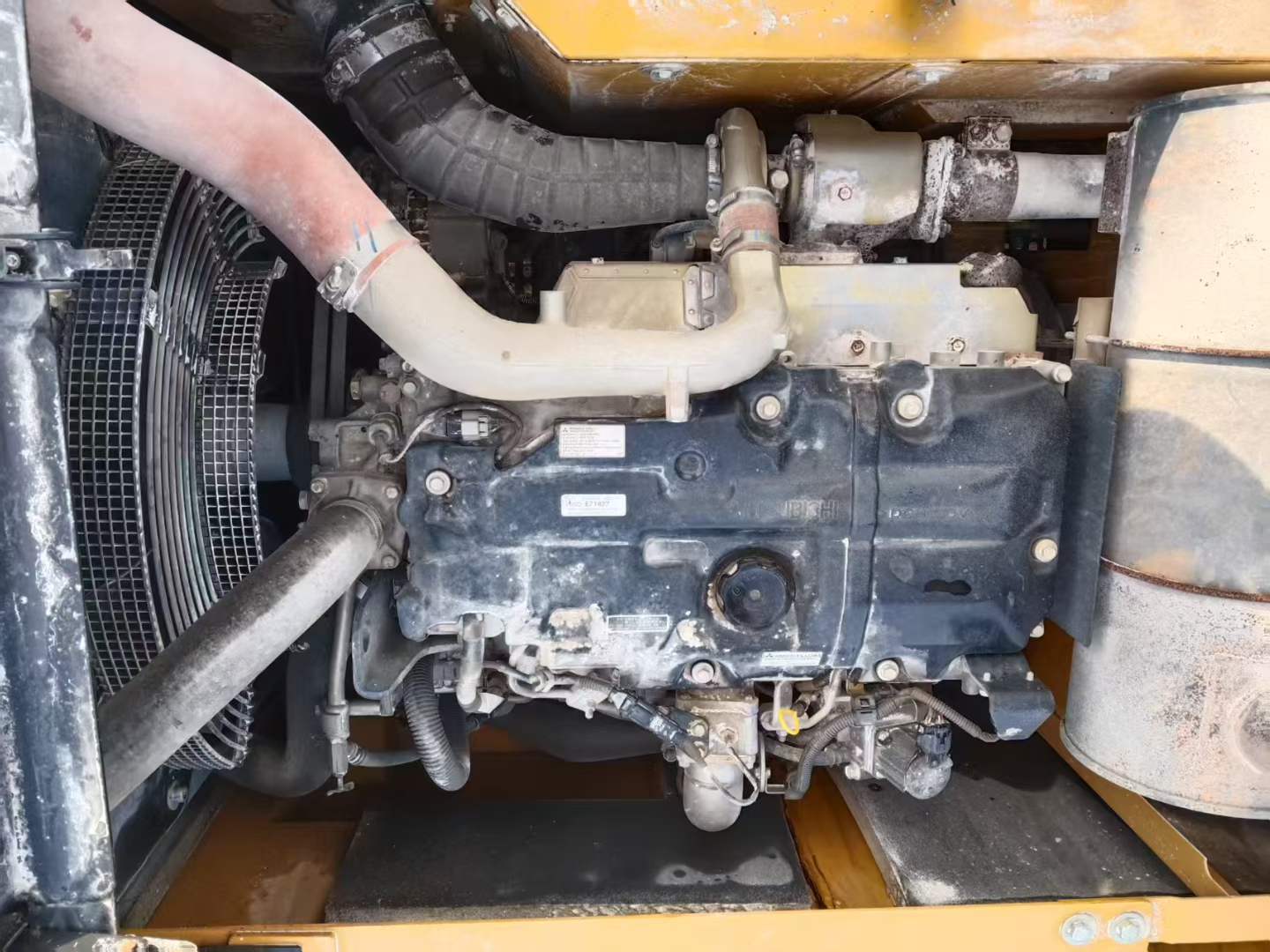

Engineered for mid-range excavation projects, this 2022 Sany SY215C delivers 21 tons of operational precision with proven Mitsubishi 4M50 power. Rated at 118 kW and producing 580 N·m maximum torque, the water-cooled four-cylinder engine provides consistent hydraulic performance across demanding work cycles. Bucket digging force reaches 138 kN, while rod digging force achieves 103 kN—specifications that translate directly to productivity in challenging soil conditions.
Key technical advantages include:
- Maximum digging reach of 10,280 mm with 6,600 mm depth capability

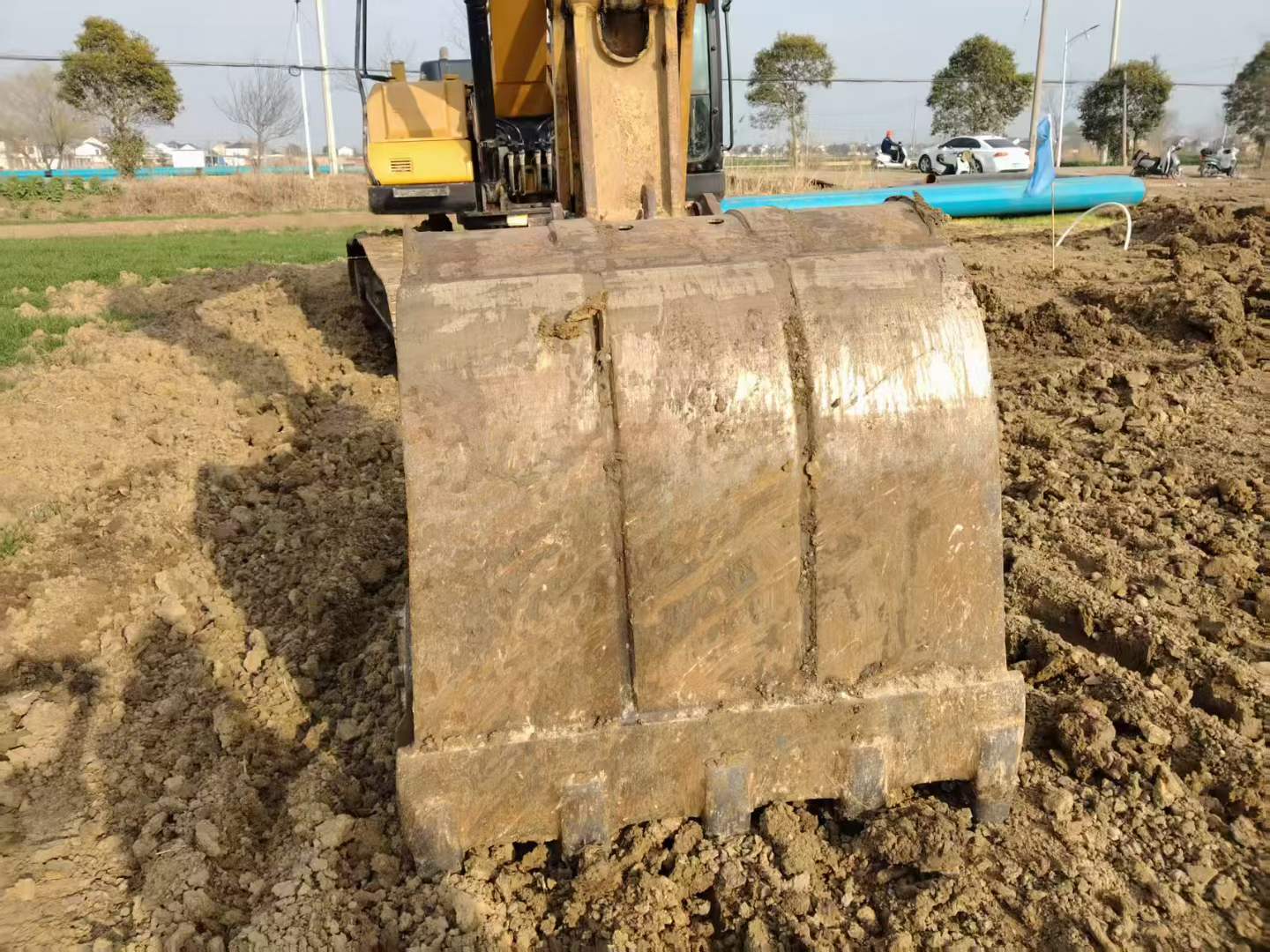

- 1.1 m³ backhoe bucket capacity (adjustable 0.8–1.2 m³ range)
- 390-liter fuel capacity supporting extended operational periods
- 47.4 kPa ground pressure minimizing surface disturbance
- 70% gradeability (35°) for versatile site navigation
Currently located in Jiangsu Suqian, this Chinese-manufactured excavator represents Sany's commitment to integrating reliable Japanese engine technology with competitive hydraulic systems. Transport dimensions of 9,680 × 2,980 × 3,440 mm facilitate standard logistics requirements for international deployment.
| Specifications | Value |
|---|---|
| No. | 1030766 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
