Product Description

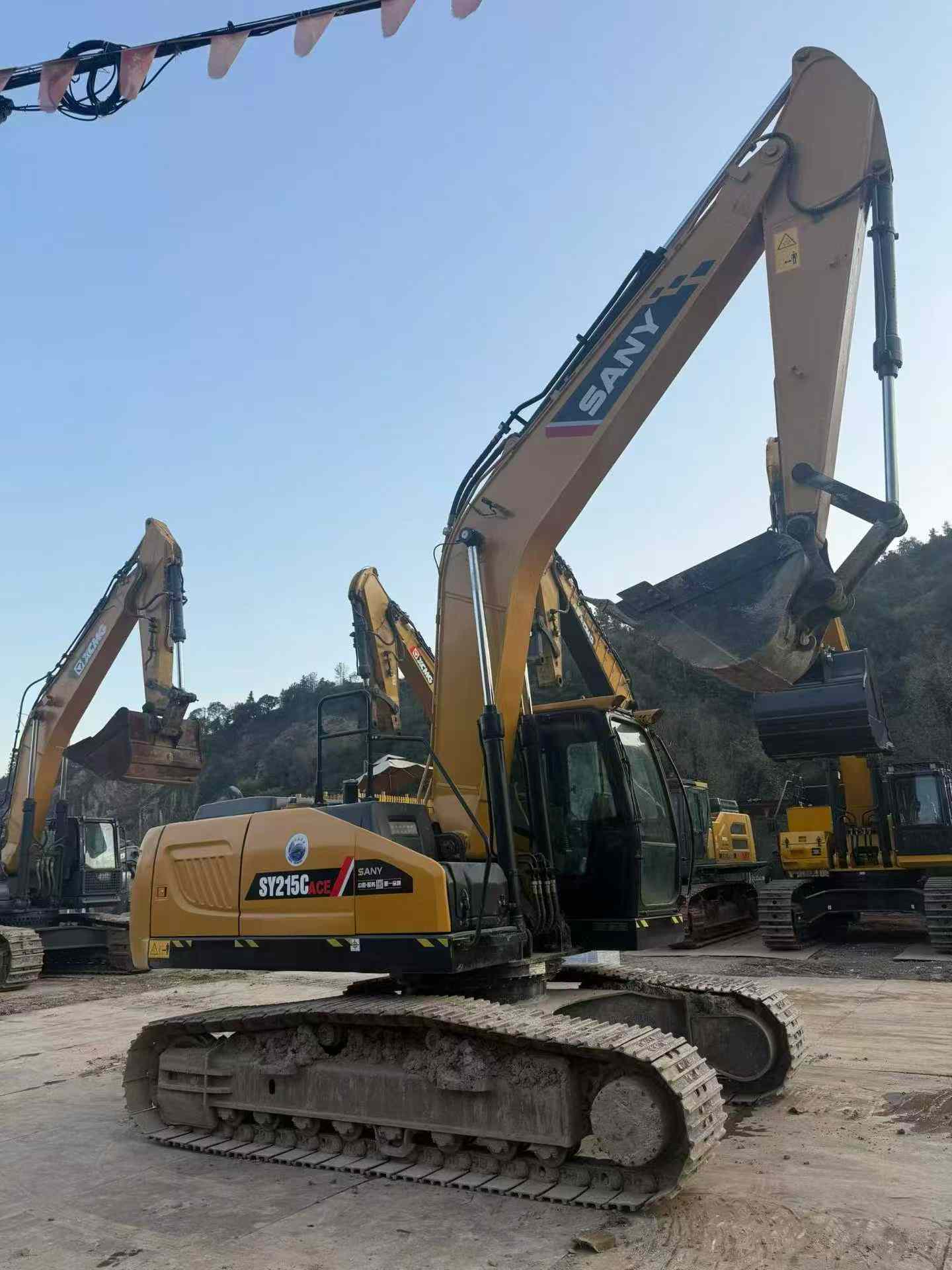

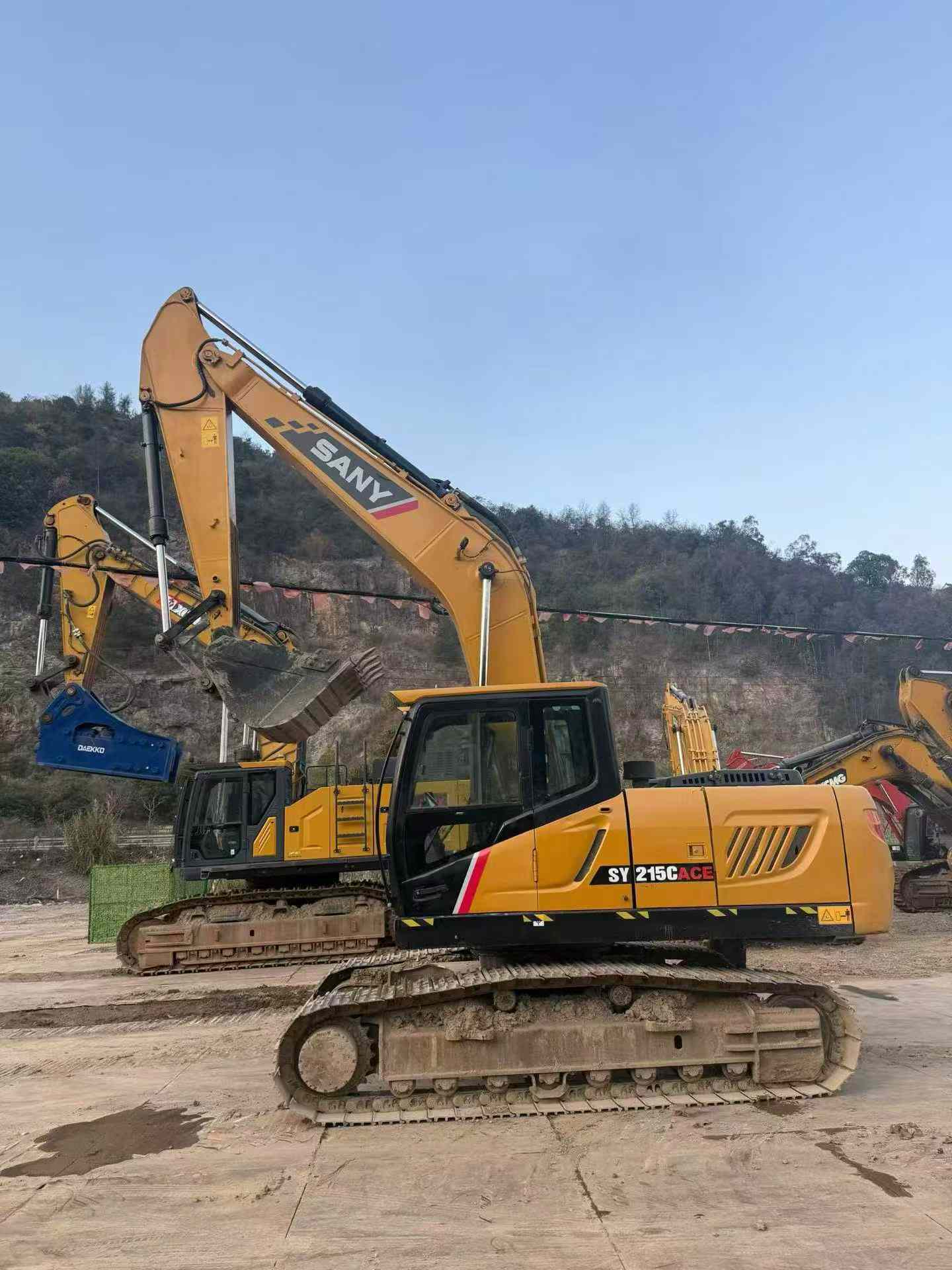

Built for demanding excavation work, this 2022 Sany SY215C medium-duty excavator delivers 21 tons of operational power with a Mitsubishi 4M50 engine producing 118kW at 2000 rpm. Currently located in Wenzhou, Zhejiang, this machine combines proven hydraulics with field-tested reliability for contractors handling digging, grading, and site preparation projects.
- Digging Performance: 10,280mm maximum reach and 6,600mm depth capability tackle trenching and foundation work efficiently
- Powerful Hydraulics: 138kN bucket force and 103kN arm force cut through compacted soil and rocky terrain
- Operational Capacity: 1.1m³ bucket (adjustable 0.8–1.2m³) moves material quickly across construction and demolition sites
- Site Mobility: 70% grading ability and 3,730mm turning radius provide maneuverability in confined spaces
- Extended Uptime: 390L fuel tank and water-cooled engine maintain productivity during long shifts
With 21,900kg working weight and 600mm track plates, this excavator maintains 47.4kPa ground pressure for stable operation on varied terrain. Factory-equipped with backhoe attachm
| Specifications | Value |
|---|---|
| No. | 1042504 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

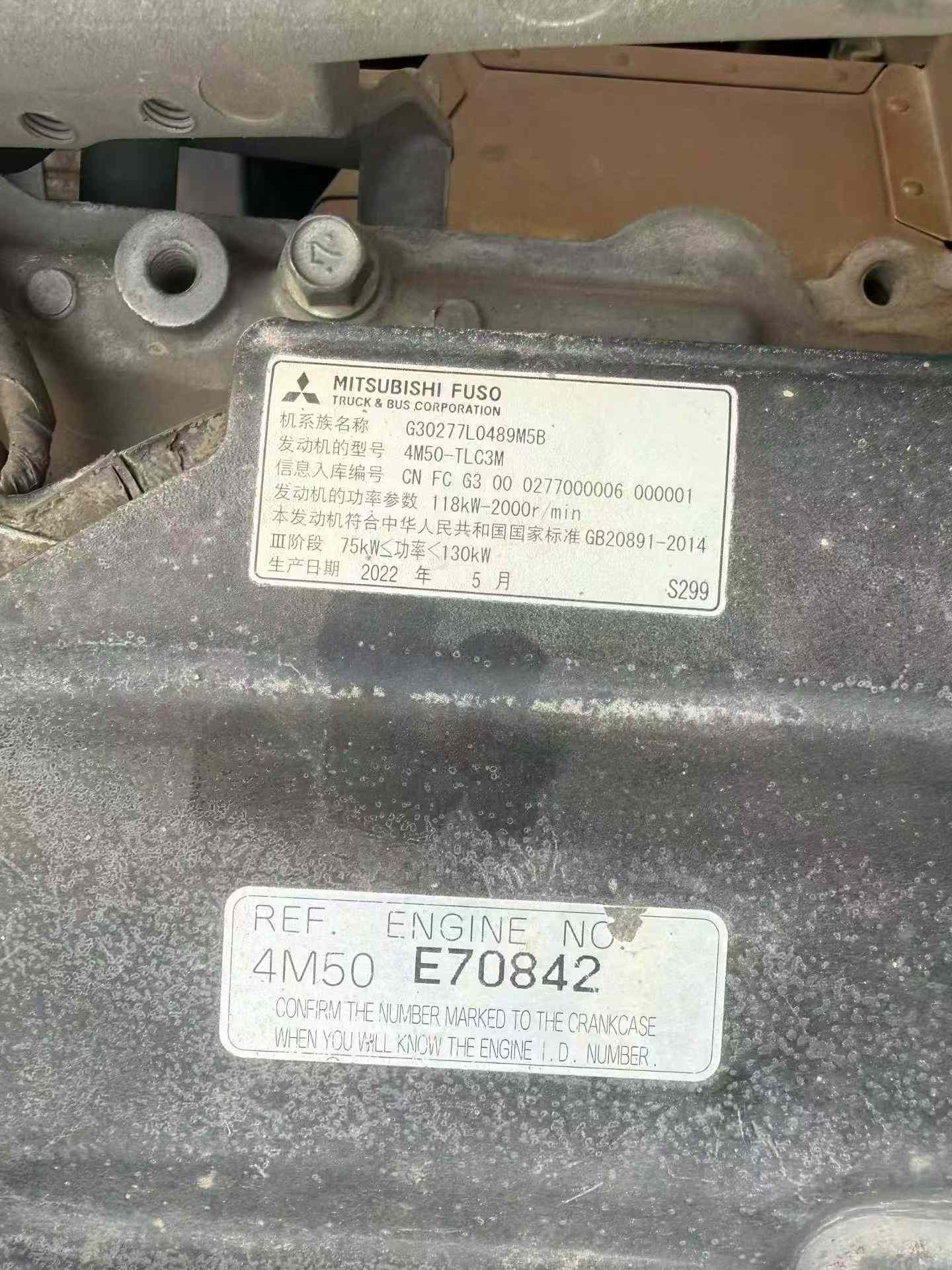

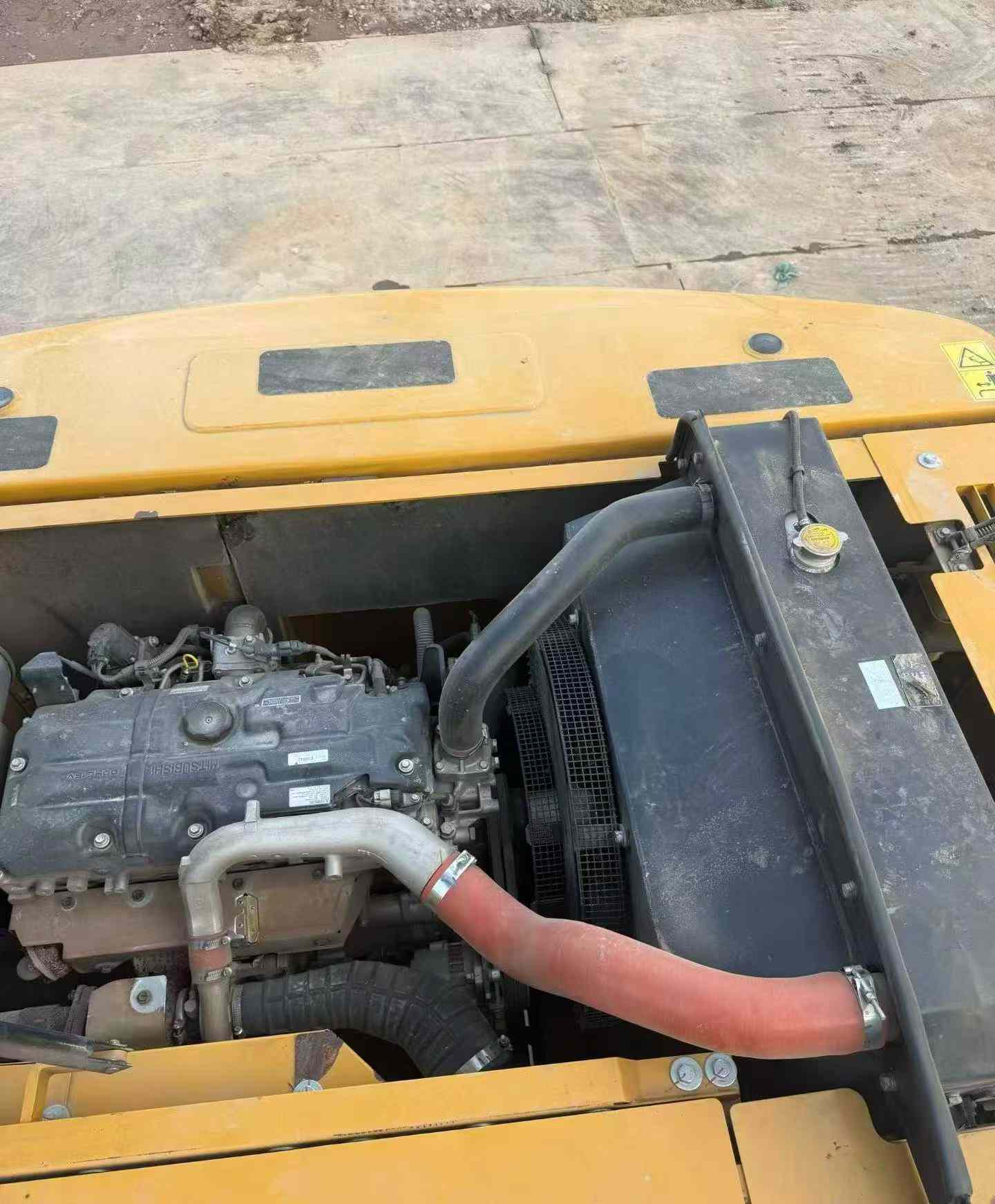

| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |

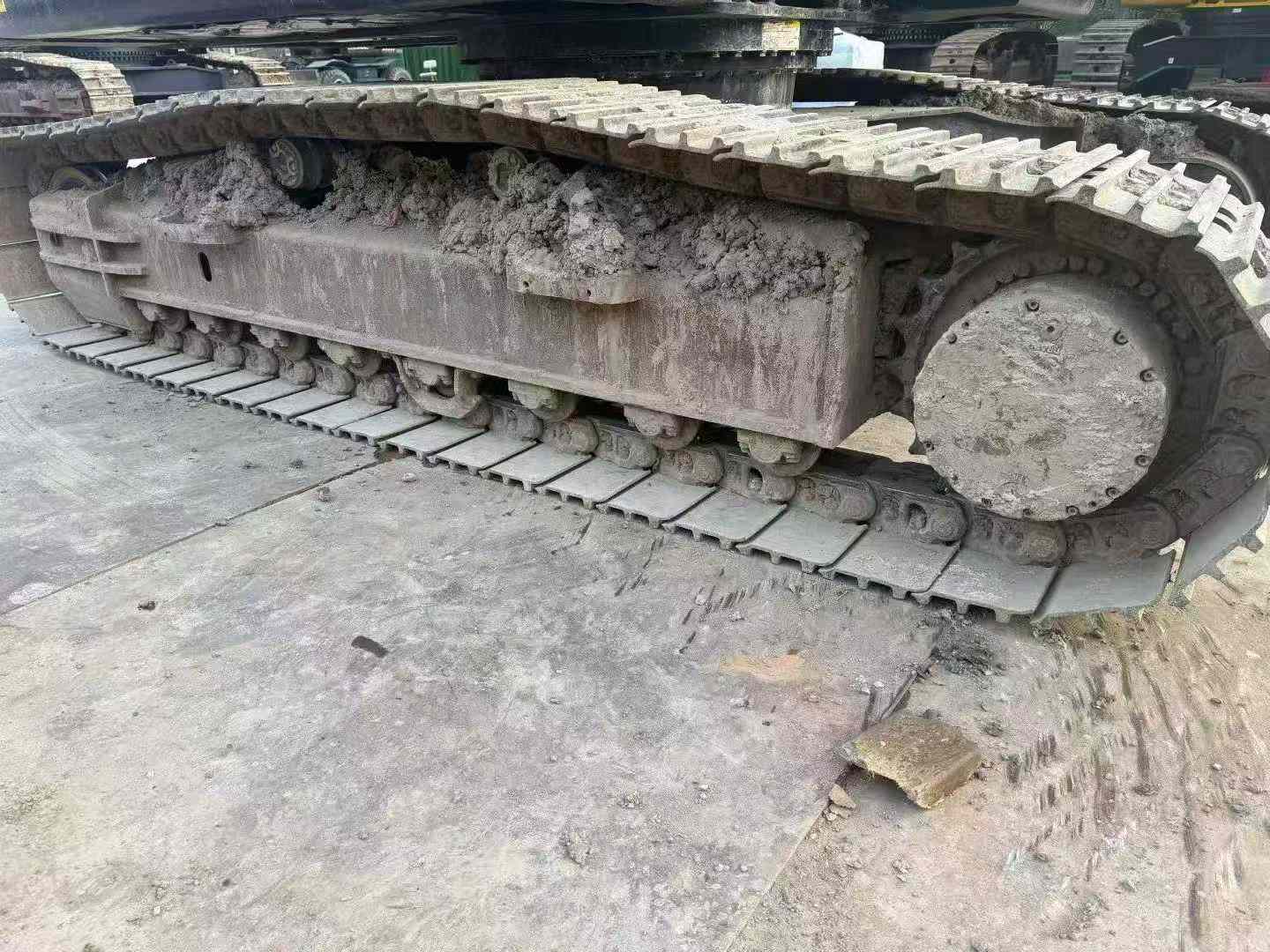

| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
