Product Description
Built for precision and reliability, this 2024 Sany SY215C excavator delivers 21 tons of operational power with exceptional operator-focused engineering. Powered by a Mitsubishi 4M50 engine producing 118 kW at 2000 rpm, this machine combines robust performance with responsive hydraulic control for demanding jobsite conditions.
Operators benefit from enhanced visibility across the 10,280 mm maximum digging radius and 6,600 mm maximum digging depth. The spacious cabin sits at 3,075 mm height, providing clear sightlines to the work area while maintaining a compact 2,900 mm rear turning radius for confined spaces. Stability remains consistent with 47.4 kPa ground pressure distributed across 600 mm track plates and a 2,380 mm track gauge.
- Bucket digging force: 138 kN with 1.1 m³ capacity

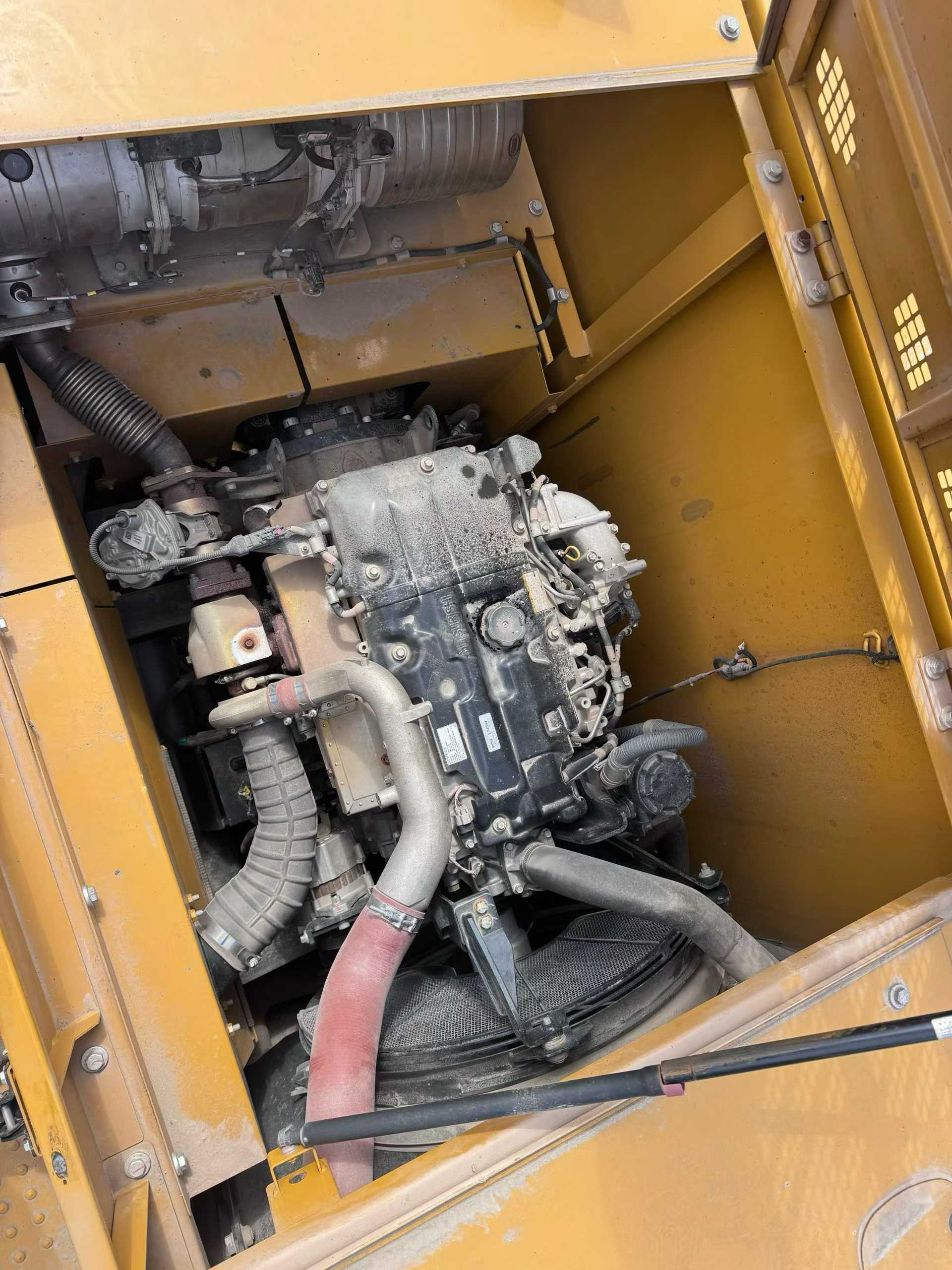

- Water-cooled 4.9L displacement engine with 580 N.m maximum torque
- Dual-speed travel: 5.4/3.3 km/h for versatile positioning
- 390L fuel tank for extended operation cycles
- 70% climbing ability handles challenging terrain
- Currently located in Sichuan, China
| Specifications | Value |
|---|---|
| No. | 1027061 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
