Product Description
Built to endure the harshest job sites, the Sany SY215C is a proven 21-ton workhorse engineered for operators who demand reliability without compromise. Powered by a Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm and 580 N·m of peak torque, this machine brings consistent, high-output performance to excavation, grading, and material handling operations across demanding terrain.
Sourced directly from Yunnan, China, this 2025 model carries the build quality Sany is known for in global heavy equipment markets — durable construction, field-tested hydraulics, and a robust undercarriage designed for long service life.
- Operating weight: 21,900 kg | Bucket capacity: 1.1 m³
- Bucket digging force: 138 kN | Arm digging force: 103 kN
- Maximum digging depth: 6,600 mm | Maximum digging radius: 10,280 mm
- Travel speed: 5.4 / 3.3 km/h | Climbing ability: 70% (35°)
- Fuel tank: 390 L | Ground pressure: 47.4 kPa

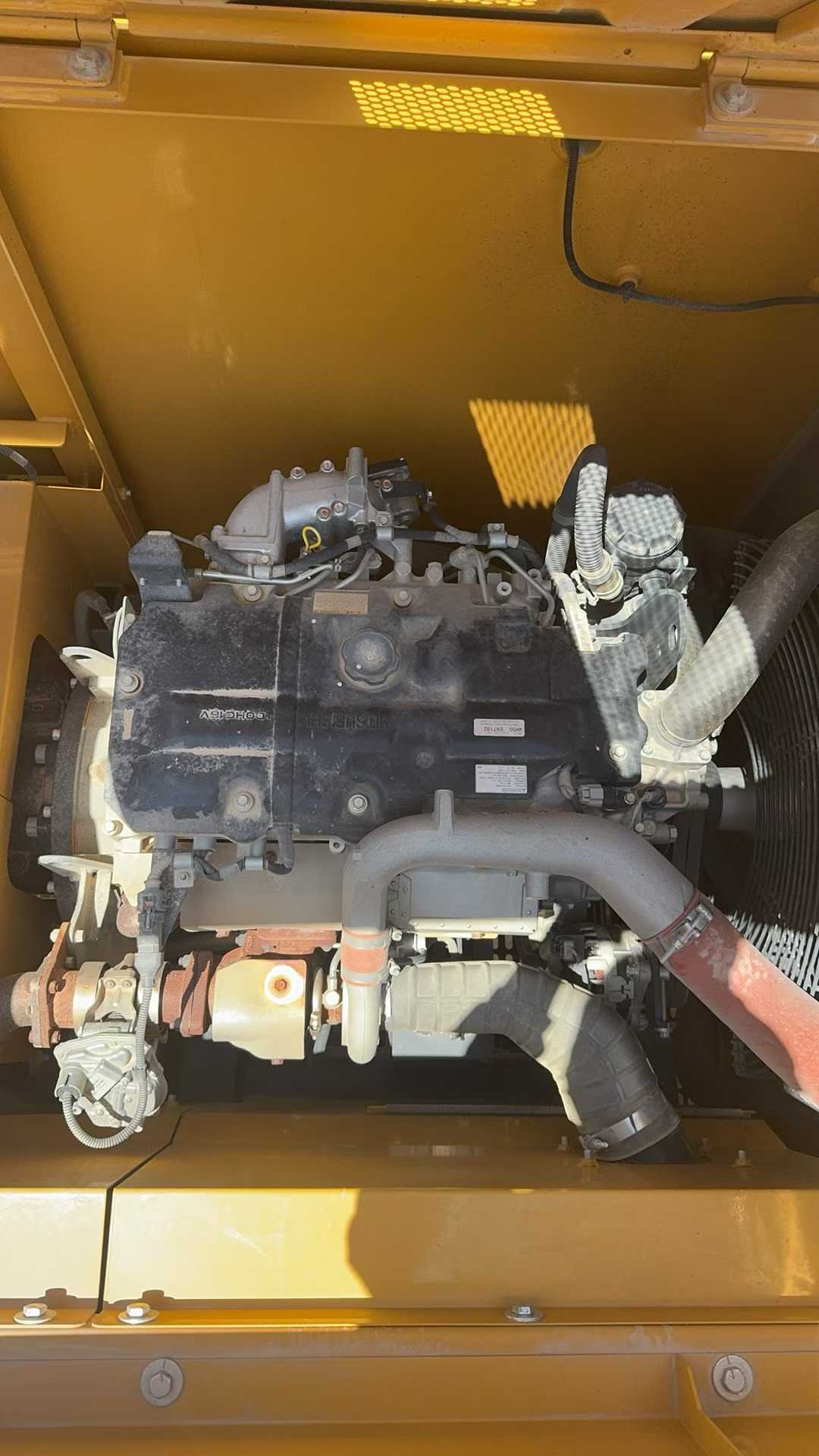

- Engine: Mitsubishi 4M50 | 4-cylinder, 4.9 L displacement, water-cooled
Ready for immediate deployment, this SY215C stands as a dependable long-term asset for contractors and fleet operators worldwide.
| Specifications | Value |
|---|---|
| No. | 1077099 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
