Product Description

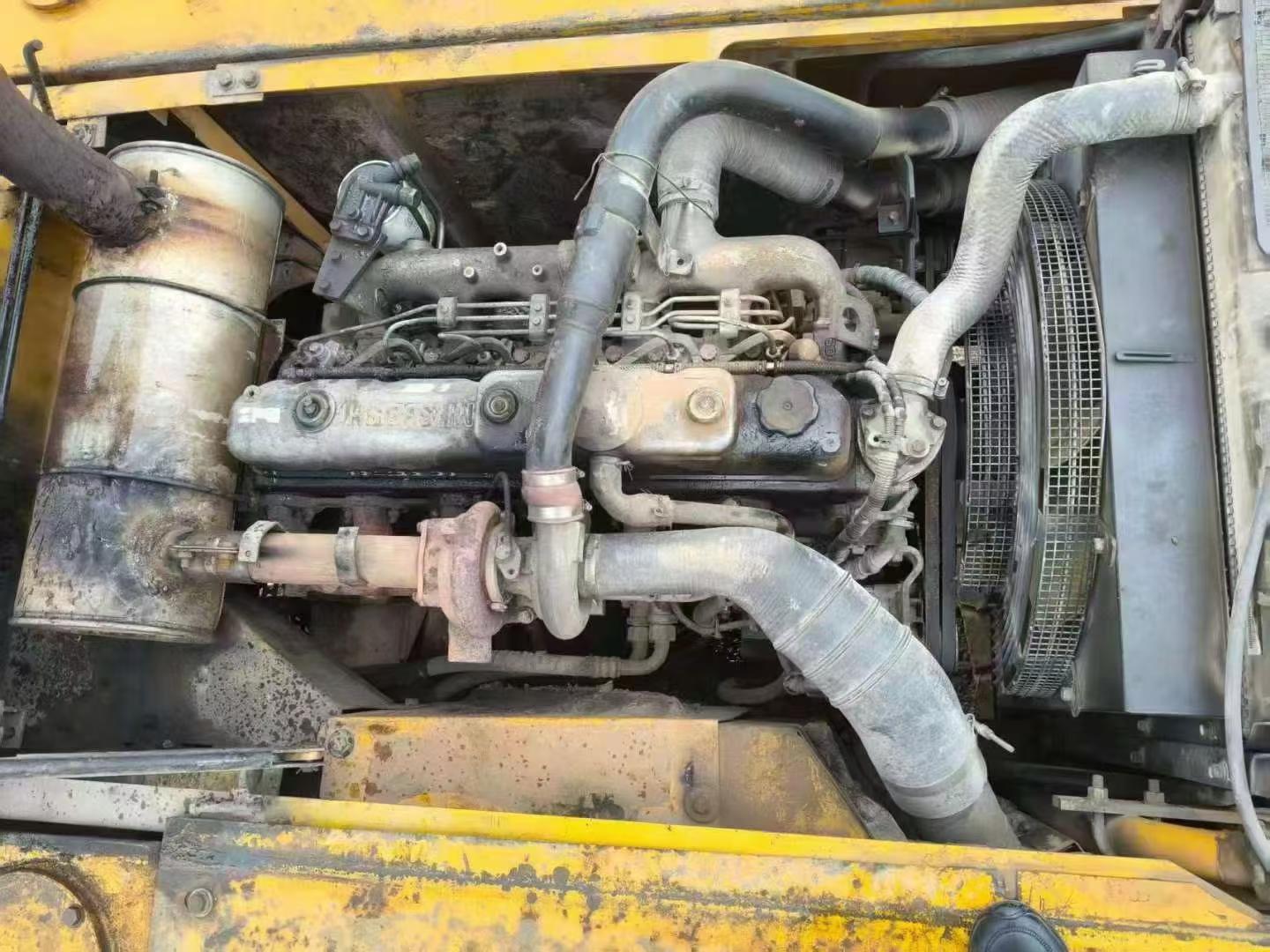

Built for operators who demand precision and control, this 2012 Sany SY215C-8 delivers reliable performance across demanding excavation projects. Operating at 21 tons with a robust Mitsubishi 6D34-TL engine producing 114kW at 2050rpm, this crawler excavator combines power with exceptional maneuverability on varied terrain.

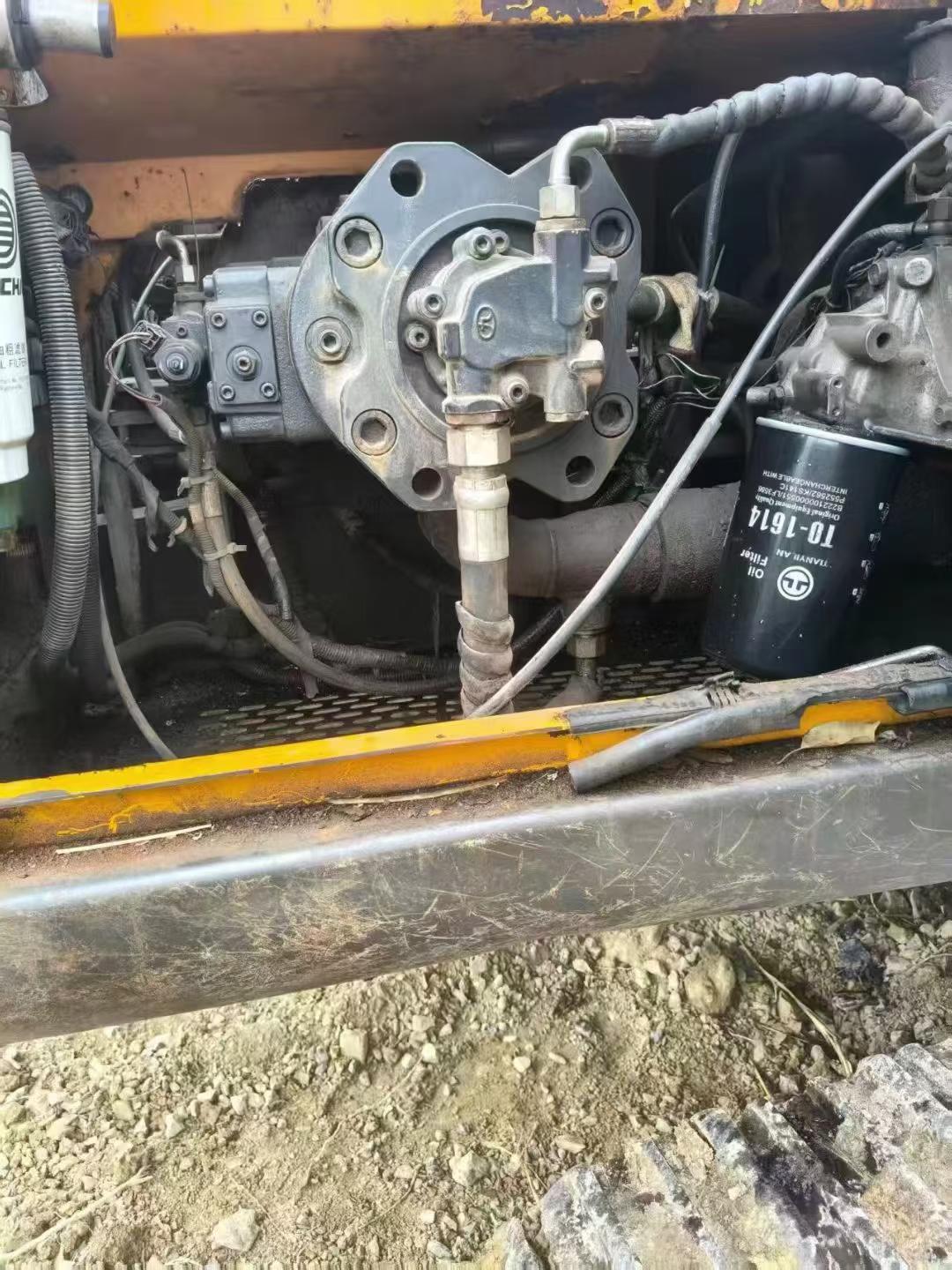

Operator-focused features include superior cabin visibility across a 9,885mm maximum digging radius and thoughtful ergonomics that reduce fatigue during extended shifts. The machine's 45kPa ground pressure ensures stable operation without excessive ground disturbance, while the 12.5rpm rotation speed enables smooth, controlled positioning. Climb grades up to 70% (35°) with confidence, supported by dual hydraulic pumps delivering 2x210 l/min flow for responsive control.
- 0.93m³ bucket capacity with 138kN digging force
- Water-cooled Mitsubishi engine for consistent thermal management
- Maximum digging depth: 6,630mm
- Compact 2,750mm rear swing radius for confined spaces
- Currently located in Hunan, China
Proven in Chinese construction environments since 2012, this SY215C-8 offers dependable mid-size excavation capability for contractors seeking value
| Specifications | Value |
|---|---|
| No. | 1025827 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
