Product Description
With a robust 21-ton working weight and powered by a reliable Mitsubishi 6D34-TL engine, this 2012 Sany SY215C-8 excavator stands as a testament to durability and performance. Crafted in Kunshan, Jiangsu Province, China, it has proven its worth over the years. Featuring a 0.93 m³ bucket capacity and a rated power of 114 kW at 2050 rpm, it delivers consistent and powerful digging with a force of 138 kN. The machine's water-cooled engine ensures efficient operation, while its 70% climbing ability and 3.2/5.5 km/h travel speed enhance maneuverability on various terrains. Built to last, this excavator is a proven workhorse, ready to tackle your toughest jobs with ease.
- Year: 2012
- Brand: Sany
- Model: SY215C-8
- Location: 贵州 (Guizhou)
- Working Weight: 20,900 kg
- Bucket Capacity: 0.93 m³
- Rated Power: 114 kW at 2050 rpm
- Travel Speed: 3.2/5.5 km/h
- Maximum Digging Depth: 6630 mm
| Specifications | Value |
|---|---|
| No. | 1034559 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

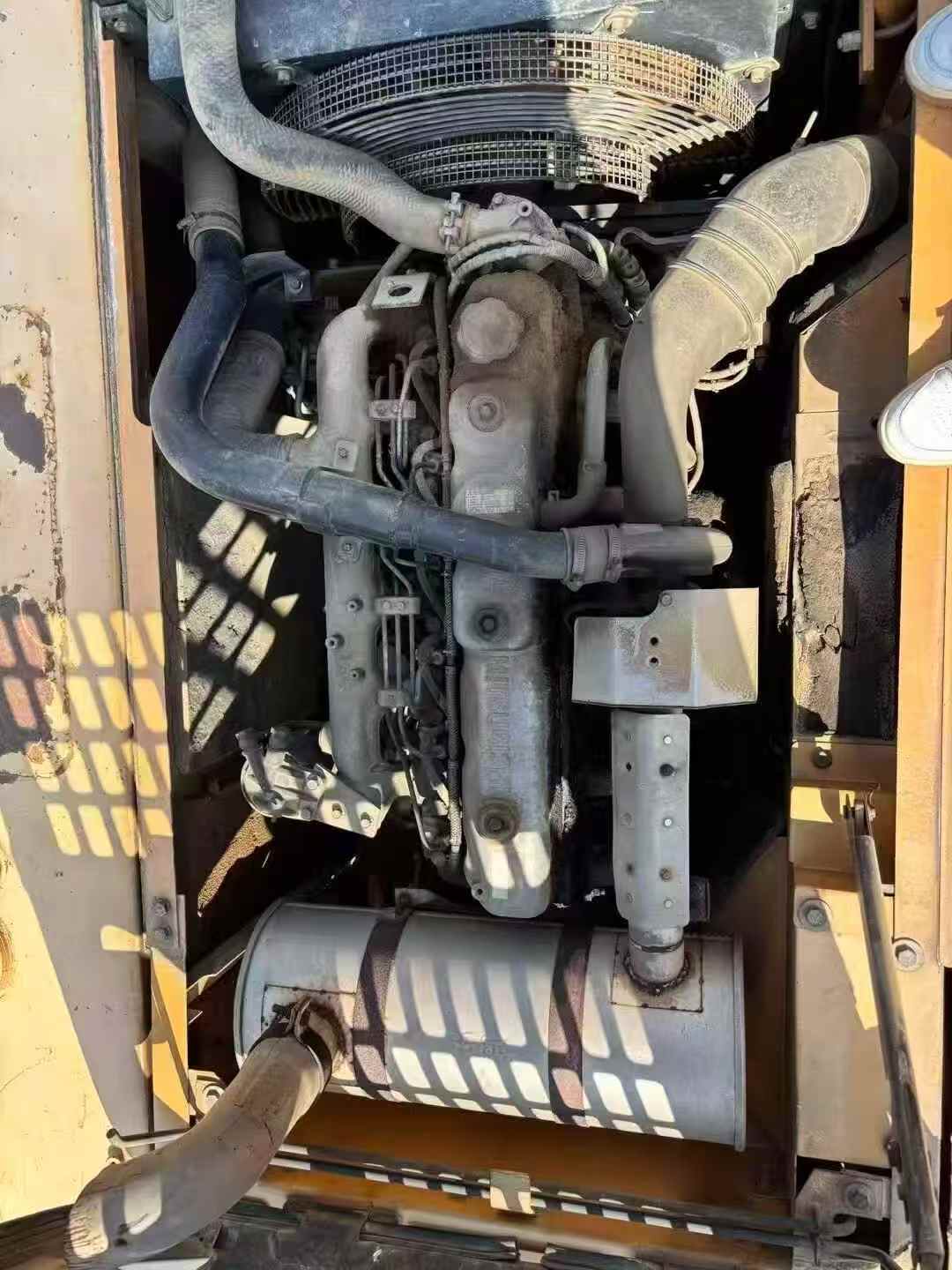

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
