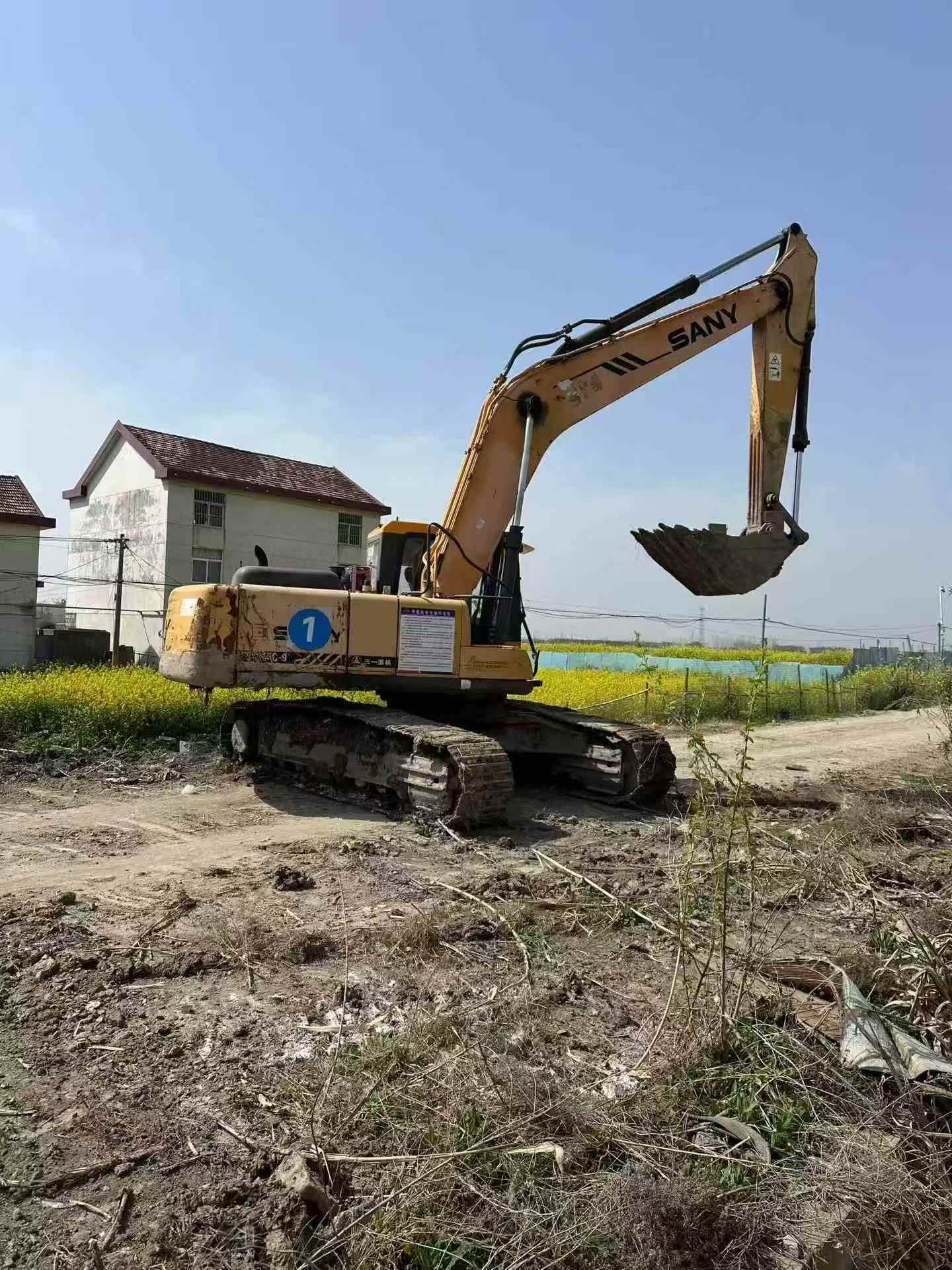

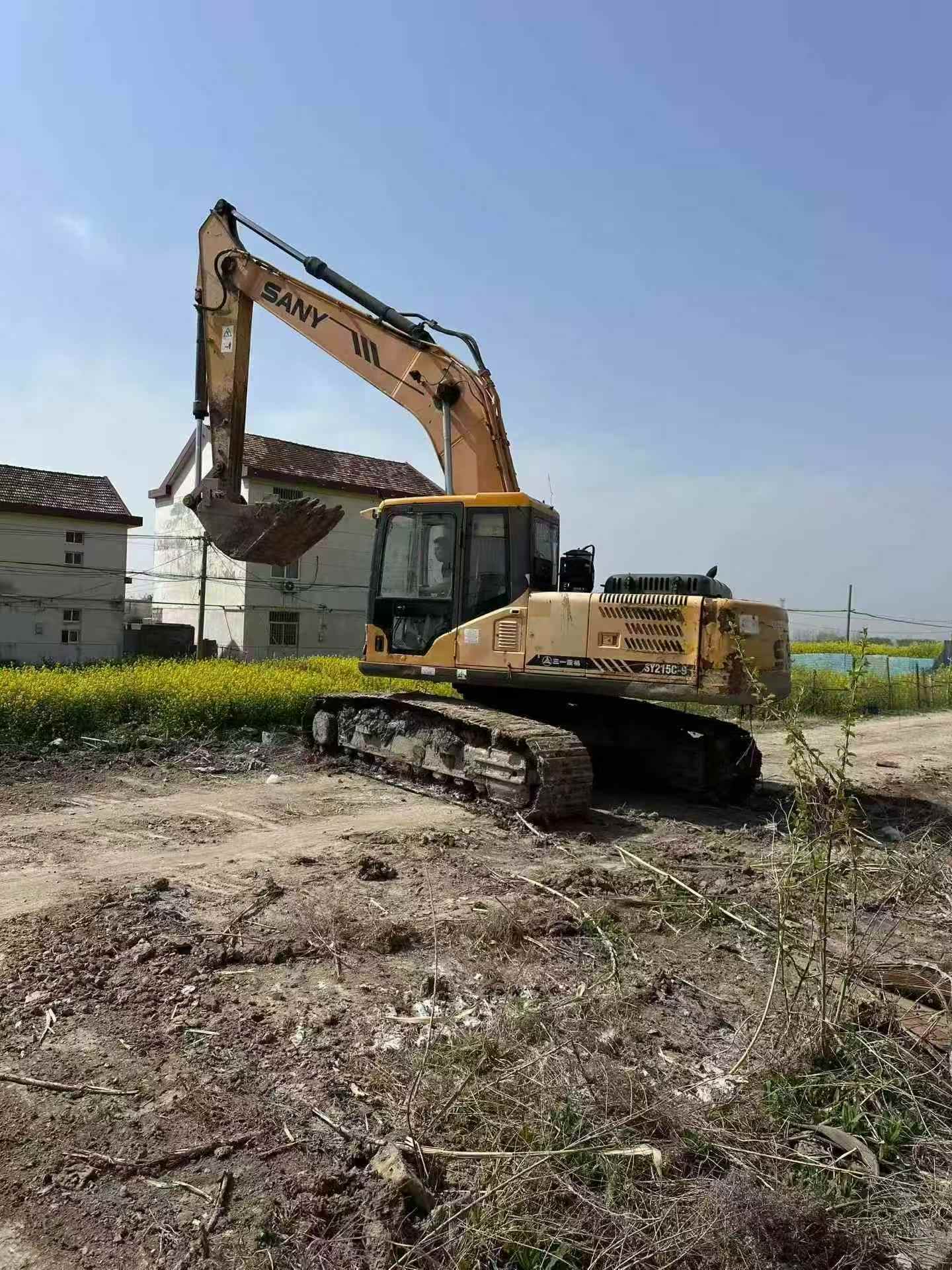

2012 Sany SY215C-8

1/9
Buy Sany SY215C-8 Used Excavator / 1
Buy Sany SY215C-8 Used Excavator / 2
Buy Sany SY215C-8 Used Excavator / 3
Buy Sany SY215C-8 Used Excavator / 4

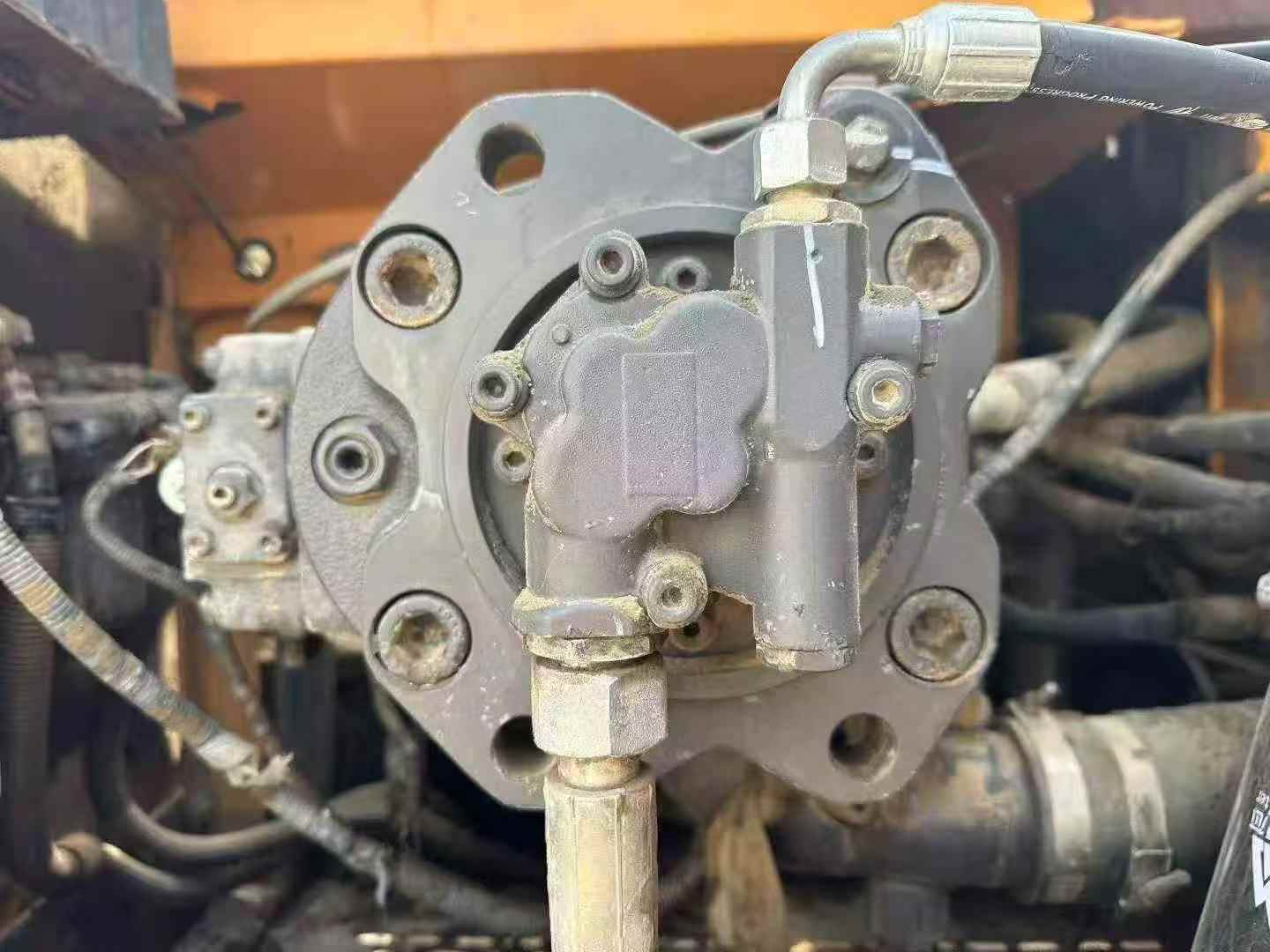

Buy Sany SY215C-8 Used Excavator / 5
Buy Sany SY215C-8 Used Excavator / 6
Buy Sany SY215C-8 Used Excavator / 7
Buy Sany SY215C-8 Used Excavator / 8
Buy Sany SY215C-8 Used Excavator / 9

Product Description

Built in 2012 at Sany's Kunshan facility in Jiangsu Province, this SY215C-8 excavator delivers proven performance in the 21-ton class. Powered by a reliable Mitsubishi 6D34-TL engine generating 114 kW at 2050 rpm, this machine combines robust construction with the parts availability that makes Sany a practical choice in today's used equipment market. With a 0.93 m³ bucket capacity and 138 kN digging force, it handles demanding excavation work while maintaining strong resale value thanks to Sany's global dealer network.

  • Operating Weight: 20,900 kg with excellent stability
  • Reach & Depth: 9,885 mm maximum digging radius, 6,630 mm digging depth

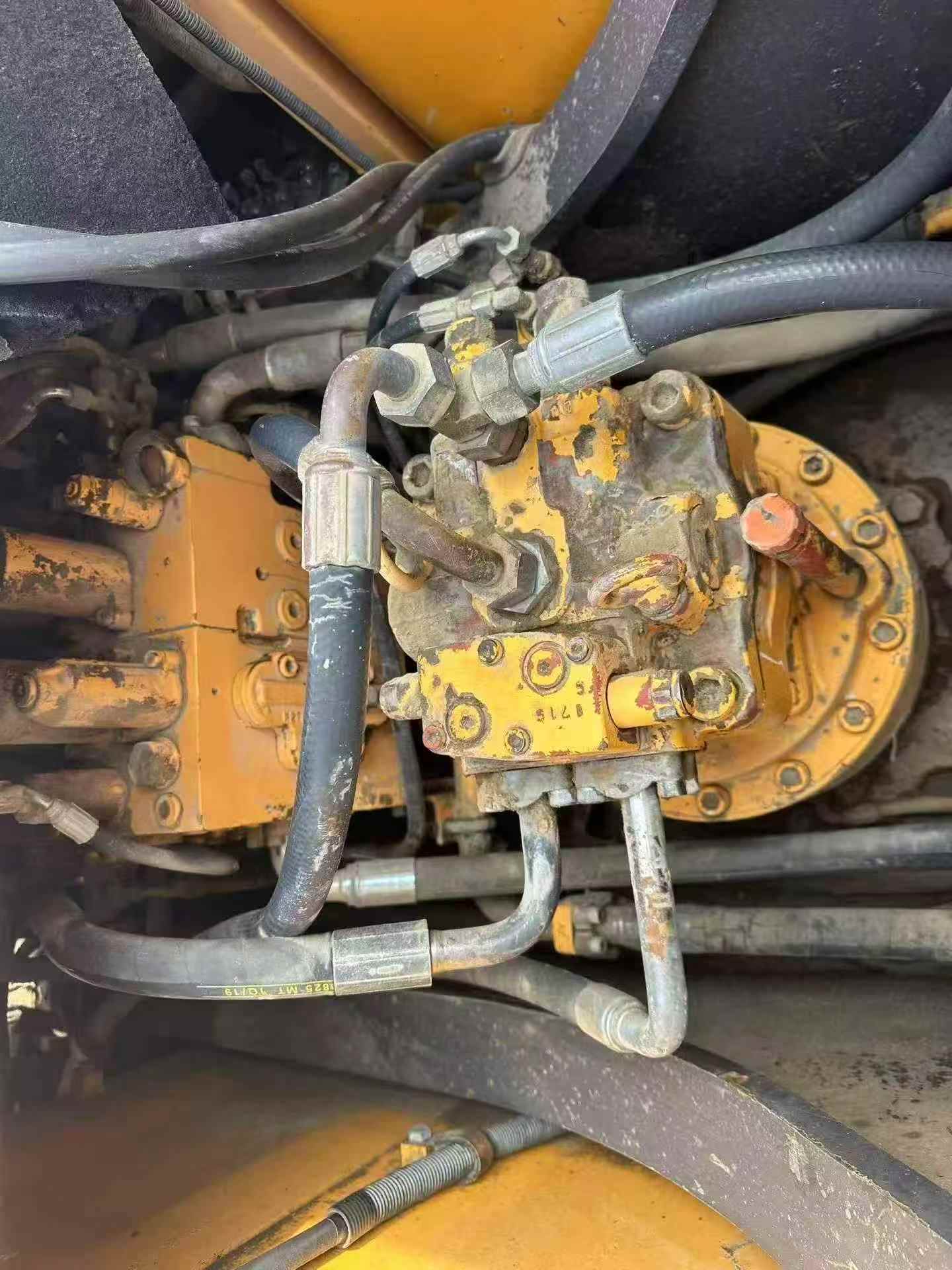

  • Hydraulic System: Dual pumps delivering 2 × 210 l/min at 34.3 MPa
  • Performance: 12.5 rpm rotation speed, 70% gradeability
  • Dimensions: 9,397 mm length, 2,980 mm width for transport

Currently located in Jiangsu, China, this water-cooled excavator benefits from Sany's widespread parts distribution and established service infrastructure—critical factors that protect your investment and minimize downtime in used equipment ownership.

SpecificationsValue
No.1050382
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe

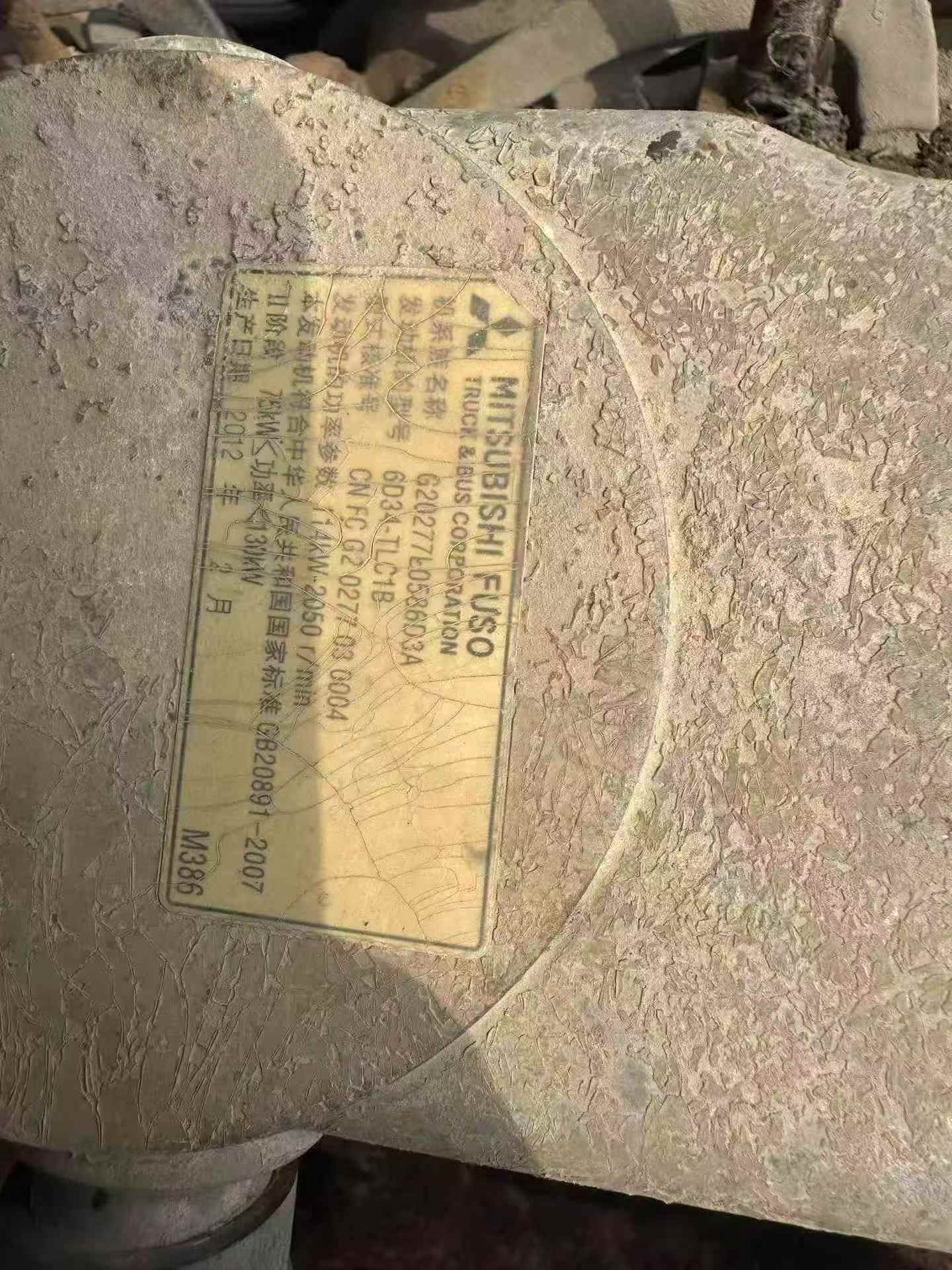

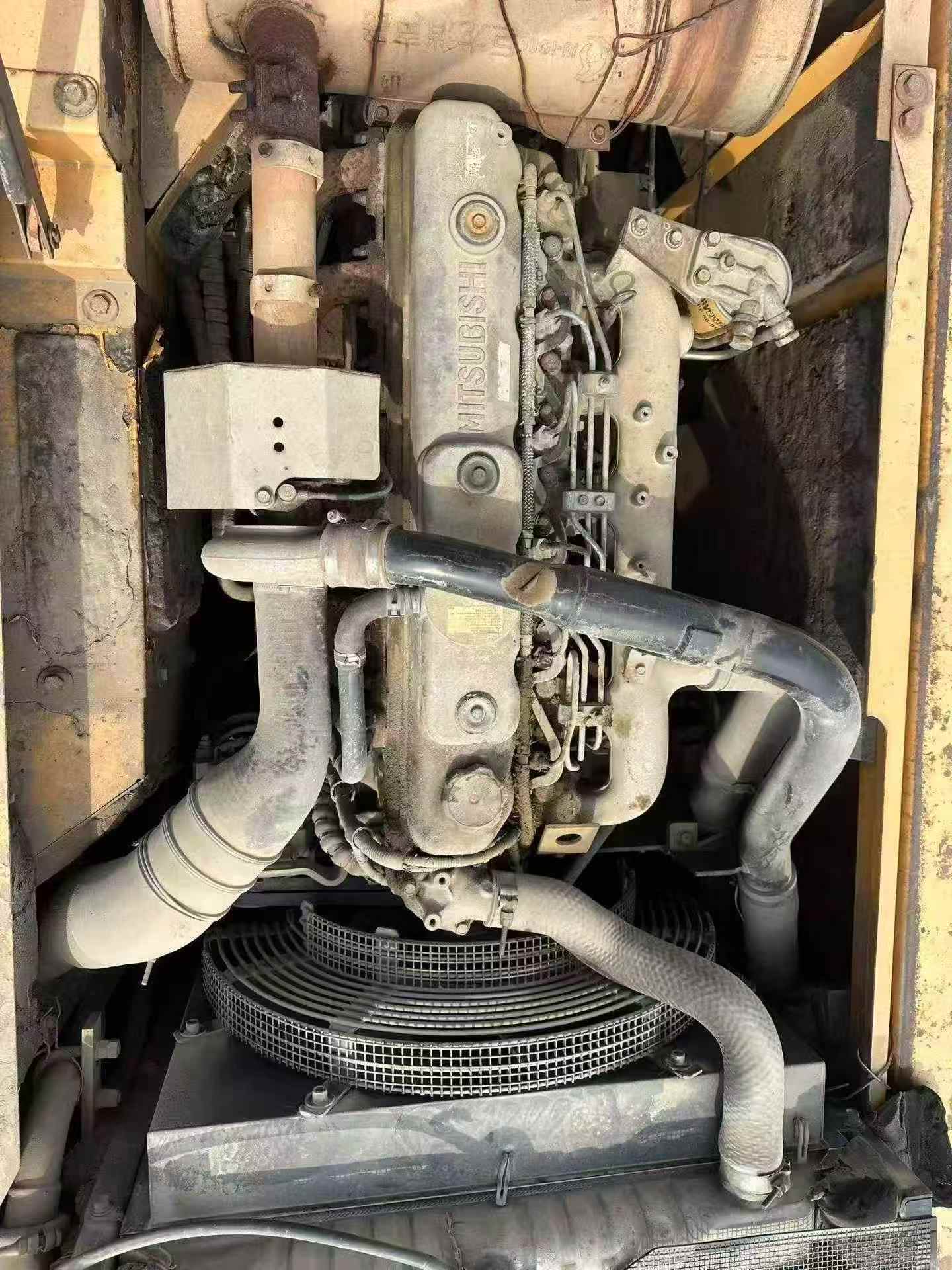

Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750

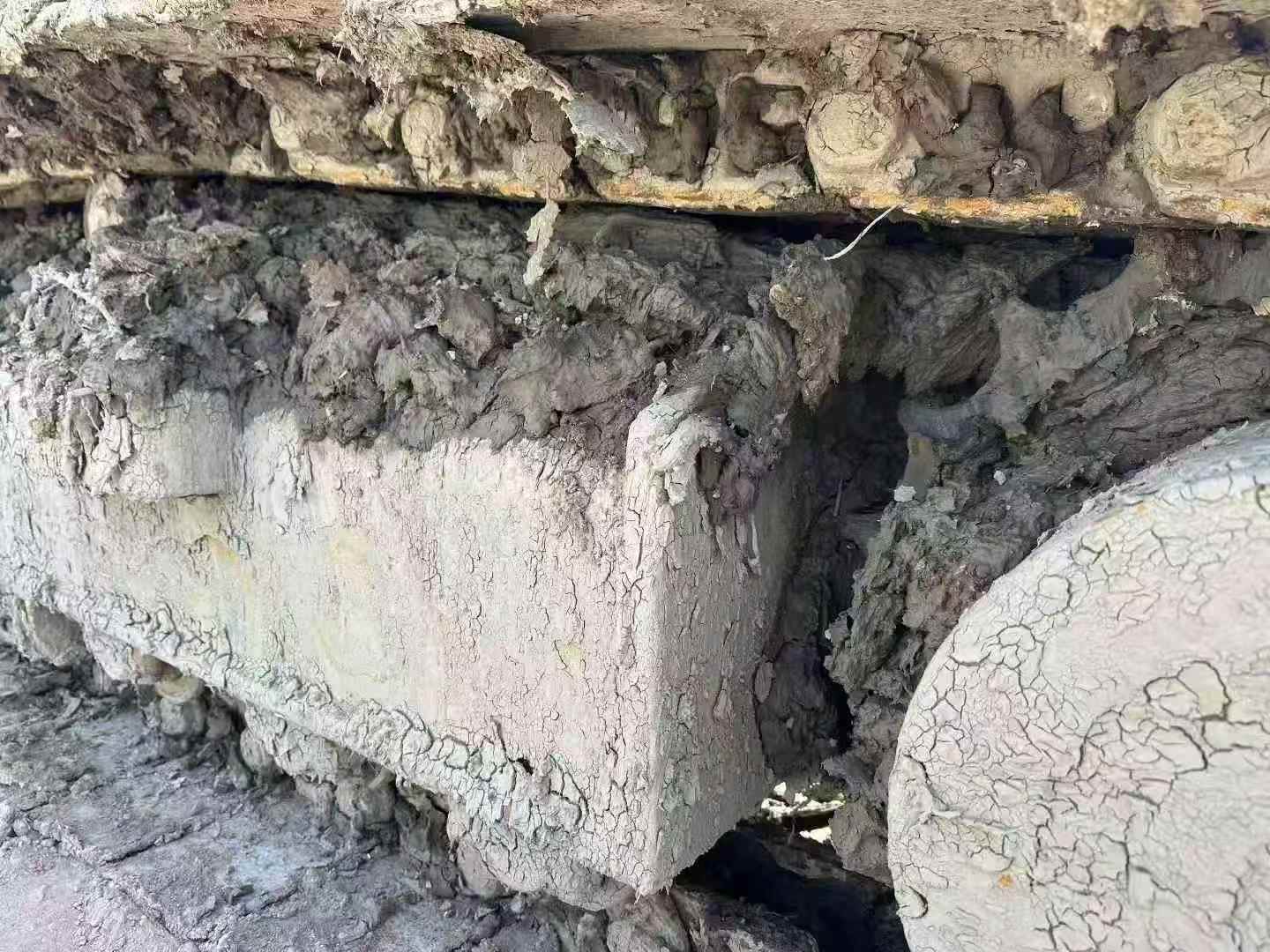

Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1050382

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2012

Location:

Jiangsu China
