Product Description
Engineered with precision in China's Kunshan manufacturing hub, this 2013 Sany SY215C-8 delivers 21-ton performance through proven Mitsubishi 6D34-TL power. Rated at 114 kW and 2050 rpm, the water-cooled diesel engine drives a dual-pump hydraulic system flowing 420 l/min combined capacity at 34.3 MPa main circuit pressure. Bucket digging force reaches 138 kN with 0.93 m³ capacity, while the 9885 mm maximum reach and 6630 mm digging depth handle demanding excavation profiles. Working weight of 20,900 kg distributes across 600 mm track plates for 45 kPa ground pressure, maintaining 70% gradient capability and 12.5 rpm slew speed.

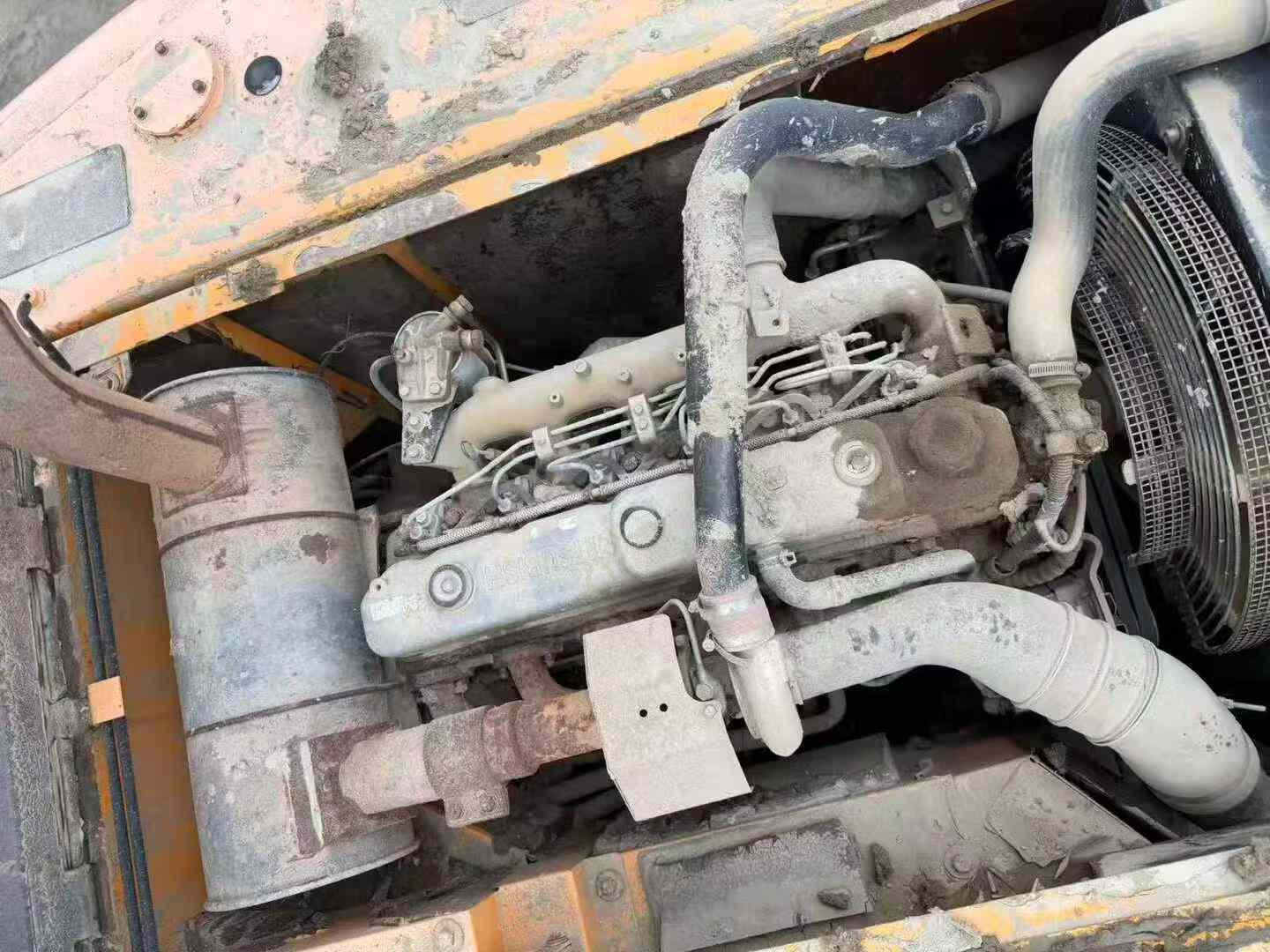

- Mitsubishi Engine: 6D34-TL diesel, 114 kW at 2050 rpm
- Hydraulic Performance: Dual 210 l/min pumps, 34.3 MPa main pressure
- Operational Reach: 9885 mm radius, 9305 mm max height
- Transport Dimensions: 9397×2980×2956 mm (L×W×H)
- Current Location: Lishui, Zhejiang Province
Professional-grade machinery built for contractors requiring reliable 21-ton class excavation capacity with documented Mitsubishi drivetrain heritage.
| Specifications | Value |
|---|---|
| No. | 1020929 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
