2013 Sany SY215C-8

1/9

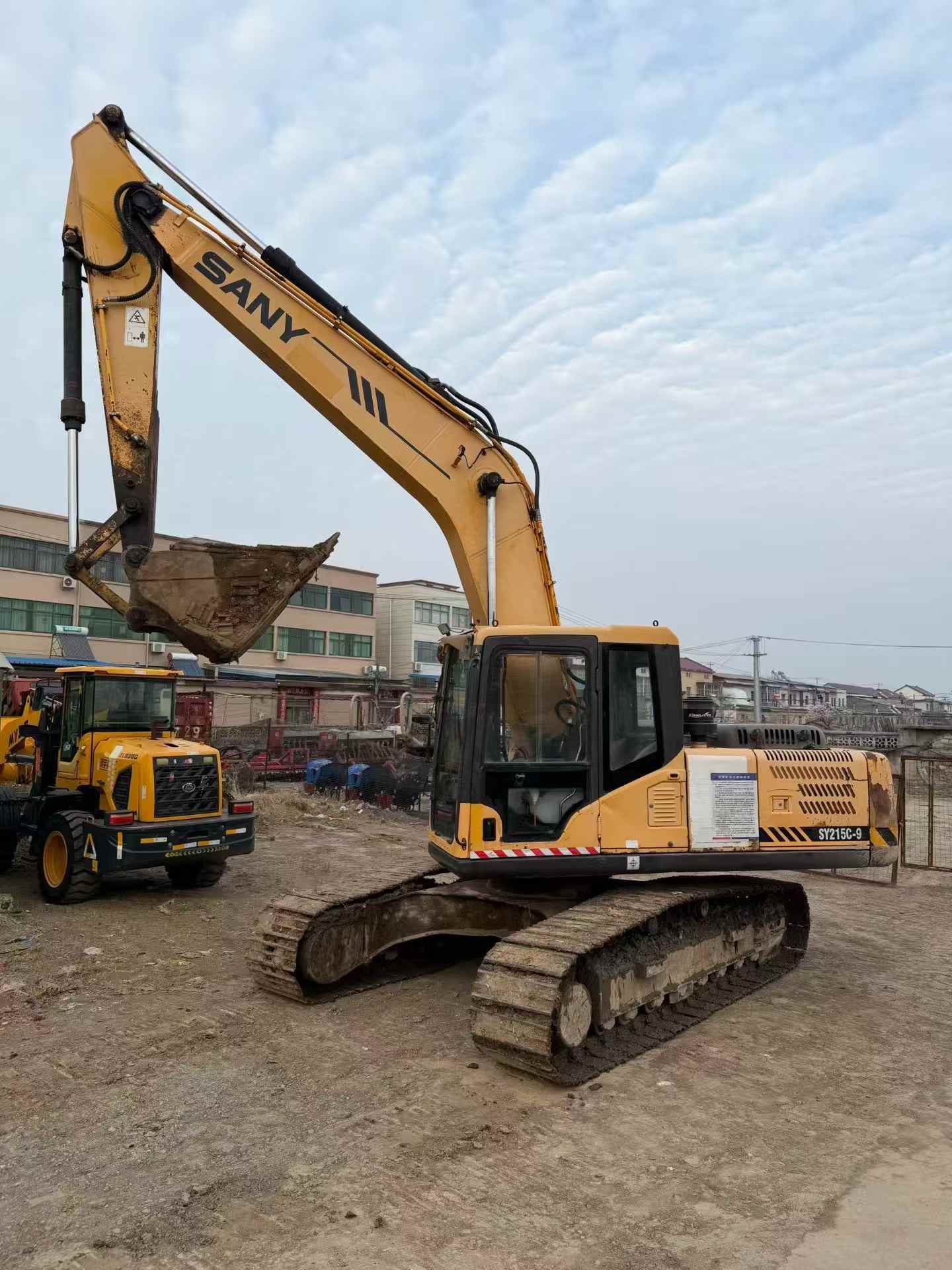

Buy Sany SY215C-8 Used Excavator / 1

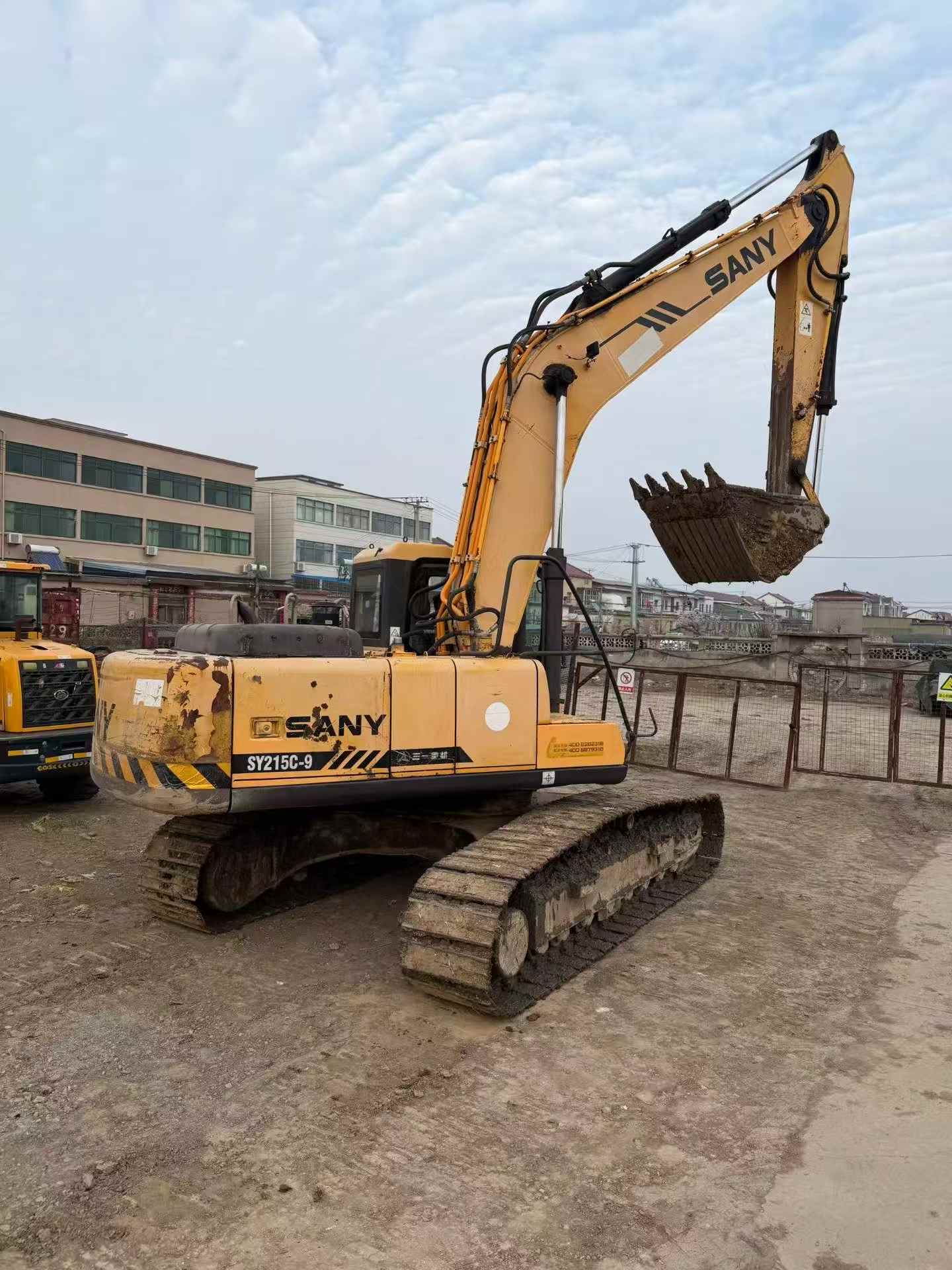

Buy Sany SY215C-8 Used Excavator / 2

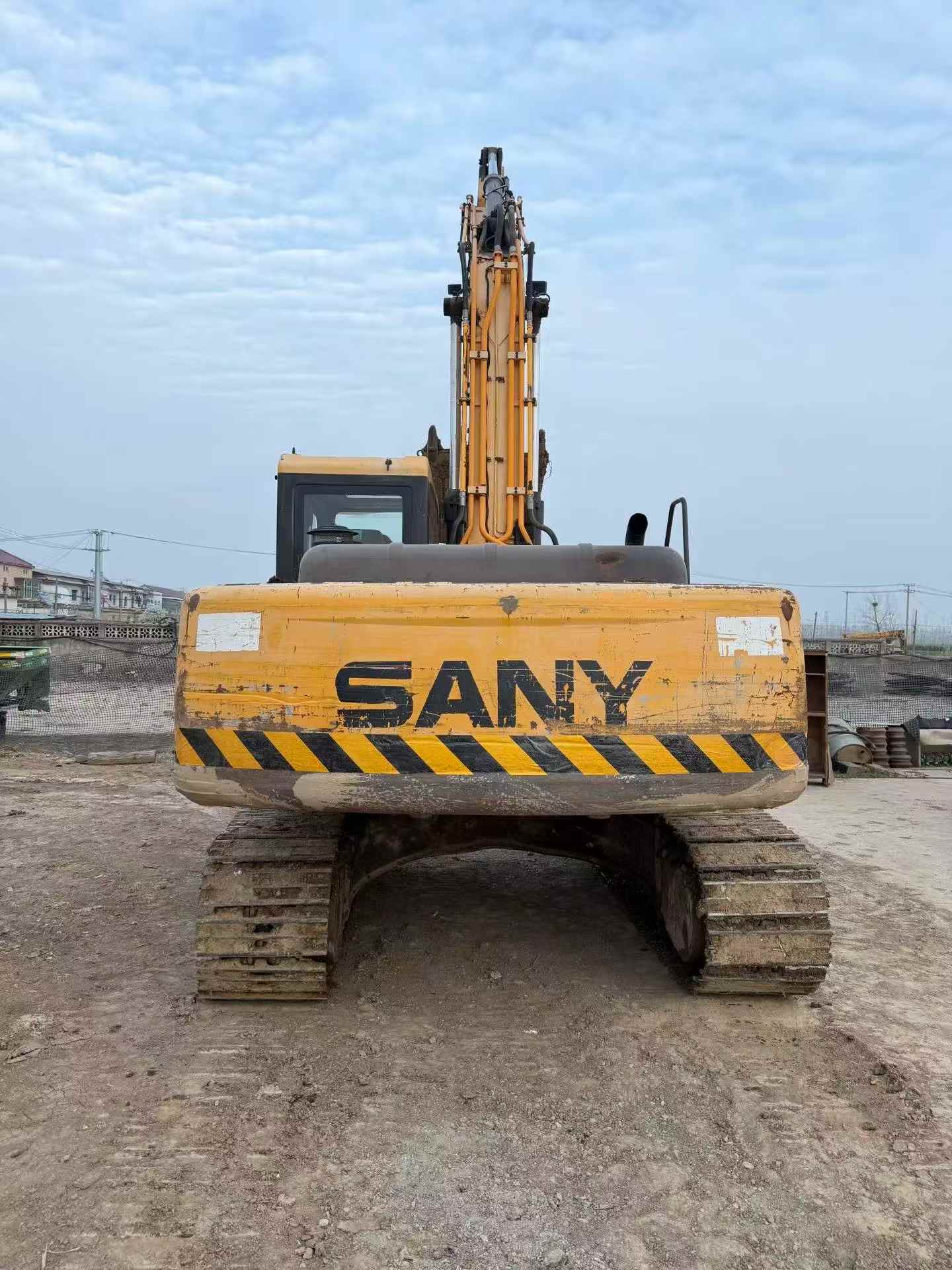

Buy Sany SY215C-8 Used Excavator / 3

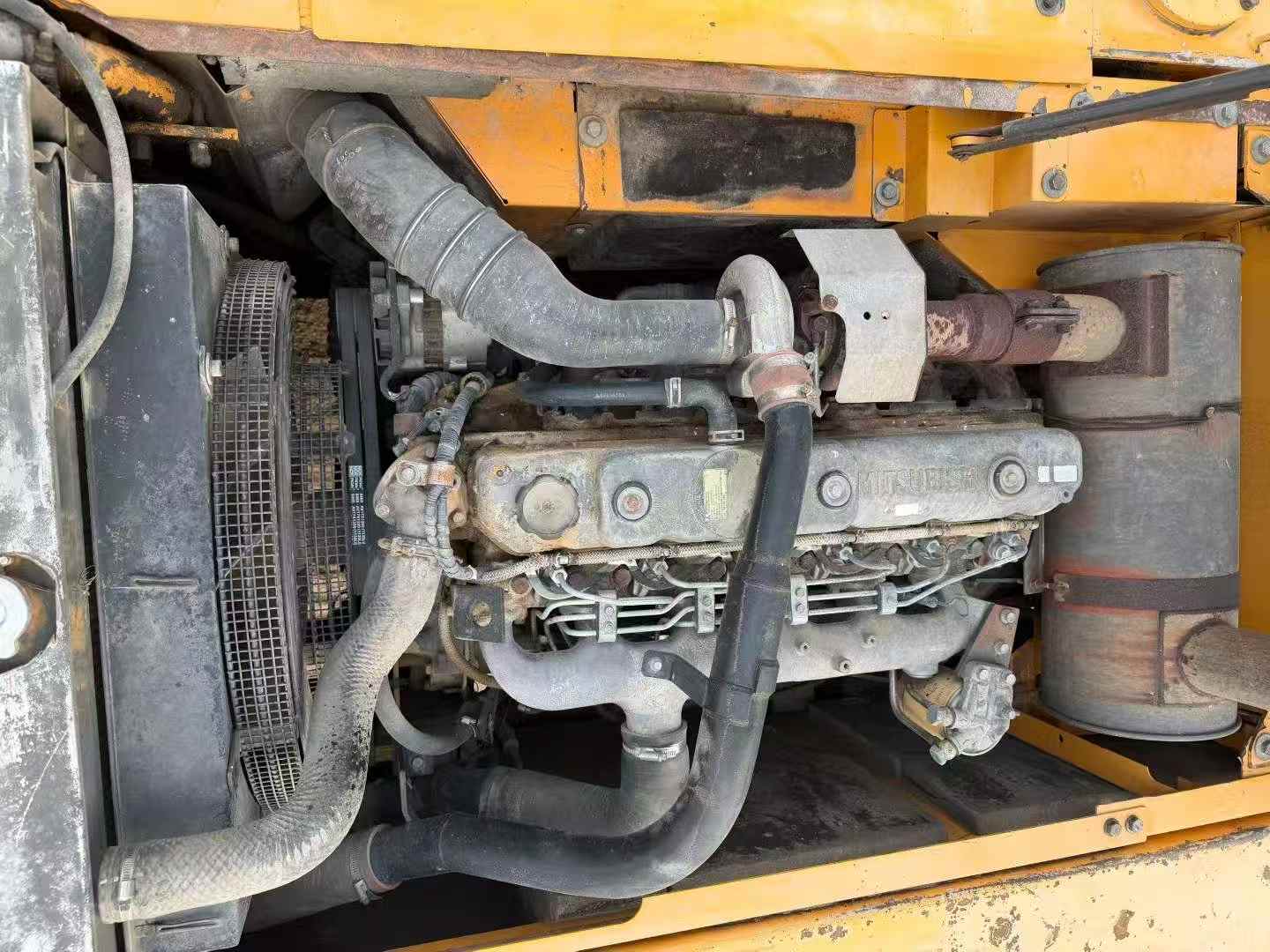

Buy Sany SY215C-8 Used Excavator / 4

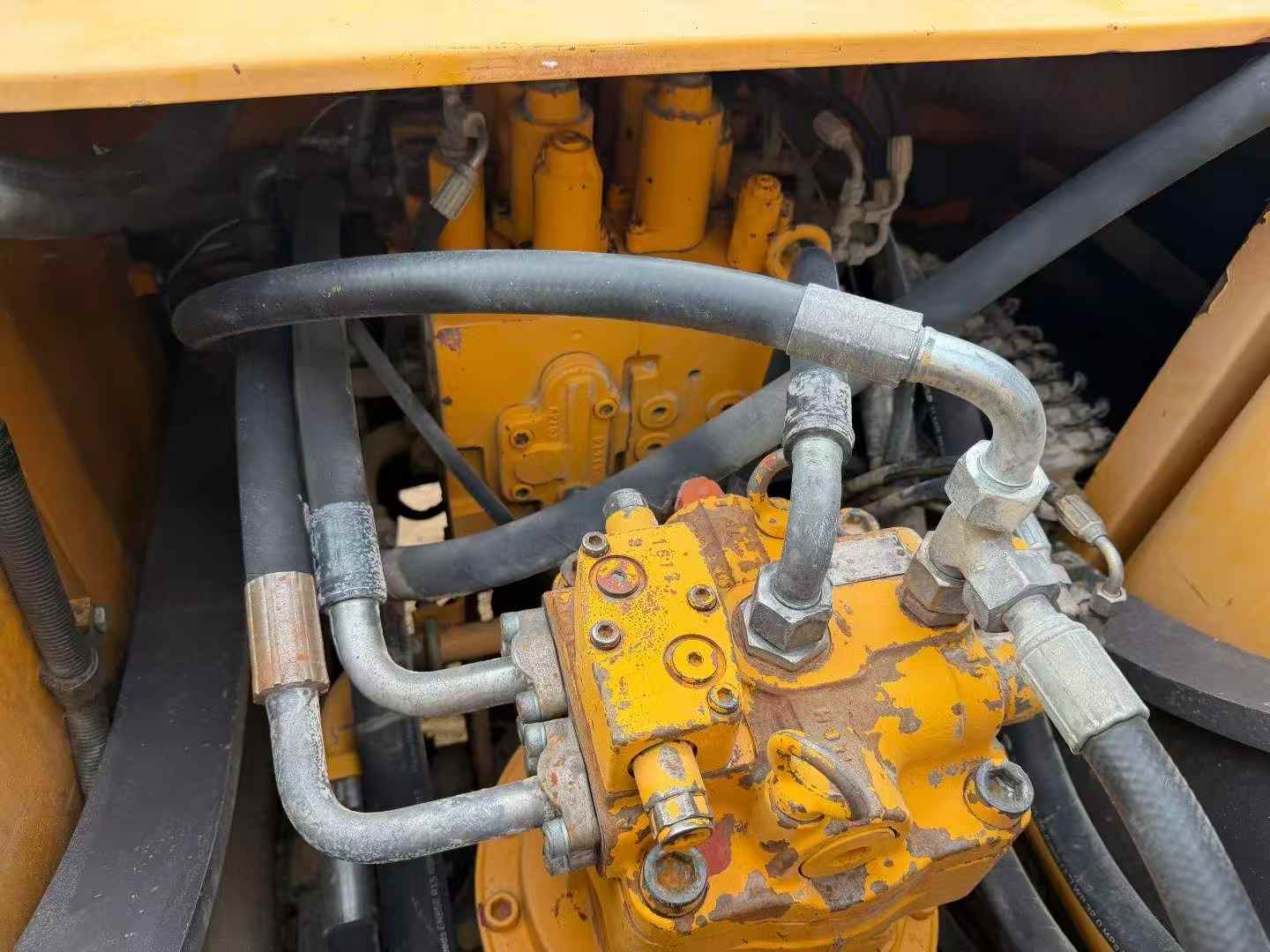

Buy Sany SY215C-8 Used Excavator / 5

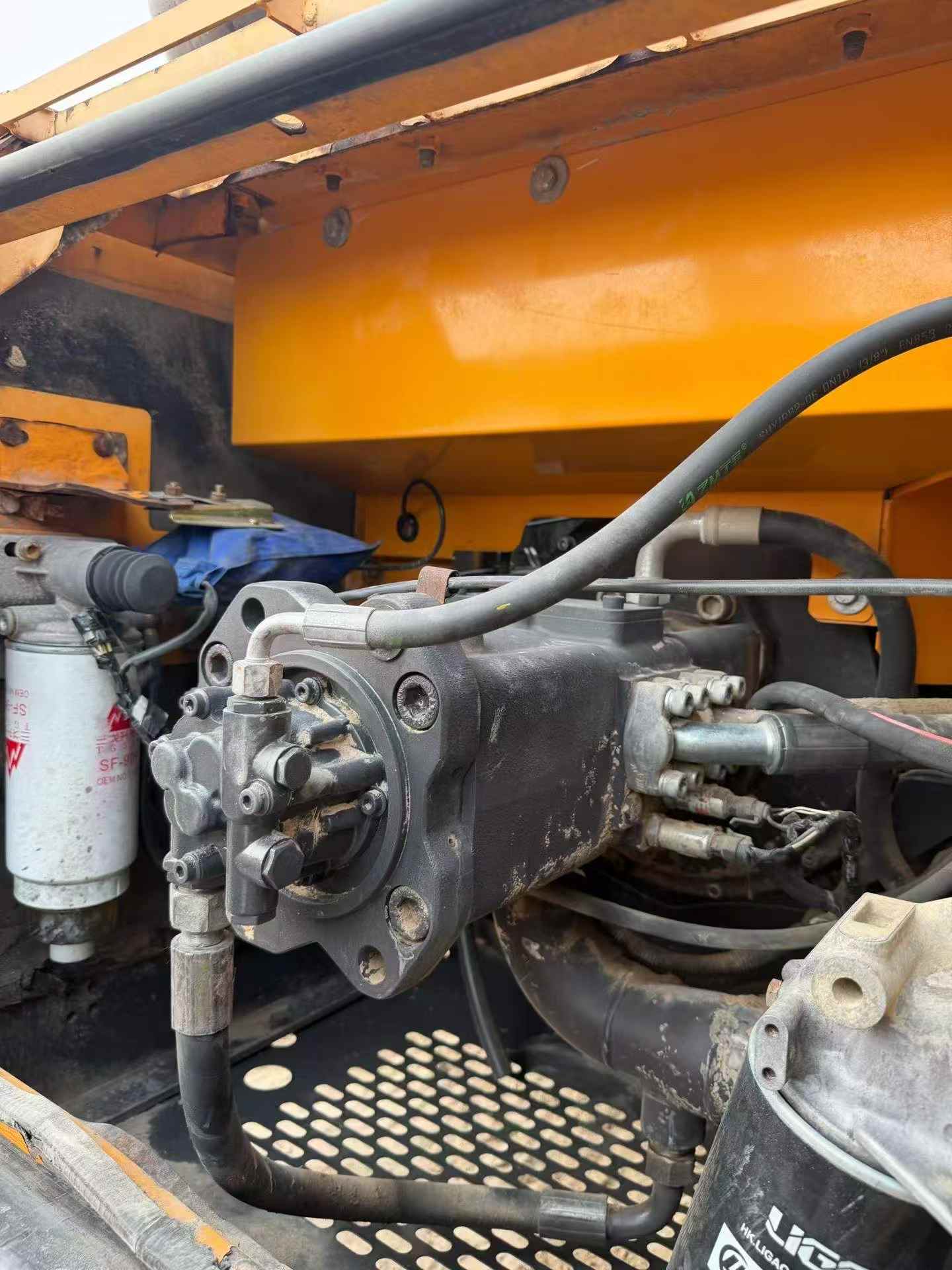

Buy Sany SY215C-8 Used Excavator / 6

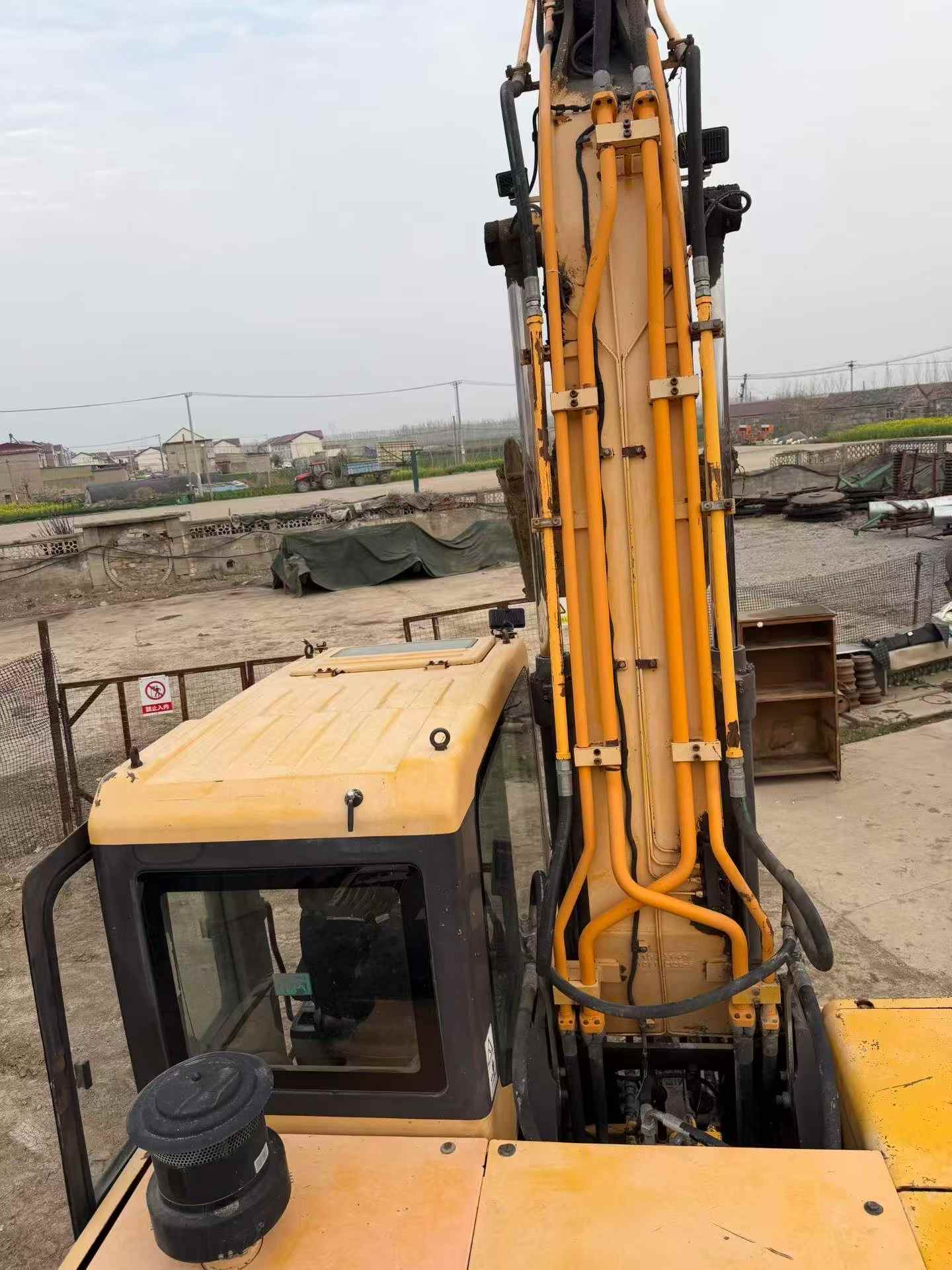

Buy Sany SY215C-8 Used Excavator / 7

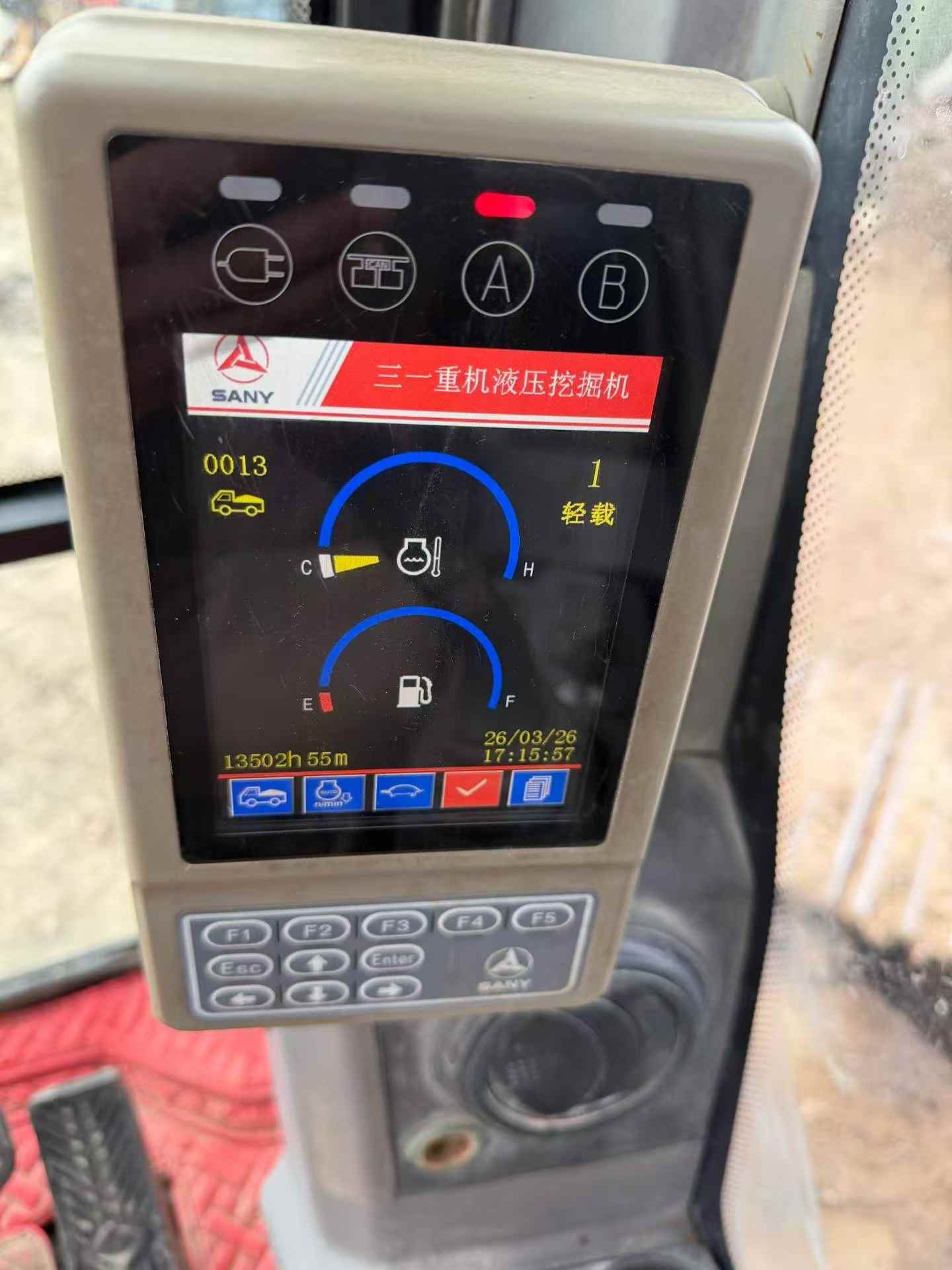

Buy Sany SY215C-8 Used Excavator / 8

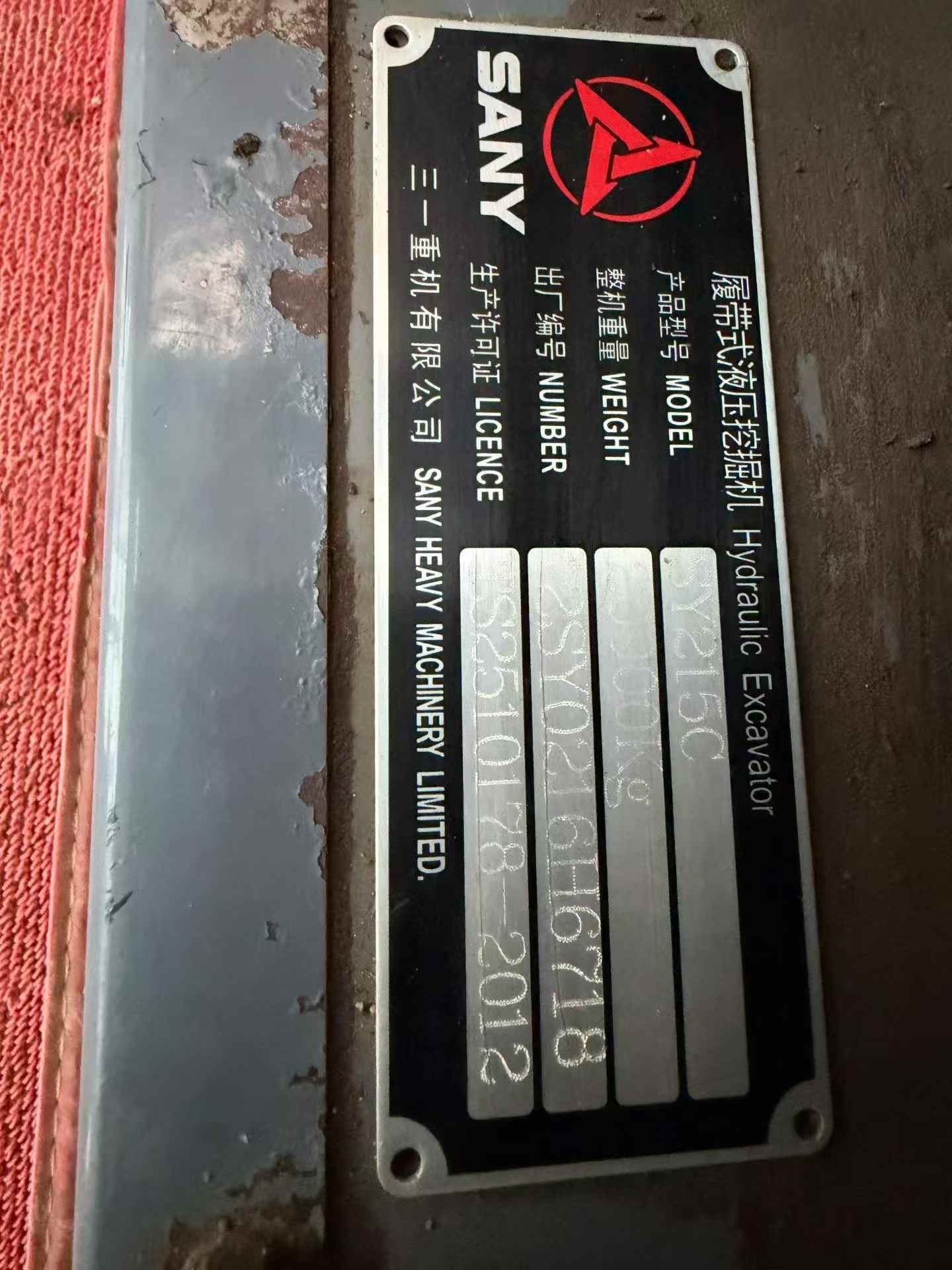

Buy Sany SY215C-8 Used Excavator / 9

Product Description

Ready to deploy from Lianyungang, Jiangsu Province, this 2013 Sany SY215C-8 hydraulic excavator eliminates factory wait times and gets your operation moving immediately. Powered by a Mitsubishi 6D34-TL engine delivering 114 kW at 2050 rpm, this 21-ton workhorse combines proven Japanese reliability with Chinese manufacturing efficiency. Operating weight of 20,900 kg and a 0.93 m³ backhoe bucket provide the muscle for demanding earthmoving tasks.

Key Performance Specifications:

  • Maximum digging reach: 9,885 mm with 6,630 mm depth capability
  • Bucket digging force: 138 kN for tough ground conditions
  • Dual main pumps: 2 × 210 l/min hydraulic flow
  • Travel speeds: 3.2/5.5 km/h with 70% grading ability
  • Water-cooled system with 12.5 rpm rotation speed
  • Compact transport dimensions: 9,397 × 2,980 × 2,956 mm

Available now for fast shipping from our Lianyungang facility. Skip months of lead times—this machine is inspected, documented, and ready for immediate deployment to your jobsite worldwide.

SpecificationsValue
No.1041839
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1041839

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2013

Location:

Jiangsu China

Pub Date
