2013 Sany SY215C-8

1/9

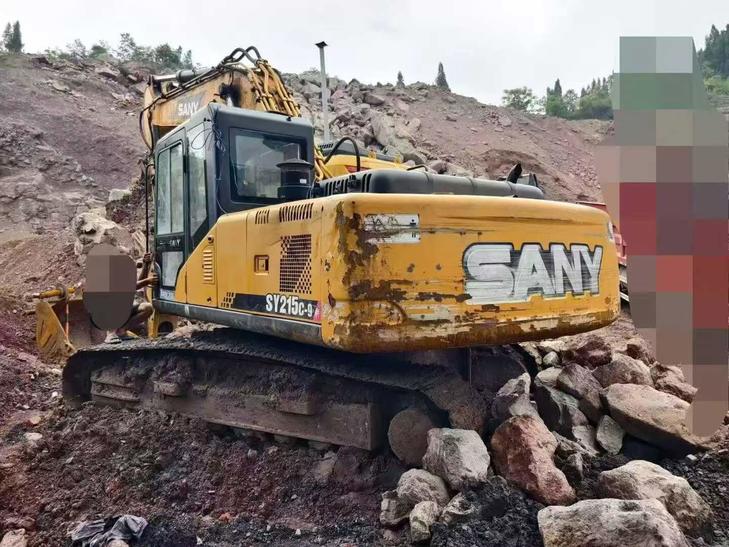

Buy Sany SY215C-8 Used Excavator / 1
Buy Sany SY215C-8 Used Excavator / 2
Buy Sany SY215C-8 Used Excavator / 3
Buy Sany SY215C-8 Used Excavator / 4
Buy Sany SY215C-8 Used Excavator / 5
Buy Sany SY215C-8 Used Excavator / 6
Buy Sany SY215C-8 Used Excavator / 7
Buy Sany SY215C-8 Used Excavator / 8
Buy Sany SY215C-8 Used Excavator / 9

Product Description

Built for contractors who can't afford downtime, this 2013 Sany SY215C-8 21-ton hydraulic excavator delivers the reliability and raw digging performance your fleet demands. Powered by a Mitsubishi 6D34-TL water-cooled engine producing 114 kW at 2,050 RPM, this machine is ready to step in as a dependable backup unit or scale up your operation's total output on high-volume job sites.

Sourced directly from Zhejiang, China, and maintained to export standards, this unit offers proven hydraulic muscle with a 138 kN bucket digging force and 0.93 m³ backhoe bucket capacity — numbers that hold their own on earthmoving, trenching, and foundation work.

  • Engine: Mitsubishi 6D34-TL | 114 kW / 2,050 RPM | Water-Cooled
  • Working Weight: 20,900 kg (21 tons)
  • Max Digging Depth: 6,630 mm
  • Max Digging Radius: 9,885 mm
  • Bucket Digging Force: 138 kN
  • Travel Speed: 3.2 / 5.5 km/h
  • Climbing Ability: 70% / 35°
  • Track Plate Width: 600 mm | Ground Pressure: 45 kPa
  • Main Pump Flow: 2 × 210 L/min
  • Location: Zhejiang, China — Available for Global Export
SpecificationsValue
No.1091308
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1091308

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2013

Location:

Zhejiang China

Pub Date
