Product Description

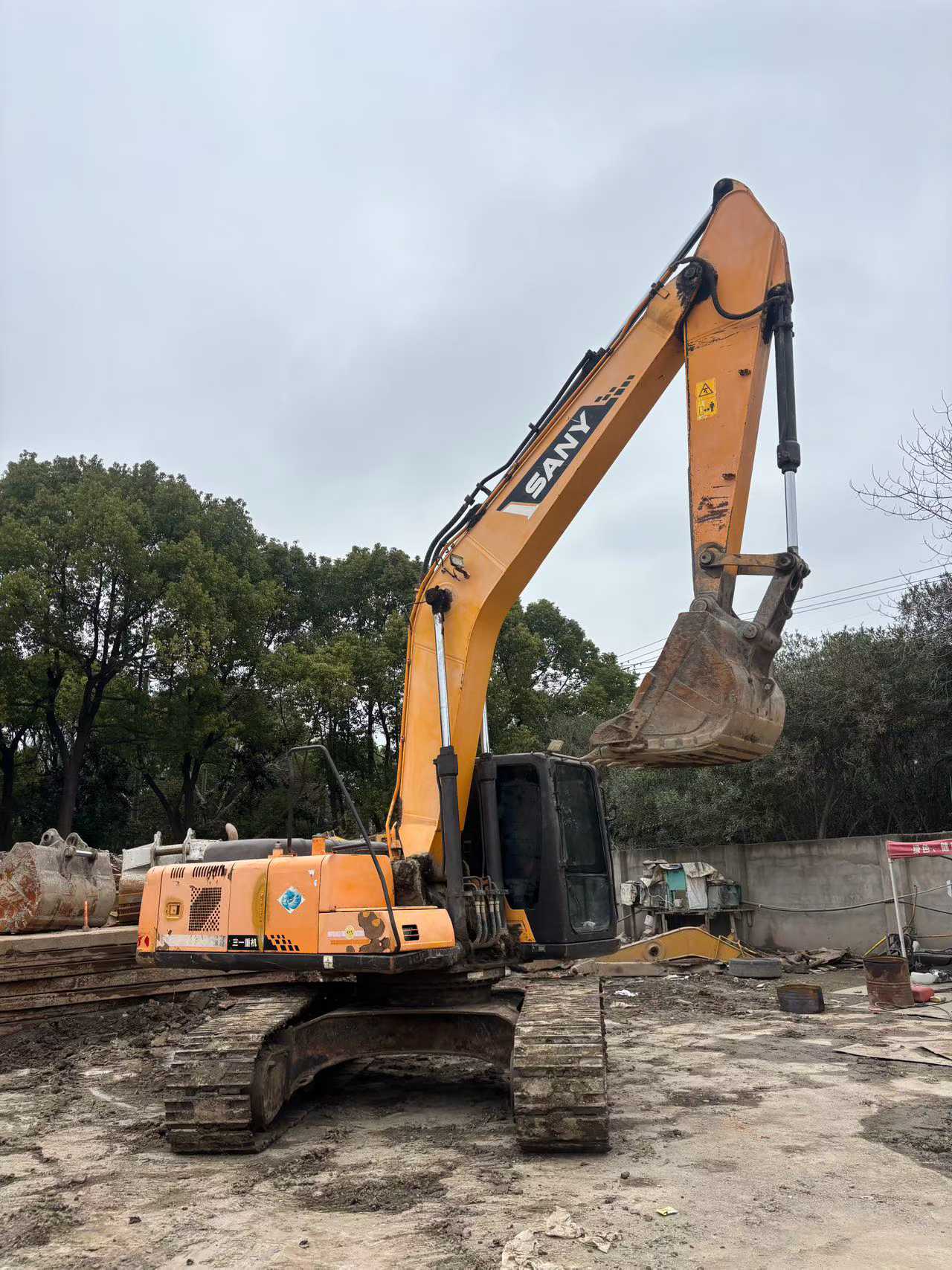

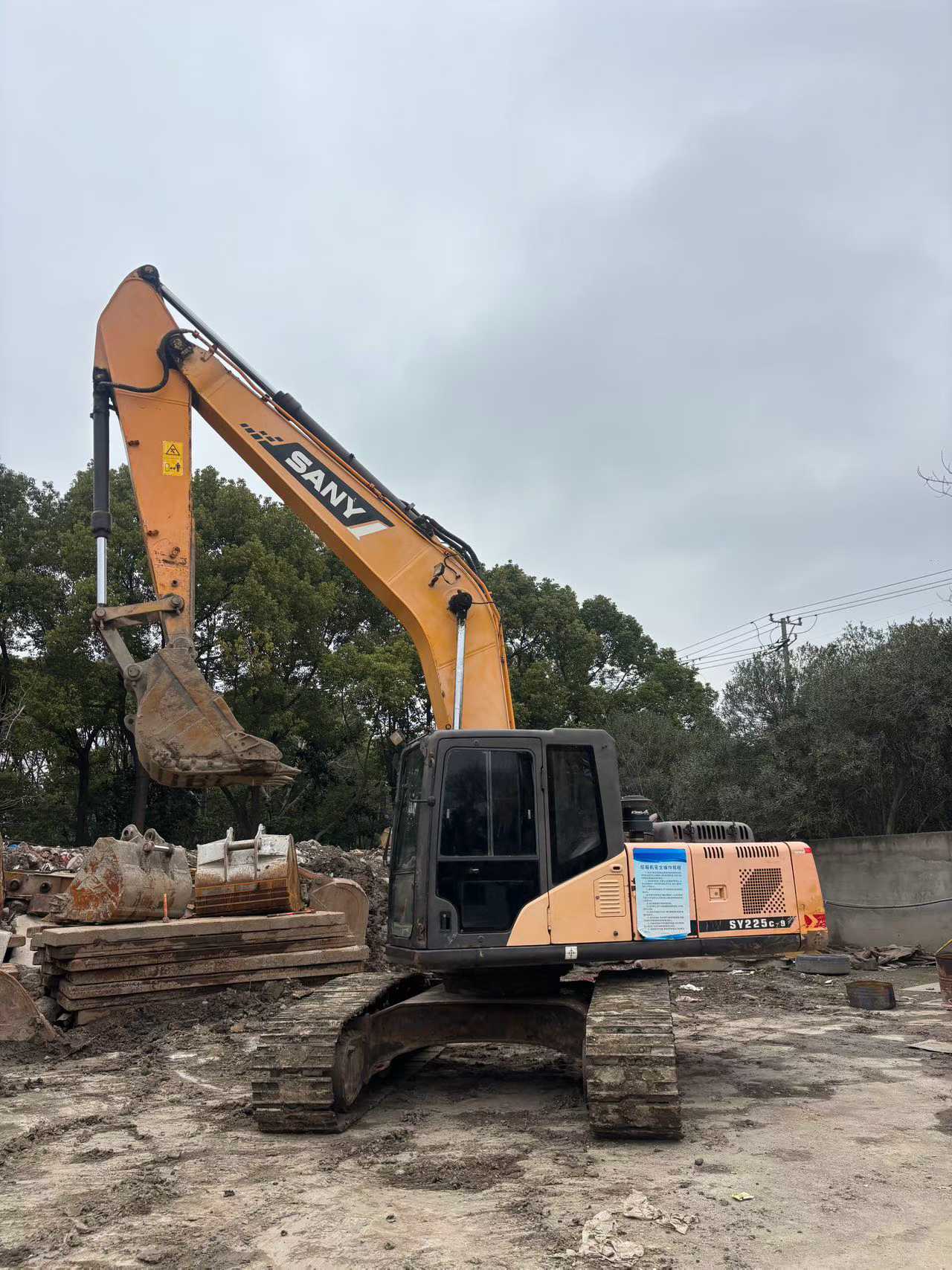

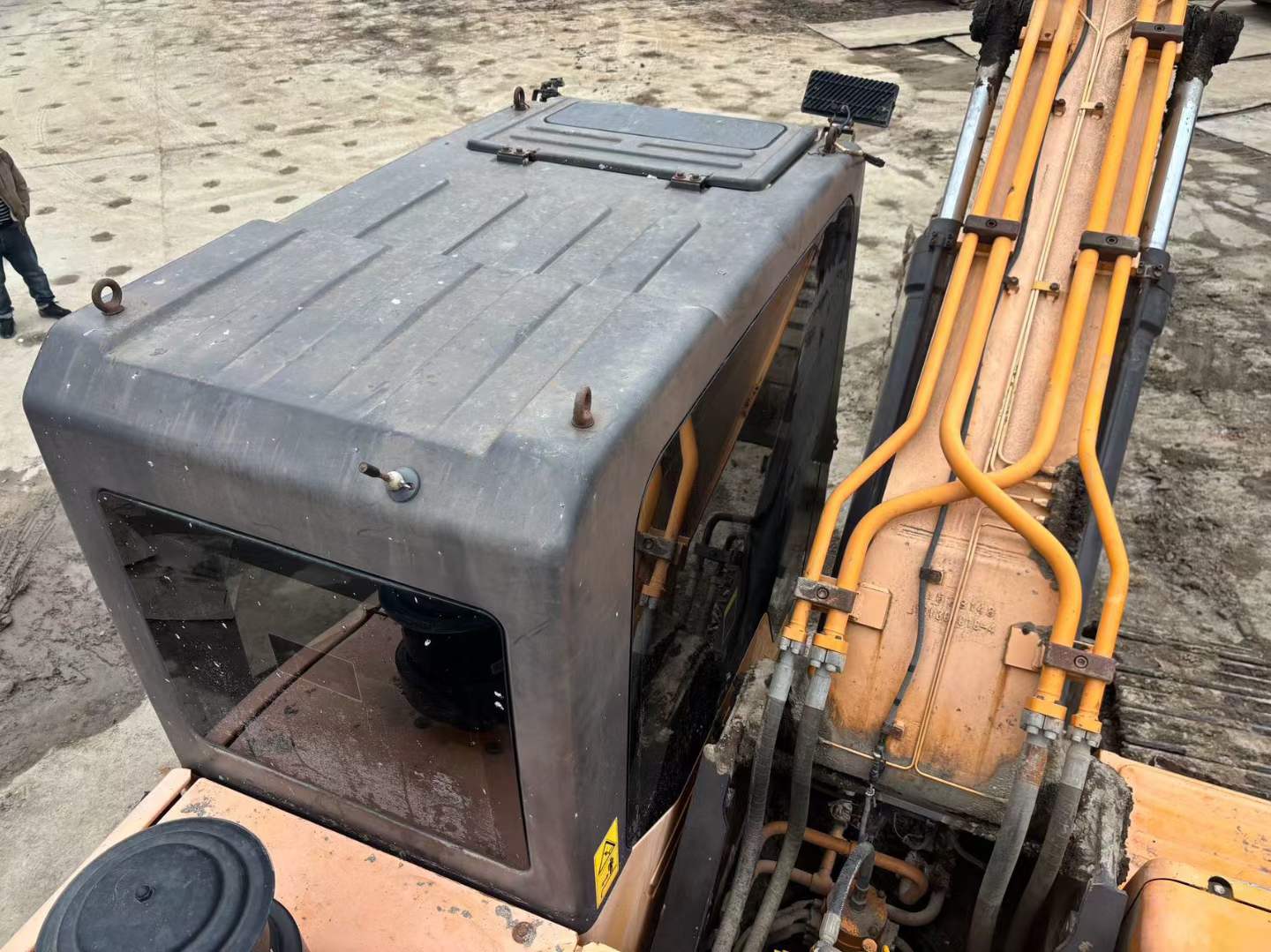

Engineered with a Mitsubishi 6D34-TL engine delivering 114 kW at 2050 rpm, this 2014 Sany SY215C-8 excavator combines proven Japanese powertrain technology with robust Chinese manufacturing. Operating at 21 tons with a 20,900 kg working weight, this machine features dual main pumps generating 2 x 210 l/min flow and 34.3 MPa main overflow pressure for responsive hydraulic performance across demanding job sites.
Performance specifications include:
- Maximum digging reach: 9,885 mm with 6,630 mm depth capability

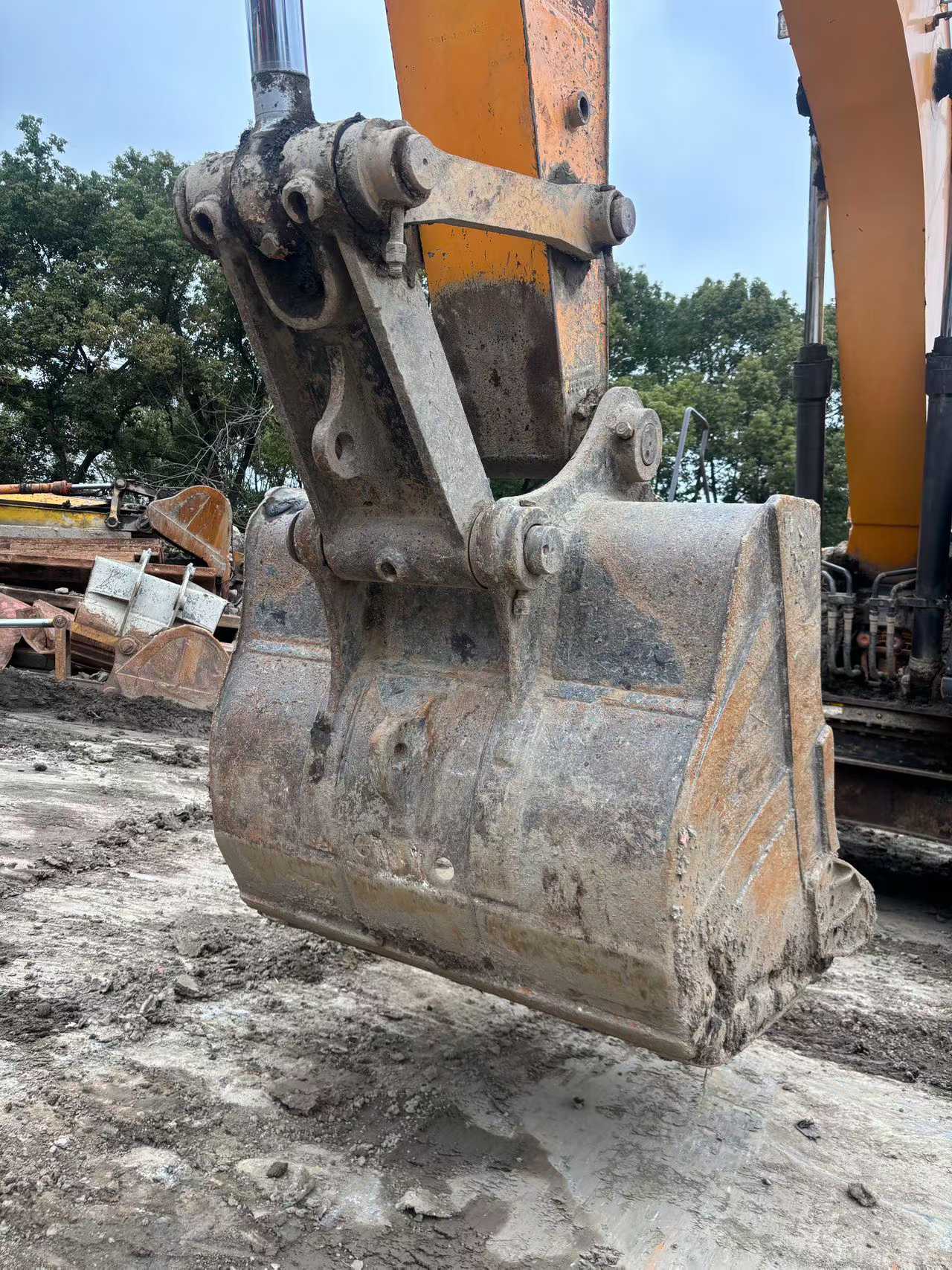

- Bucket digging force: 138 kN with 0.93 m³ capacity
- Water-cooled engine with 12.5 rpm rotation speed
- 70% (35°) grading ability for challenging terrain
- Compact 2,750 mm rear swing radius for confined spaces

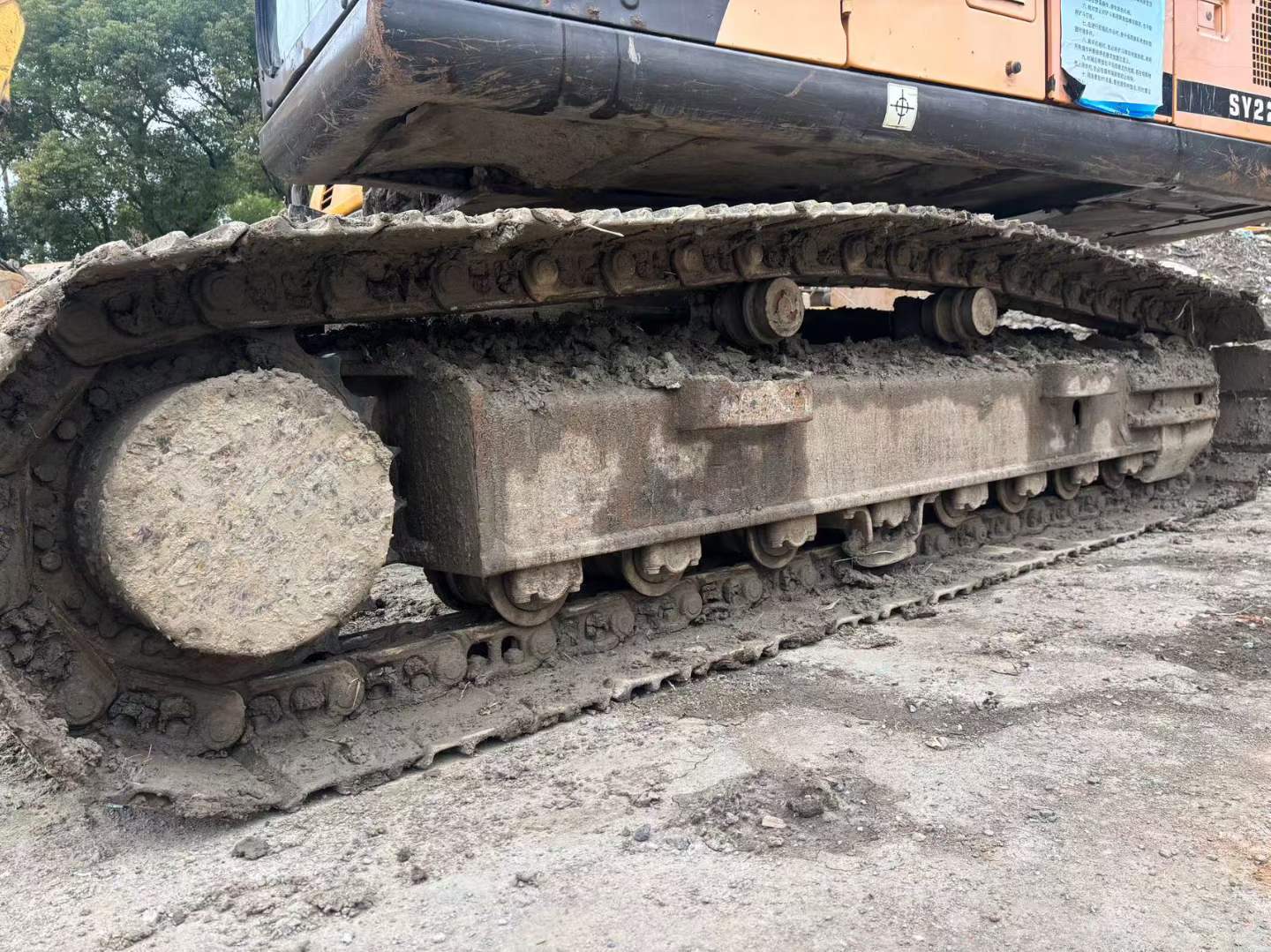

Currently located in Shanghai, this SY215C-8 represents Sany's mid-size excavator platform built in Kunshan, Jiangsu Province. With 600 mm track plates and 45 Kpa ground pressure, this backhoe configuration balances stability with productivity for earthmoving, trenching, and general construction applications worldwide.
| Specifications | Value |
|---|---|
| No. | 1023015 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
