Product Description

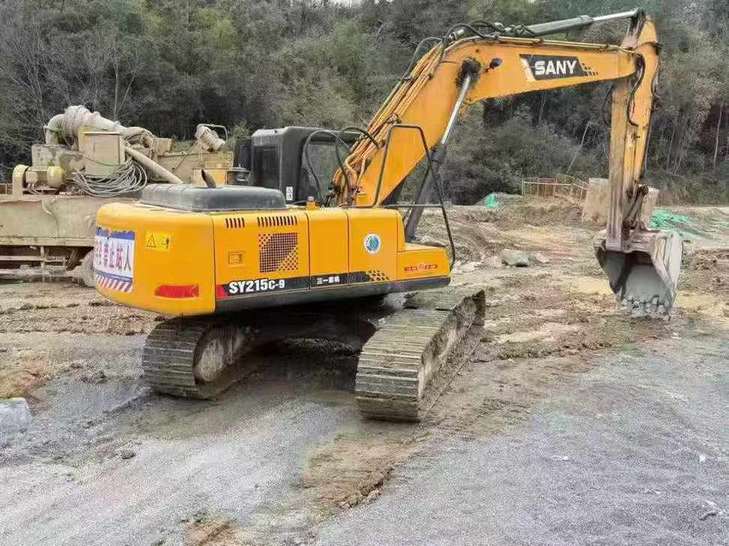

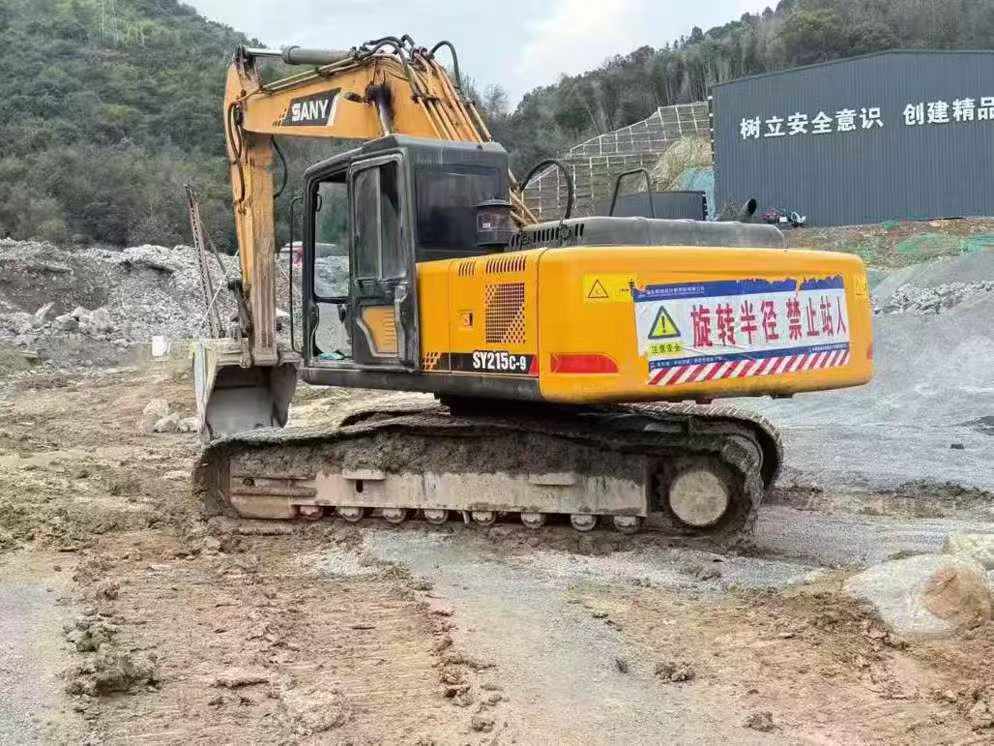

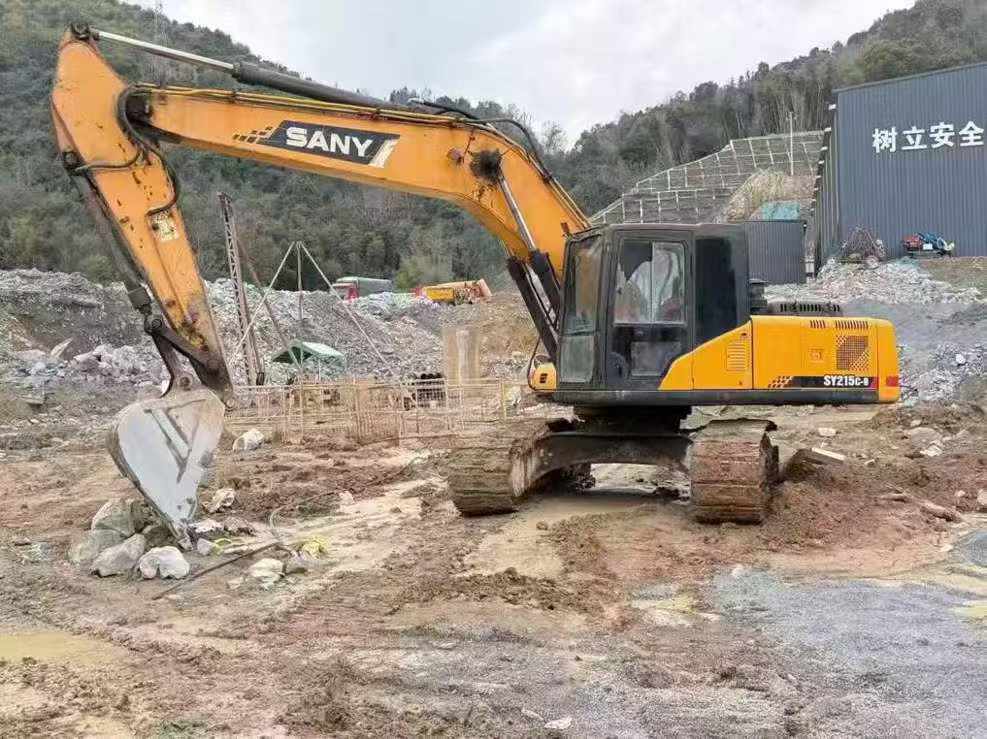

Built for productivity, this 2014 Sany SY215C-8 excavator delivers 21 tons of reliable performance on demanding job sites. Powered by a Mitsubishi 6D34-TL engine generating 114 kW at 2050 rpm, this machine handles digging, grading, and demolition tasks with consistent power output. The 0.93 m³ backhoe bucket provides substantial material capacity, while 138 kN of bucket digging force tackles compacted soil and rocky terrain without hesitation.
- Maximum digging depth of 6,630 mm reaches below-grade utility work and deep foundation excavations
- 9,885 mm working radius covers extensive operational area from a single position
- Water-cooled system maintains optimal engine temperature during extended shifts
- Dual hydraulic pumps deliver 2 x 210 l/min for responsive multi-function operation
- 70% climbing ability navigates steep grades and uneven terrain confidently
- Currently located in Lishui, Zhejiang—ready for immediate deployment
Operating weight of 20,900 kg provides stability during heavy lifting and material placement. This China-manufactured excavator combines proven Mitsubishi engine technology with Sany's hydraulic systems, offering site-ready capability for cont
| Specifications | Value |
|---|---|
| No. | 1027407 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
