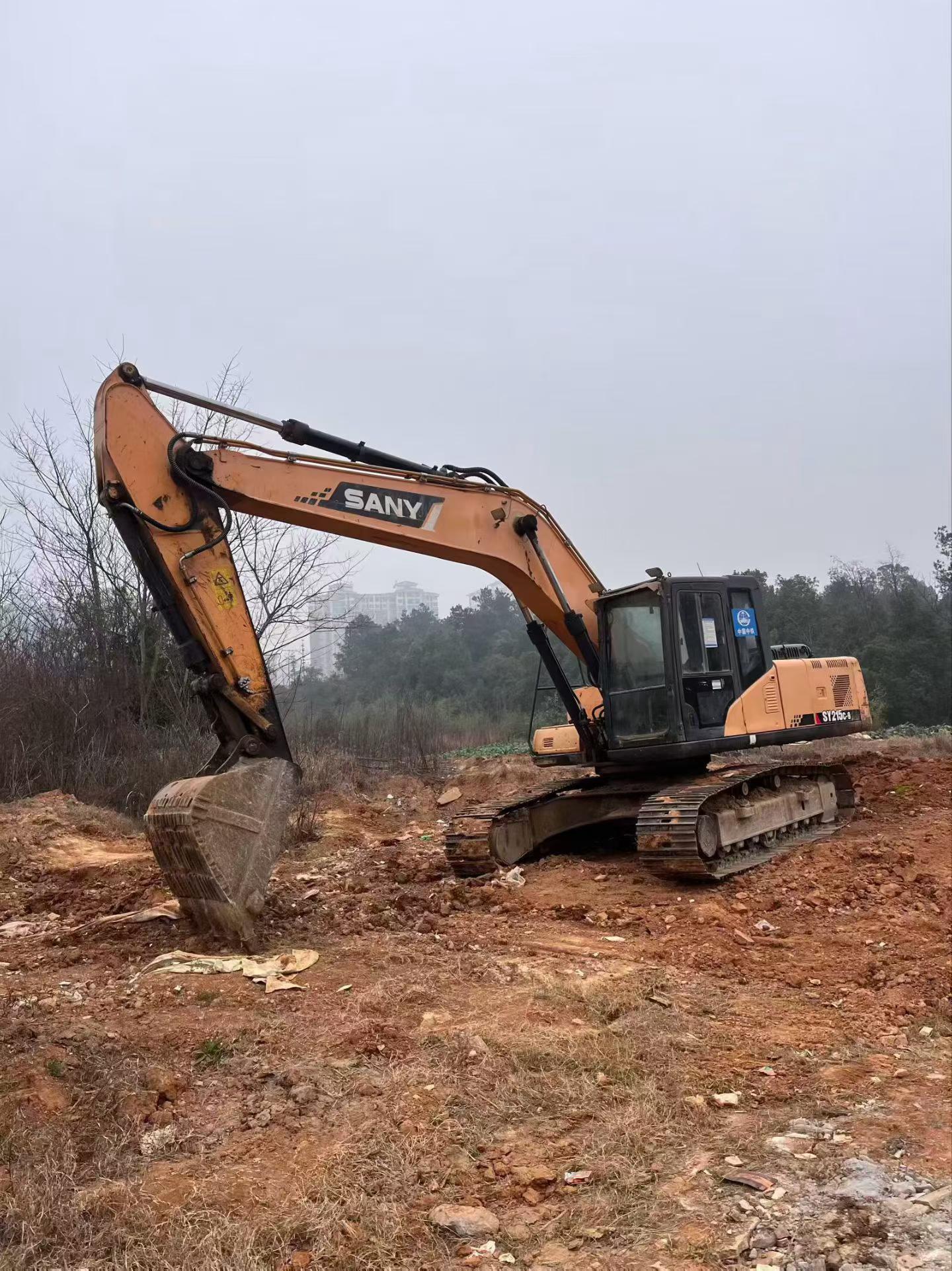

2014 Sany SY215C-8

1/9
Buy Sany SY215C-8 Used Excavator / 1
Buy Sany SY215C-8 Used Excavator / 2
Buy Sany SY215C-8 Used Excavator / 3
Buy Sany SY215C-8 Used Excavator / 4
Buy Sany SY215C-8 Used Excavator / 5
Buy Sany SY215C-8 Used Excavator / 6
Buy Sany SY215C-8 Used Excavator / 7
Buy Sany SY215C-8 Used Excavator / 8
Buy Sany SY215C-8 Used Excavator / 9

Product Description

Built to withstand the demands of heavy-duty construction, this 2014 Sany SY215C-8 excavator proves its reliability through a decade of proven performance. Operating at 21 tons with a robust Mitsubishi 6D34-TL engine delivering 114kW of rated power, this workhorse combines strength with precision across demanding jobsites. Its 0.93 m³ backhoe bucket generates 138 kN of digging force, while the water-cooled system ensures consistent performance under continuous operation.

Engineered for versatility, this crawler excavator reaches a maximum digging depth of 6,630mm and extends to a 9,885mm digging radius. Dual hydraulic pumps provide 2 x 210 l/min flow capacity, powering through tough materials with authority. The 70% climbing ability and 440mm ground clearance enable operation across challenging terrain. Currently located in Hunan, this Kunshan-manufactured machine represents the durability that has made Sany equipment a trusted choice for contractors worldwide.

  • 21-ton operating weight with proven Mitsubishi power
  • 138 kN bucket digging force for demanding excavation
  • 9,885mm maximum reach with 6,630mm digging depth
  • Decade-tested reliability from Sany's quality manufacturing
SpecificationsValue
No.1043070
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe

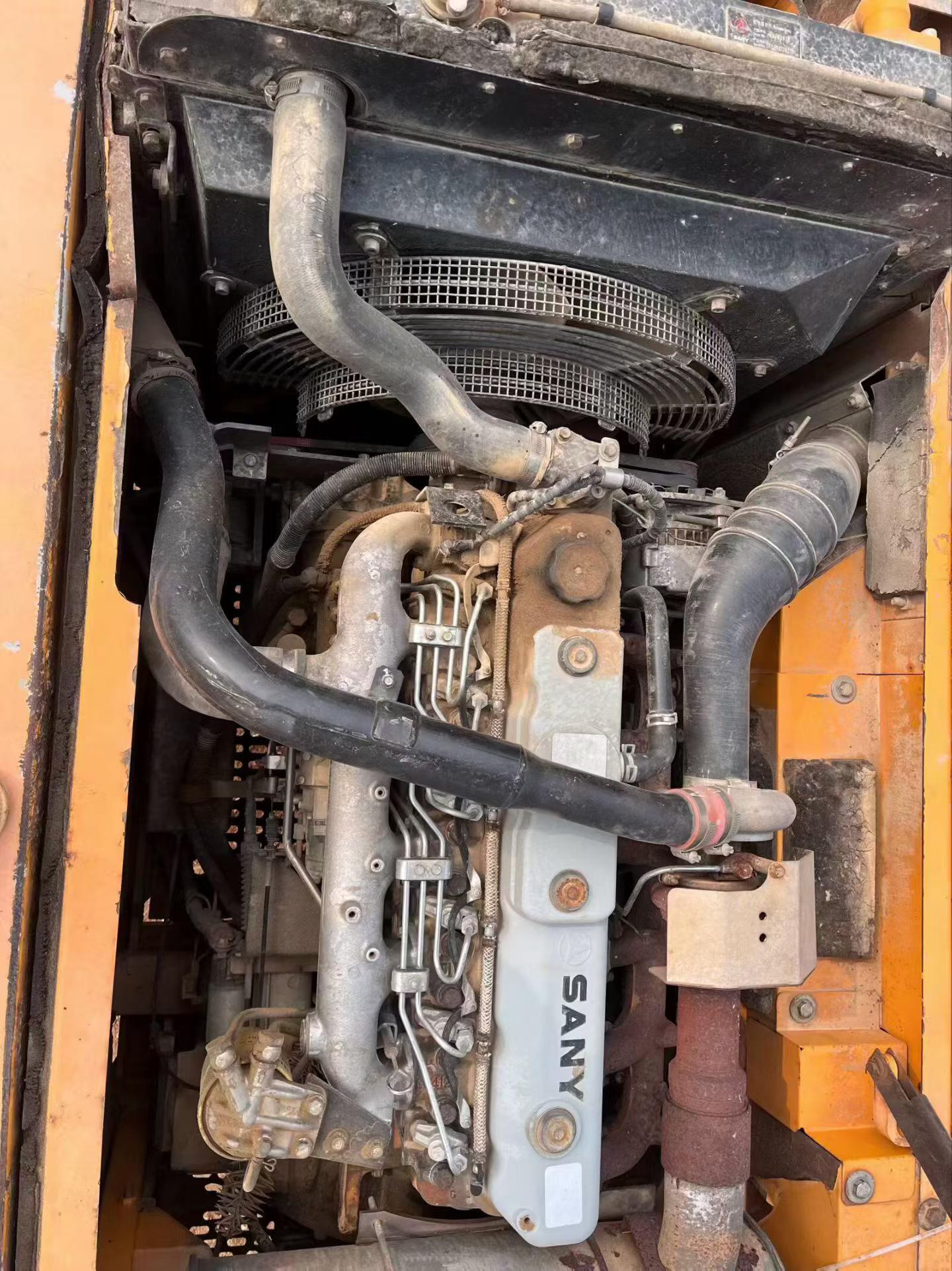

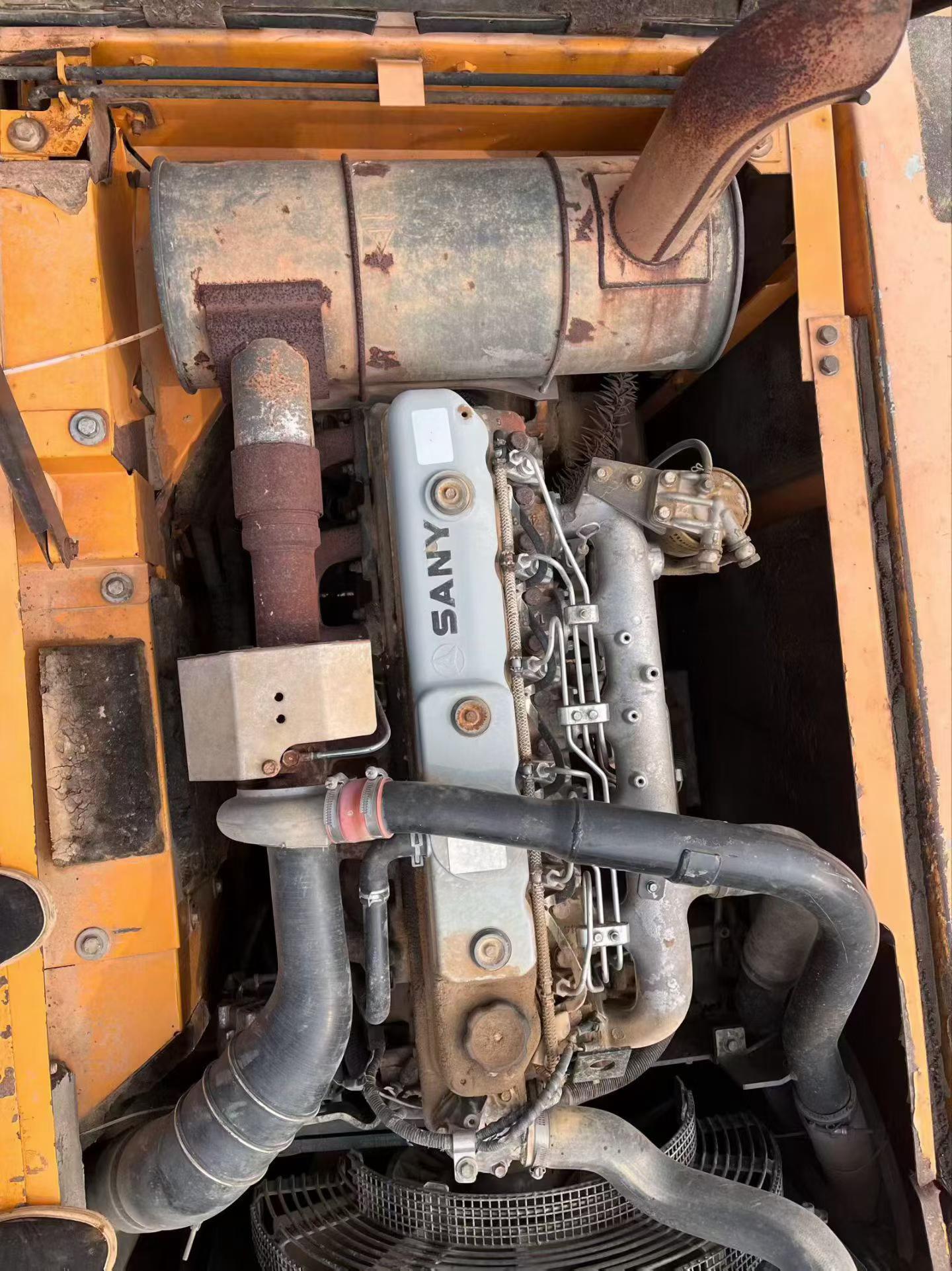

Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3

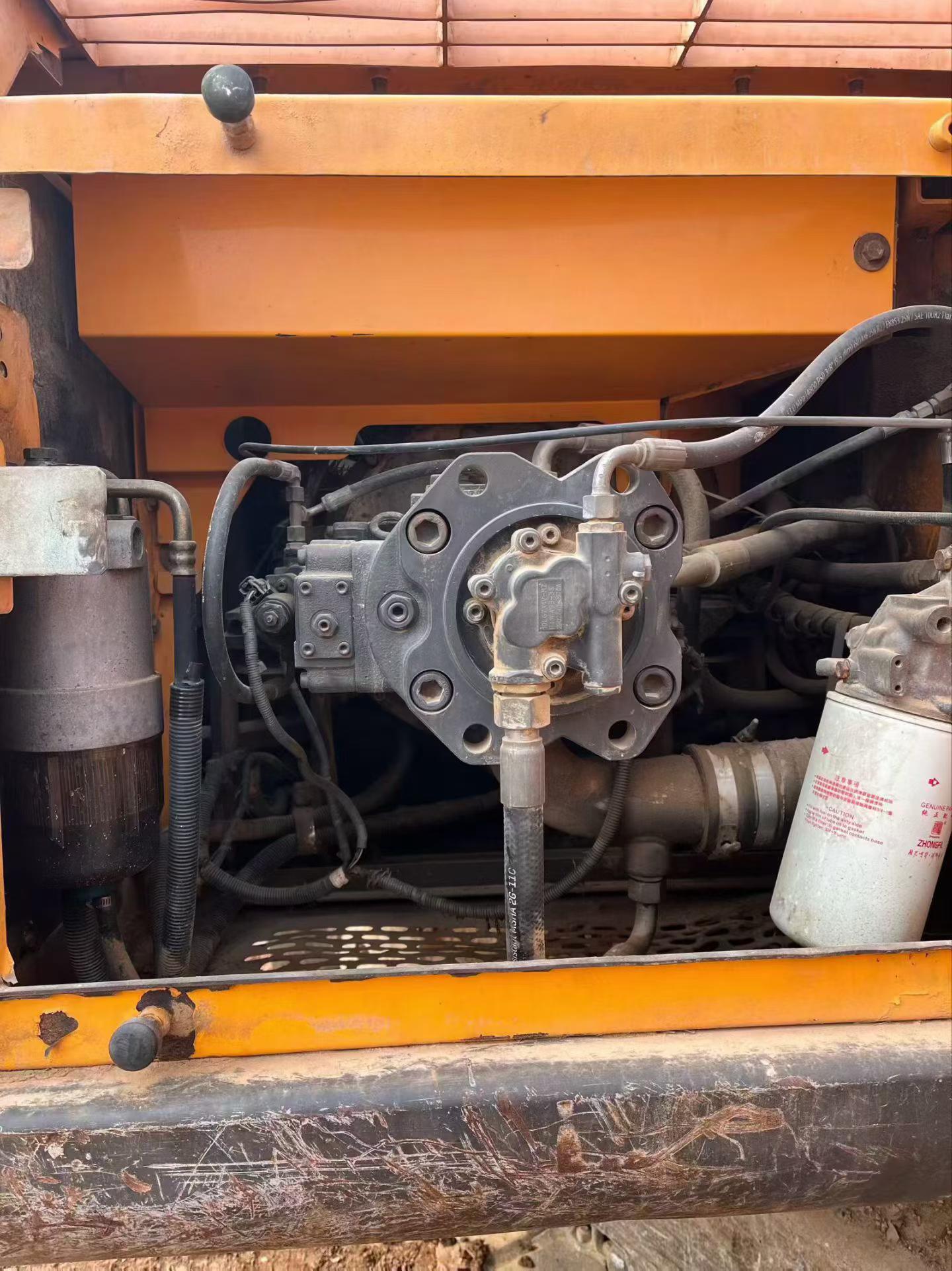

Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956

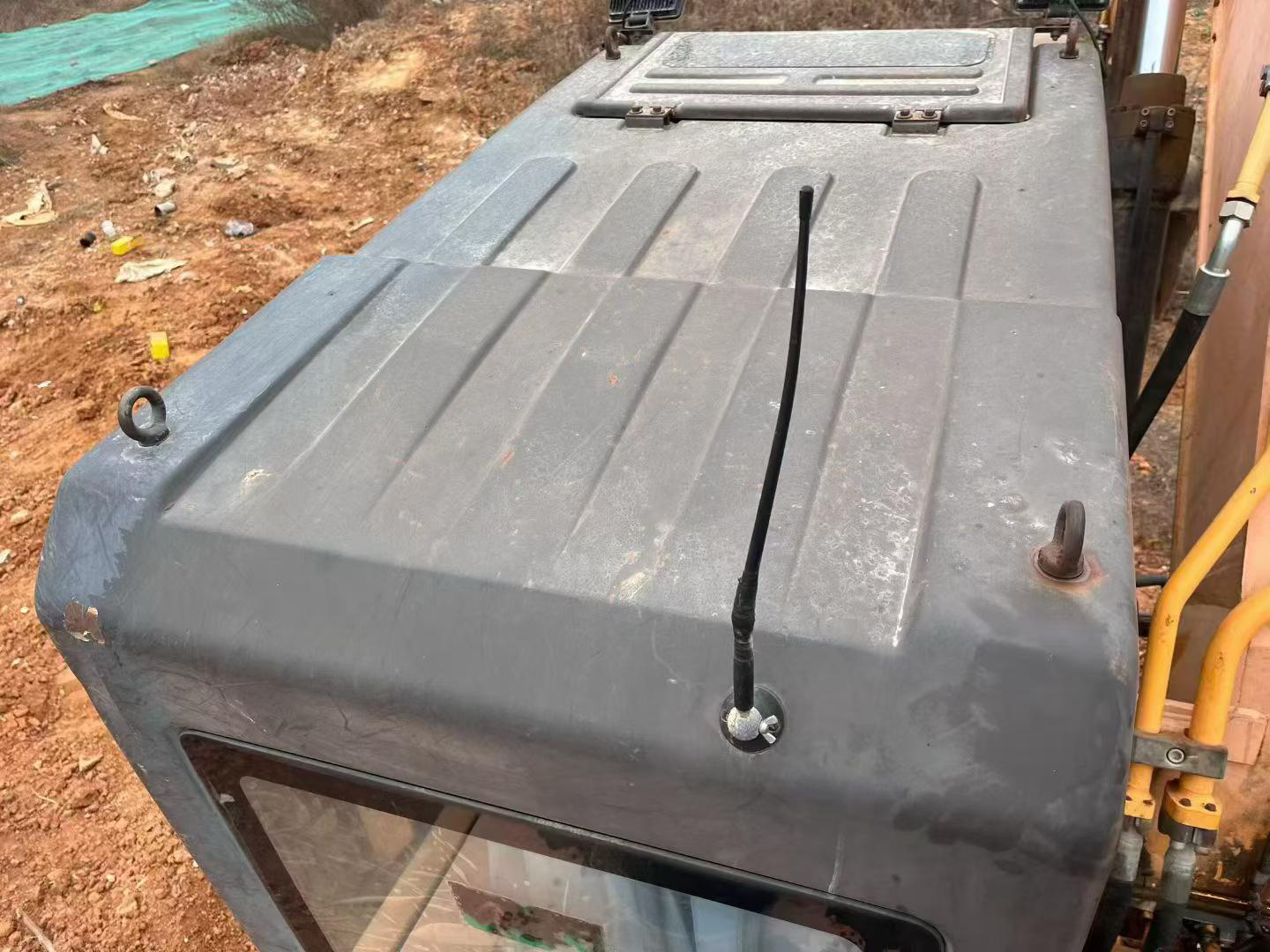

Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750

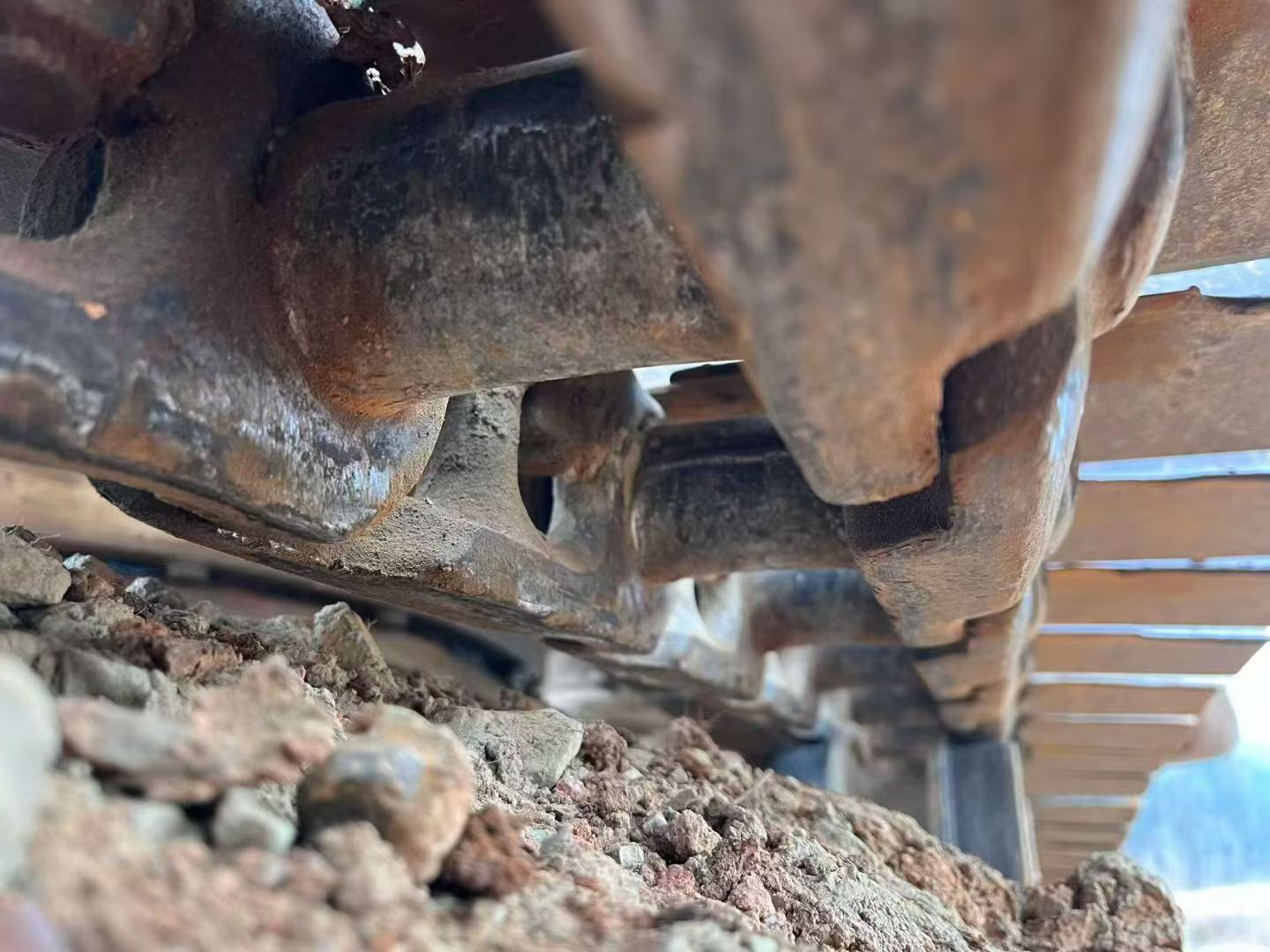

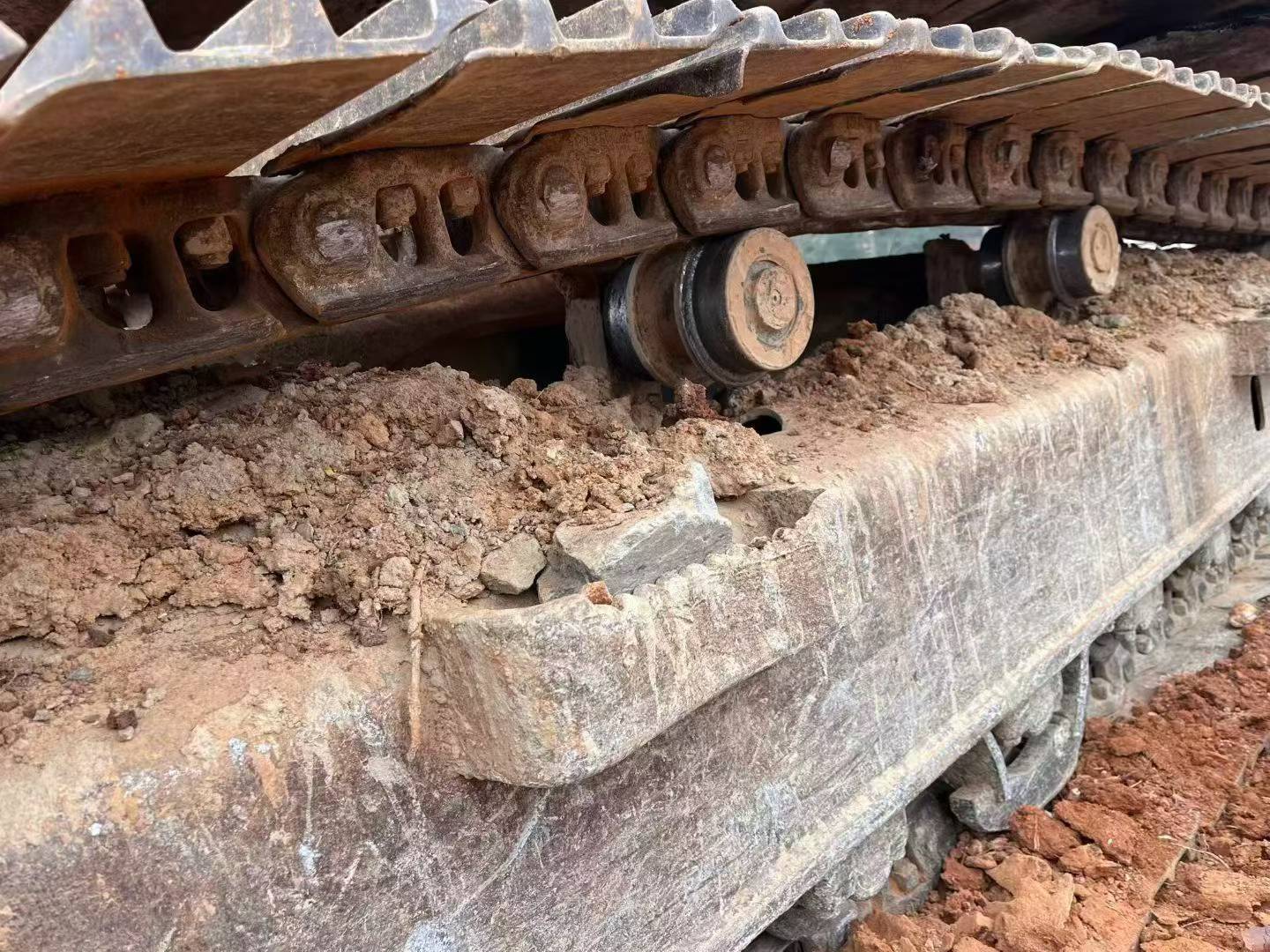

Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1043070

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2014

Location:

Hunan China

Pub Date
