Product Description

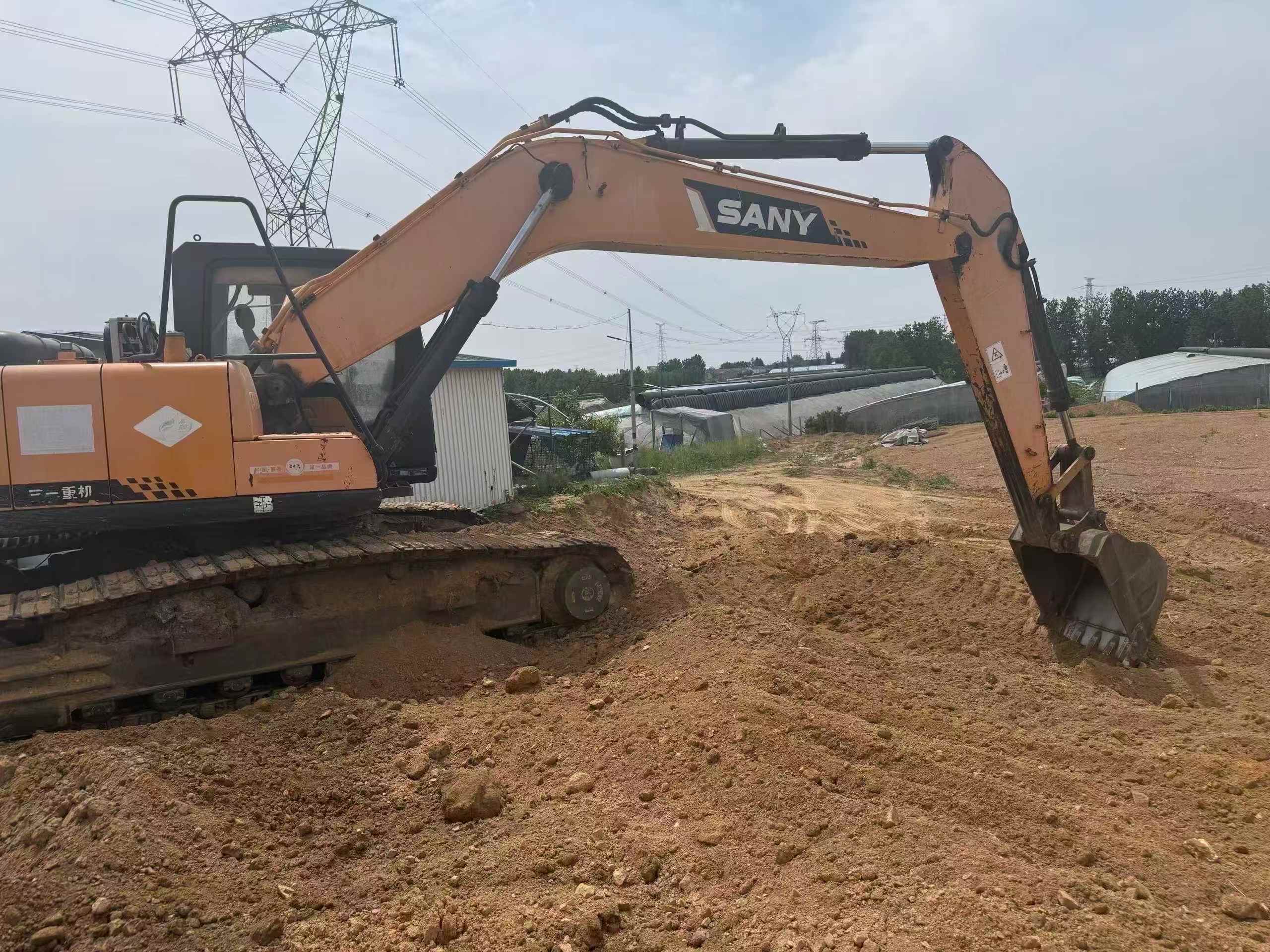

With a working weight of 20,900 kg and a bucket capacity of 0.93 m³, the Sany SY215C-8 excavator, manufactured in 2014, stands as a reliable choice for demanding construction projects. Powered by a Mitsubishi 6D34-TL engine, this machine delivers 114 kW at 2050 rpm, ensuring robust performance. Originating from Kunshan in Jiangsu Province, China, Sany is known for its durable builds and wide parts availability, making maintenance and repairs straightforward. The SY215C-8 boasts a maximum digging depth of 6630 mm and a travel speed of up to 5.5 km/h, enhancing productivity on any job site. Its resale value remains strong, reflecting Sany's commitment to quality and reliability. This excavator is equipped with a backhoe bucket and features a water-cooled engine, further ensuring long-term operational efficiency.
| Specifications | Value |
|---|---|
| No. | 1057060 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

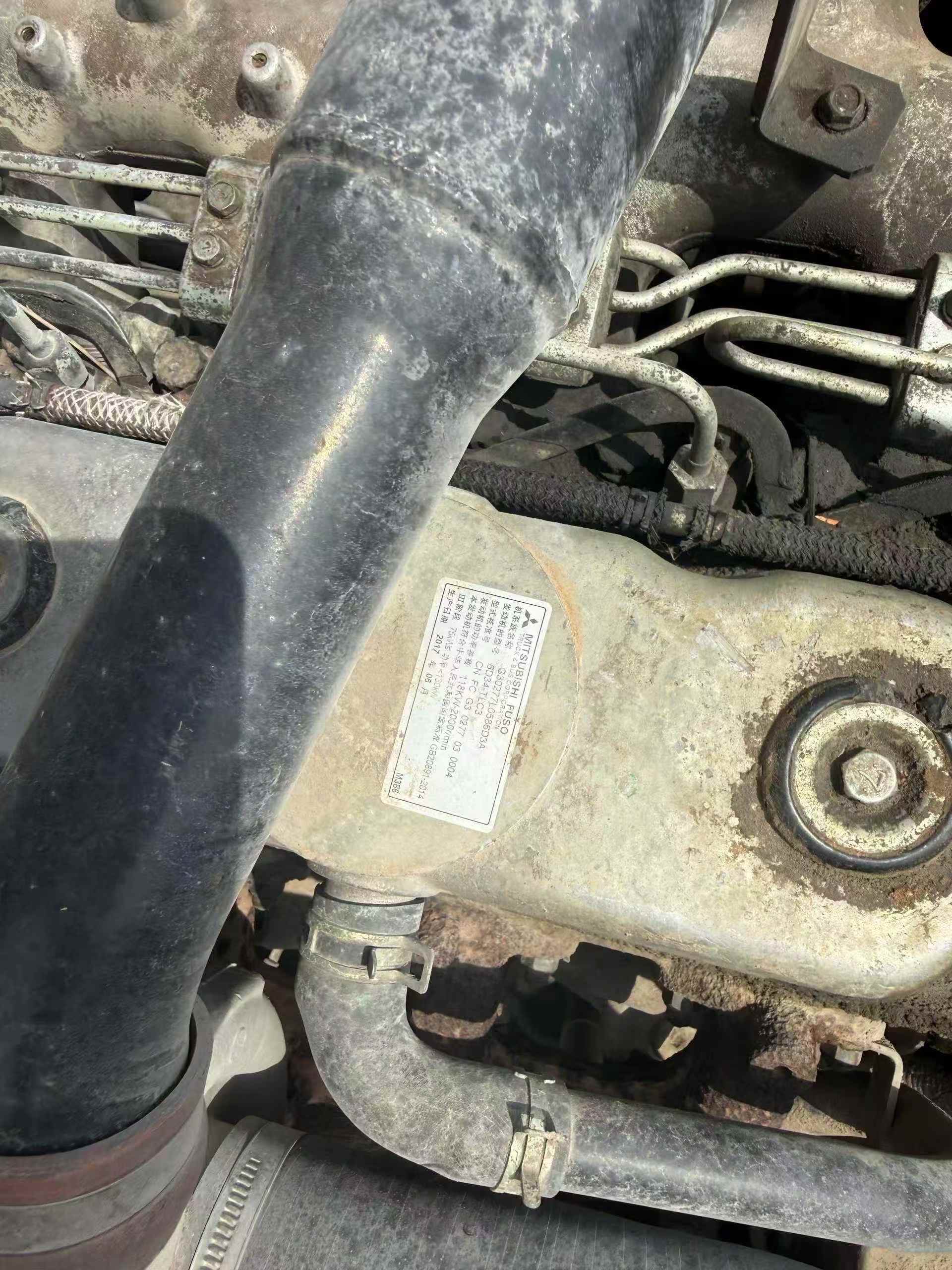

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
