2015 Sany SY215C-8

1/9

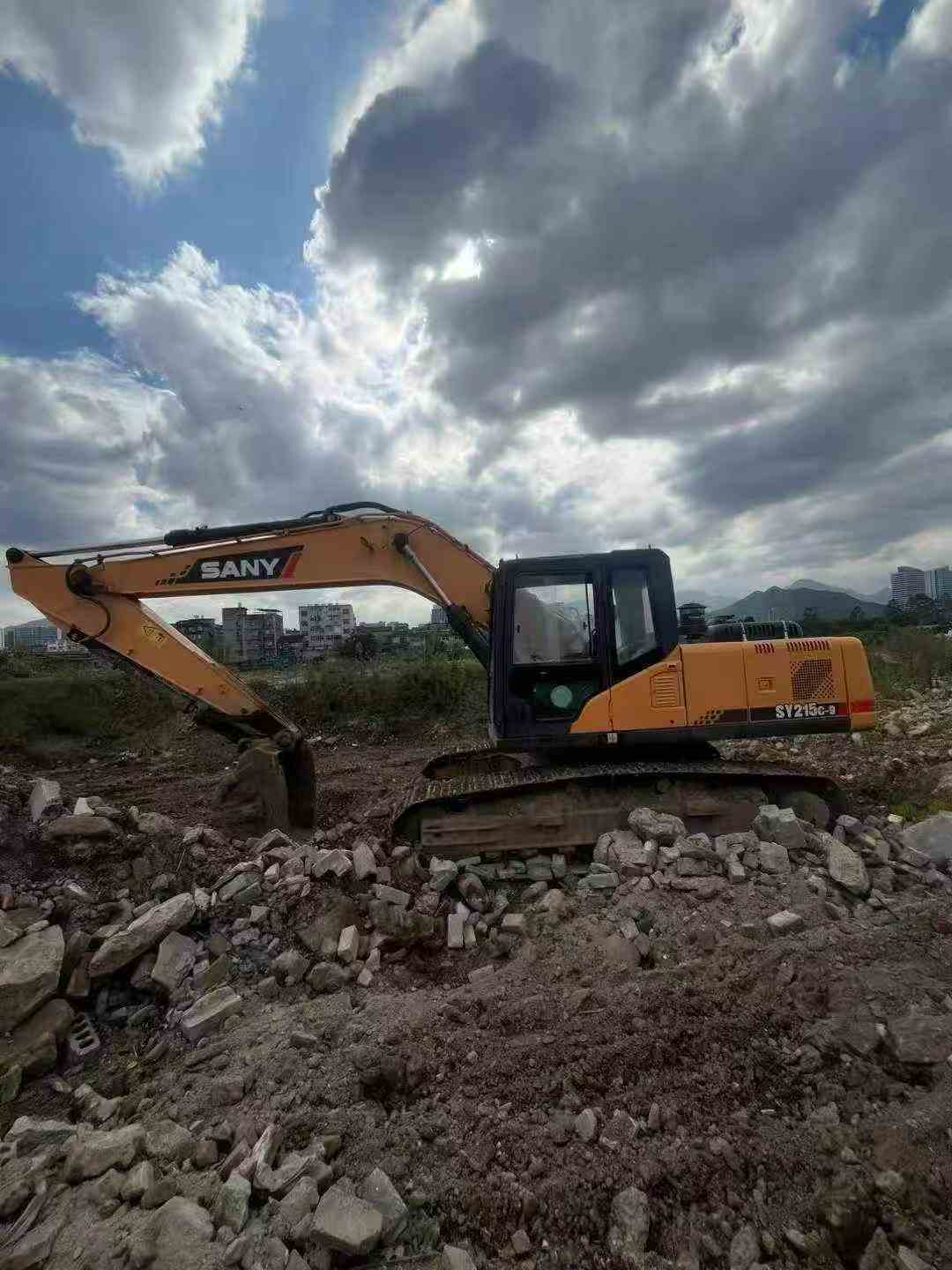

Buy Sany SY215C-8 Used Excavator / 1

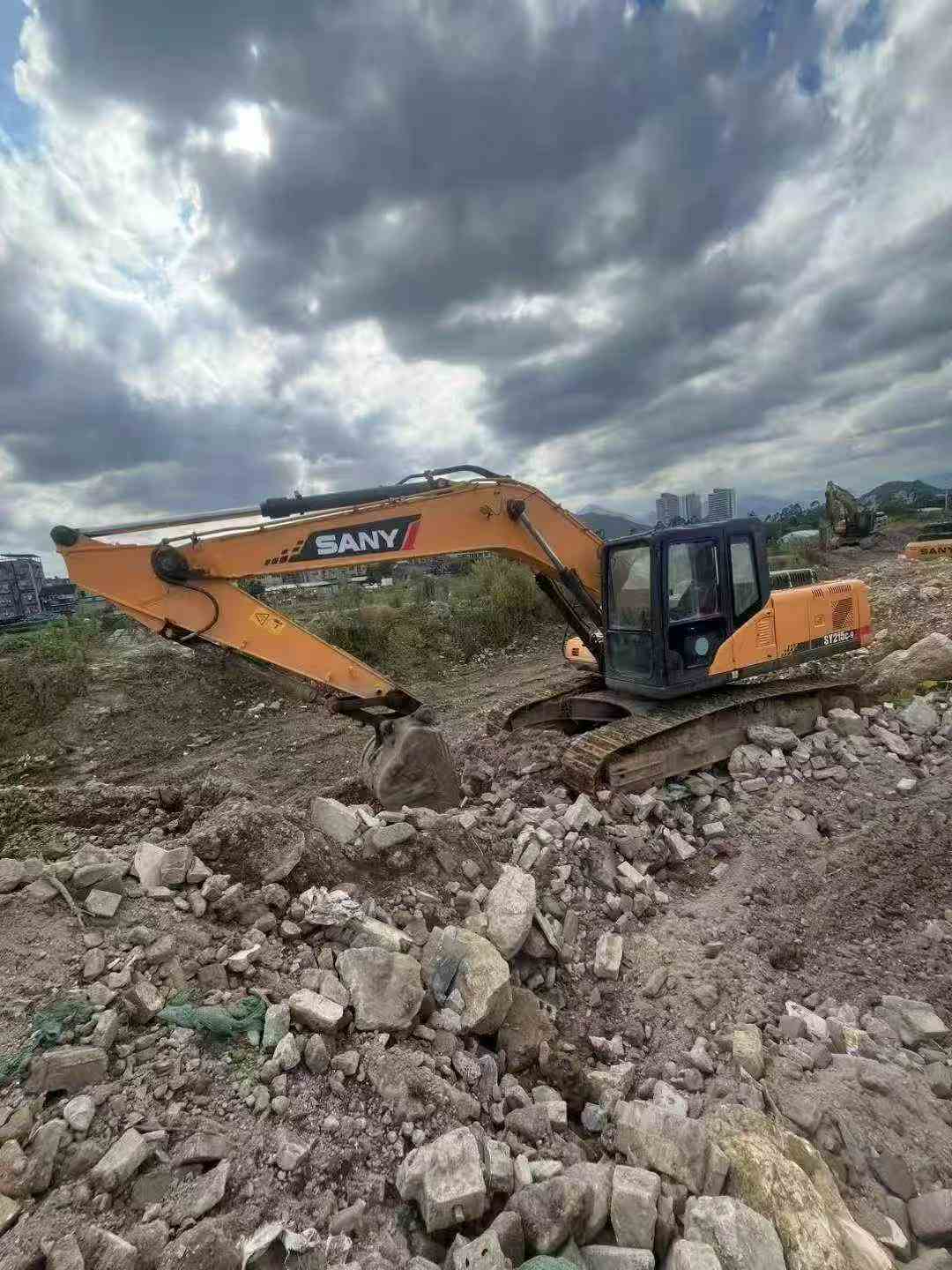

Buy Sany SY215C-8 Used Excavator / 2

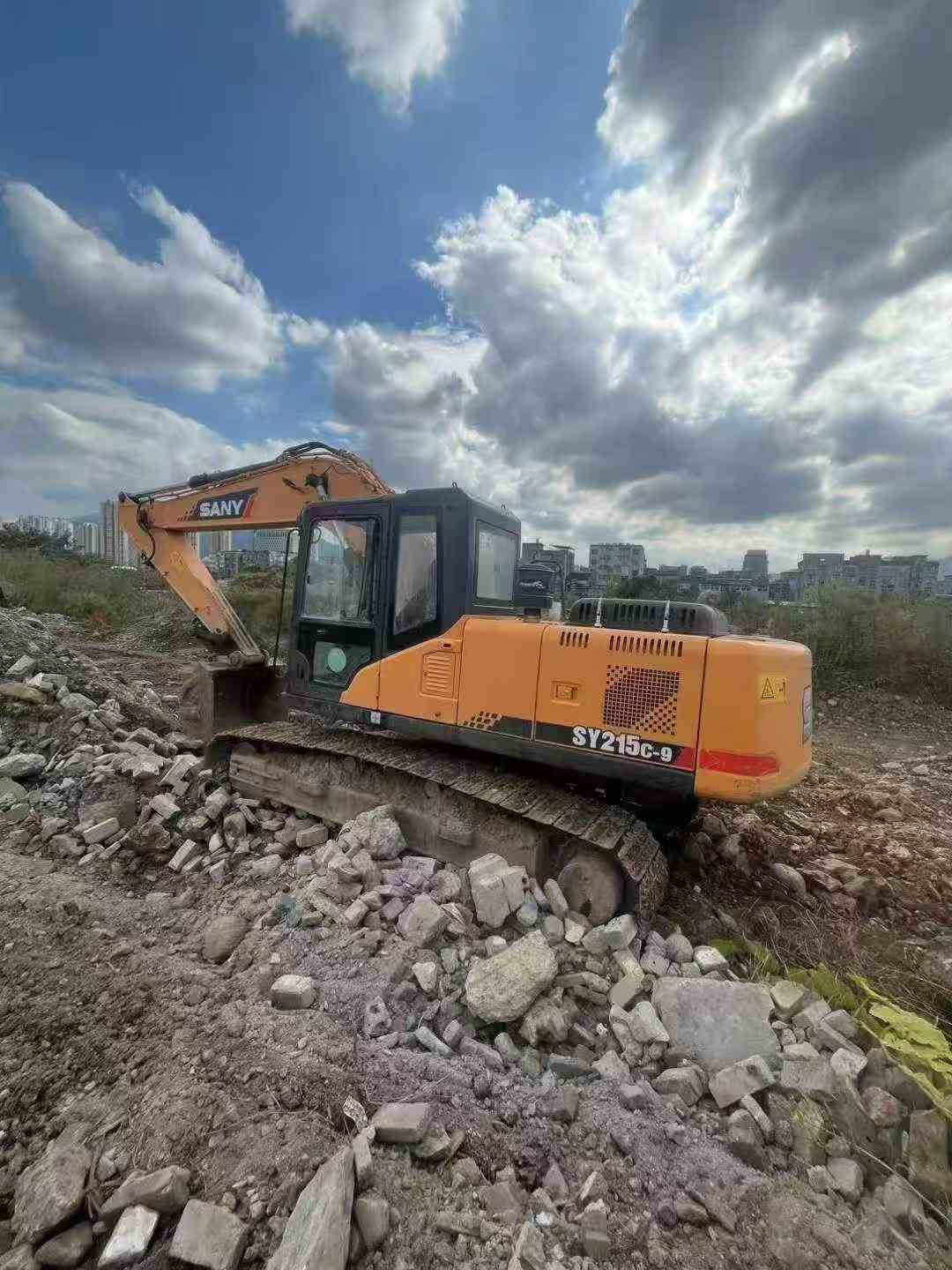

Buy Sany SY215C-8 Used Excavator / 3

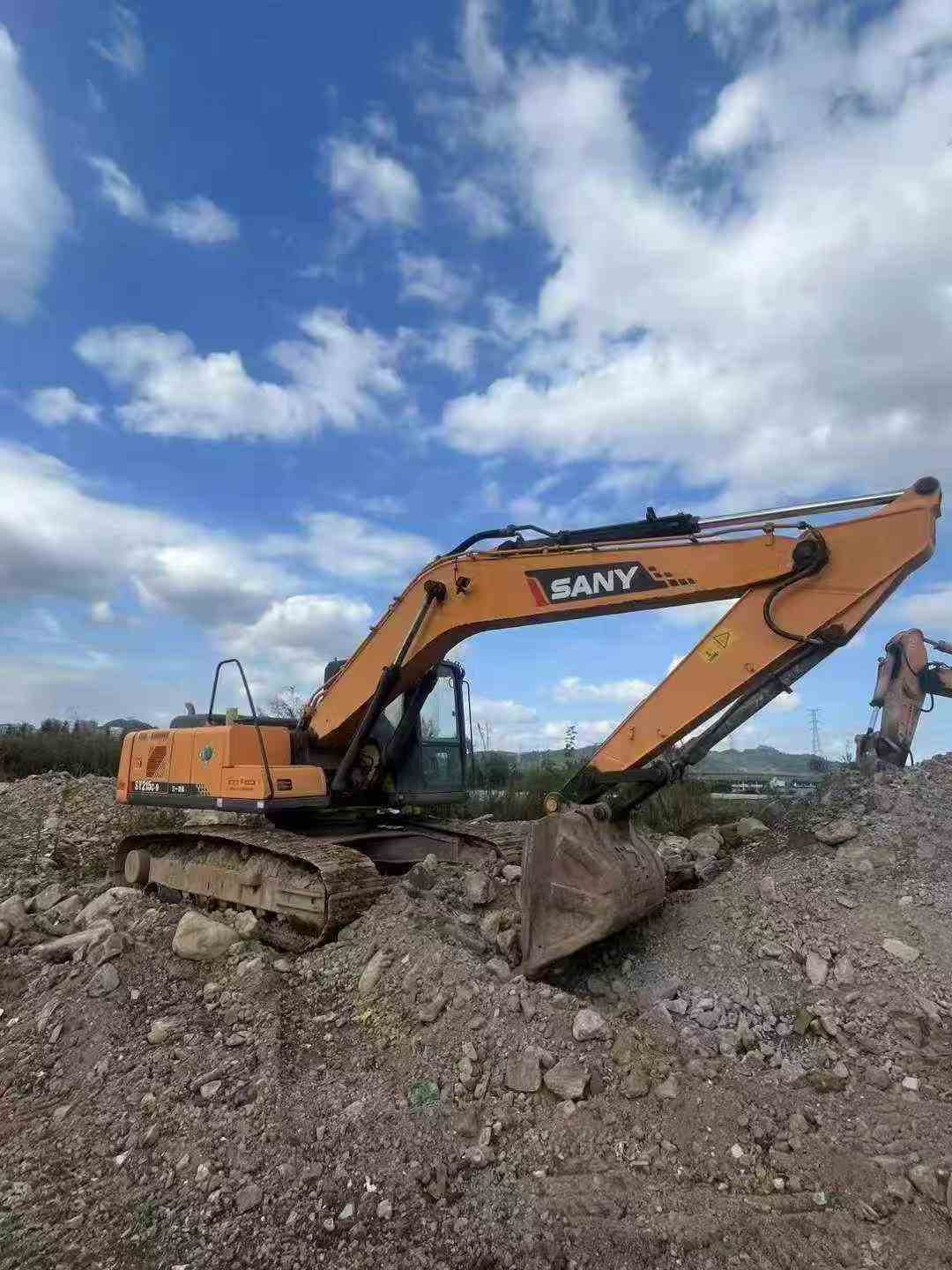

Buy Sany SY215C-8 Used Excavator / 4

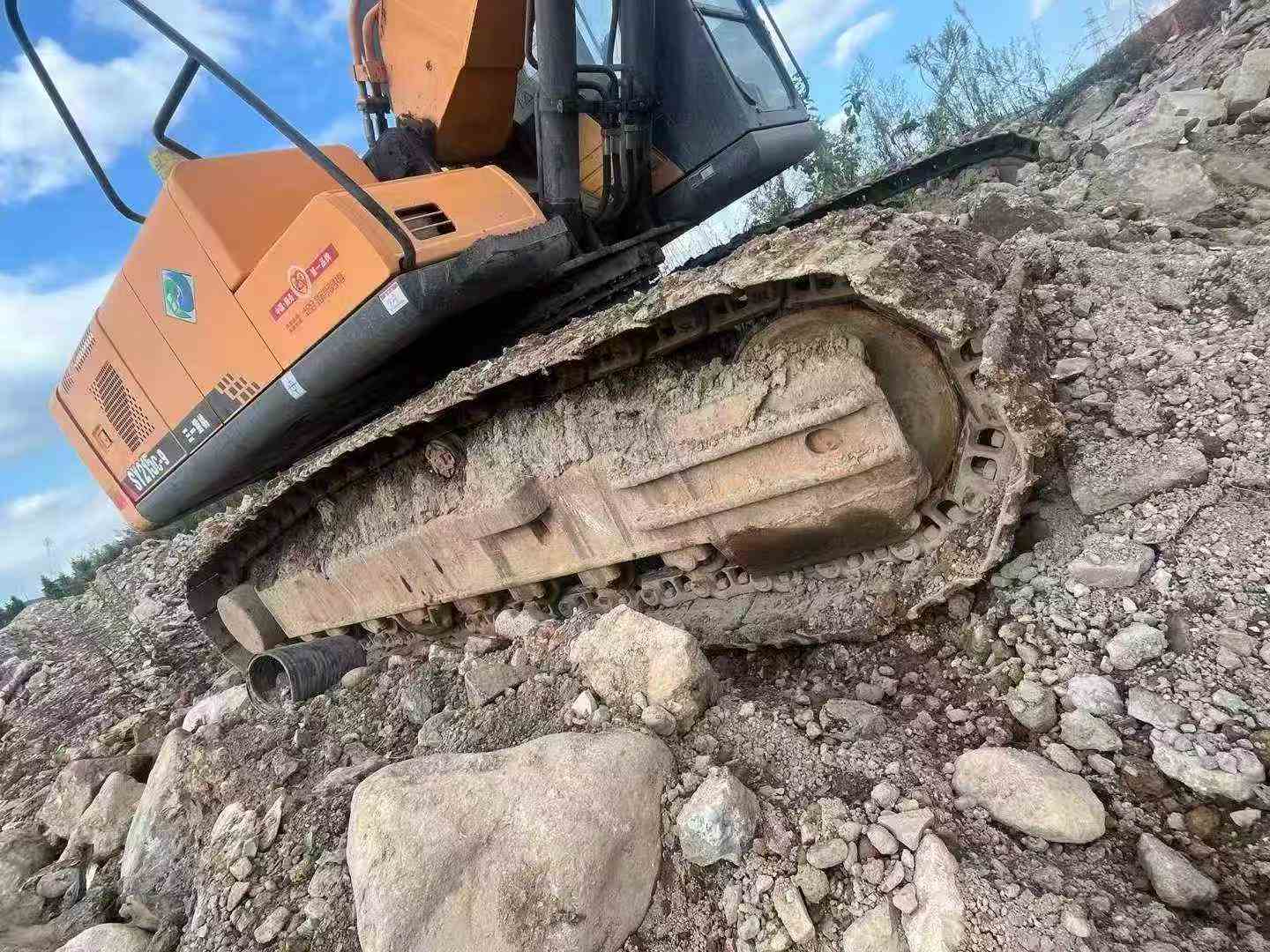

Buy Sany SY215C-8 Used Excavator / 5

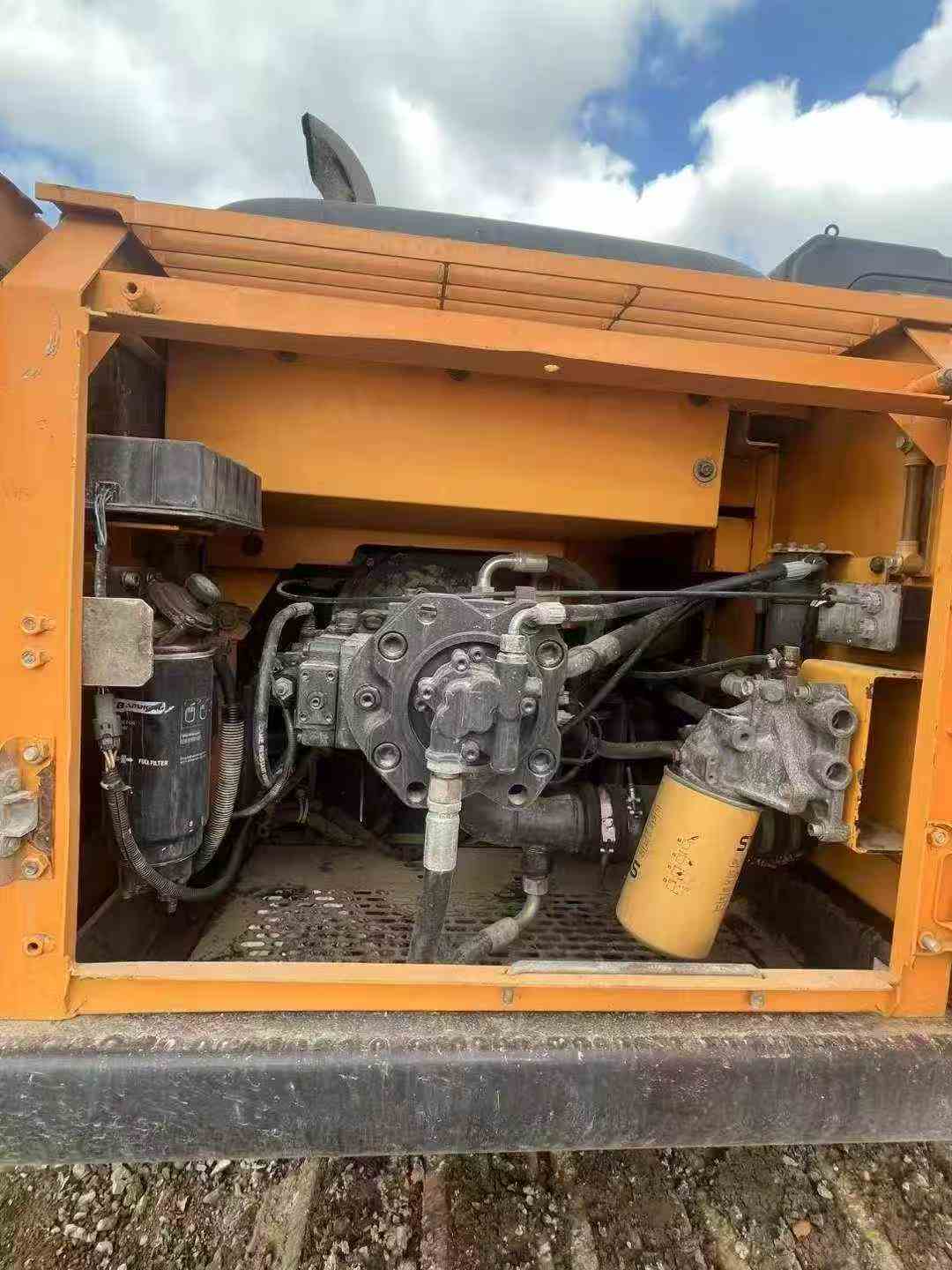

Buy Sany SY215C-8 Used Excavator / 6

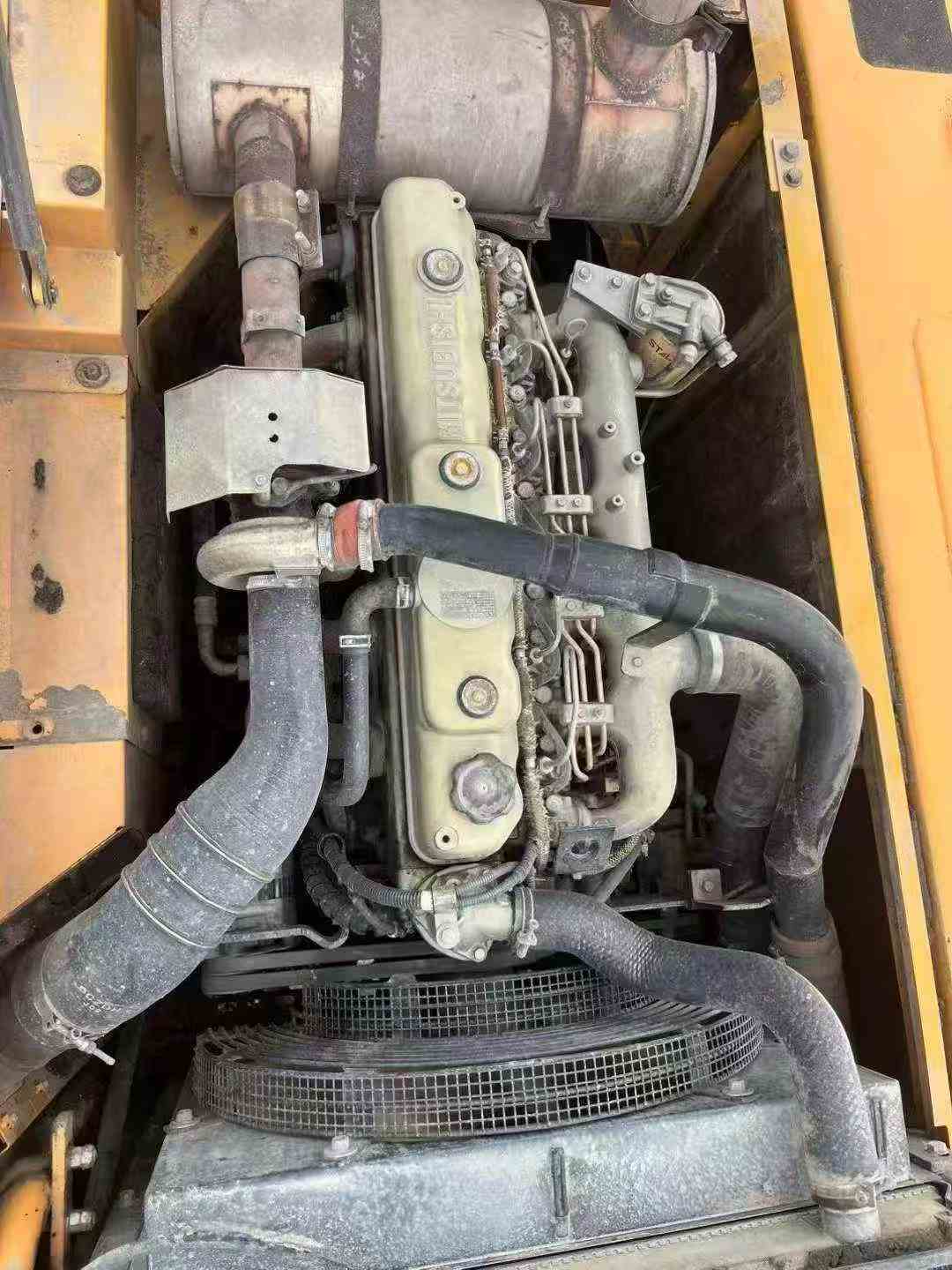

Buy Sany SY215C-8 Used Excavator / 7

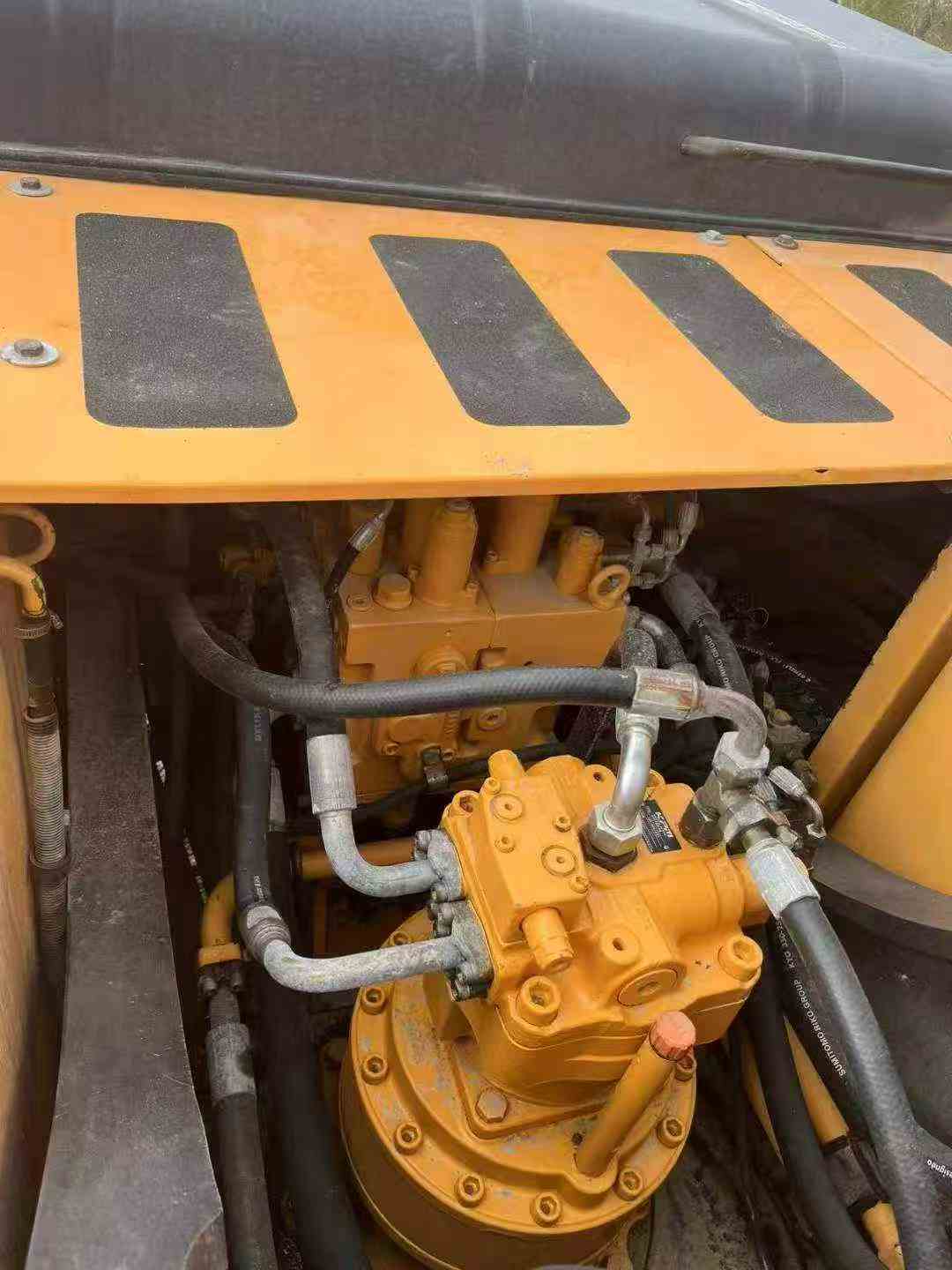

Buy Sany SY215C-8 Used Excavator / 8

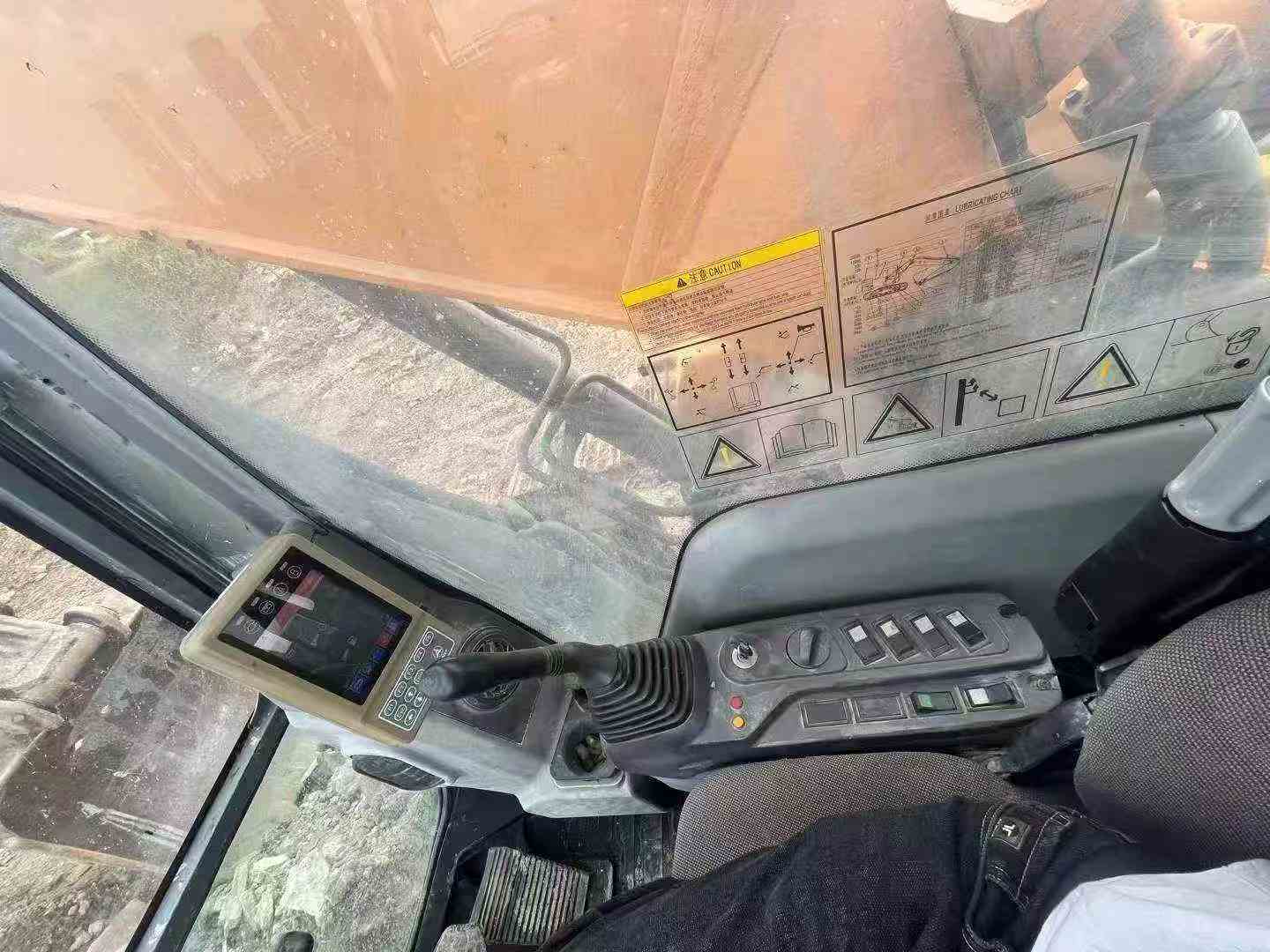

Buy Sany SY215C-8 Used Excavator / 9

Product Description

Proven in demanding conditions since 2015, this Sany SY215C-8 excavator demonstrates exceptional build quality and long-term reliability. Operating at 21 tons with a robust 20,900 kg working weight, this workhorse combines Mitsubishi 6D34-TL engine power (114 kw at 2050 rpm) with hydraulic precision engineered for sustained performance. Built to last through rigorous applications, it delivers 138 kN bucket digging force and reaches 9,885 mm maximum digging radius—specifications that remain consistent year after year.

  • Proven Power: Mitsubishi 6D34-TL engine with water-cooling system ensures durability
  • Reliable Hydraulics: Dual 210 l/min main pumps with 34.3 Mpa circuit pressure
  • Versatile Reach: 6,630 mm maximum digging depth, 9,305 mm excavation height
  • Stable Performance: 0.93 m³ bucket capacity, 70% climbing ability
  • Field-Tested Design: 440 mm ground clearance, 2,750 mm turning radius for confined sites
  • Location: Currently in Wenzhou, Zhejiang, China

Years of operation validate this machine's construction quality. Ready for your next project with t

SpecificationsValue
No.1047006
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1047006

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2015

Location:

Zhejiang China
