Product Description

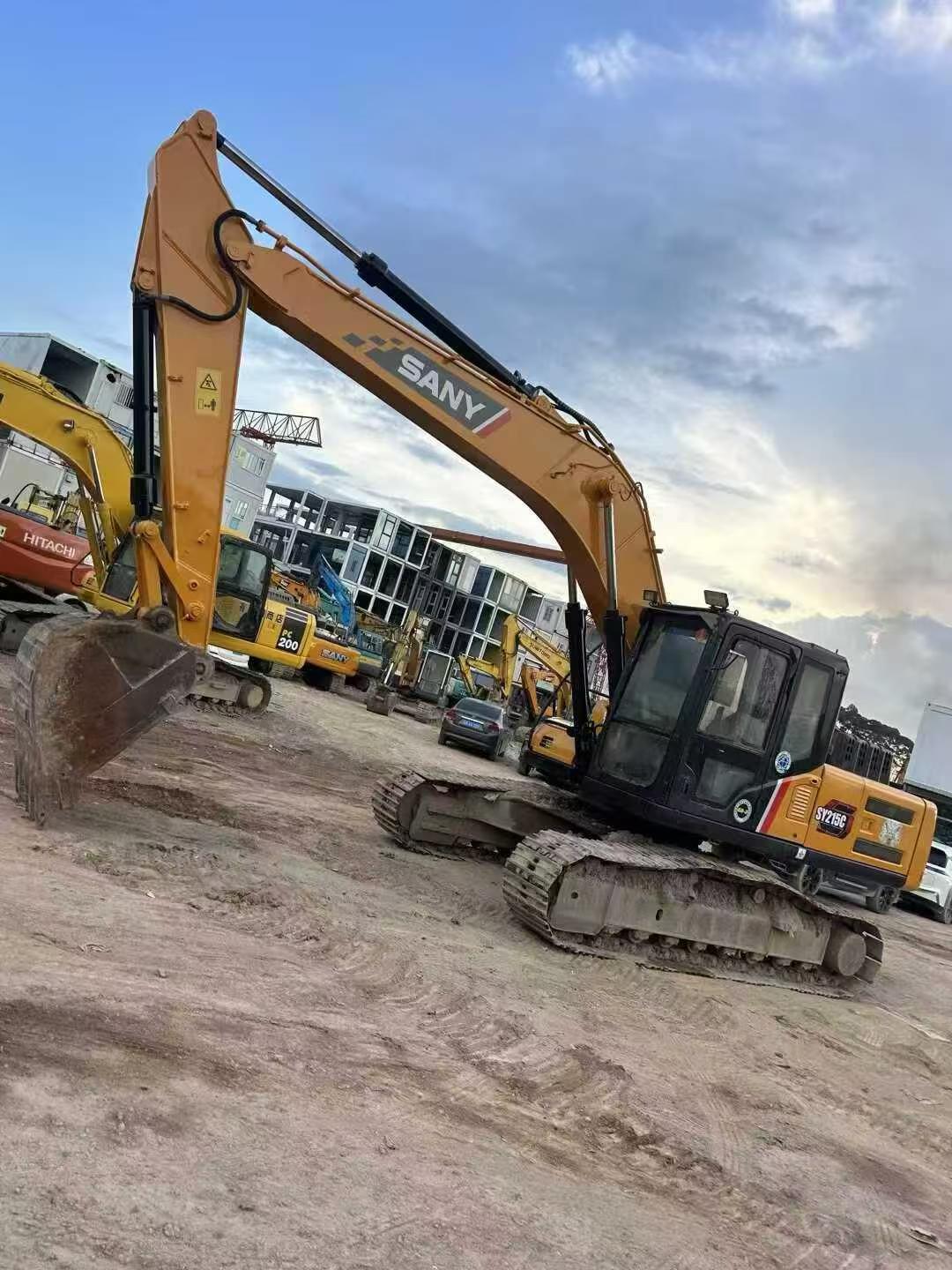

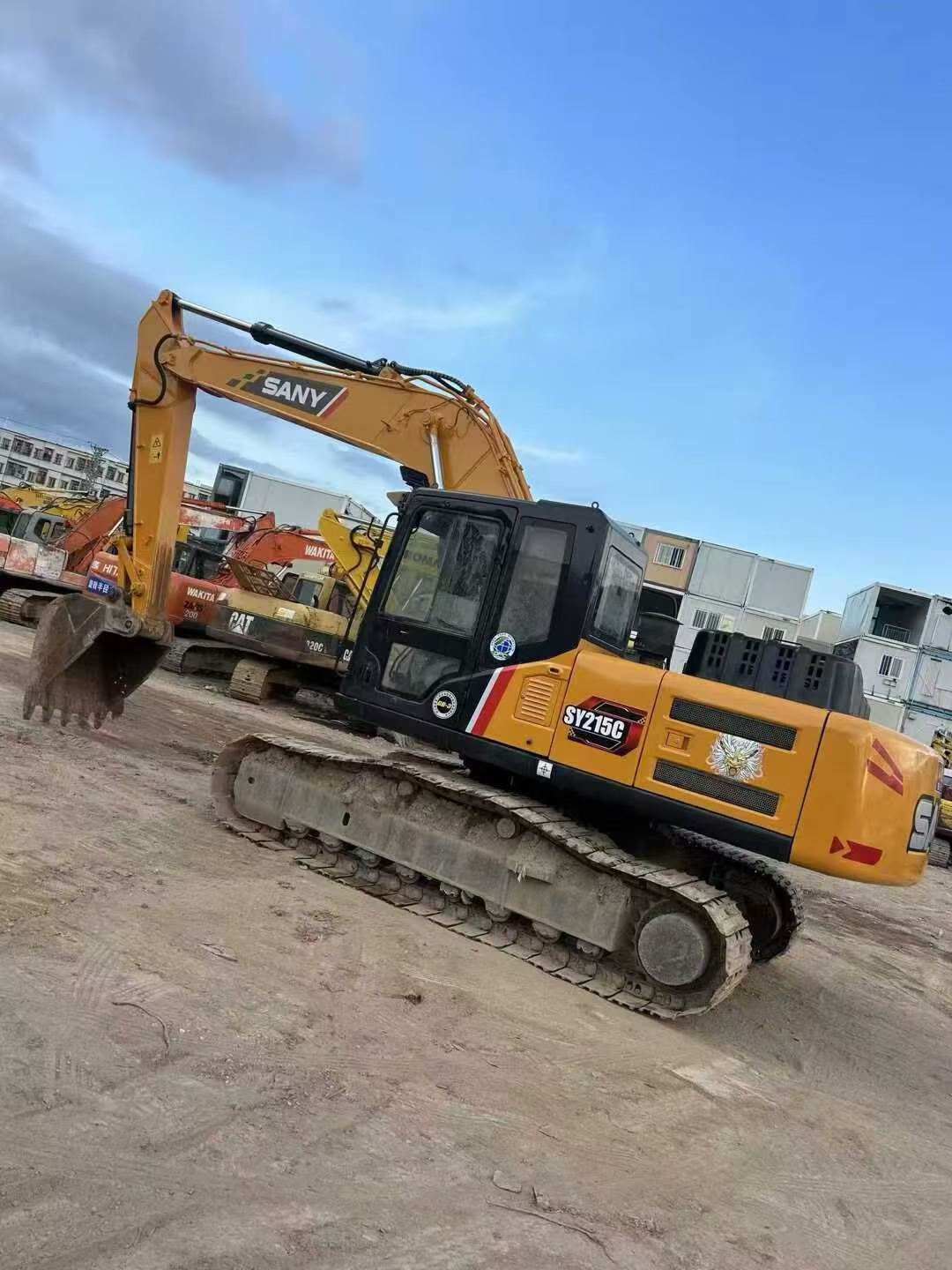

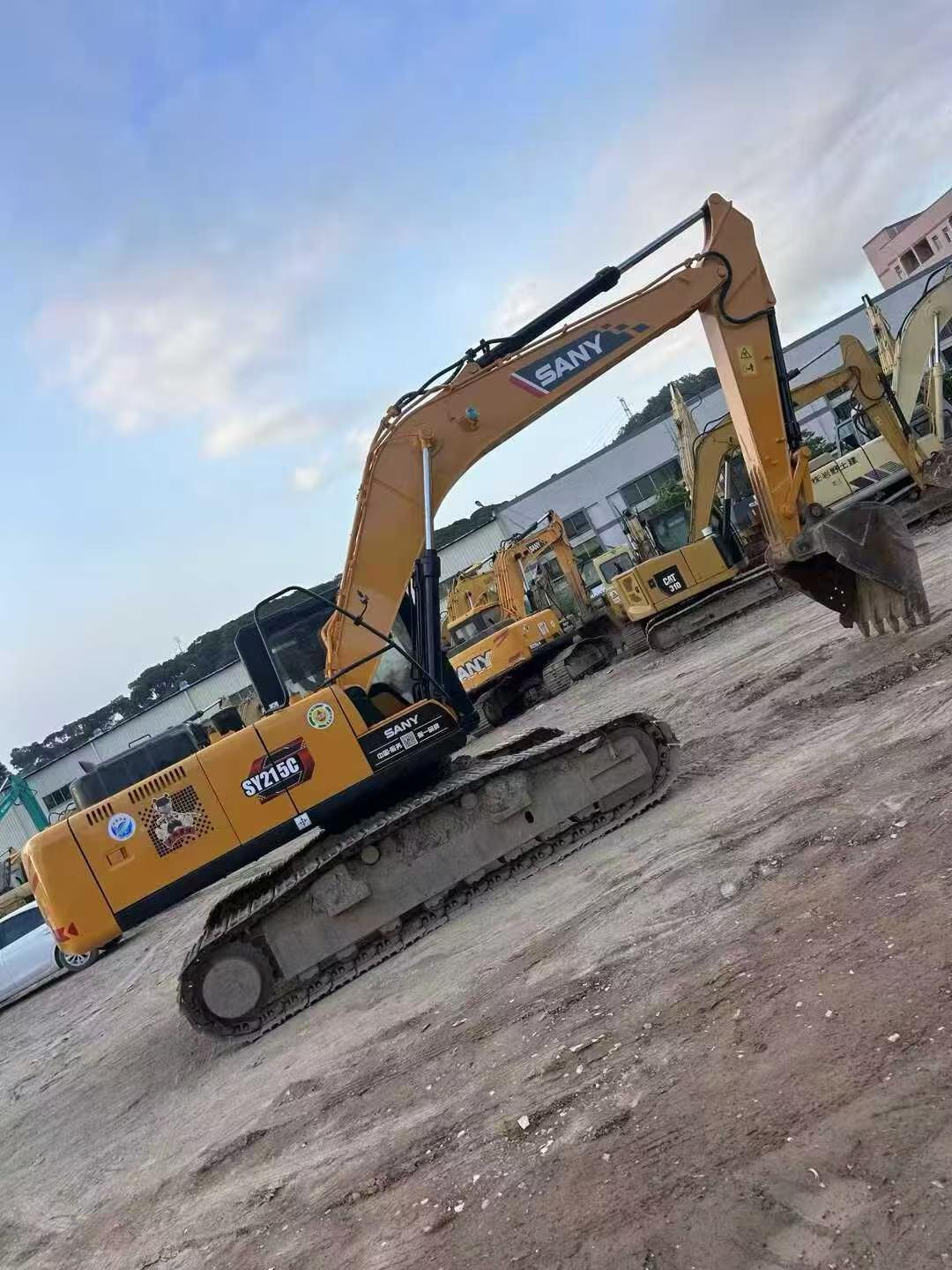

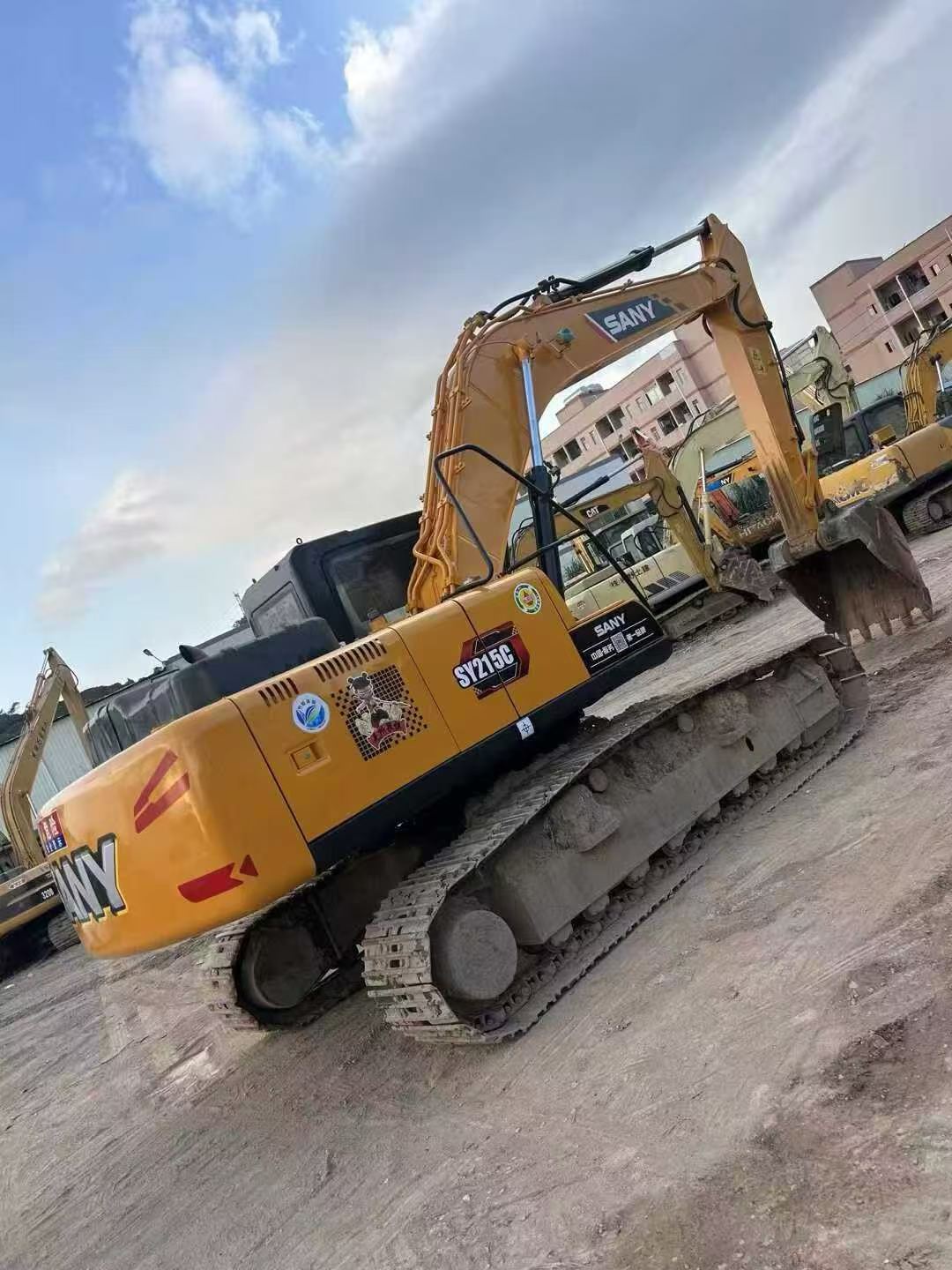

Proven through years of demanding work, this 2016 Sany SY215C-8 excavator demonstrates the lasting durability that serious contractors require. Operating at 21 tons with a robust Mitsubishi 6D34-TL engine delivering 114kW of rated power, this machine combines reliable Japanese engineering with Sany's proven hydraulic systems. Built in China's Kunshan facility, it features a 0.93m³ backhoe bucket and impressive digging specifications—9885mm maximum reach and 6630mm maximum depth—making it capable of handling substantial earthmoving projects.
- Powerful 138kN bucket digging force for tough soil conditions

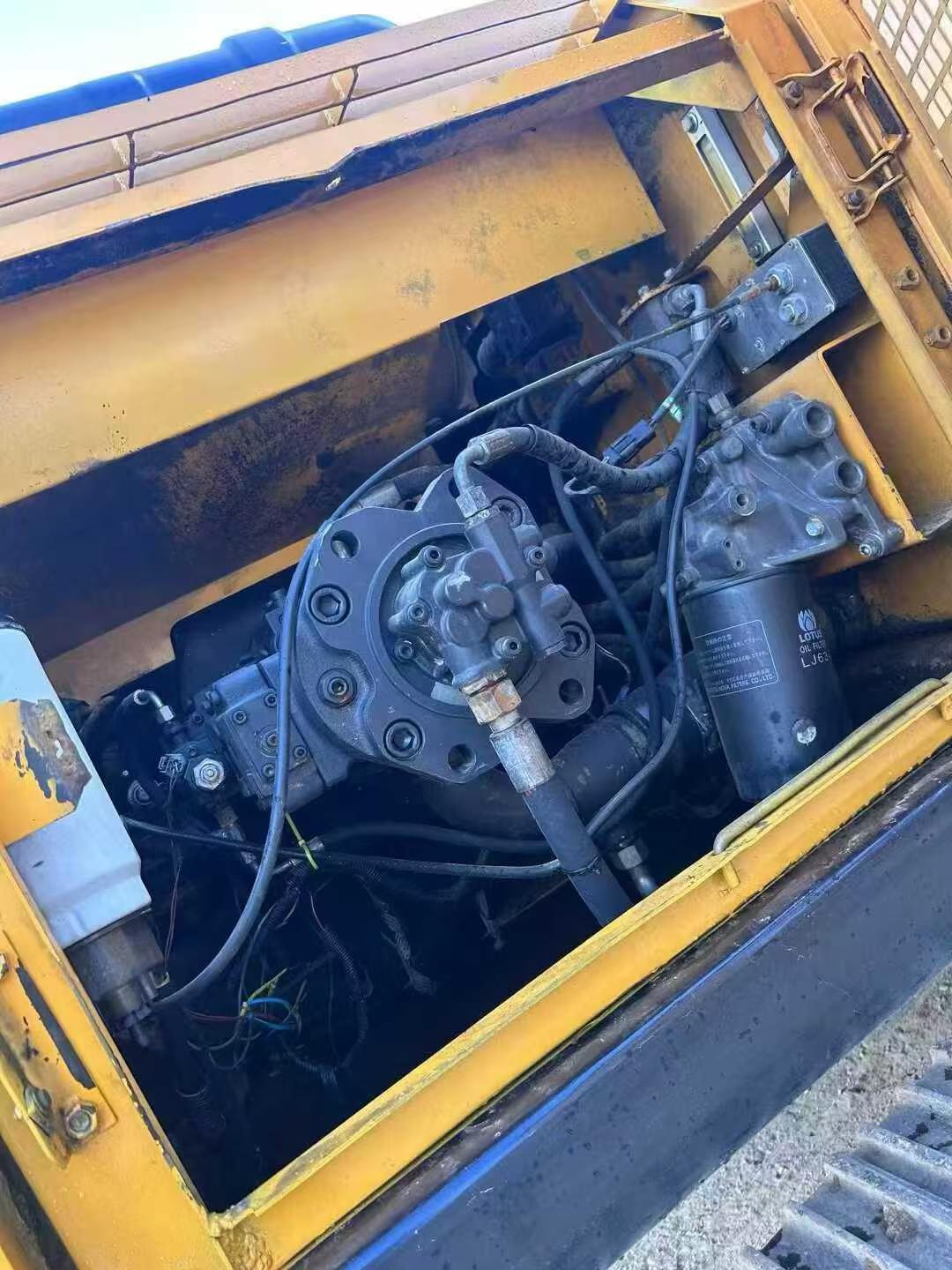

- Dual main pumps providing 2x210 l/min flow for responsive hydraulics
- Water-cooled engine ensuring consistent performance in extended operations
- 70% climbing ability (35°) for challenging terrain access
- Compact 2750mm rear turning radius for confined jobsite maneuverability
- Currently located in Huizhou, Guangdong, ready for deployment
With eight years of operational history behind it, this SY215C-8 represents a workhorse that's built to continue delivering productivity. Its proven track record speaks to construction-grade reliability at a value-driven
| Specifications | Value |
|---|---|
| No. | 1024899 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

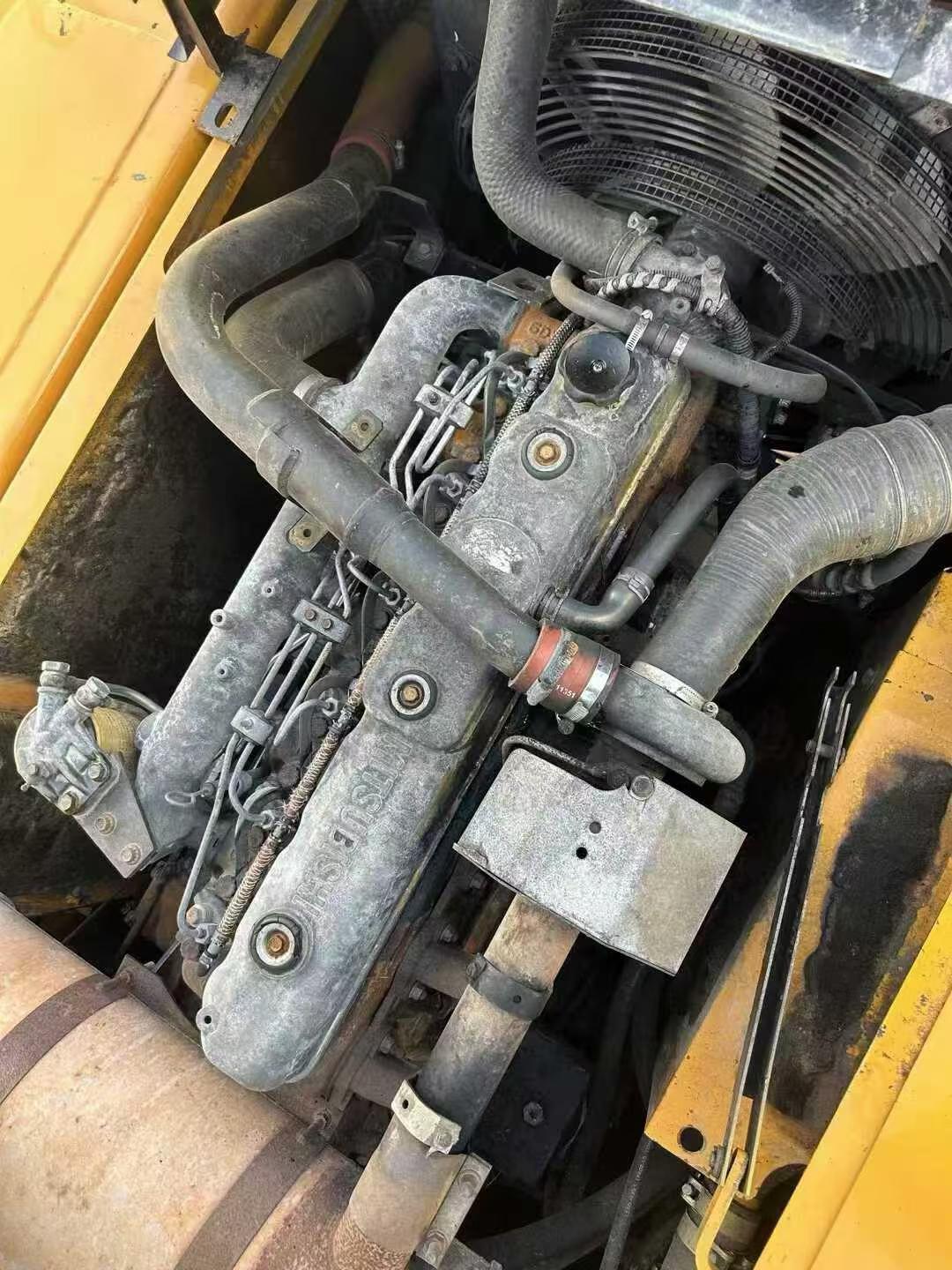

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |

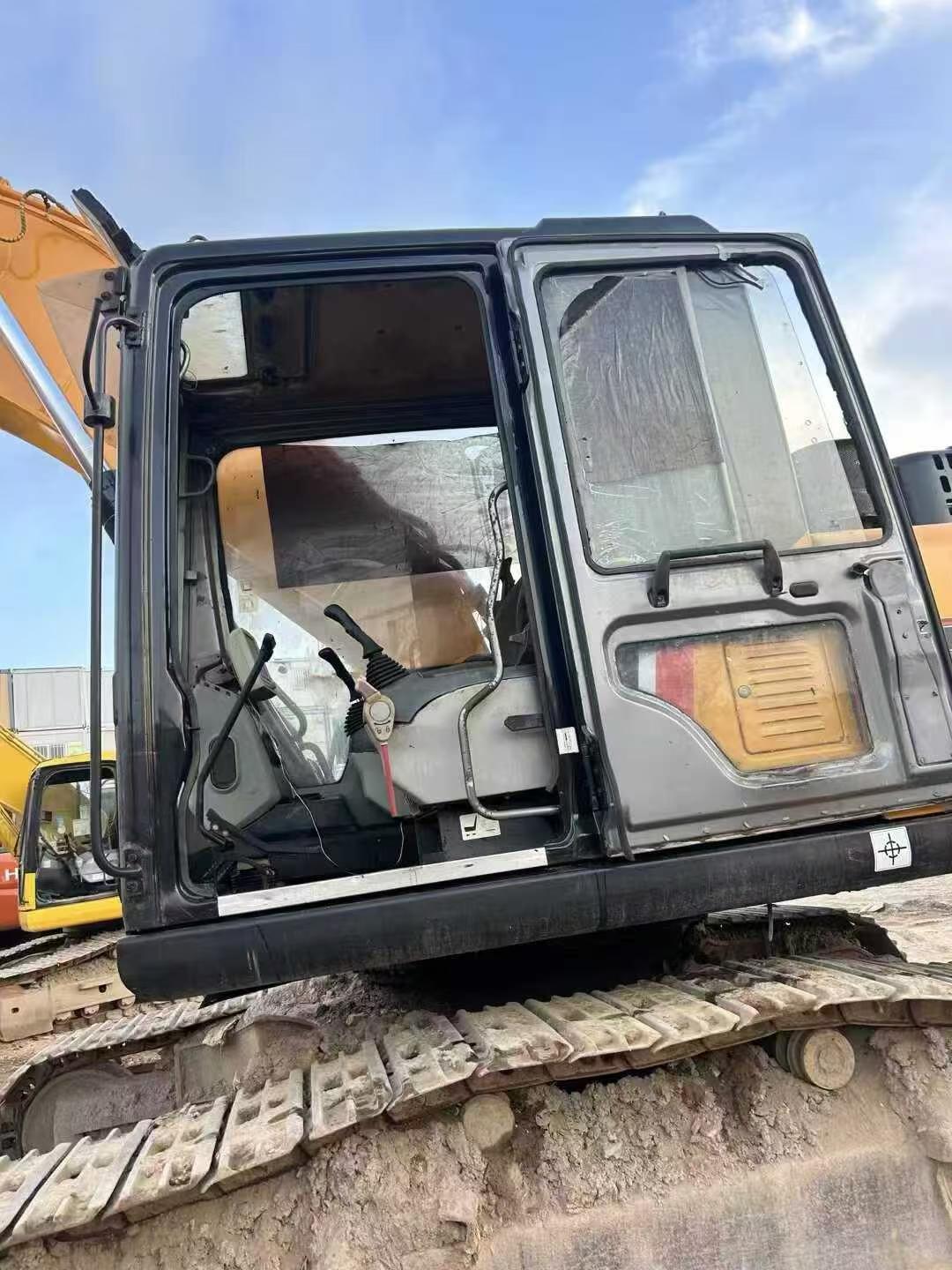

| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |

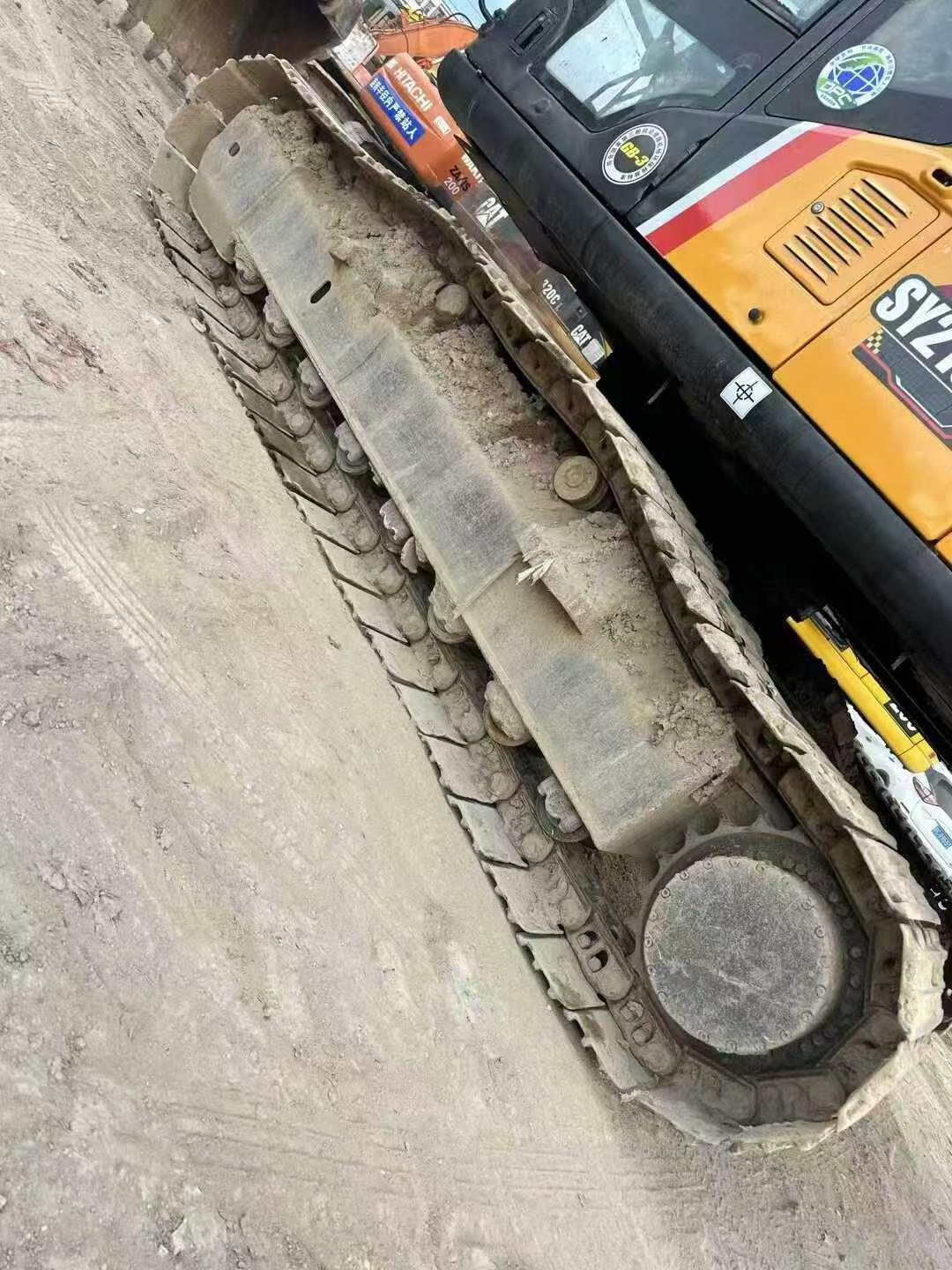

| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
