Product Description

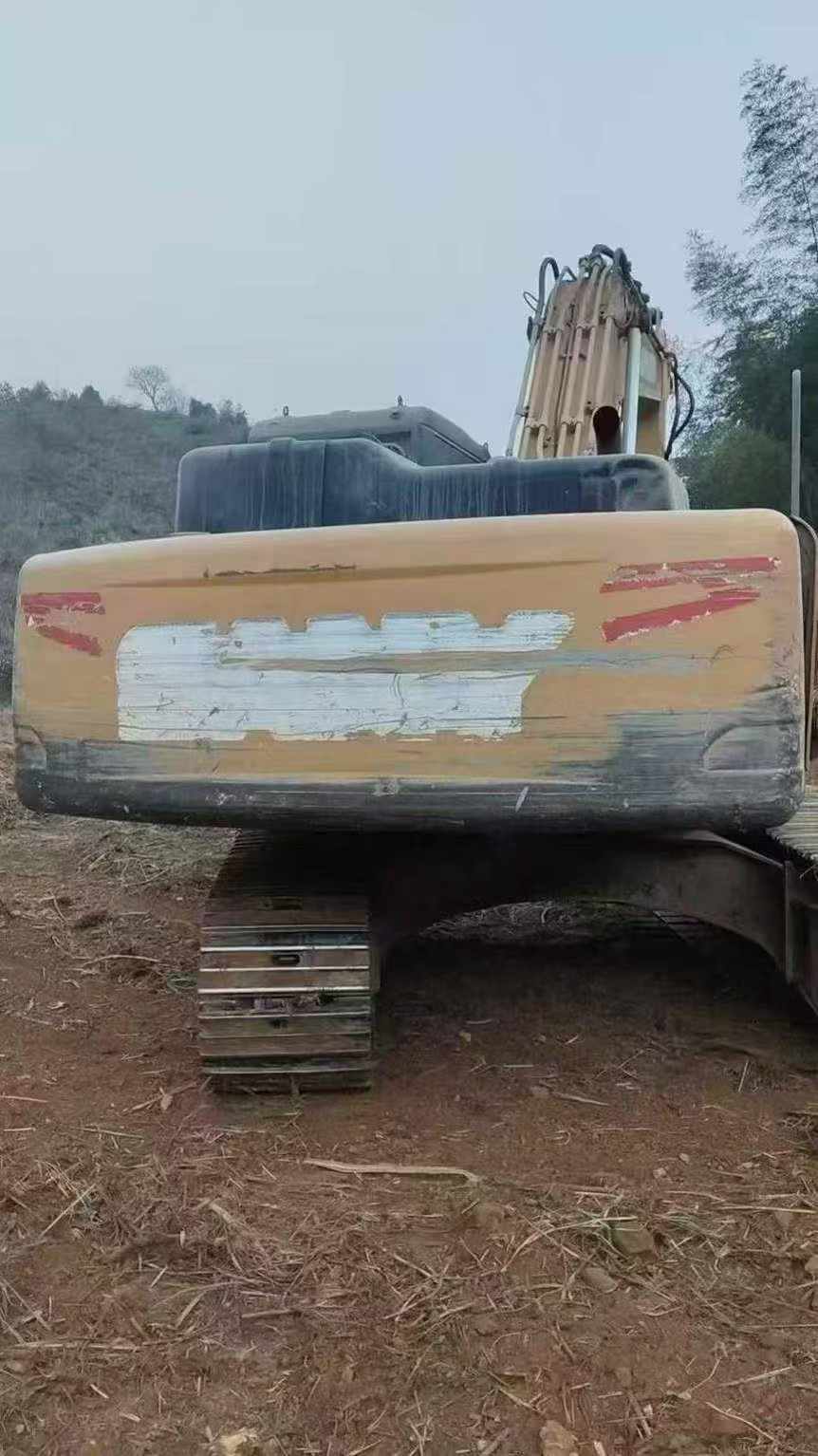

Powered by a reliable Mitsubishi 6D34-TL engine delivering 114 kW at 2050 rpm, this 2016 Sany SY215C-8 excavator combines proven hydraulics with operator-centered design. Operating at 21 tons with a 0.93 m³ backhoe bucket, it handles demolition, trenching, and grading with consistent precision across job sites in Jinhua, Zhejiang.
Cabin visibility meets modern safety standards for this era, with sight lines optimized for tracking bucket positioning and rear swing clearance. A 2750 mm tail swing radius enables controlled operation in confined spaces, while 440 mm ground clearance and 600 mm track plates maintain stability on uneven terrain. Dual main pumps supply 2 × 210 l/min flow, ensuring responsive boom and arm movements during extended shifts.
- Maximum digging reach: 9885 mm
- Maximum digging depth: 6630 mm
- Bucket digging force: 138 kN
- Travel speed: 3.2/5.5 km/h (low/high)
- Rotation speed: 12.5 rpm
- Water-cooled engine with 70% gradeability
Manufactured in China with Japanese engine technology, this SY215C-8 offers dependable performance for contractors requiring mid-size excavation capacity without premium-tier investment.
| Specifications | Value |
|---|---|
| No. | 1028031 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
