Product Description

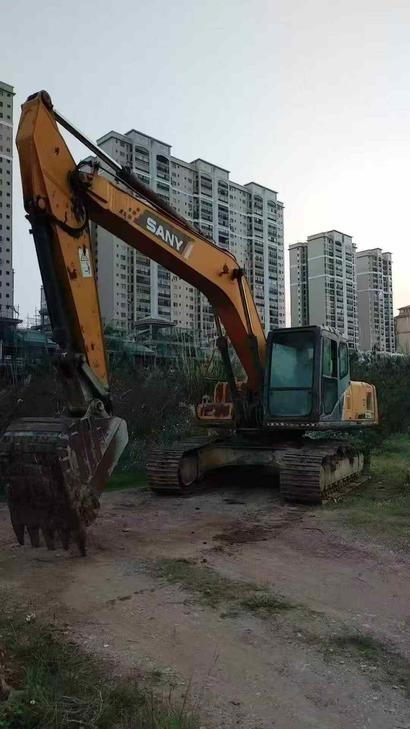

Proven performance meets long-term value in this 2016 Sany SY215C-8 excavator, currently located in Luzhou, Sichuan. Operating at 21 tons with a robust Mitsubishi 6D34-TL engine delivering 114 kW, this machine combines reliable power with the parts availability and dealer support that make Sany a smart choice in the used equipment market. Its 0.93 m³ bucket capacity and 138 kN digging force handle demanding earthmoving applications, while the comprehensive hydraulic system—featuring dual 210 l/min pumps and 34.3 MPa main circuit pressure—ensures consistent productivity across job sites.
- Brand advantage: Extensive global parts network and strong resale value retention
- Maximum digging reach: 9,885 mm with 6,630 mm depth capability
- Mitsubishi power: Field-proven 6D34-TL engine with water-cooling system
- Operational specs: 12.5 rpm swing speed, 70% gradeability, 5.5 km/h travel speed
- Compact transport dimensions: 9,397 mm length, fits standard low-bed trailers
Backed by Sany's reputation for manufacturing consistency and widespread service infrastructure, this SY215C-8 offers lower ownership risk compared to lesser-known brands. Replacement components remain readi
| Specifications | Value |
|---|---|
| No. | 1028153 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
