Product Description

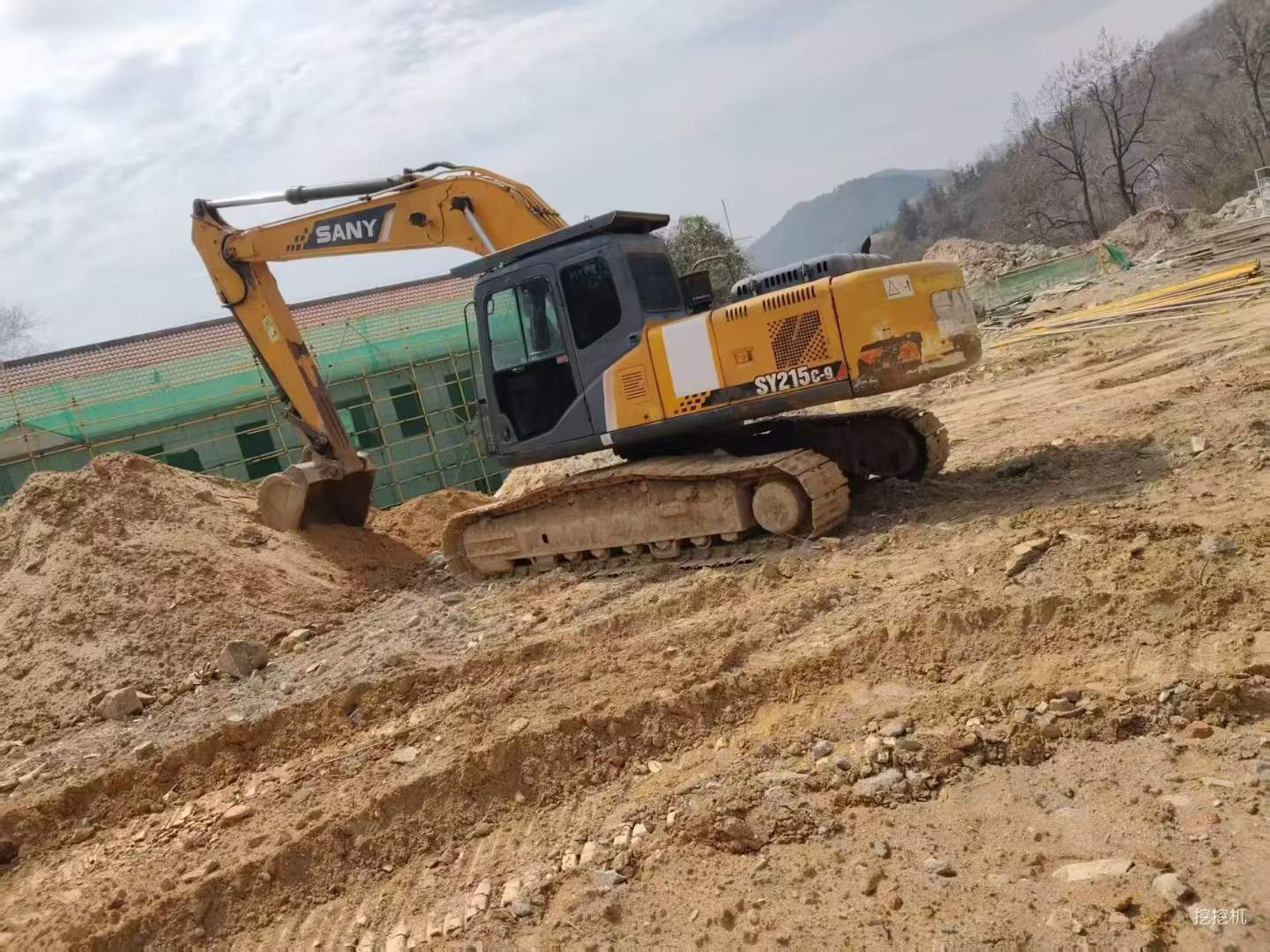

Proven performance meets exceptional durability in this 2016 Sany SY215C-8 excavator, a 21-ton workhorse engineered for demanding jobsites. Built with Mitsubishi 6D34-TL power delivering 114kW at 2050rpm, this machine has demonstrated its reliability through years of consistent operation. With an impressive 9.9-meter maximum digging reach and 6.6-meter depth capability, it tackles excavation tasks with professional-grade precision.
Key specifications include:
- Operating weight: 20,900kg with 0.93m³ bucket capacity
- Robust 138kN bucket digging force for challenging materials
- Dual hydraulic pumps: 2 × 210 l/min for responsive performance
- Water-cooled engine with proven thermal management
- 70% (35°) climbing ability for versatile terrain navigation
- Compact 2,750mm rear turning radius for confined spaces
Currently located in Maoming, Guangdong, this China-manufactured excavator represents tested engineering that continues delivering results. Its track record speaks to Sany's commitment to building machines that withstand the rigors of professional construction and excavation work year after year.
| Specifications | Value |
|---|---|
| No. | 1033644 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

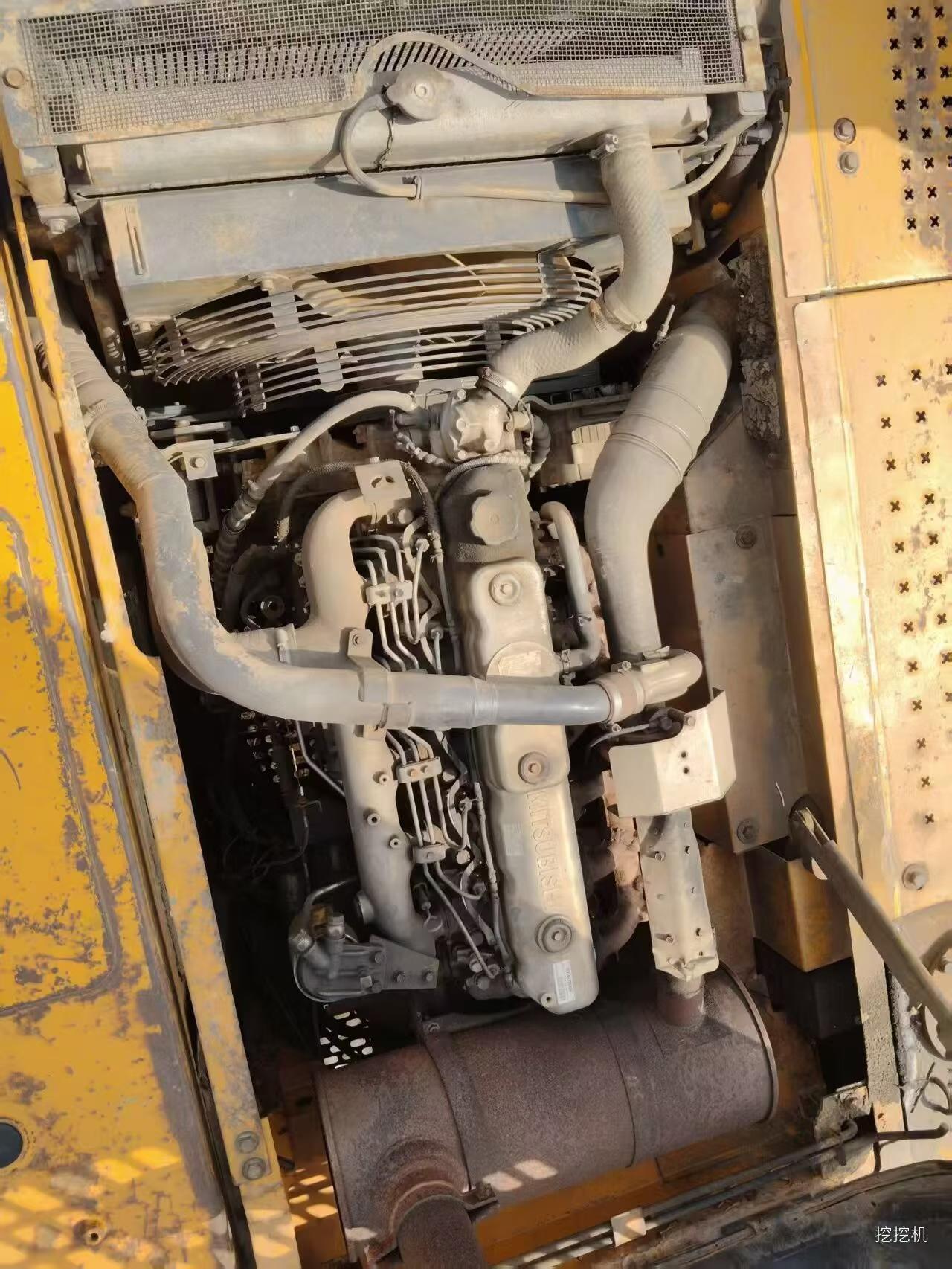

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |

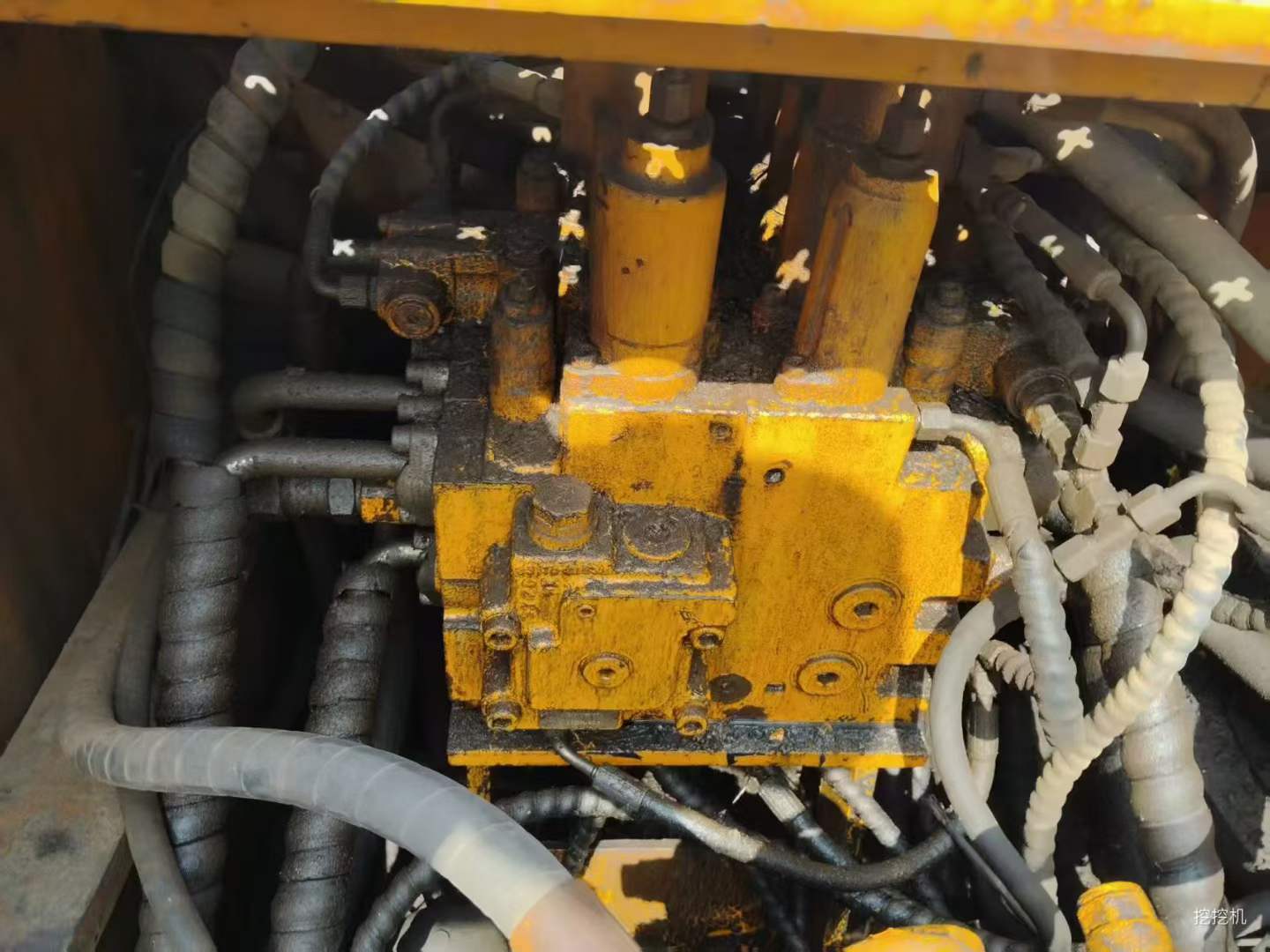

| Main overflow set pressure (Mpa) | 34.3 |

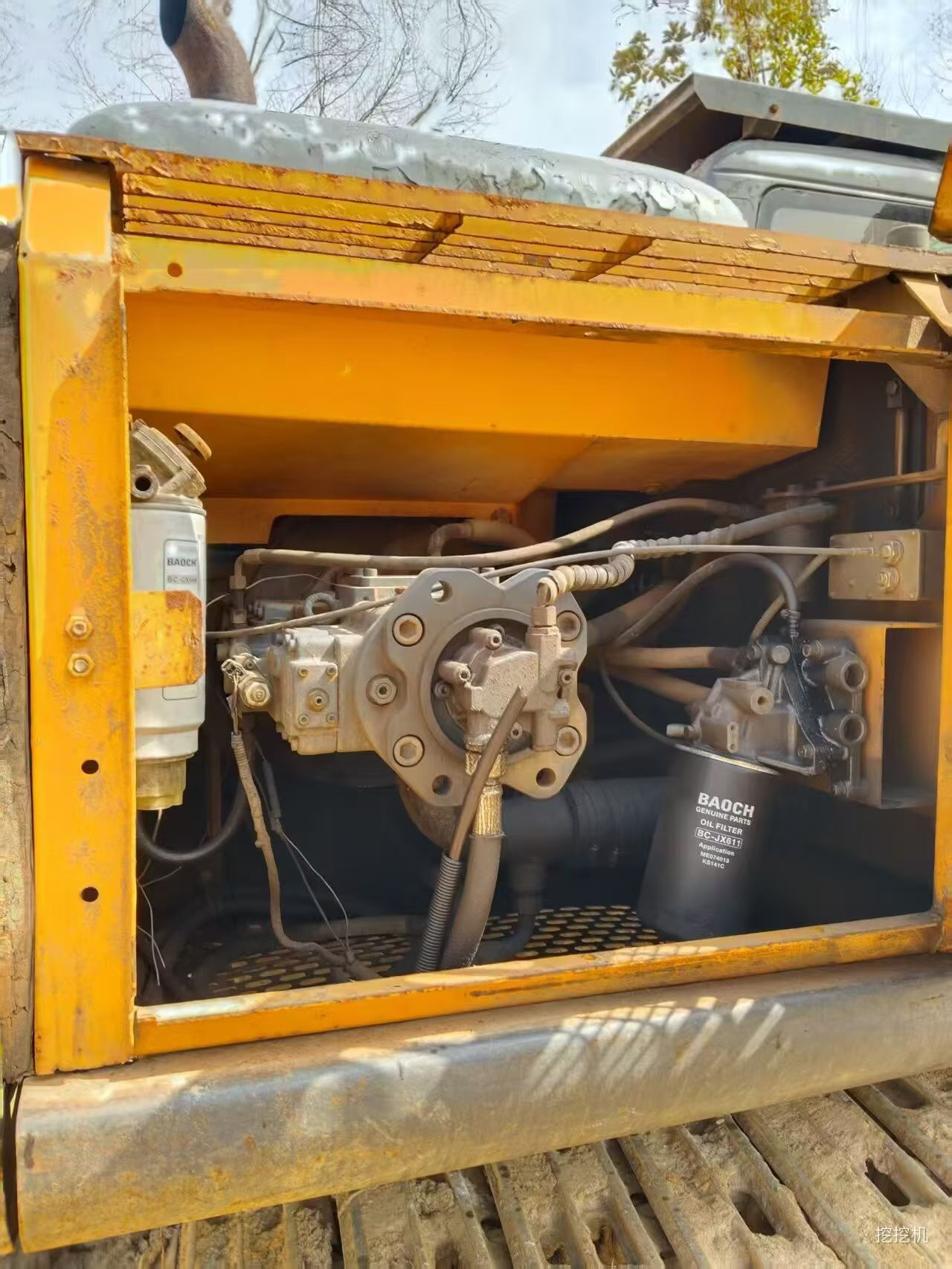

| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
