Product Description

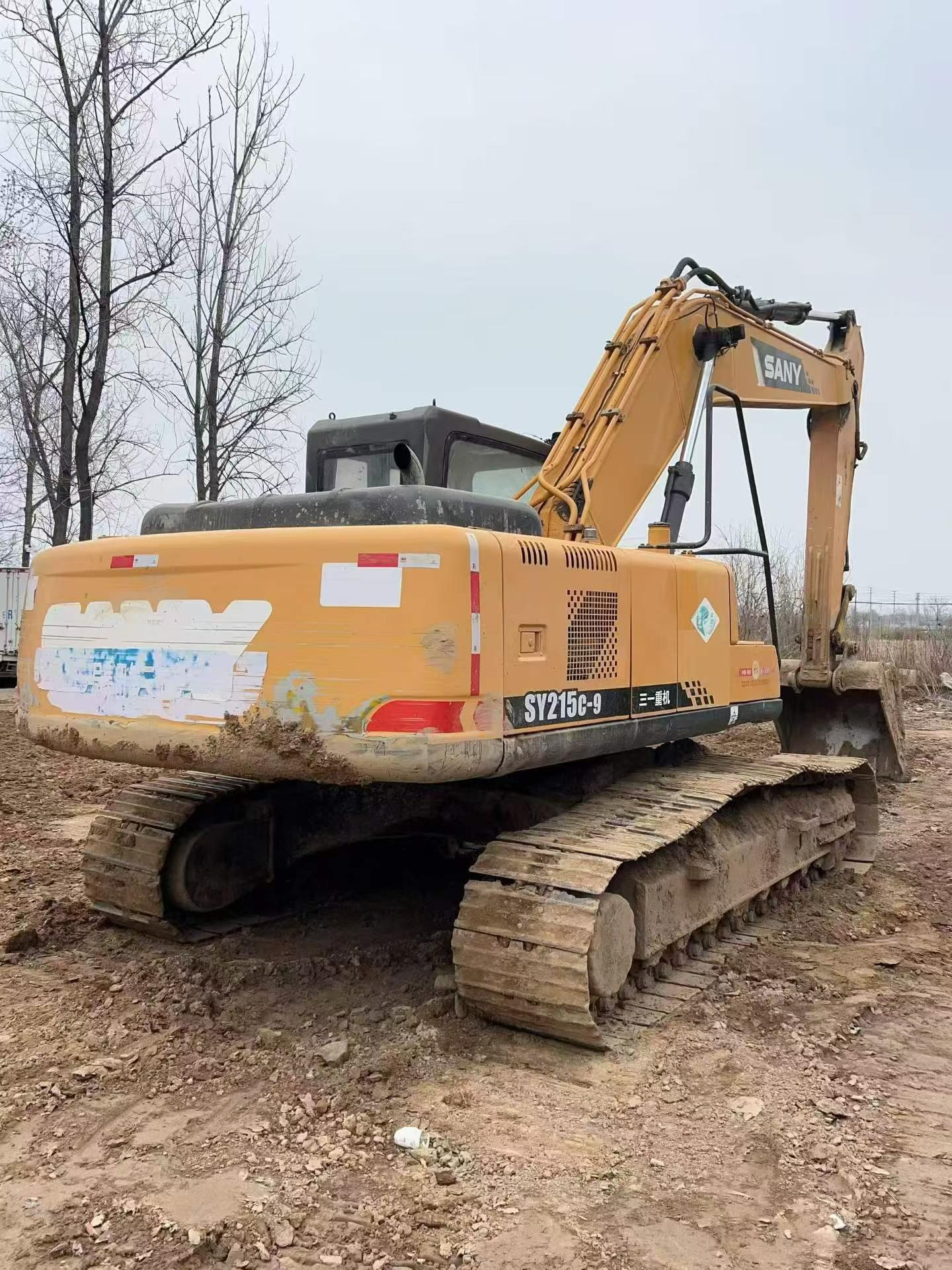

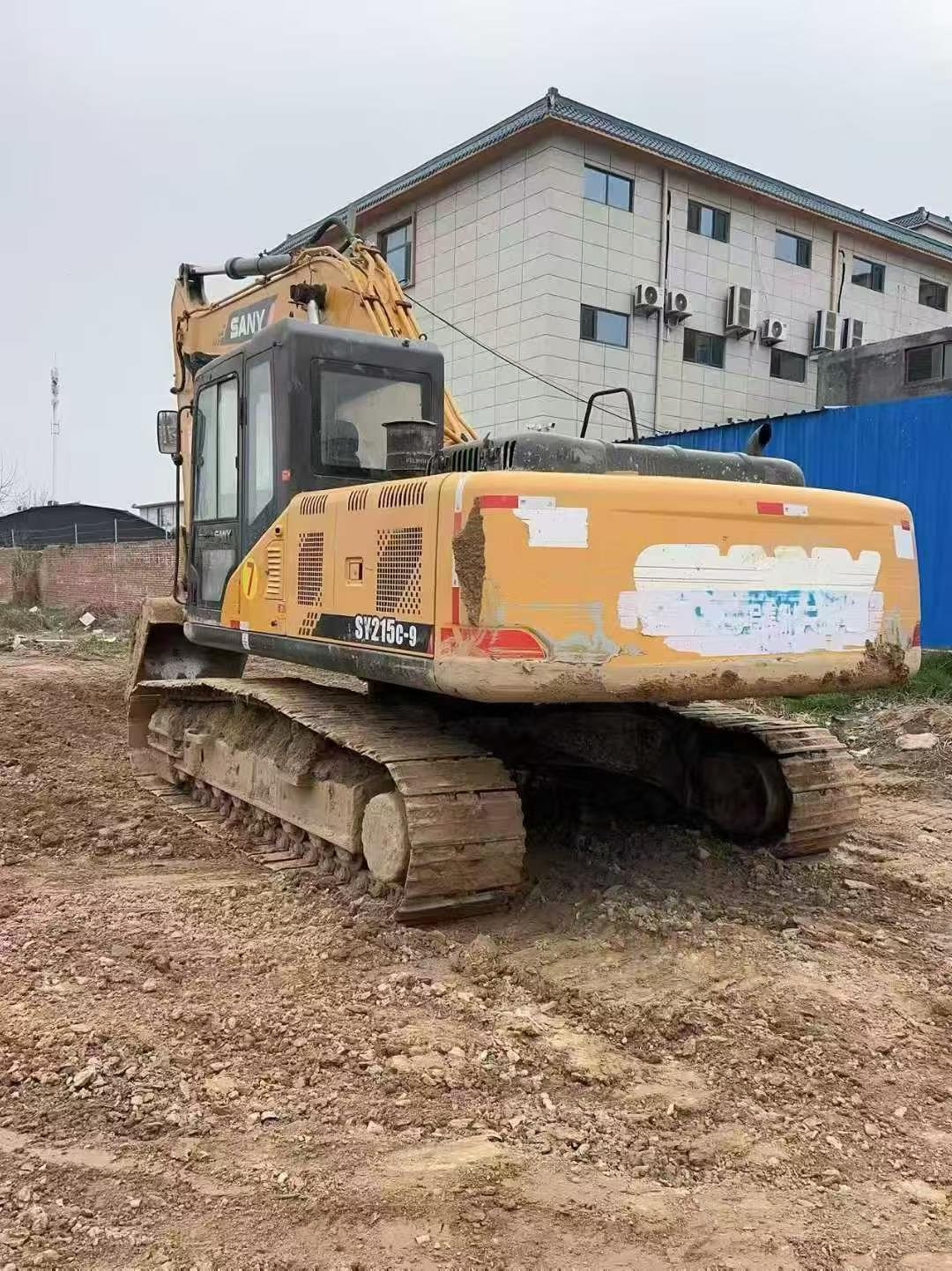

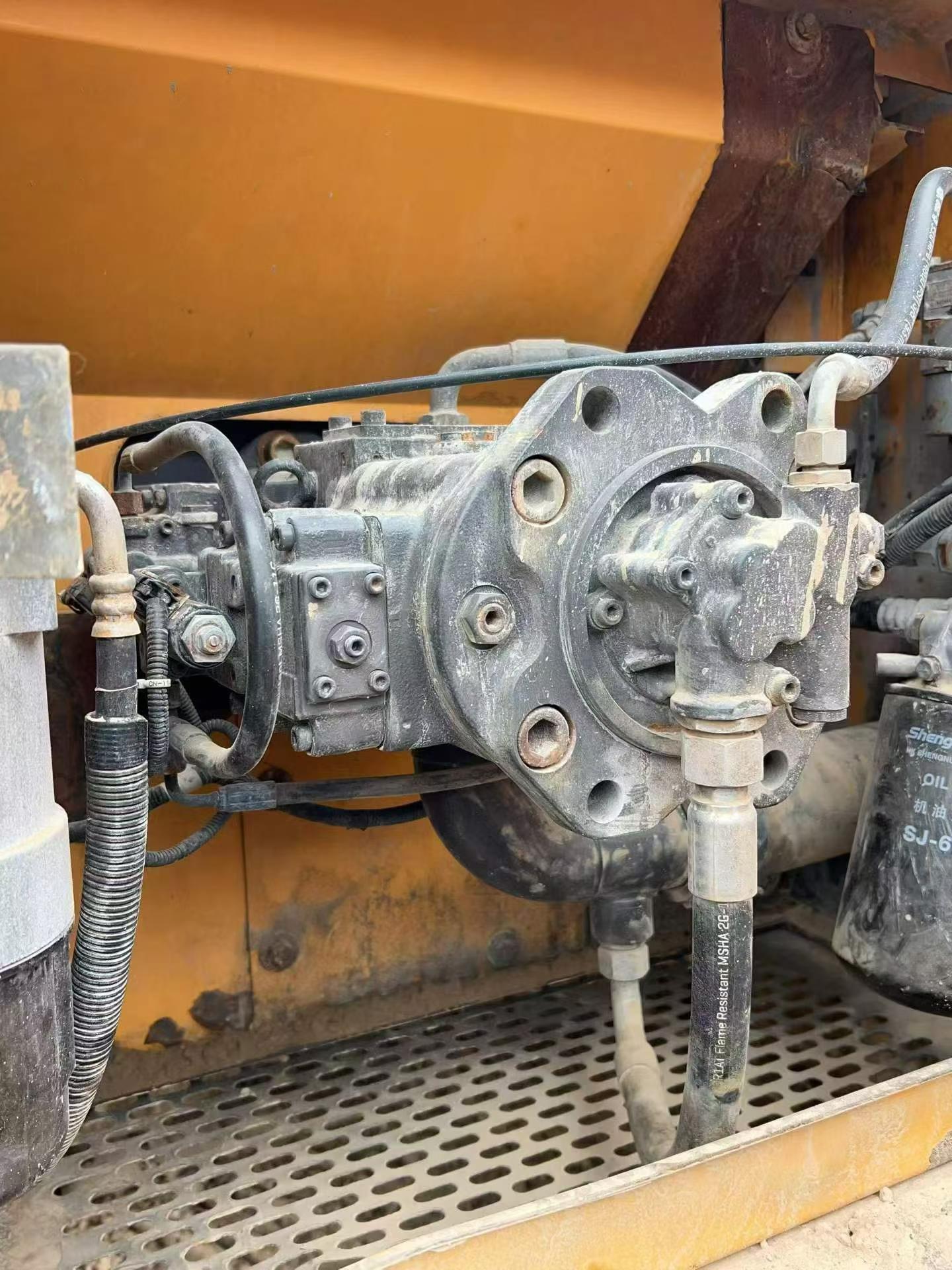

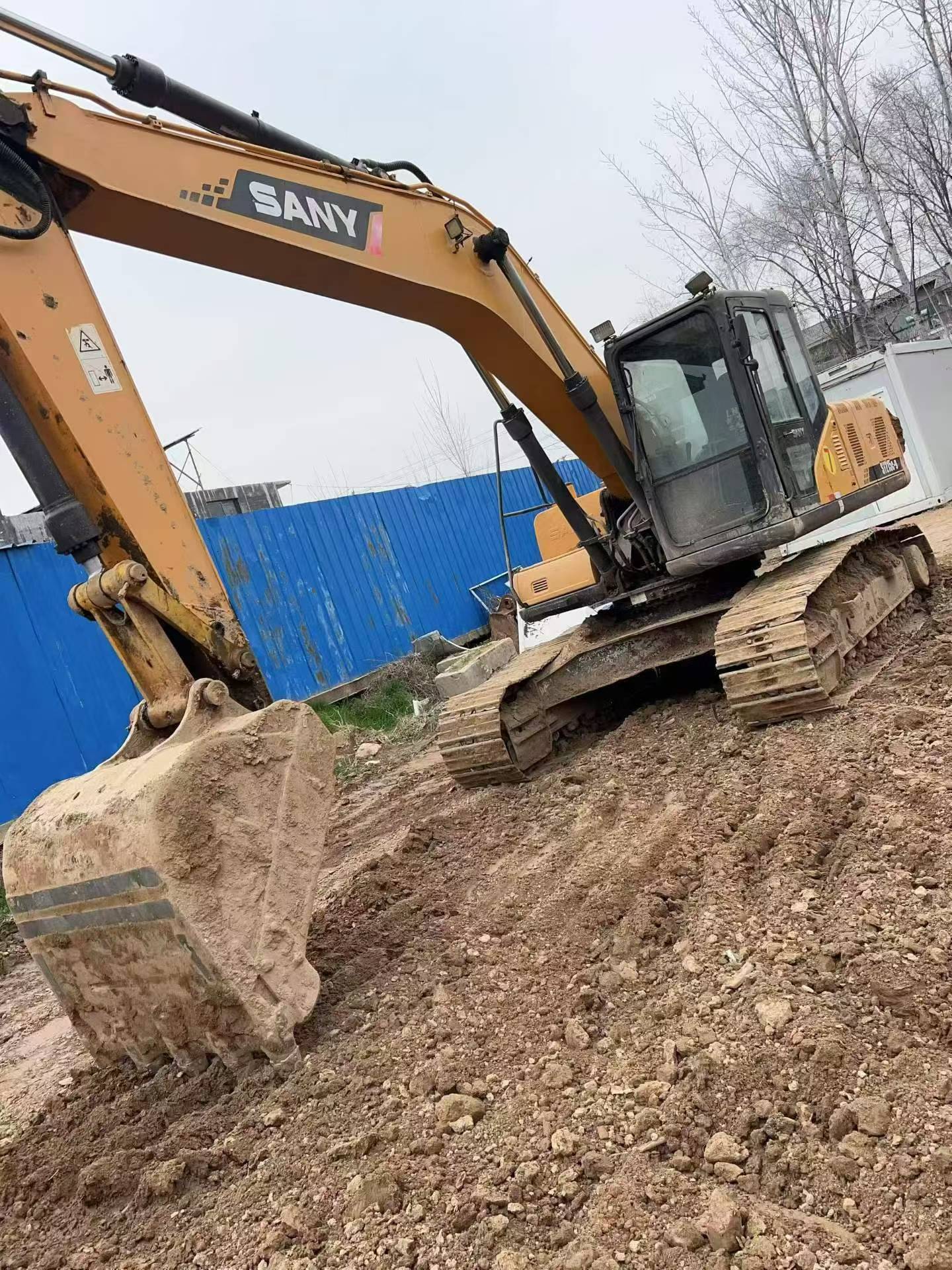

Built for precision and productivity, this 2016 Sany SY215C-8 delivers reliable performance in demanding excavation environments. Operating at 21 tons with a 0.93 m³ backhoe bucket, this machine combines power and control for operators who demand consistent results. The Mitsubishi 6D34-TL engine generates 114 kW at 2050 rpm, providing robust hydraulic performance through dual 210 l/min pumps and 34.3 Mpa main circuit pressure.
Operators benefit from exceptional stability and maneuverability in this mid-size excavator. Key features include:
- Maximum digging reach of 9,885 mm with 6,630 mm depth capability
- 138 kN bucket digging force for challenging soil conditions
- Low 45 Kpa ground pressure minimizes surface disturbance
- 2,750 mm rear turning radius enables work in confined spaces
- Water-cooled engine ensures consistent operating temperatures
- 440 mm ground clearance for rough terrain navigation
Currently located in Suqian, Jiangsu Province, this Chinese-manufactured excavator offers proven reliability for contractors seeking dependable equipment. Dual-speed travel (3.2/5.5 km/h) enhances jobsite mobility, while the 12.5 rpm swing speed maintains operationa
| Specifications | Value |
|---|---|
| No. | 1036289 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.93 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

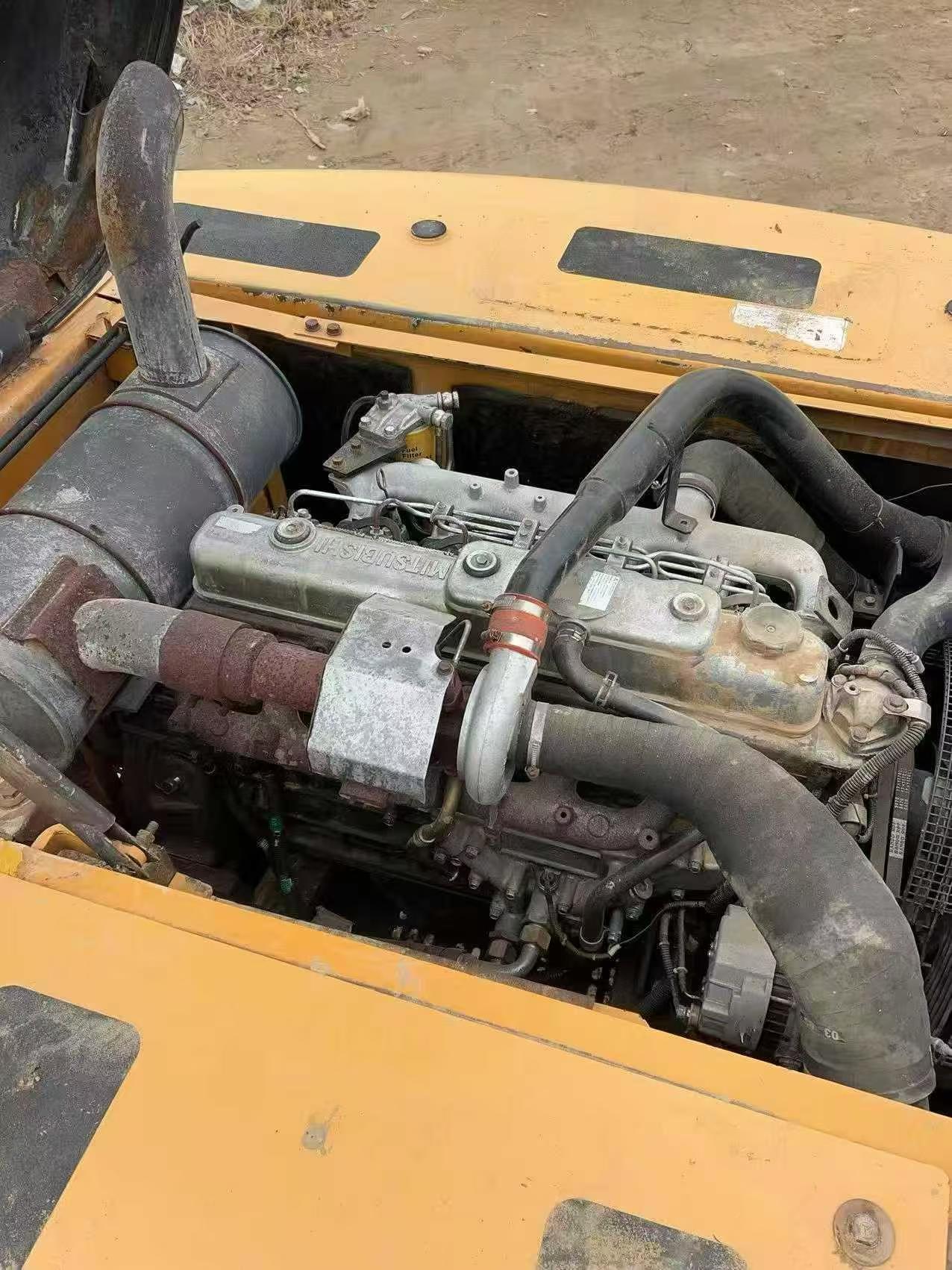

| Engine type | Mitsubishi 6D34-TL |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
