HOME>>Sany>>Sany SY215C-8

2016 Sany SY215C-8

1/7
Buy Sany SY215C-8 Used Excavator / 1

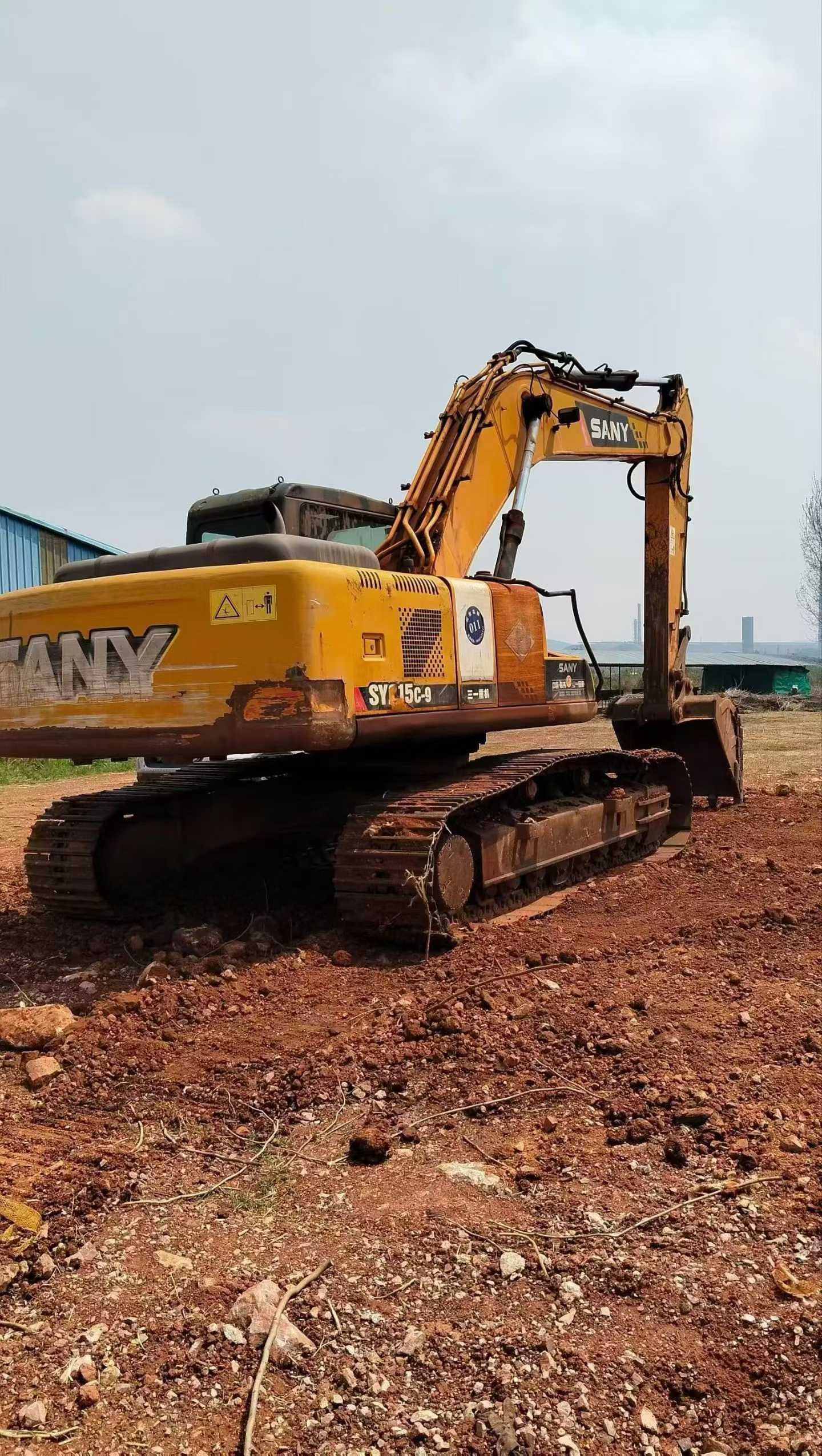

Buy Sany SY215C-8 Used Excavator / 2
Buy Sany SY215C-8 Used Excavator / 3

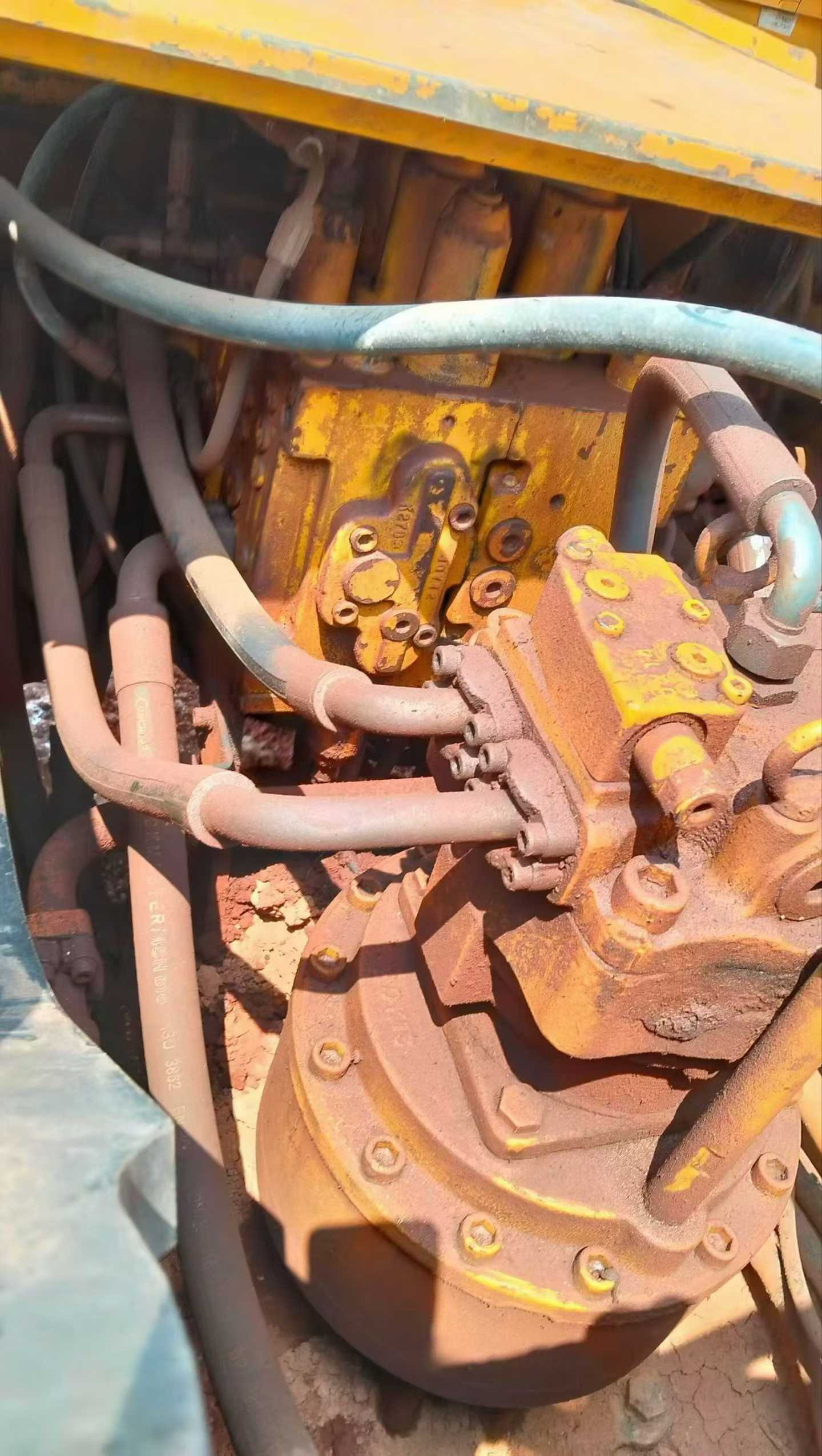

Buy Sany SY215C-8 Used Excavator / 4

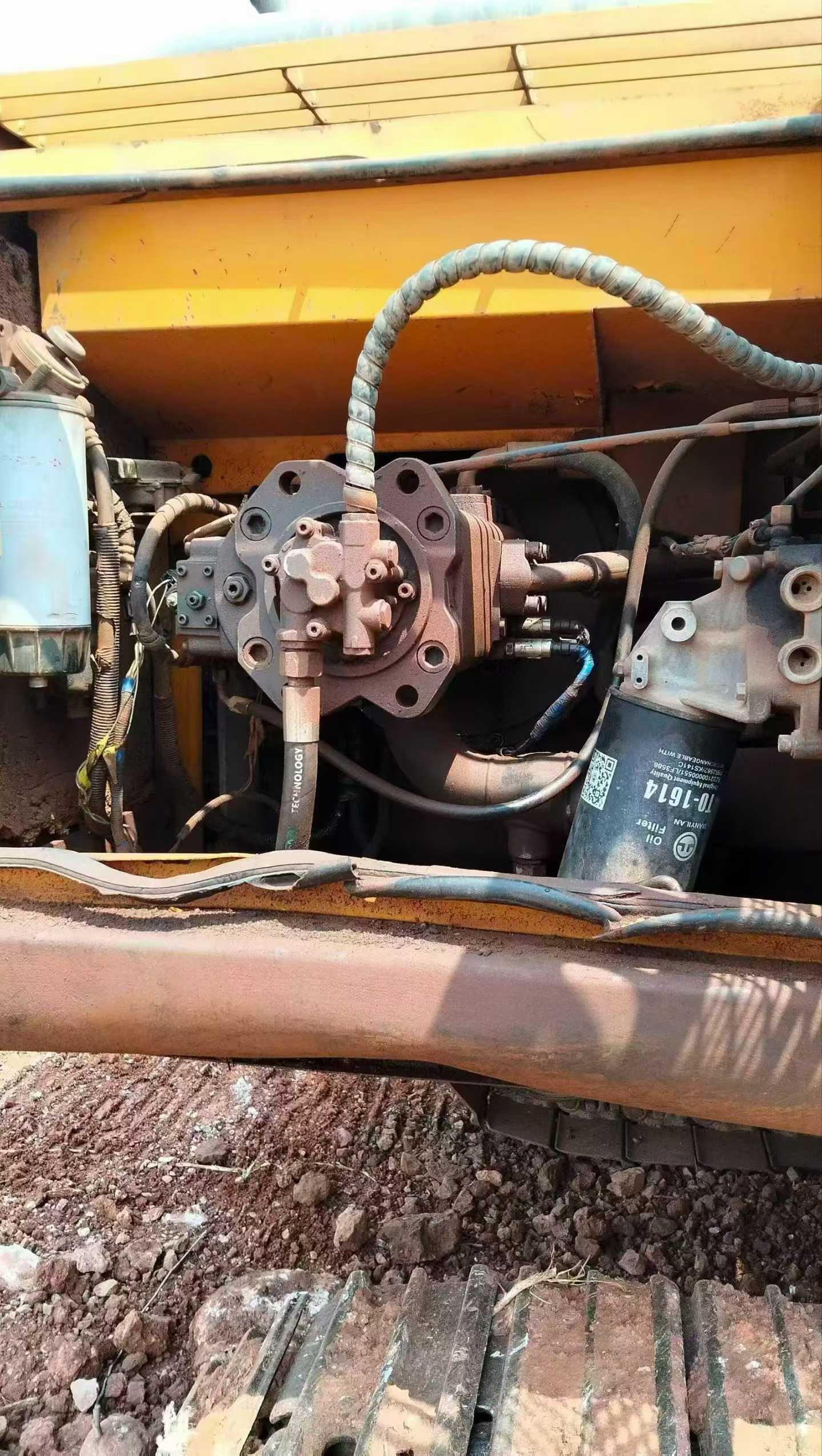

Buy Sany SY215C-8 Used Excavator / 5

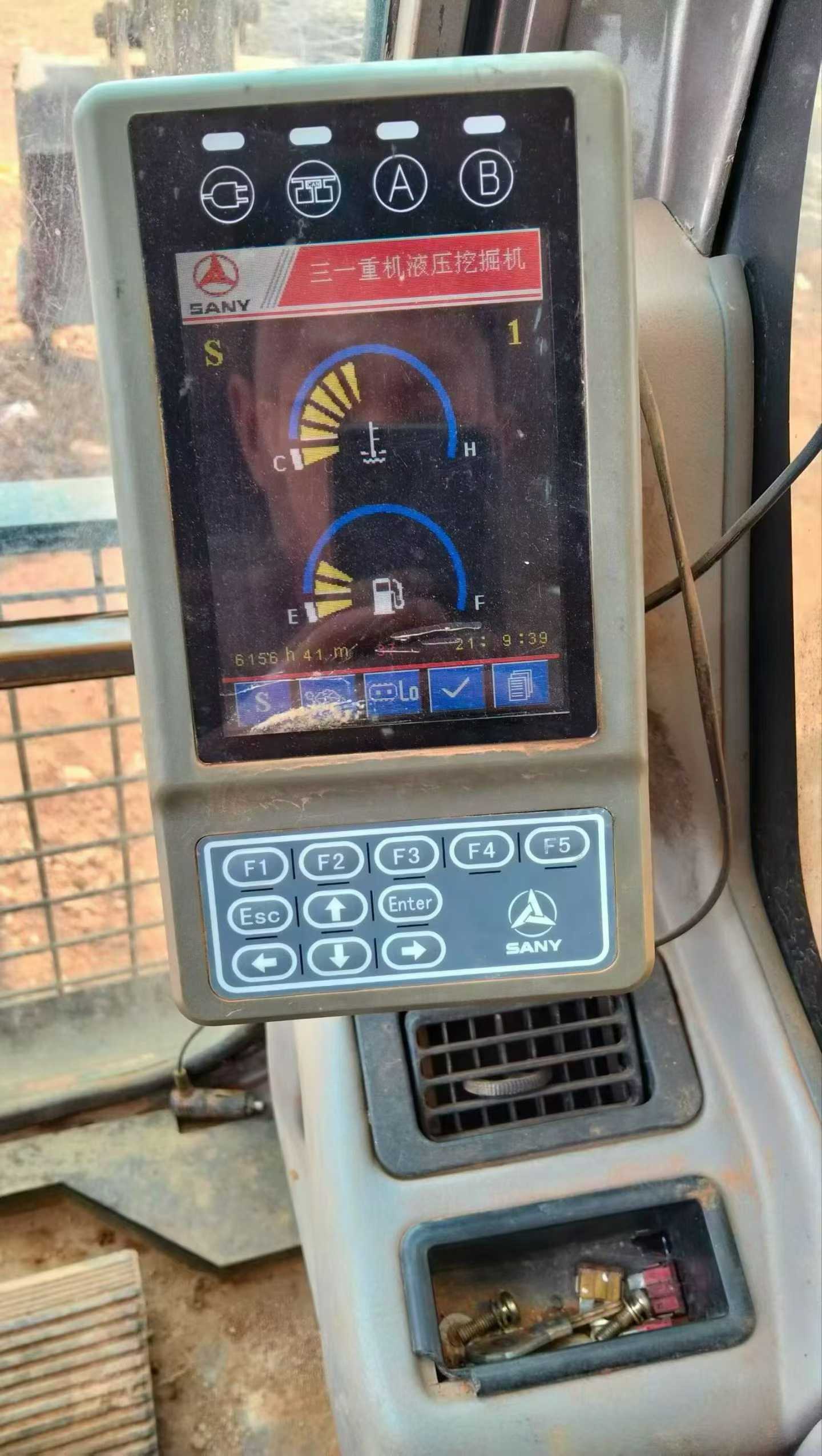

Buy Sany SY215C-8 Used Excavator / 6

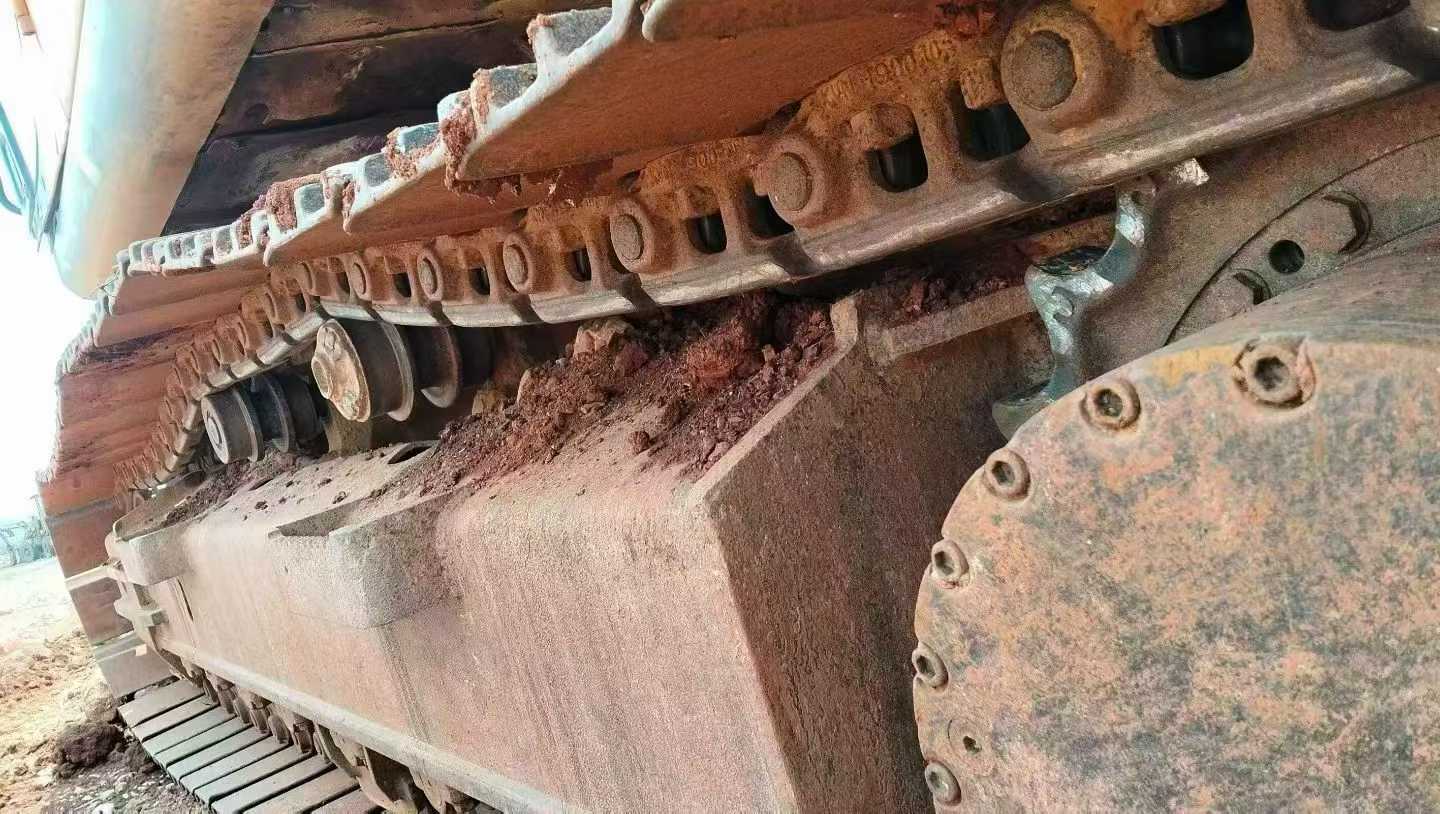

Buy Sany SY215C-8 Used Excavator / 7

Product Description

Equipped with a Mitsubishi 6D34-TL engine, delivering 114 kW at 2050 rpm, the Sany SY215C-8 excavator ensures robust performance and reliability. Featuring a water-cooling system, this model maintains optimal operating temperatures even under heavy loads. The hydraulic system is designed for efficiency, with a main overflow set pressure of 34.3 Mpa and a maximum flow of 2 x 210 l/min from the main pump, providing powerful and precise control.

  • Working weight: 20,900 kg
  • Bucket capacity: 0.93 m³
  • Maximum digging depth: 6,630 mm
  • Travel speed: 3.2/5.5 km/h
  • Ground specific pressure: 45 Kpa

Made in Kunshan, Jiangsu Province, China, the SY215C-8 is engineered for durability and high productivity. Its advanced hydraulics and robust engine make it an ideal choice for demanding construction and excavation tasks. With a climbing ability of up to 70% or 35°, this excavator handles challenging terrains with ease, ensuring consistent performance across various job sites.

SpecificationsValue
No.1040487
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1040487

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2016

Location:

Yunnan China
