HOME>>Sany>>Sany SY215C-8

2018 Sany SY215C-8

1/9
Used Sany SY215C-8 Excavator 2018 Model / 1
Used Sany SY215C-8 Excavator 2018 Model / 2

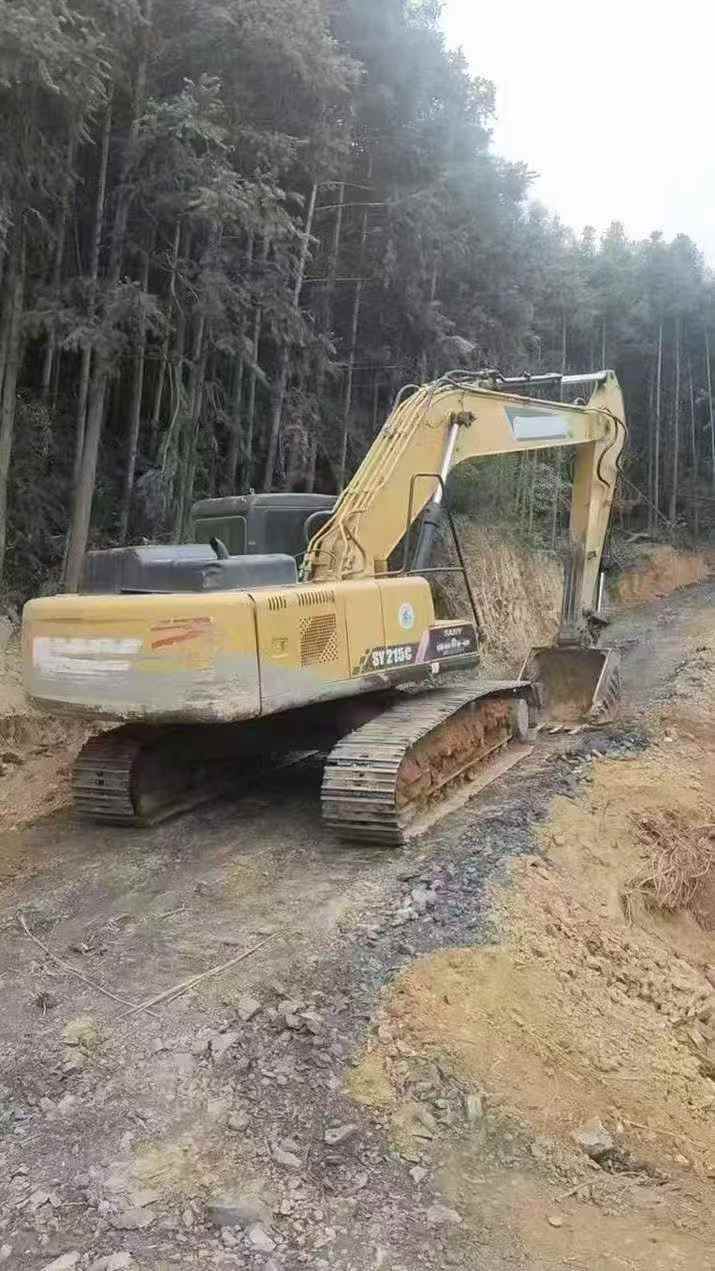

Used Sany SY215C-8 Excavator 2018 Model / 3

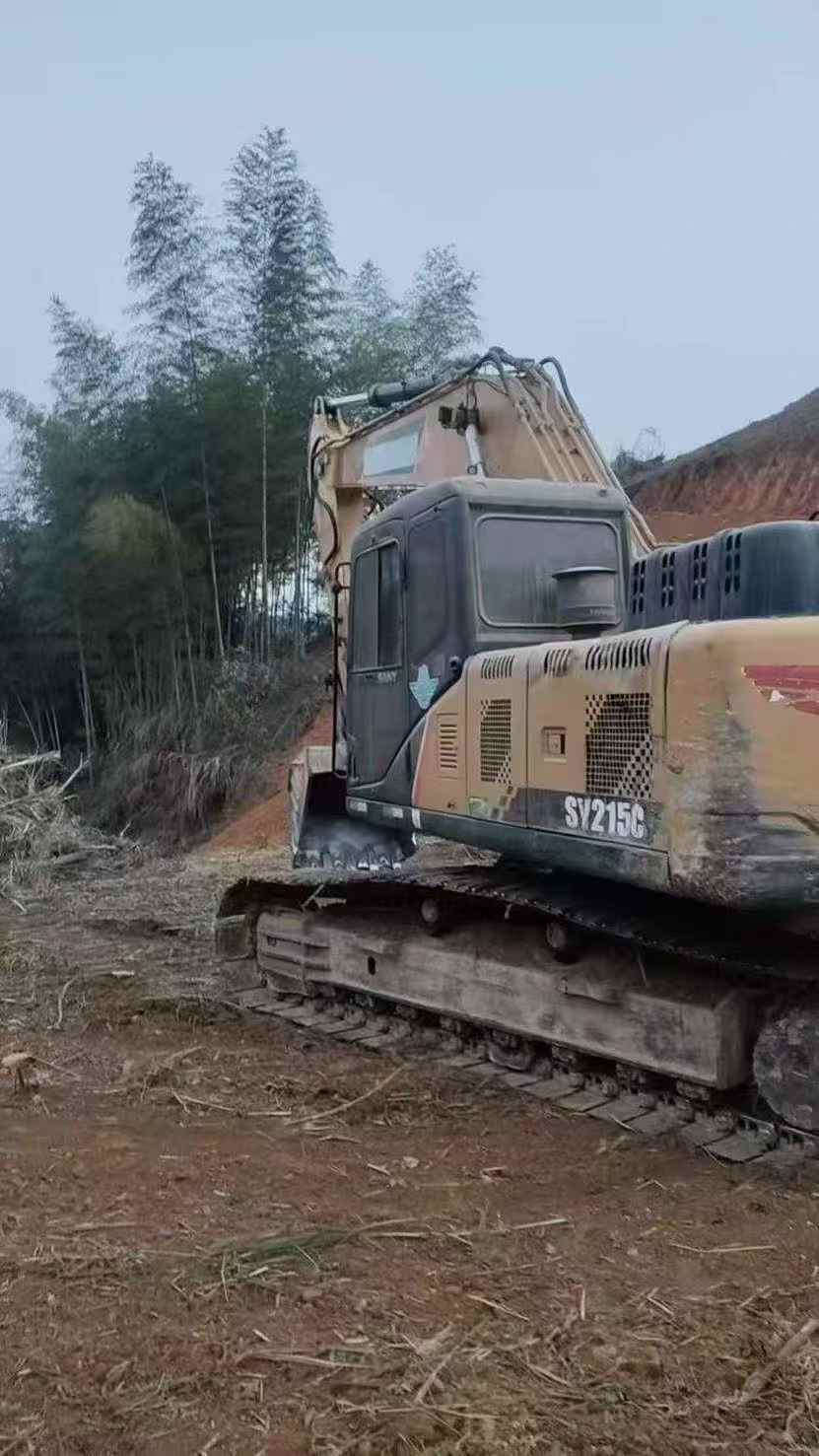

Used Sany SY215C-8 Excavator 2018 Model / 4

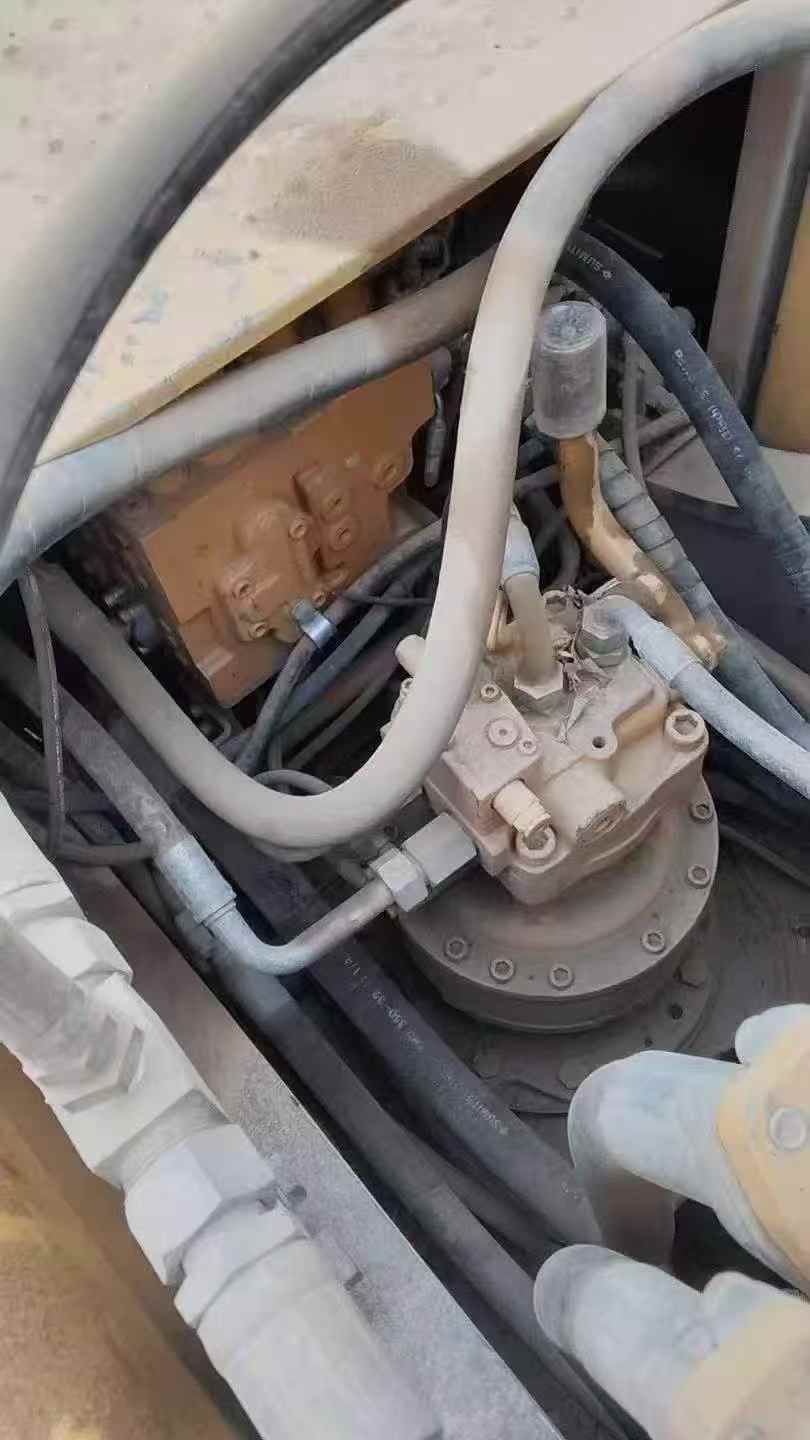

Used Sany SY215C-8 Excavator 2018 Model / 5

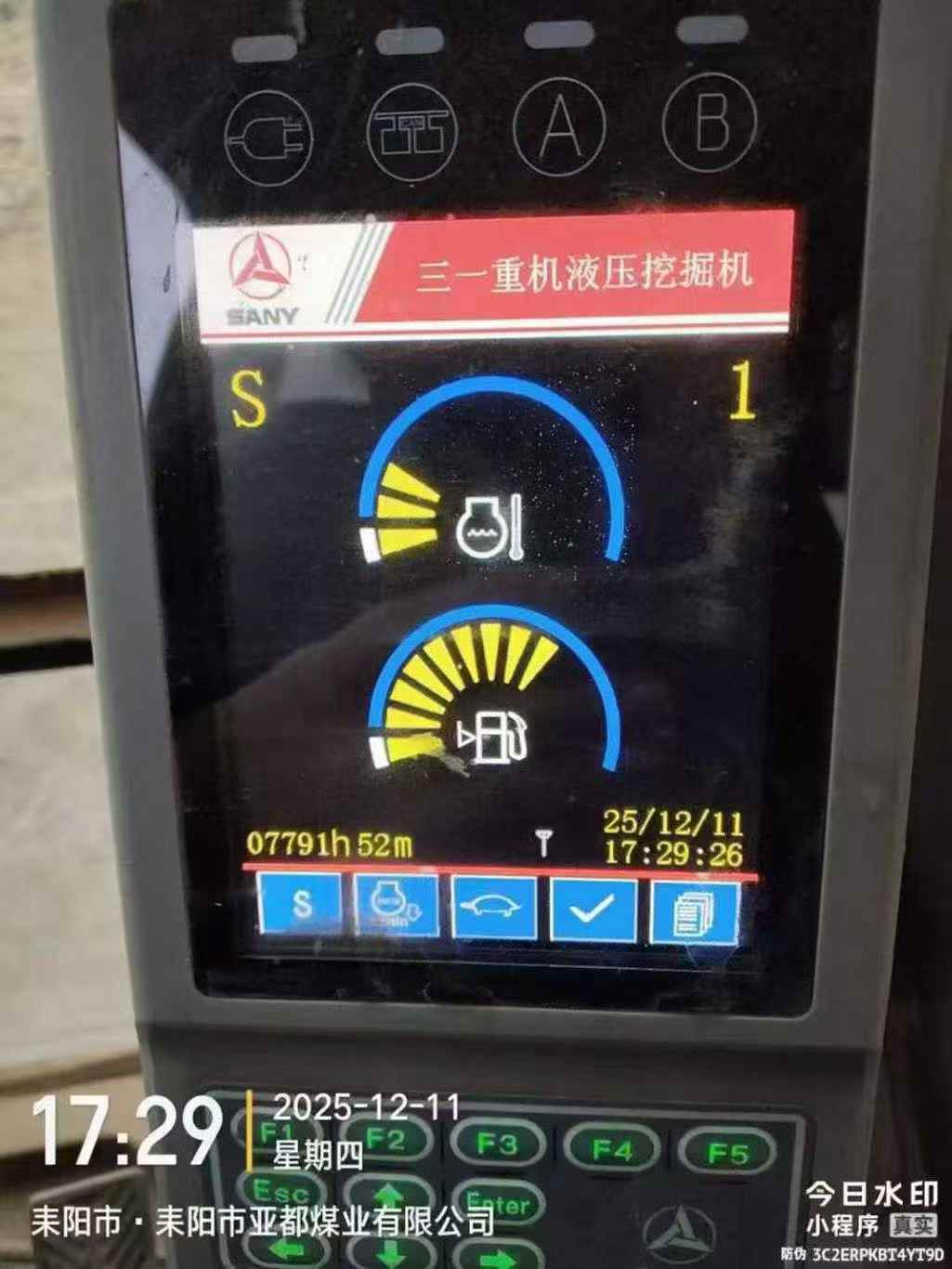

Used Sany SY215C-8 Excavator 2018 Model / 6

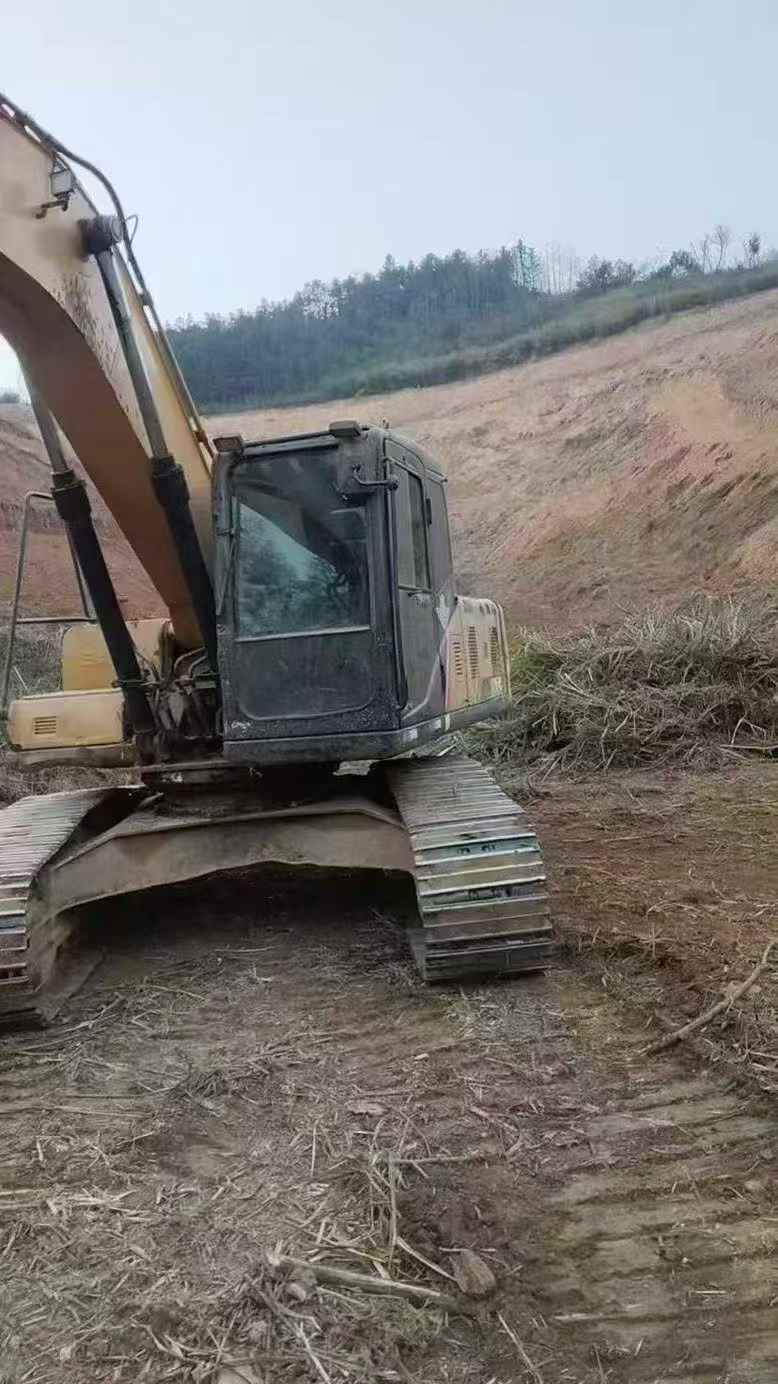

Used Sany SY215C-8 Excavator 2018 Model / 7

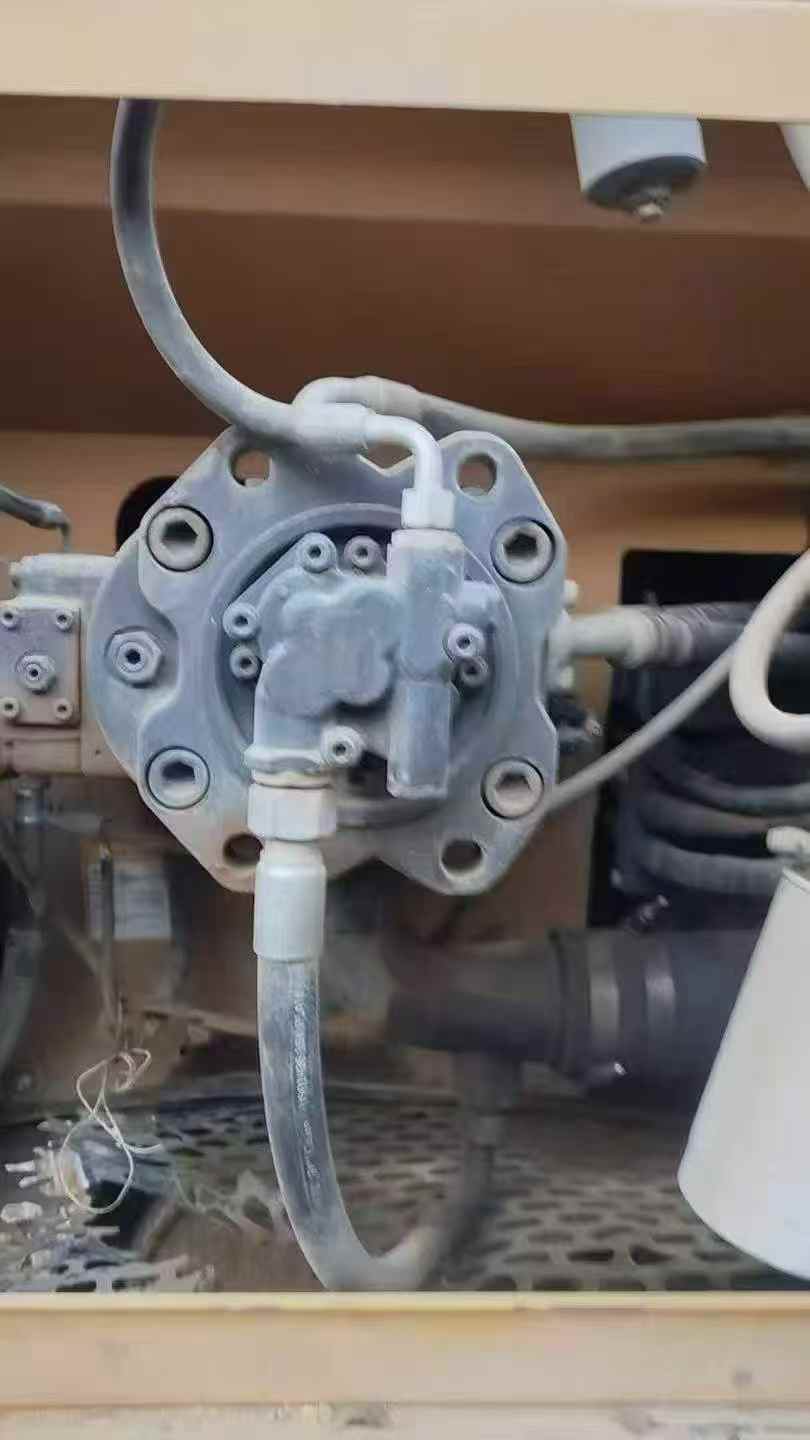

Used Sany SY215C-8 Excavator 2018 Model / 8

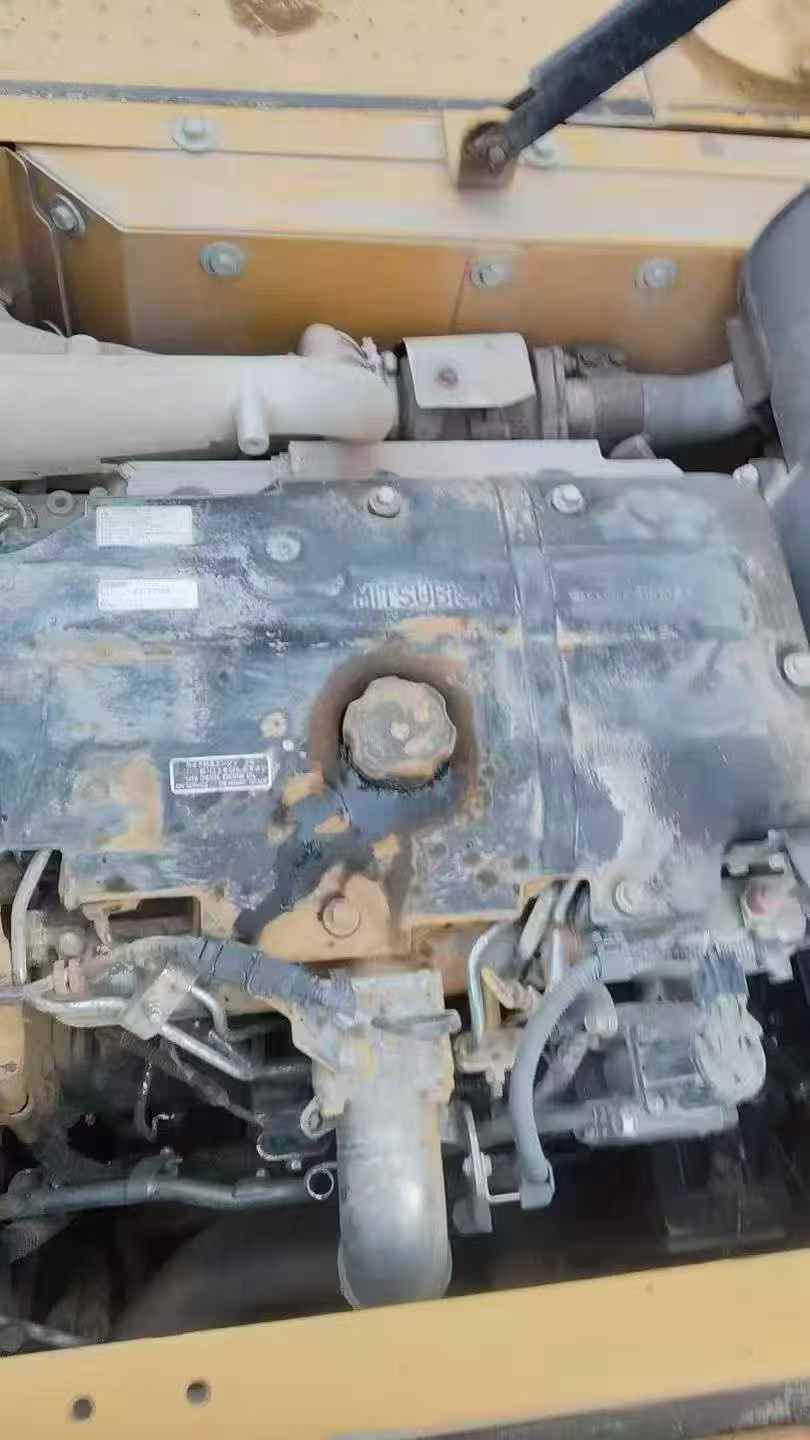

Used Sany SY215C-8 Excavator 2018 Model / 9

Product Description

With a robust Mitsubishi 6D34-TL engine, the Sany SY215C-8 delivers 114 kW of power at 2050 rpm, ensuring reliable performance for demanding tasks. Featuring a 21-ton operating weight and a 0.93 m³ bucket capacity, this excavator is designed for efficiency and durability. In the operator's seat, experience exceptional visibility and comfort, essential for long hours on the job. The water-cooled engine maintains optimal performance, even in challenging conditions. Stability is enhanced with a ground specific pressure of 45 Kpa, while the machine’s travel speed of 3.2/5.5 km/h ensures swift movement across sites. The hydraulic system, with a main overflow set pressure of 34.3 Mpa, provides smooth and precise control, crucial for detailed work. Built in Kunshan, Jiangsu Province, China, this excavator stands out for its handling and reliability.

SpecificationsValue
No.1022267
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1022267

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2018

Location:

Guizhou China

Pub Date:
