2018 Sany SY215C-8

1/9

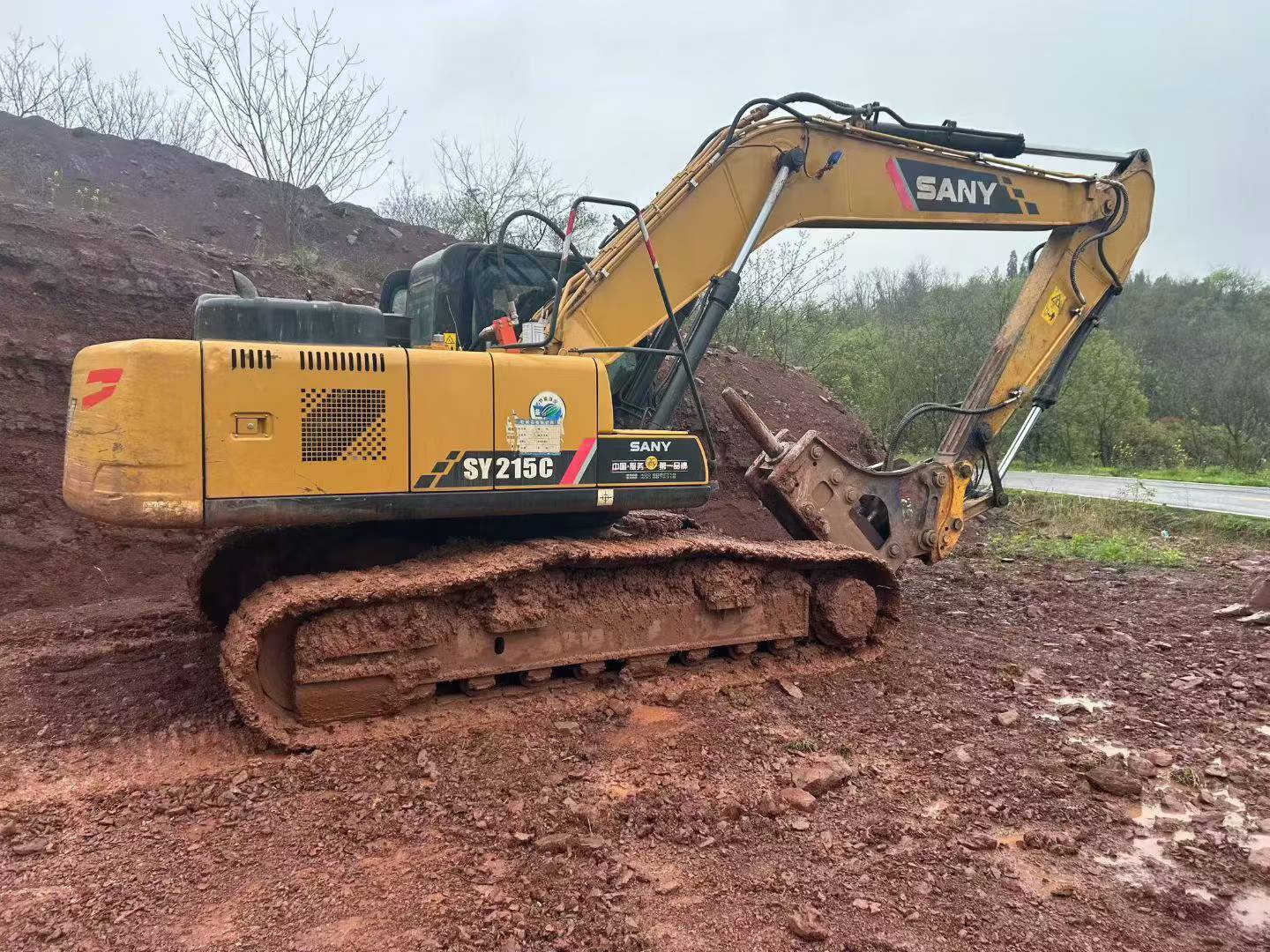

Buy Sany SY215C-8 Used Excavator / 1

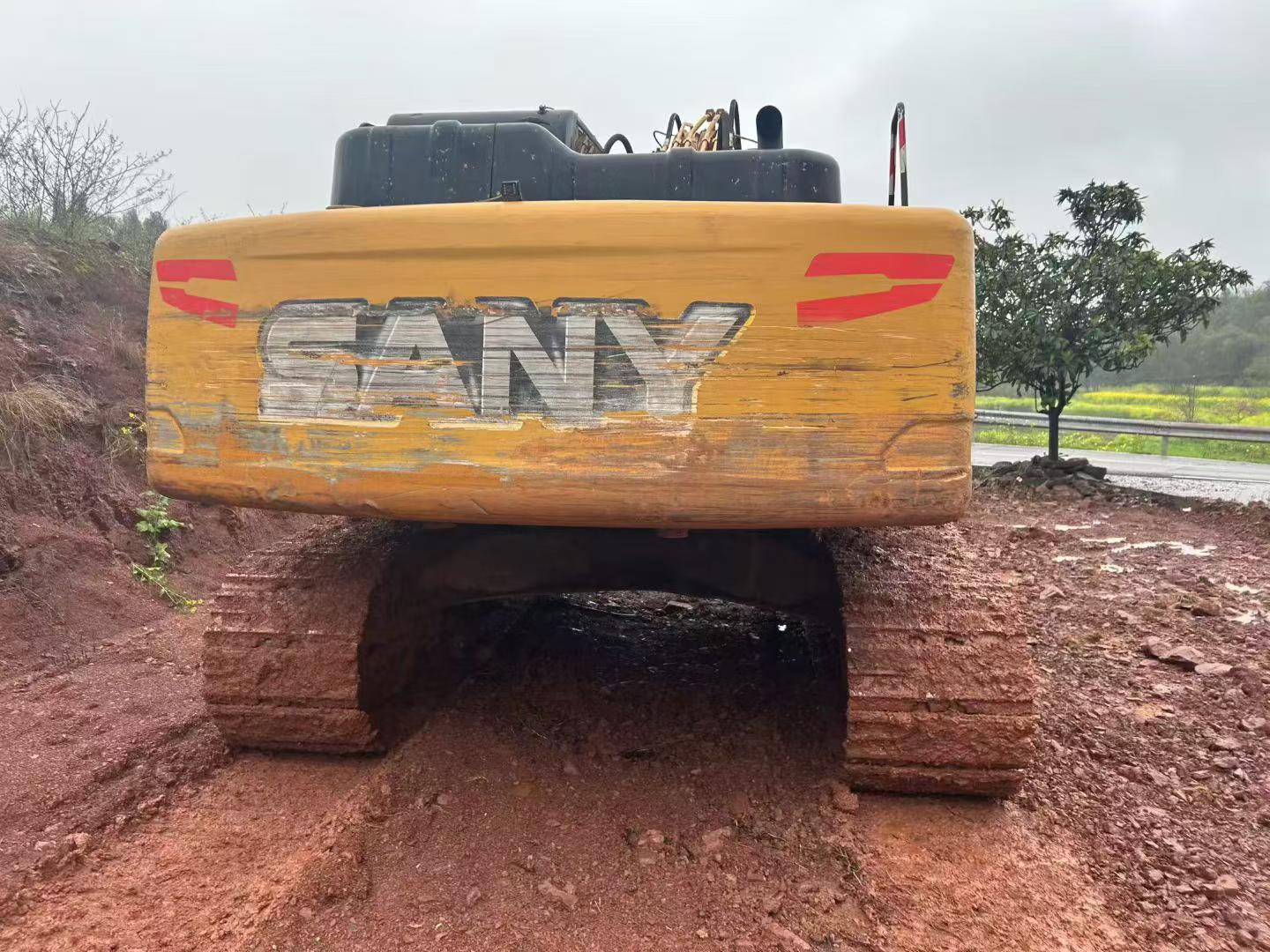

Buy Sany SY215C-8 Used Excavator / 2

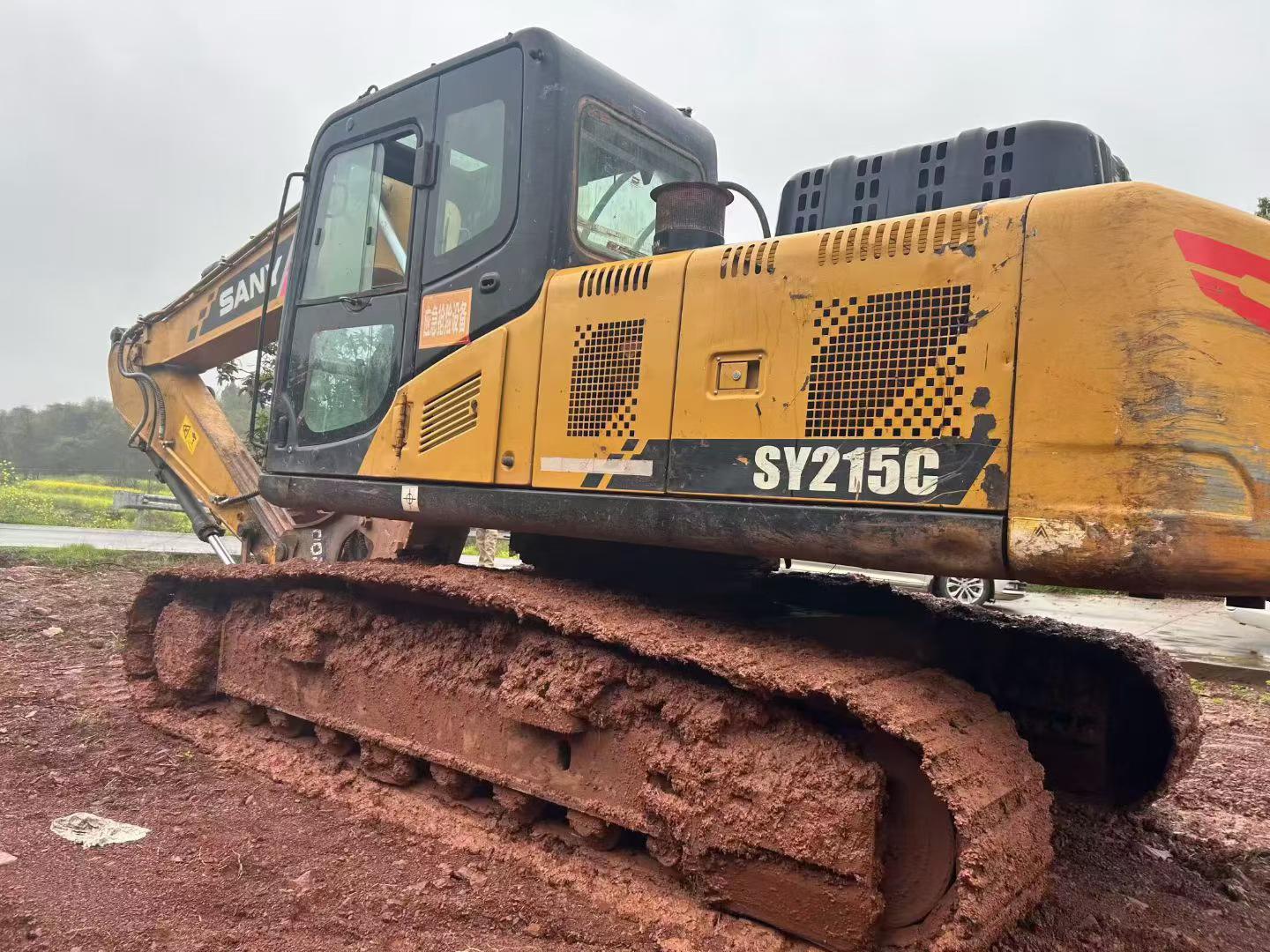

Buy Sany SY215C-8 Used Excavator / 3

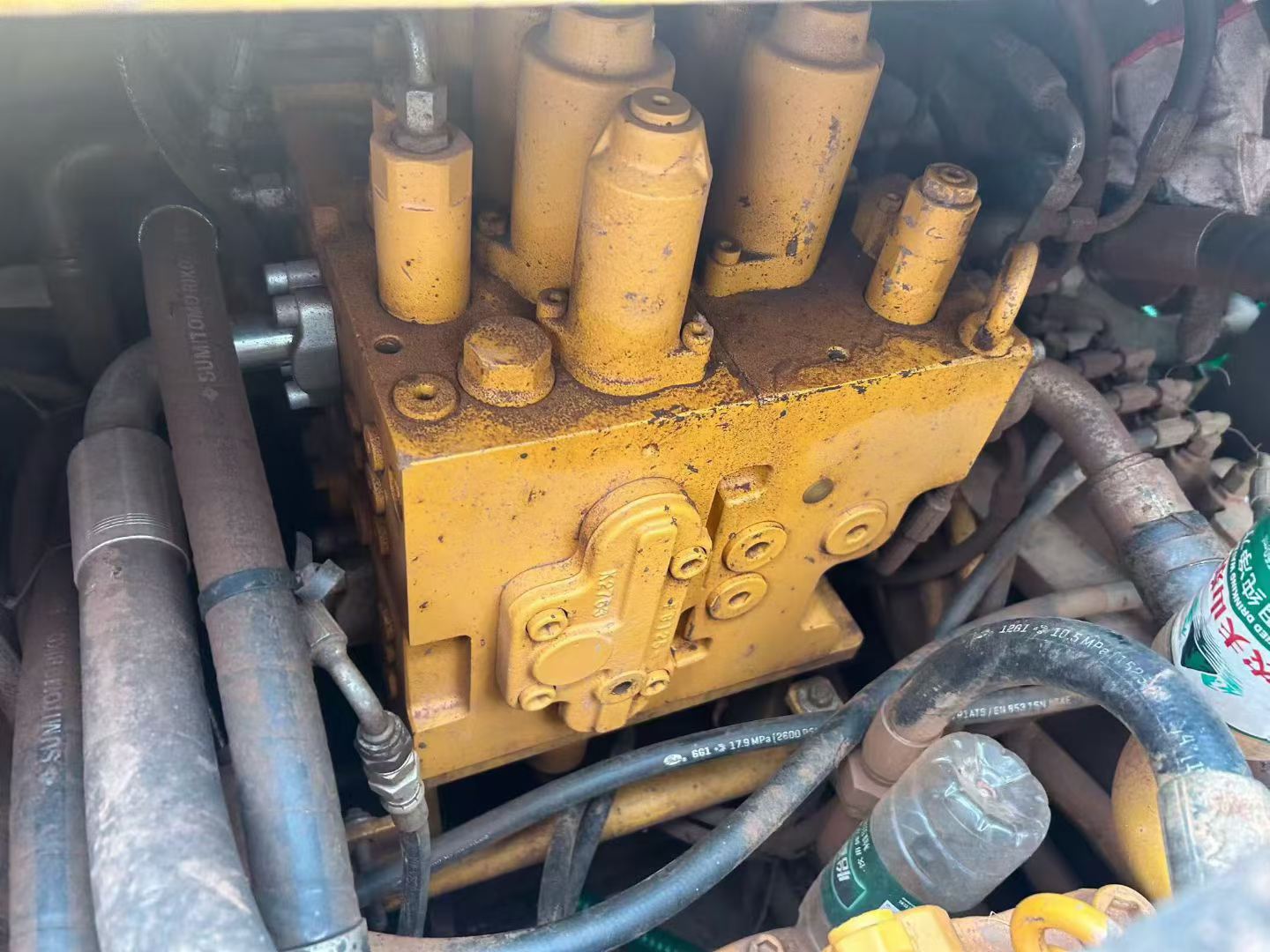

Buy Sany SY215C-8 Used Excavator / 4

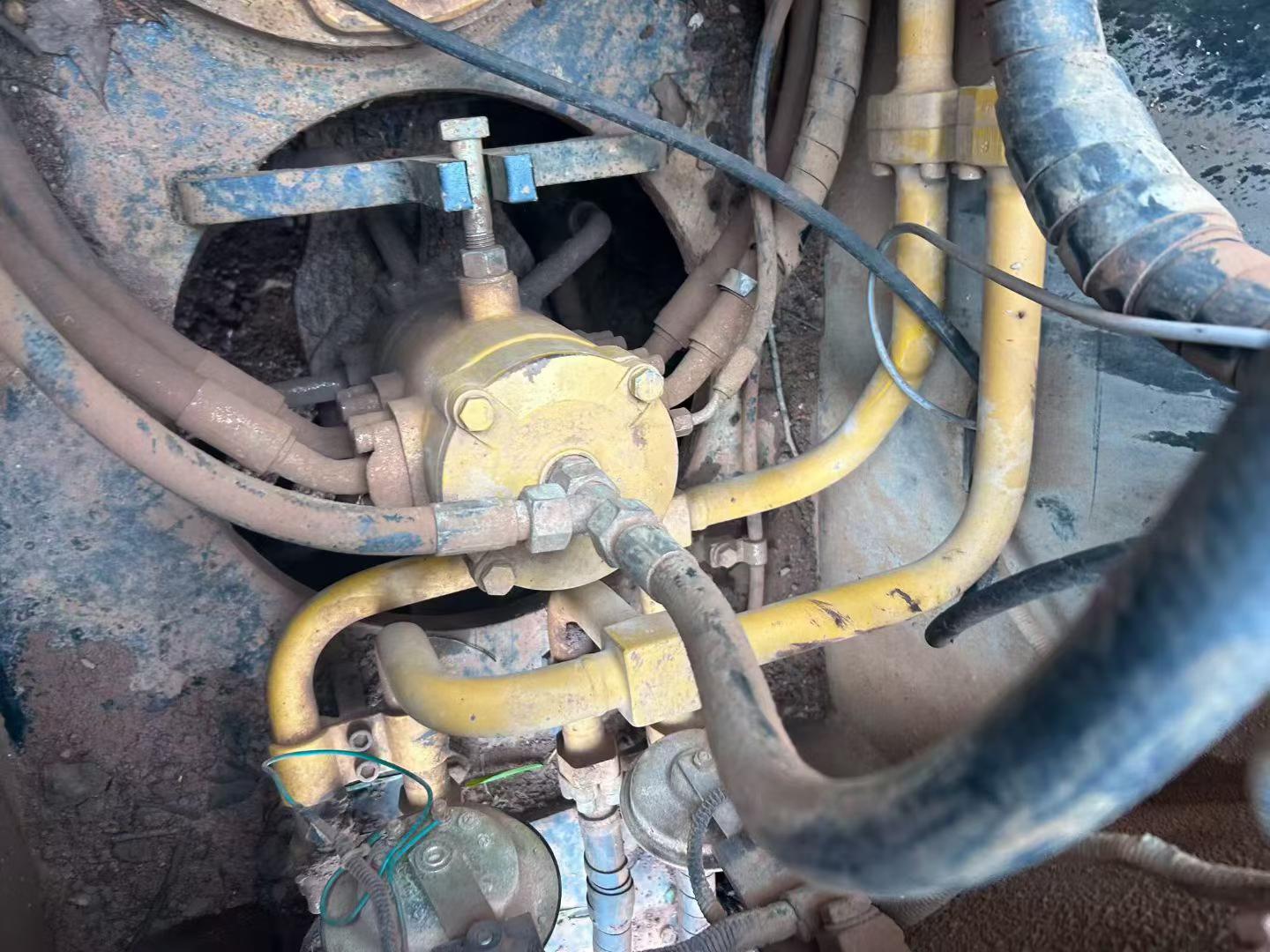

Buy Sany SY215C-8 Used Excavator / 5

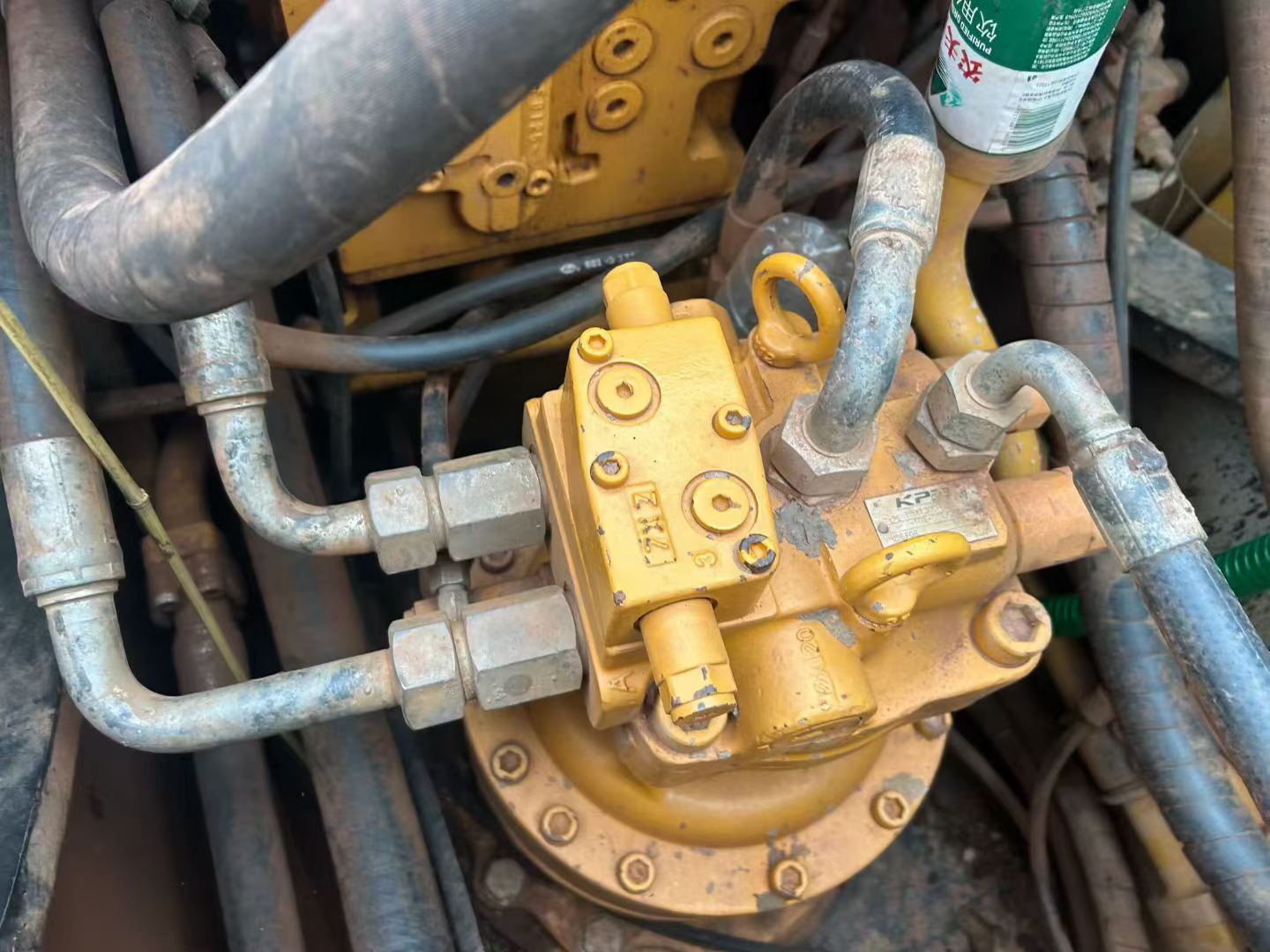

Buy Sany SY215C-8 Used Excavator / 6

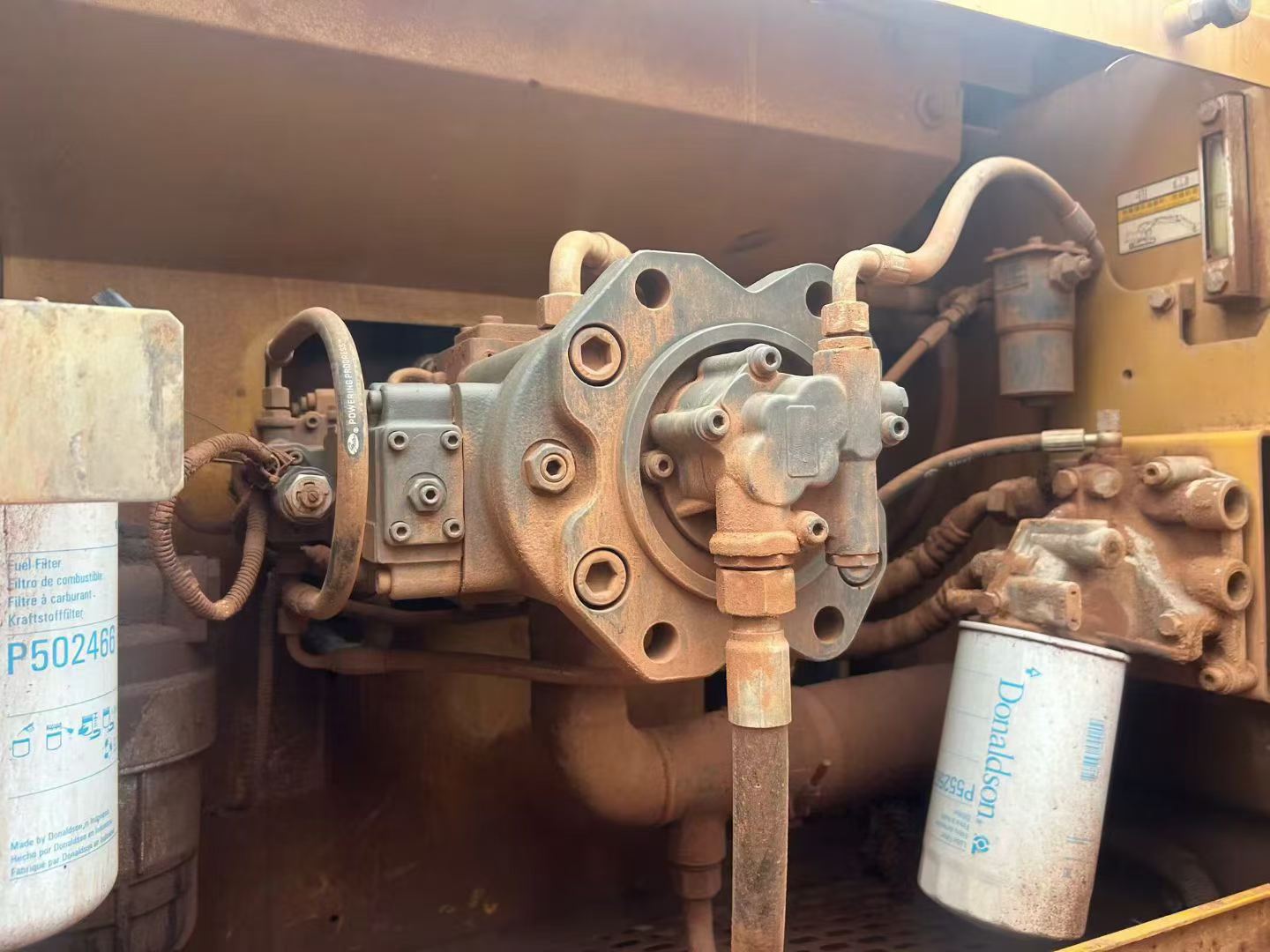

Buy Sany SY215C-8 Used Excavator / 7

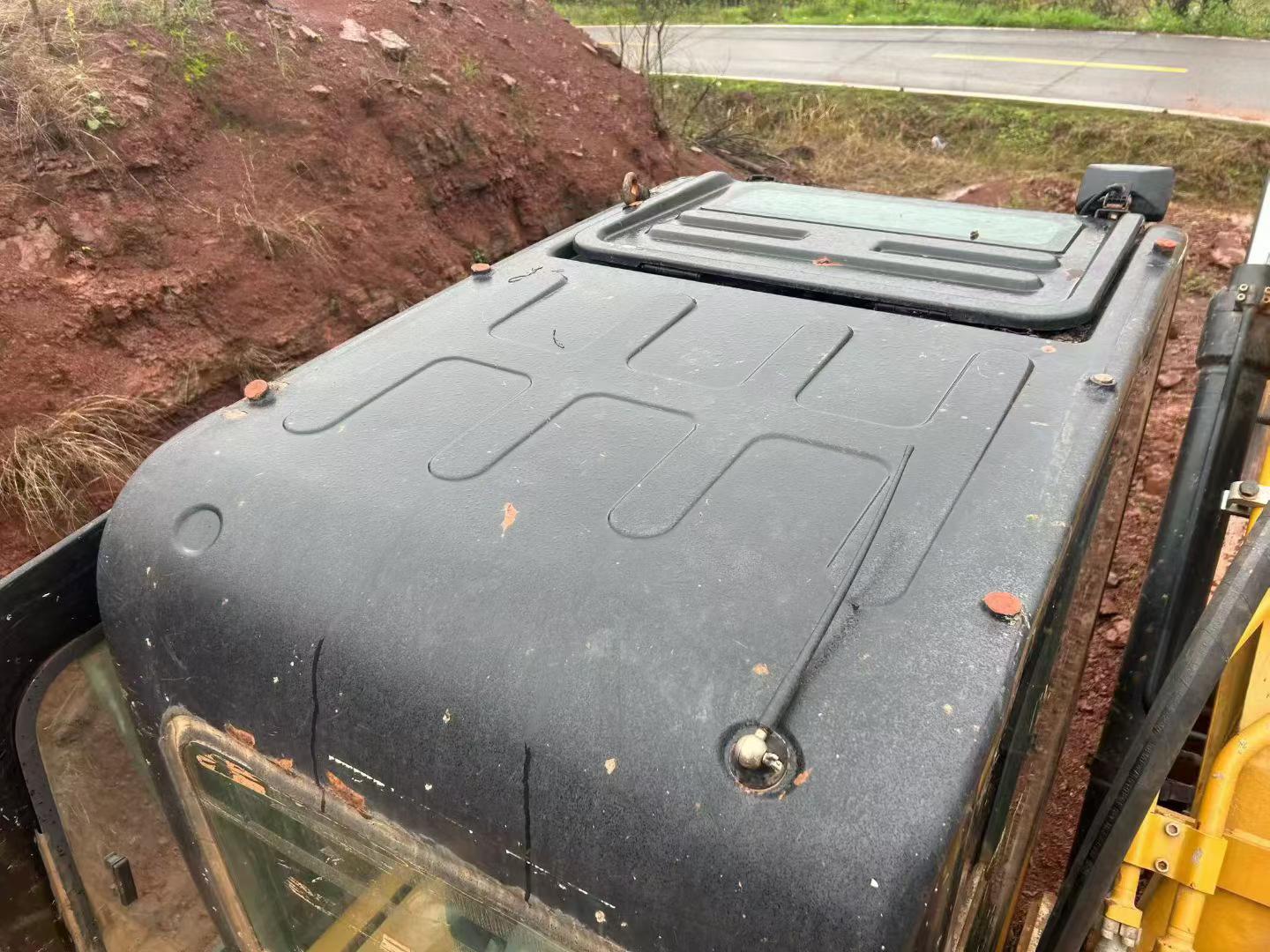

Buy Sany SY215C-8 Used Excavator / 8

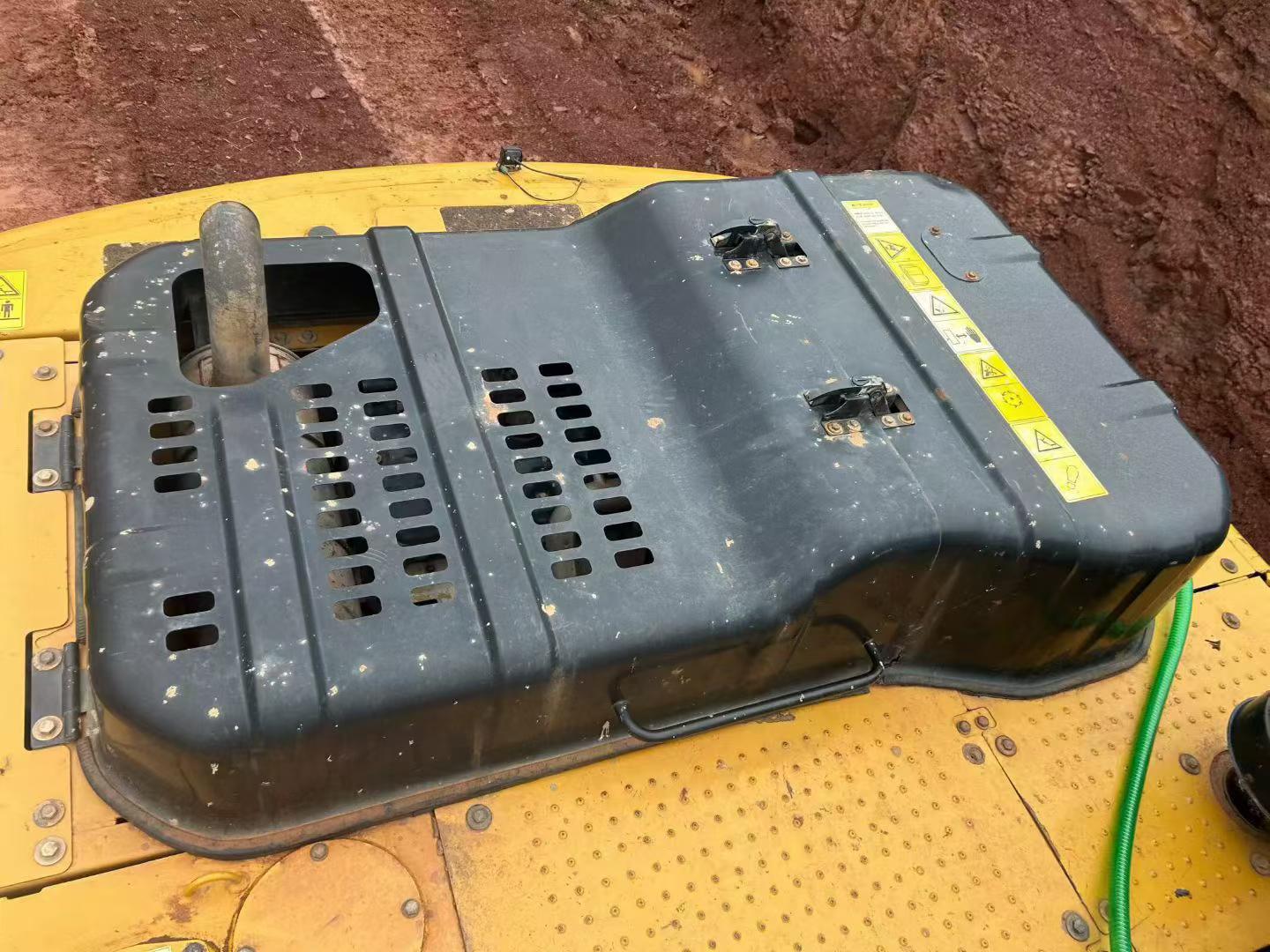

Buy Sany SY215C-8 Used Excavator / 9

Product Description

Engineered with precision in China, this 2018 Sany SY215C-8 delivers robust performance through its Mitsubishi 6D34-TL engine generating 114 kW at 2050 rpm. Operating at 21 tons with a 20,900 kg working weight, this excavator combines proven hydraulic technology with reliable water-cooling systems for sustained productivity in demanding environments. The dual main pump configuration supplies 2 x 210 l/min flow, while the 34.3 MPa main overflow pressure ensures responsive control across all functions.

  • Bucket digging force reaches 138 kN with 0.93 m³ capacity for efficient material handling
  • Maximum digging reach extends to 9,885 mm with 6,630 mm depth capability
  • Ground-specific pressure of 45 kPa minimizes surface disturbance
  • 12.5 rpm rotation speed and 70% climbing ability enable versatile site navigation
  • 3,445 mm track ground contact length provides exceptional stability

Currently located in Hunan Province, this SY215C-8 represents Sany's commitment to manufacturing quality mid-sized excavators. Dual travel speeds of 3.2/5.5 km/h optimize both precision work and site mobility, making this machine suitable for construction, earthmoving, and infrastructure projects world

SpecificationsValue
No.1050732
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1050732

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2018

Location:

Hunan China
