2019 Sany SY215C-8

1/9
Buy Sany SY215C-8 Used Excavator / 1
Buy Sany SY215C-8 Used Excavator / 2
Buy Sany SY215C-8 Used Excavator / 3
Buy Sany SY215C-8 Used Excavator / 4
Buy Sany SY215C-8 Used Excavator / 5
Buy Sany SY215C-8 Used Excavator / 6
Buy Sany SY215C-8 Used Excavator / 7
Buy Sany SY215C-8 Used Excavator / 8
Buy Sany SY215C-8 Used Excavator / 9

Product Description

Engineered for precision and all-day productivity, this 2019 Sany SY215C-8 delivers reliable performance across demanding job sites. Operating at 21 tons with a 0.93 m³ backhoe bucket, this excavator combines robust digging force (138 kN) with exceptional stability, thanks to its 45 Kpa ground-specific pressure and 3,445 mm track ground length. Powered by a Mitsubishi 6D34-TL engine producing 114 kW at 2,050 rpm, the machine offers smooth hydraulic response through its dual 210 l/min pumps and water-cooled system.

Operator comfort takes priority in this Kunshan-manufactured unit. Enhanced cabin visibility supports safe maneuvering during complex tasks, while the ergonomic control layout reduces fatigue during extended shifts. With a maximum digging radius of 9,885 mm and digging depth reaching 6,630 mm, you gain versatile reach without compromising control. Travel speeds of 3.2/5.5 km/h and a tight 2,750 mm rear turning radius ensure efficient positioning in confined spaces.

Key Specifications:

  • Working Weight: 20,900 kg
  • Bucket Digging Force: 138 kN
  • Maximum Digging Depth: 6,630 mm

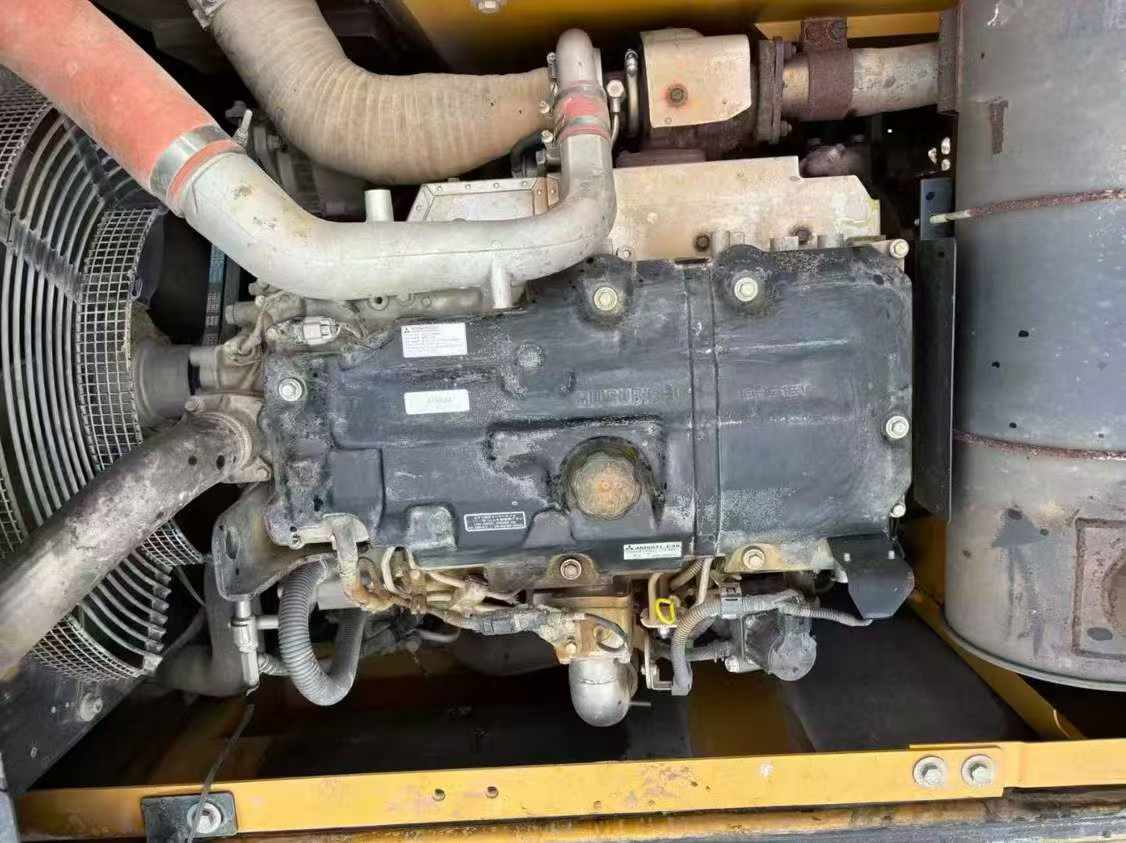

  • Engine: Mitsubishi 6D34-TL (114 kW)
  • Location: Zhejiang Jinhua, China
SpecificationsValue
No.1040782
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.93
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 6D34-TL
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2980
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1040782

Brand Name:

Sany

Model Number:

SY215C-8

Year:

2019

Location:

Zhejiang China

Pub Date
